SAXSdb — 2flk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chemotaxis protein cheY

Salmonella typhimurium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	C-terminal 15-mer from Chemotaxis protein cheZ × 1 （P07800） SULFATE ION × 1 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 48	C-terminal 15-mer from Chemotaxis protein cheZ × 24 （P07800） SULFATE ION × 24 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 48 water × 48	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHEY_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–129； UniProt 1–128

C-terminal 15-mer from Chemotaxis protein cheZ

OrganismNot specified

UniProt P07800

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Chemotaxis protein cheY × 1 （P0A2D5） SULFATE ION × 1 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 48	Chemotaxis protein cheY × 24 （P0A2D5） SULFATE ION × 24 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 48 water × 48	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHEZ_SALTY
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–15； UniProt 200–214

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2flk
Deposition date deposition_date	2006-01-06
Structure title title	Crystal structure of CheY in complex with CheZ(200-214) solved from a F432 crystal grown in CAPS (pH 10.5)
Keywords keywords	CHEMOTAXIS; BEF(3)(-)-BOUND CHEY; CHEY-CHEZ PEPTIDE COMPLEX, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2flk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

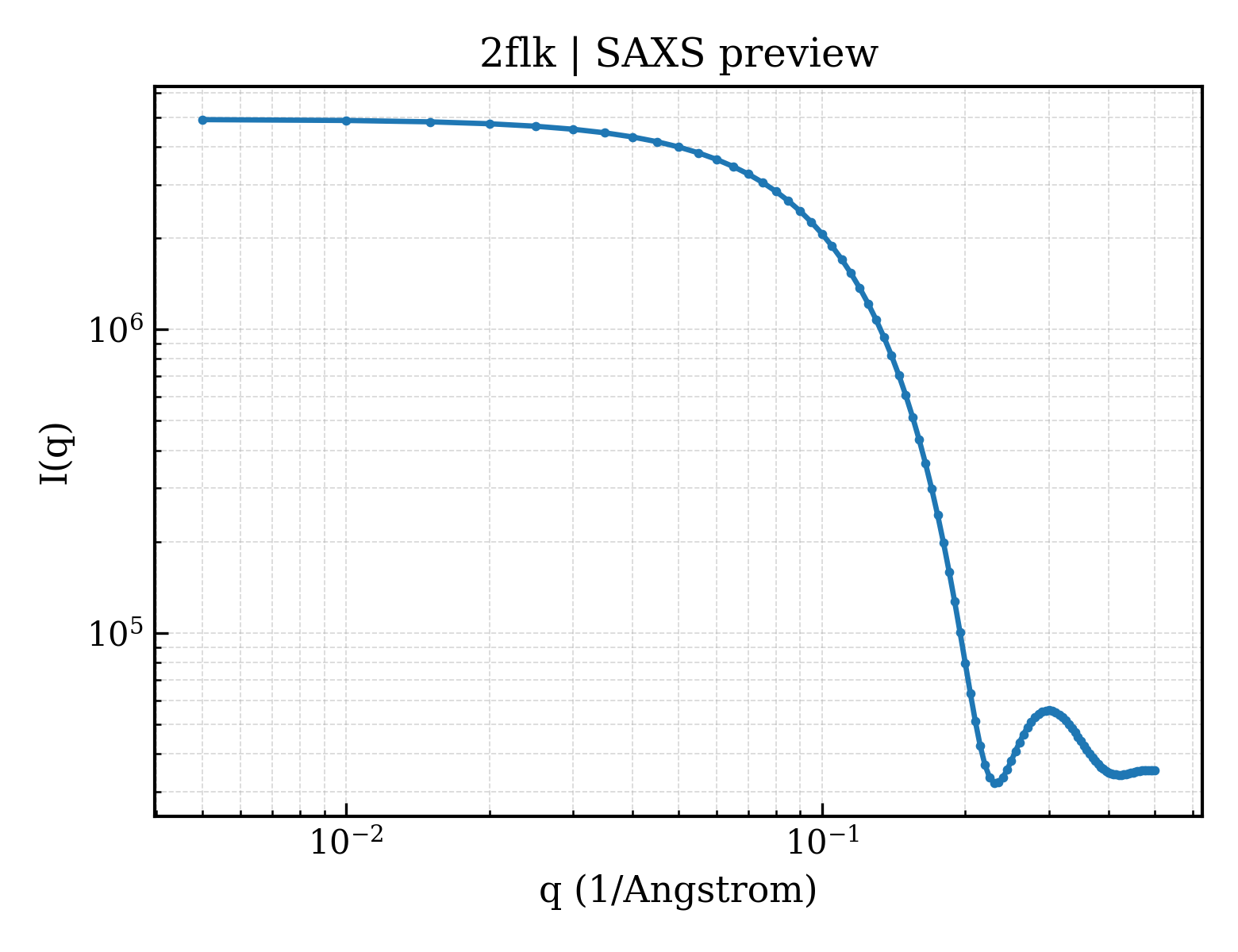

2flk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2flk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.89 Å
Rg (electron density)	14.23 Å
Total Rg	15.52 Å
Atom count	1117
Residues	141
Excluded volume	20137 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2flk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2flk__assembly_2__model_1`	48-meric （48）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Chemotaxis protein cheY
Molecular weight formula_weight	14140.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1201

MADKELKFLVVDDFSTMRRIVRNLLKELGFNNVEEAEDGVDALNKLQAGGFGFIISDWNMPNMDGLELLKTIRADSAMSALPVLMVTAEAKKENIIAAAQAGASGYVVKPFTAATLEEKLNKIFEKLGM

Source Source

Source organism organism	Salmonella typhimurium
NCBI taxonomy ID ncbi_taxonomy_id	99287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	C-terminal 15-mer from Chemotaxis protein cheZ
Molecular weight formula_weight	1622.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ASQDQVDDLLDSLGF

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	3-CYCLOHEXYL-1-PROPYLSULFONIC ACID
Molecular weight formula_weight	221.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	80

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2flka_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

CATH v4.4 (1 domains)

Domain ID domain_id	2flkA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

▶

Unit-cell length a length_a	198.750 Å
Unit-cell length b length_b	198.750 Å
Unit-cell length c length_c	198.750 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	96

Space group space_group	F 4 3 2
Space-group number int_tables_number	209
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.1976
R_work r_work	0.1966
R_free r_free	0.2074

Crystal structure of CheY in complex with CheZ(200-214) solved from a F432 crystal grown in CAPS (pH 10.5)
