2h1l

The Structure of the Oncoprotein SV40 Large T Antigen and p53 Tumor Suppressor Complex

Method: X-RAY DIFFRACTION D_max: 222.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Large T antigen

Simian virus 40

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain A； UniProt 260–627 Chain B； UniProt 260–627 Chain C； UniProt 260–627 Chain D； UniProt 260–627 Chain E； UniProt 260–627 Chain F； UniProt 260–627	Fragment：Helicase Domain, residues 260-627	Cellular tumor antigen p53 × 6 （Q9NP68） ZN ZINC ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K；5.4% PEG 4000, 73mM Mops Buffer, 22mM Lithium Sulfate, pH 6.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.16 Å R-free 0.308
2	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain G； UniProt 260–627 Chain H； UniProt 260–627 Chain I； UniProt 260–627 Chain J； UniProt 260–627 Chain K； UniProt 260–627 Chain L； UniProt 260–627	Fragment：Helicase Domain, residues 260-627	Cellular tumor antigen p53 × 6 （Q9NP68） ZN ZINC ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K；5.4% PEG 4000, 73mM Mops Buffer, 22mM Lithium Sulfate, pH 6.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.16 Å R-free 0.308

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2H1L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4E2I The Complex Structure of the SV40 Helicase Large T Antigen and p68 Subunit of DNA Polymerase Alpha-Primase Deposited 2012-03-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 266–627（362 aa） Fragment：UNP residues 266-627 Chain B 266–627（362 aa） Fragment：UNP residues 266-627 Chain C 266–627（362 aa） Fragment：UNP residues 266-627 Chain D 266–627（362 aa） Fragment：UNP residues 266-627 Chain E 266–627（362 aa） Fragment：UNP residues 266-627 Chain F 266–627（362 aa） Fragment：UNP residues 266-627	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.96 M sodium malonate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 5.00 Å R-free 0.314
4E2I The Complex Structure of the SV40 Helicase Large T Antigen and p68 Subunit of DNA Polymerase Alpha-Primase Deposited 2012-03-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain G 266–627（362 aa） Fragment：UNP residues 266-627 Chain H 266–627（362 aa） Fragment：UNP residues 266-627 Chain I 266–627（362 aa） Fragment：UNP residues 266-627 Chain J 266–627（362 aa） Fragment：UNP residues 266-627 Chain K 266–627（362 aa） Fragment：UNP residues 266-627 Chain L 266–627（362 aa） Fragment：UNP residues 266-627	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.96 M sodium malonate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 5.00 Å R-free 0.314
4GDF A Crystal Structure of SV40 Large T Antigen Deposited 2012-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 131–627（497 aa） Fragment：UNP residues 131-627 Chain B 131–627（497 aa） Fragment：UNP residues 131-627	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.75；291 K；100 mM bis-Tris (pH 6.75), 20% (v/v) PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.255
4GDF A Crystal Structure of SV40 Large T Antigen Deposited 2012-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain E 131–627（497 aa） Fragment：UNP residues 131-627 Chain F 131–627（497 aa） Fragment：UNP residues 131-627	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.75；291 K；100 mM bis-Tris (pH 6.75), 20% (v/v) PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.255

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9DH70_SV40
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–370； UniProt 260–627 Author chain B； PDBConstruct 3–370； UniProt 260–627 Author chain C； PDBConstruct 3–370； UniProt 260–627 Author chain D； PDBConstruct 3–370； UniProt 260–627 Author chain E； PDBConstruct 3–370； UniProt 260–627 Author chain F； PDBConstruct 3–370； UniProt 260–627 Author chain G； PDBConstruct 3–370； UniProt 260–627 Author chain H； PDBConstruct 3–370； UniProt 260–627 Author chain I； PDBConstruct 3–370； UniProt 260–627 Author chain J； PDBConstruct 3–370； UniProt 260–627 Author chain K； PDBConstruct 3–370； UniProt 260–627 Author chain L； PDBConstruct 3–370； UniProt 260–627

Cellular tumor antigen p53

Homo sapiens

UniProt Q9NP68

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain M； UniProt 92–292 Chain N； UniProt 92–292 Chain O； UniProt 92–292 Chain P； UniProt 92–292 Chain Q； UniProt 92–292 Chain R； UniProt 92–292	Fragment：DNA Binding Domain, residues 92-292	Large T antigen × 6 （Q9DH70） ZN ZINC ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K；5.4% PEG 4000, 73mM Mops Buffer, 22mM Lithium Sulfate, pH 6.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.16 Å R-free 0.308
2	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain S； UniProt 92–292 Chain T； UniProt 92–292 Chain U； UniProt 92–292 Chain V； UniProt 92–292 Chain W； UniProt 92–292 Chain X； UniProt 92–292	Fragment：DNA Binding Domain, residues 92-292	Large T antigen × 6 （Q9DH70） ZN ZINC ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K；5.4% PEG 4000, 73mM Mops Buffer, 22mM Lithium Sulfate, pH 6.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.16 Å R-free 0.308

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2H1L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1YC5 Sir2-p53 peptide-nicotinamide Deposited 2004-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 372–389（18 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 NCA NICOTINAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.6；293 K；CHES, PEG3350, nicotinamide, pH 9.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.202
2FEJ Solution structure of human p53 DNA binding domain. Deposited 2005-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 94–297（204 aa） Fragment：DNA binding domain	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 150 mM；Pressure ambient NMR sample composition 0.4 mM p53 core U-15N,13C, 2H; 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3 mM p53 core U-15N,13C, 2H + reverse ILV 13CH3 ; 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3 mM p53 core U-15N,13C, 2H + reverse ILV 13CH3 + reverse Tyr ; 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 100% D2O \| 100% D2O NMR sample composition 0.3 mM p53 core U-15N,13C, 2H + Met and Phe (1H); 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3 mM p53 core U-15N,13C, 2H + Met and Arg (1H); 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM p53 core U-15N,13C, 2H (50%); 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM p53 core N/A; 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM p53 core N/A; 25 mM Tris-HCl pH 7.1; 150 mM NaCl; 100% D2O \| 100% D2O	Resolution not provided
2H4F Sir2-p53 peptide-NAD+ Deposited 2006-05-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 372–389（18 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.6；293 K；CHES, PEG3350, NAD, pH 9.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.228
2H4H Sir2 H116Y mutant-p53 peptide-NAD Deposited 2006-05-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 372–389（18 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.6；293 K；CHES, PEG 3350, pH9.6, NAD, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.99 Å R-free 0.237
2H59 Sir2 H116A-deacetylated p53 peptide-3'-o-acetyl ADP ribose Deposited 2006-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 372–389（18 aa） Chain E 372–389（18 aa）	Not recorded	ZN ZINC ION × 2 APR ADENOSINE-5-DIPHOSPHORIBOSE × 1 3OD (2S,3S,4R,5S)-2-({[(S)-{[(S)-{[(2R,3S,4R,5R)-5-(6-AMINO-9H-PURIN-9-YL)-3,4-DIHYDROXYTETRAHYDROFURAN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]OXY}METHYL)-4,5-DIHYDROXYTETRAHYDROFURAN-3-YL ACETATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；PEG 8000, Na-Tartrate:K-Phosphate, NaCl, NAD, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 100K	Resolution 1.90 Å R-free 0.247

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	P53_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain M； PDBConstruct 3–203； UniProt 92–292 Author chain N； PDBConstruct 3–203； UniProt 92–292 Author chain O； PDBConstruct 3–203； UniProt 92–292 Author chain P； PDBConstruct 3–203； UniProt 92–292 Author chain Q； PDBConstruct 3–203； UniProt 92–292 Author chain R； PDBConstruct 3–203； UniProt 92–292 Author chain S； PDBConstruct 3–203； UniProt 92–292 Author chain T； PDBConstruct 3–203； UniProt 92–292 Author chain U； PDBConstruct 3–203； UniProt 92–292 Author chain V； PDBConstruct 3–203； UniProt 92–292 Author chain W； PDBConstruct 3–203； UniProt 92–292 Author chain X； PDBConstruct 3–203； UniProt 92–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

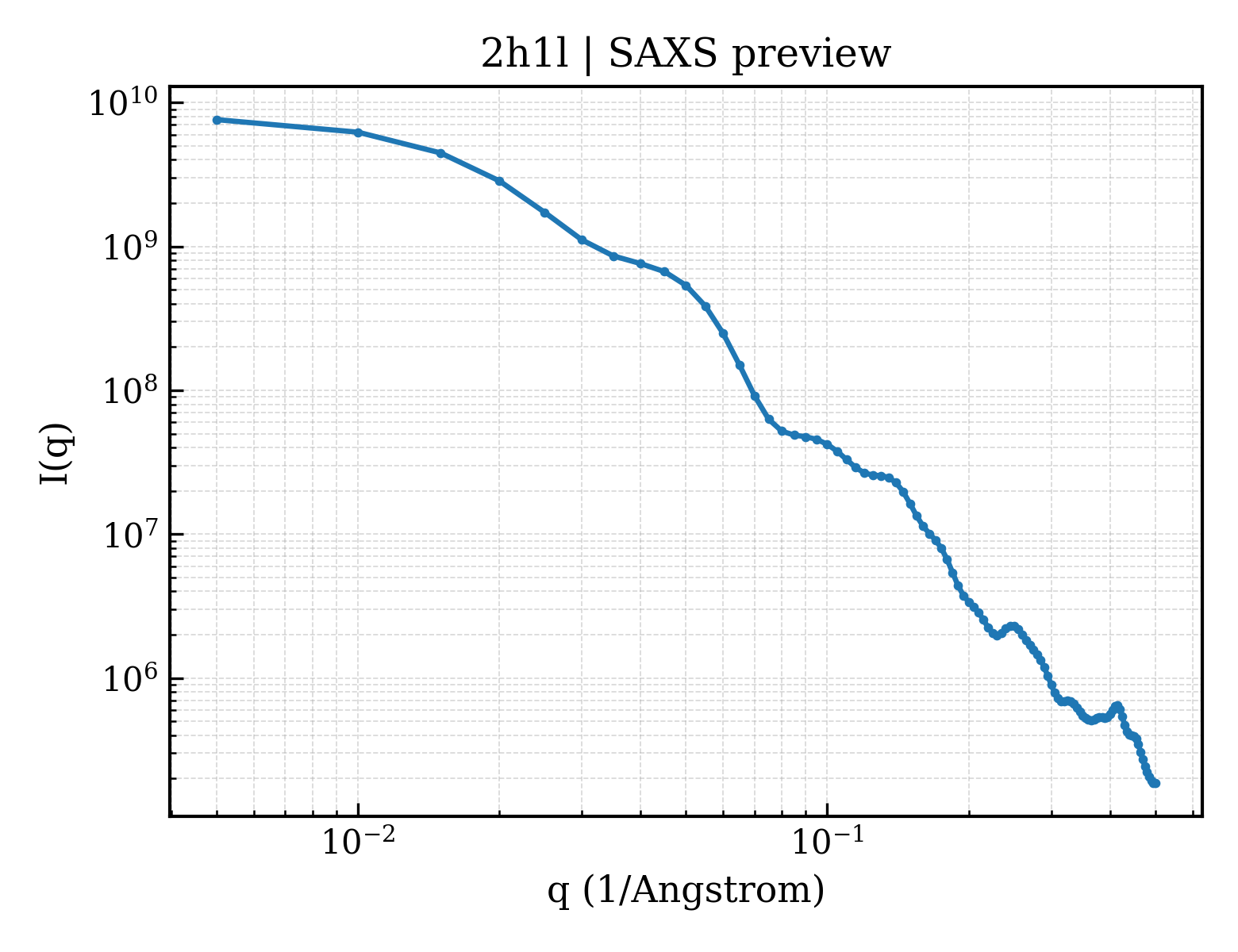

SAXS scattering curve SAXS Profile

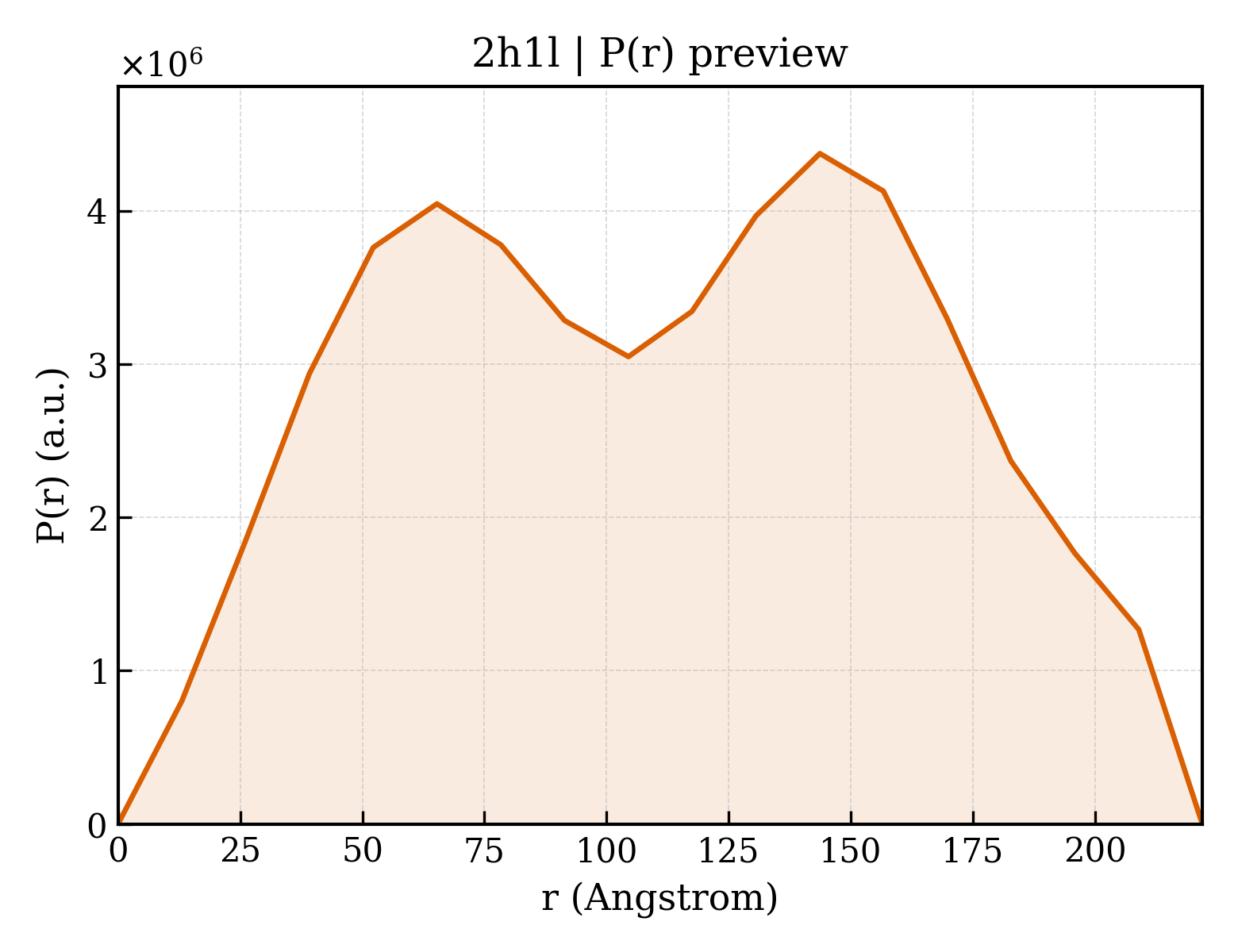

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h1l
Deposition date deposition_date	2006-05-16
Structure title title	The Structure of the Oncoprotein SV40 Large T Antigen and p53 Tumor Suppressor Complex
Keywords keywords	p53 Loop-3 conformation change, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	89.67 Å
Radius of gyration Rg (electron density) rg_electron	89.16 Å
Forward intensity I(0) i0	8137490000.00
Molecular weight molecular_weight	770560.0 kDa
Excluded volume excluded_volume	964490 Å³
Envelope volume envelope_volume	1674100 Å³
Hydration-shell volume shell_volume	151300 Å³
Envelope diameter envelope_diameter	295.1 Å
Shell Rg shell_rg	98.84 Å
Envelope Rg envelope_rg	84.01 Å
Shape Rg shape_rg	89.16 Å
Total Rg total_rg	89.22 Å
Total atoms total_atoms	53920
Residues n_residues	6736
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	222.0 Å
Rg (real space) rg_real	86.60 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	7.8790e+09
I(0) uncertainty (real space) i0_real_error	1.5830e+08
Rg (reciprocal space) rg_reciprocal	88.65 Å
I(0) (reciprocal space) i0_reciprocal	8110000000.0000
Solution quality estimate total_estimate	0.8554
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	143.7 Å
Skewness Skewness skewness	0.007
Kurtosis Kurtosis kurtosis	-1.050
Angular range angular_range	— – 0.0850 Å⁻¹
Current regularization parameter α current_alpha	0.3106
Highest regularization parameter α highest_alpha	462100000.0000
Real-space data points n_real_points	18
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.945; Stabil: 0.977; Sysdev: 1.000; Positv: 1.000; Valcen: 0.566; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Large T antigen
Molecular weight formula_weight	42645.4 kDa
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	53920

GSEEAEETKQVSWKLVTEYAMETKCDDVLLLLGMYLEFQYSFEMCLKCIKKEQPSHYKYHEKHYANAAIFADSKNQKTICQQAVDTVLAKKRVDSLQLTREQMLTNRFNDLLDRMDIMFGSTGSADIEEWMAGVAWLHCLLPKMDSVVYDFLKCMVYNIPKKRYWLFKGPIDSGKTTLAAALLELCGGKALNVNLPLDRLNFELGVAIDQFLVVFEDVKGTGGESRDLPSGQGINNLDNLRDYLDGSVKVNLEKKHLNKRTQIFPPGIVTMNEYSVPKTLQARFVKQIDFRPKDYLKHCLERSEFLLEKRIIQSGIALLLMLIWYRPVAEFAQSIQSRIVEWKERLDKEFSLSVYQKMKFNVAMGIGVLD

来源 Source

来源生物 organism	Simian virus 40
NCBI Class编号 ncbi_taxonomy_id	10633
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cellular tumor antigen p53
Molecular weight formula_weight	22802.9 kDa
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,P,Q,R,S,T,U,V,W,X

GSPLSSSVPSQKTYQGSYGFRLGFLHSGTAKSVTCTYSPALNKMFCQLAKTCPVQLWVDSTPPPGTRVRAMAIYKQSQHMTEVVRRCPHHERCSDSDGLAPPQHLIRVEGNLRVEYLDDRNTFRHSVVVPYEPPEVGSDCTTIHYNYMCNSSCMGGMNRRPILTIITLEDSSGNLLGRNSFEVRVCACPGRDRRTEEENLRKK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	24

▼

7. Fold Classification (SCOP + CATH) 84 domains

SCOP 2.08 (36 domains)

Domain ID domain_id	d2h1la_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1ld_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1le_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1li_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1ll_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d2h1lm2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lm3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1ln2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1ln3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lo2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lo3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lp2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lp3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lq2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lq3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lr2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lr3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1ls2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1ls3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lt2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lt3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lu2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lu3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lv2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lv3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lw2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lw3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h1lx2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.2 — p53 DNA-binding domain-like

Domain ID domain_id	d2h1lx3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (48 domains)

Domain ID domain_id	2h1lA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lC03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lD03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lE01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lE02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lE03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lF01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lF02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lF03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lG01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lG02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lG03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lH01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lH02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lH03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lI01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lI02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lI03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lJ01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lJ02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lJ03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lK01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lK02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lK03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lL01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

Domain ID domain_id	2h1lL02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

Domain ID domain_id	2h1lL03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h1lM00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lN00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lO00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lP00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lQ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lR00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lS00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lT00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lU00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lV00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lW00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	2h1lX00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	127.019 Å
Unit-cell length b length_b	182.718 Å
Unit-cell length c length_c	262.061 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.08 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.160 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.0690
R_work r_work	0.2614
R_free r_free	0.3081

The Structure of the Oncoprotein SV40 Large T Antigen and p53 Tumor Suppressor Complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Large T antigen

State in the Current Structure

Other States of the Same Protein in the Database

Cellular tumor antigen p53

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

7. Fold Classification (SCOP + CATH) 84 domains

SCOP 2.08 (36 domains)

CATH v4.4 (48 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/h1/2h1l/2h1l.fit
pddf	/app/data/pr_computation/h1/2h1l/2h1l.pr.out
profile	/app/data/saxs_computation/h1/2h1l/2h1l.dat
