SAXSdb — 2h4m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transportin-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Heterogeneous nuclear ribonucleoprotein A1 × 2 （P09651）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNPO1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–335； UniProt 9–343 Author chain A； PDBConstruct 343–865； UniProt 376–898 Author chain B； PDBConstruct 1–335； UniProt 9–343 Author chain B； PDBConstruct 343–865； UniProt 376–898

Heterogeneous nuclear ribonucleoprotein A1

Homo sapiens

UniProt P09651

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Transportin-1 × 2 （Q92973）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ROA1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–49； UniProt 309–357 Author chain D； PDBConstruct 1–49； UniProt 309–357

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h4m
Deposition date deposition_date	2006-05-24
Structure title title	Karyopherin Beta2/Transportin-M9NLS
Keywords keywords	HEAT Repeat, Nuclear import complex, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2h4m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

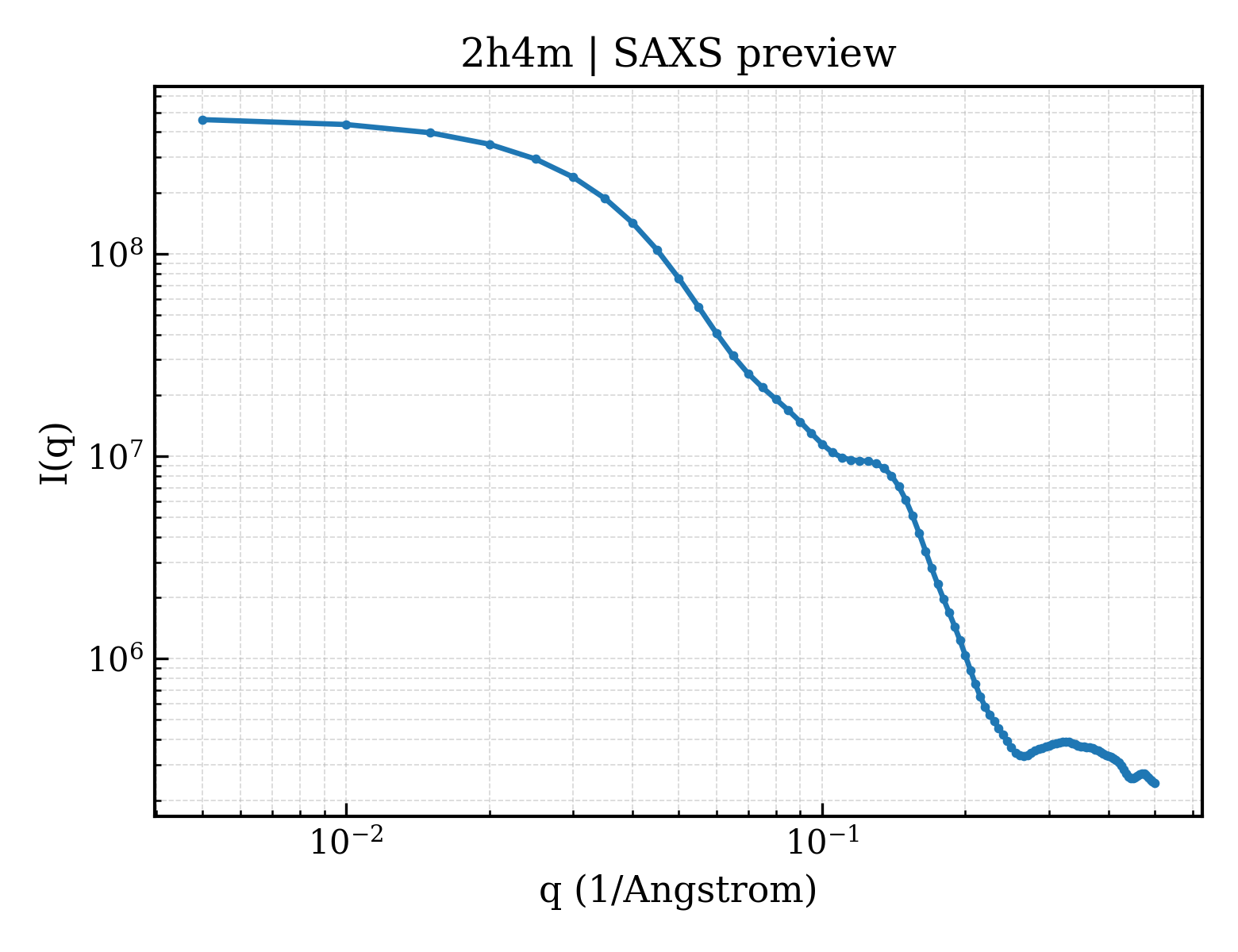

2h4m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

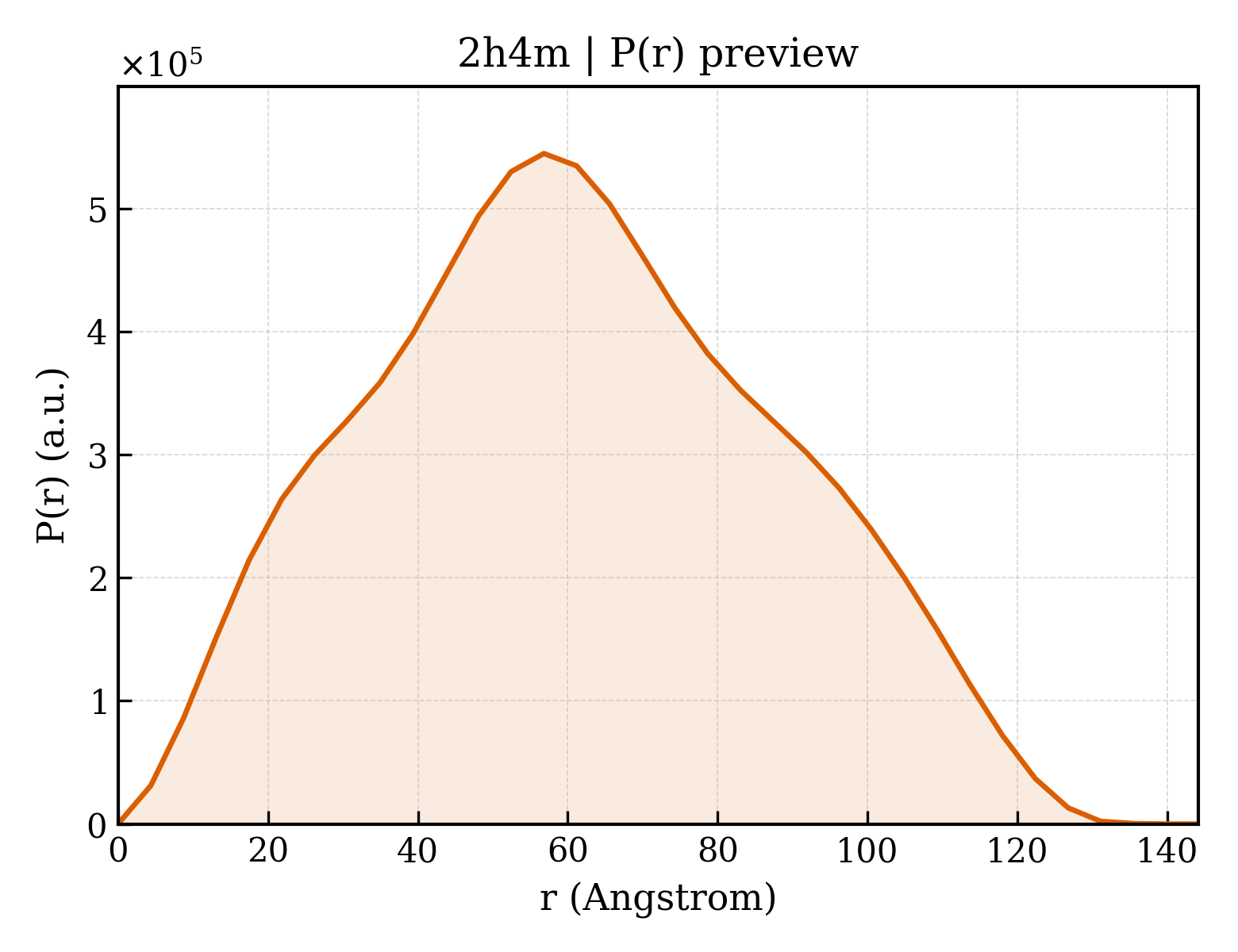

2h4m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.24 Å
Rg (electron density)	47.00 Å
Total Rg	46.95 Å
Atom count	12740
Residues	1687
Excluded volume	228180 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2h4m__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Transportin-1
Molecular weight formula_weight	98024.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	12740

MEYEWKPDEQGLQQILQLLKESQSPDTTIQRTVQQKLEQLNQYPDFNNYLIFVLTKLKSEDEPTRSLSGLILKNNVKAHFQNFPNGVTDFIKSECLNNIGDSSPLIRATVGILITTIASKGELQNWPDLLPKLCSLLDSEDYNTCEGAFGALQKICEDSAEILDSDVLDRPLNIMIPKFLQFFKHSSPKIRSHAVACVNQFIISRTQALMLHIDSFIENLFALAGDEEPEVRKNVCRALVMLLEVRMDRLLPHMHNIVEYMLQRTQDQDENVALEACEFWLTLAEQPICKDVLVRHLPKLIPVLVNGMKYSDIDIILLKGDVEEDETIPDSEQDIGGSGGSGDTISDWNLRKCSAAALDVLANVYRDELLPHILPLLKELLFHHEWVVKESGILVLGAIAEGCMQGMIPYLPELIPHLIQCLSDKKALVRSITCWTLSRYAHWVVSQPPDTYLKPLMTELLKRILDSNKRVQEAACSAFATLEEEACTELVPYLAYILDTLVFAFSKYQHKNLLILYDAIGTLADSVGHHLNKPEYIQMLMPPLIQKWNMLKDEDKDLFPLLECLSSVATALQSGFLPYCEPVYQRCVNLVQKTLAQAMLNNAQPDQYEAPDKDFMIVALDLLSGLAEGLGGNIEQLVARSNILTLMYQCMQDKMPEVRQSSFALLGDLTKACFQHVKPCIADFMPILGTNLNPEFISVCNNATWAIGEISIQMGIEMQPYIPMVLHQLVEIINRPNTPKTLLENTAITIGRLGYVCPQEVAPMLQQFIRPWCTSLRNIRDNEEKDSAFRGICTMISVNPSGVIQDFIFFCDAVASWINPKDDLRDMFCKILHGFKNQVGDENWRRFSDQFPLPLKERLAAFYGV

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Heterogeneous nuclear ribonucleoprotein A1
Molecular weight formula_weight	5078.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GGSYNDFGNYNNQSSNFGPMKGGNFGGRSSGPYGGGGQYFAKPRNQGGY

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2h4ma_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d2h4mb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

CATH v4.4 (2 domains)

Domain ID domain_id	2h4mA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2h4mB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

Unit-cell length a length_a	152.013 Å
Unit-cell length b length_b	154.093 Å
Unit-cell length c length_c	141.667 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.050 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2385
R_free r_free	0.2502
