Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | ROA1_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 5–198； UniProt 2–195 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 9f1s |
| Deposition date deposition_date | 2024-04-20 |
| Last revision last_revision | 2024-05-01 |
| Structure title title | Structure of UP1 S4ES6E phosphomimetic mutant |
| Keywords keywords | hnRNP A1, RNA/DNA BINDING PROTEIN, RNA-DNA BINDING PROTEIN phosphomimetic mutant, RRM, RNA BINDING PROTEIN; RNA BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

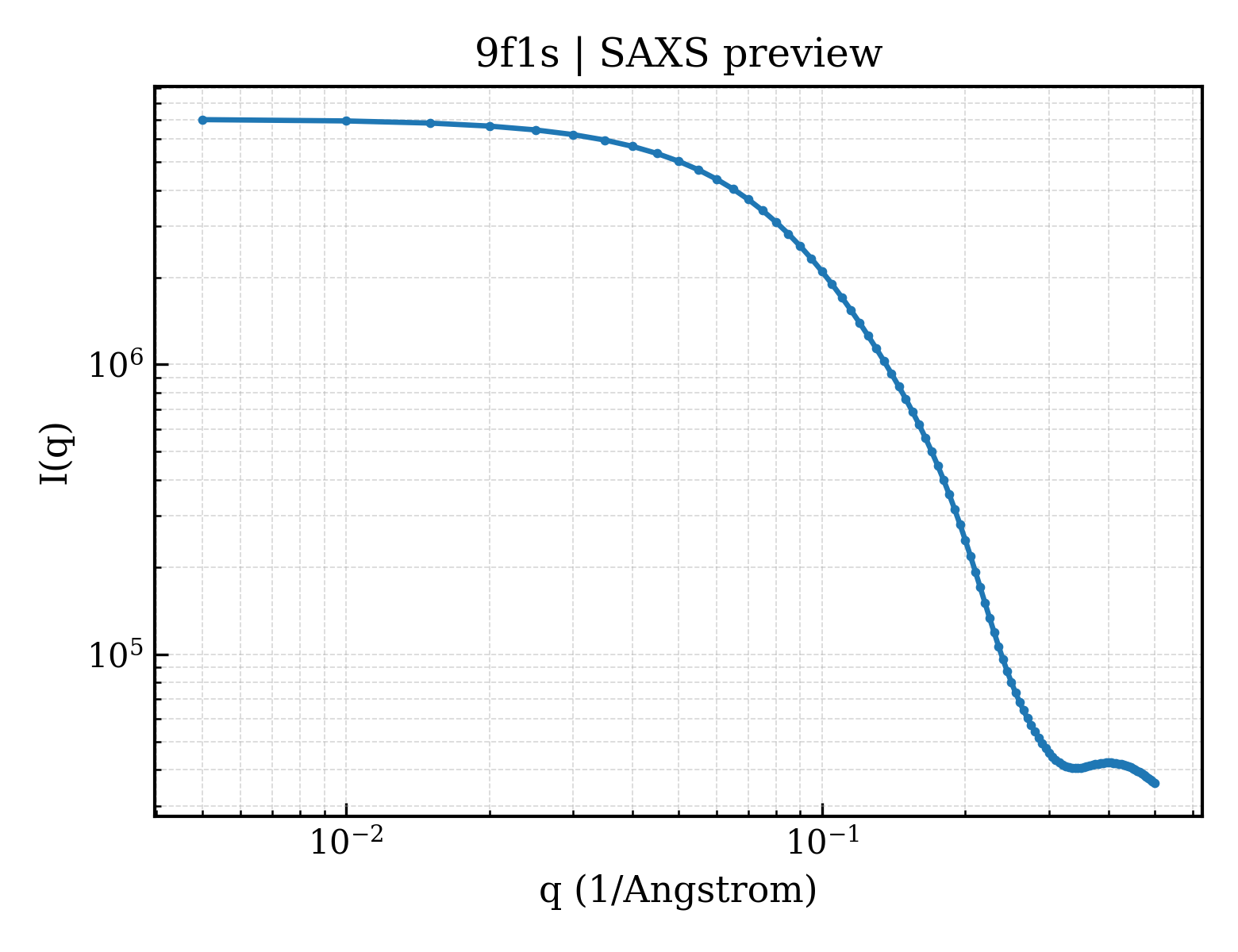

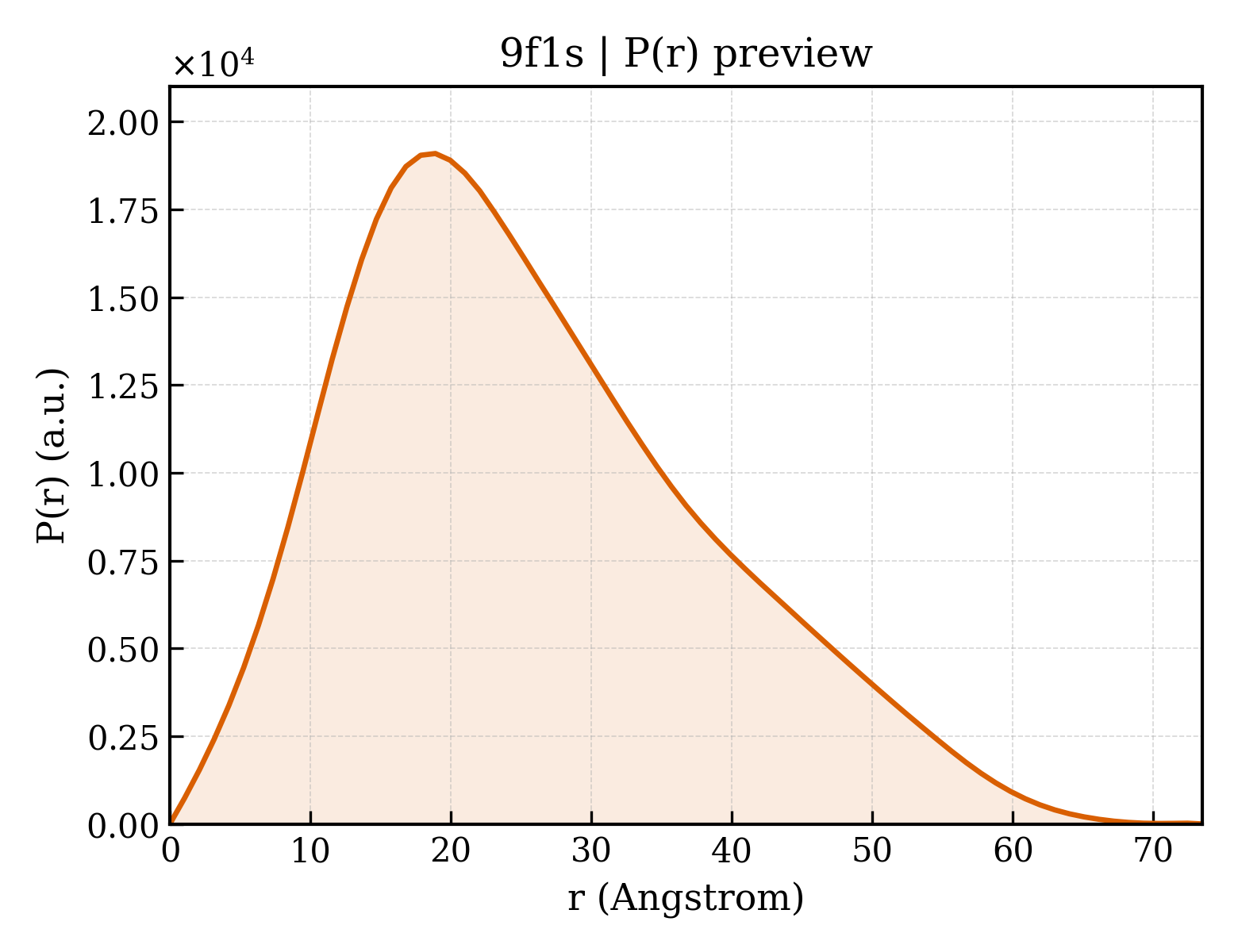

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.07 Å |
| Rg (electron density) | 19.17 Å |
| Total Rg | 20.00 Å |
| Atom count | 1340 |
| Residues | 166 |
| Excluded volume | 23657 ų |
| Maximum q | 0.500 Å⁻¹ |
