SAXSdb — 2h7v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Migration-inducing protein 5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Protein kinase ypkA × 1 （Q05608） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Protein kinase ypkA × 1 （Q05608） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–188； UniProt 1–184 Author chain B； PDBConstruct 5–188； UniProt 1–184

Protein kinase ypkA

Yersinia pseudotuberculosis

UniProt Q05608

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Migration-inducing protein 5 × 1 （P63000） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Migration-inducing protein 5 × 1 （P63000） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YPKA_YERPS
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 5–303； UniProt 434–732 Author chain D； PDBConstruct 5–303； UniProt 434–732

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h7v
Deposition date deposition_date	2006-06-04
Structure title title	Co-crystal structure of YpkA-Rac1
Keywords keywords	YpkA, YopO, Rac1, GDI, GTPase, Yersinia, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2h7v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

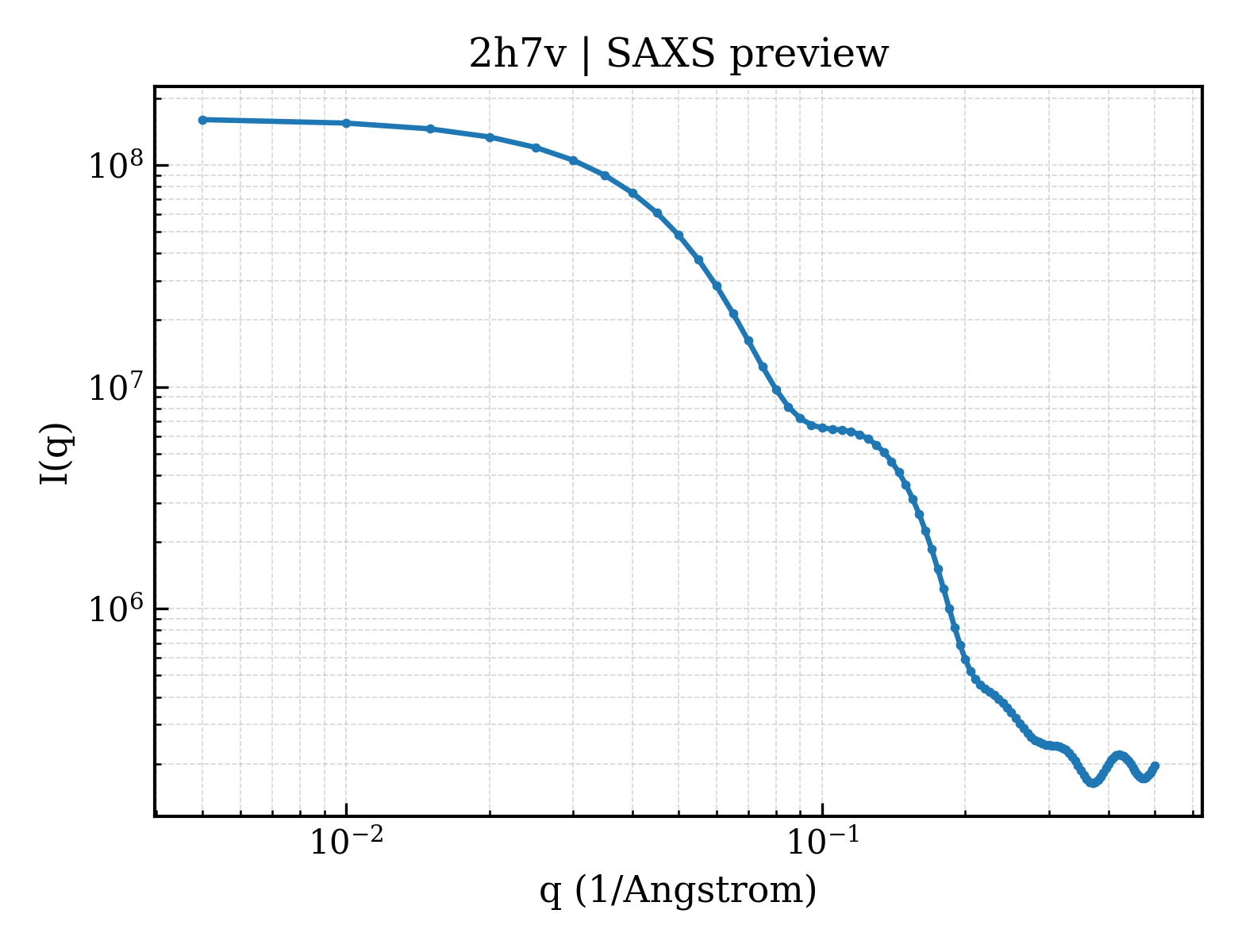

2h7v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

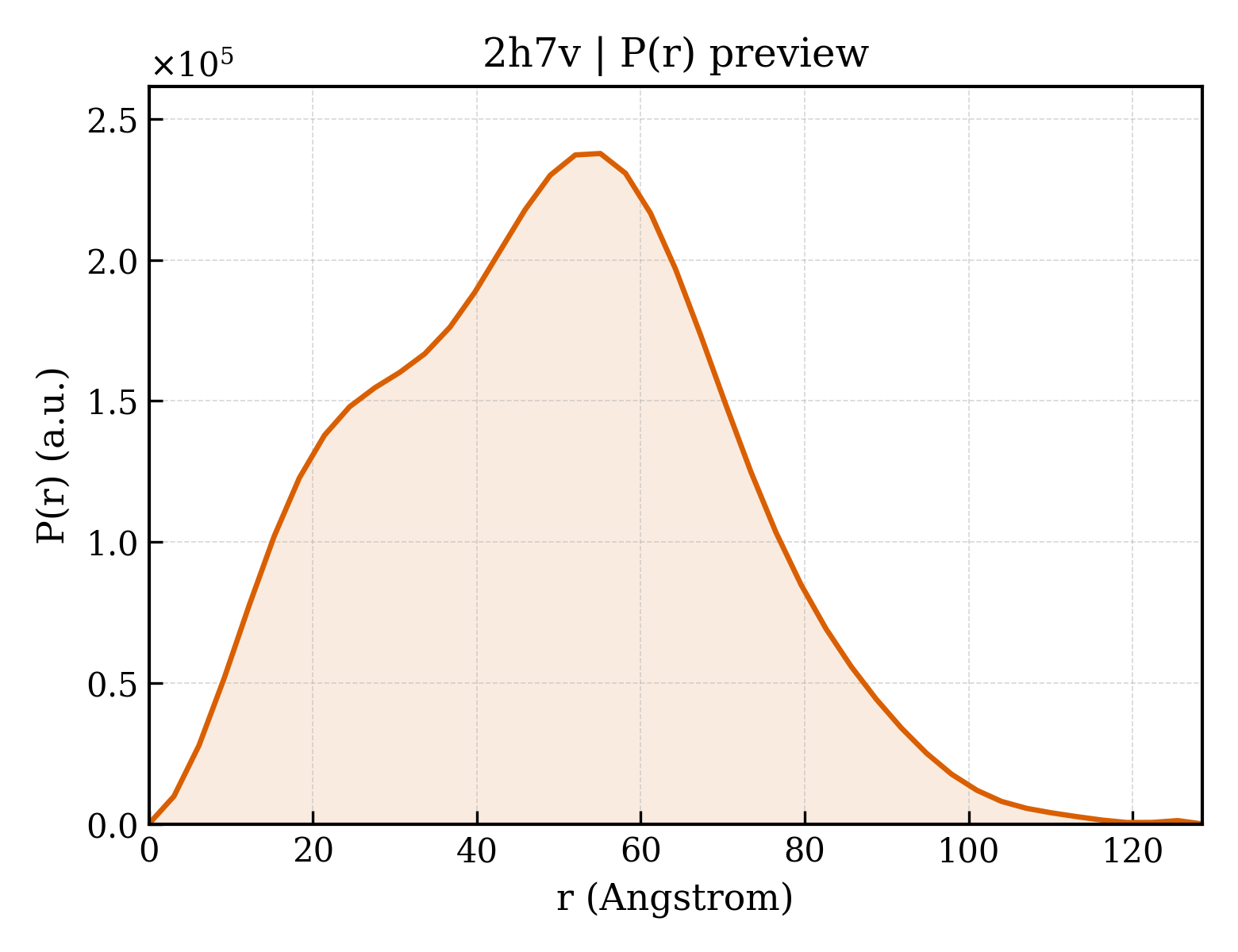

2h7v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.19 Å
Rg (electron density)	32.19 Å
Total Rg	32.58 Å
Atom count	3591
Residues	451
Excluded volume	64083 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2h7v__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2h7v__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Migration-inducing protein 5
Molecular weight formula_weight	20789.1 kDa
Mutation mutation	F78S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7191

GSKLMQAIKCVVVGDGAVGKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGQEDYDRLRPLSYPQTDVSLICFSLVSPASFENVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVLCPPPVKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Protein kinase ypkA
Molecular weight formula_weight	34449.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GPVDSTDVRRITPKKLRELSDLLRTHLSSAATKQLDMGGVLSDLDTMLVALDKAEREGGVDKDQLKSFNSLILKTYRVIEDYVKGREGDTKNSSTEVSPYHRSNFMLSIVEPSLQRIQKHLDQTHSFSDIGSLVRAHKHLETLLEVLVTLSQQGQPVSSETYGFLNRLAEAKITLSQQLNTLQQQQESAKAQLSILINRSGSWADVARQSLQRFDSTRPVVKFGTEQYTAIHRQMMAAHAAITLQEVSEFTDDMRNFTVDSIPLLIQLGRSSLMDEHLVEQREKLRELTTIAERLNRLEREWM

Source Source

Source organism organism	Yersinia pseudotuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	633
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	75

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2h7va_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2h7vb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (6 domains)

Domain ID domain_id	2h7vA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h7vB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2h7vC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1330 — Rac1-binding domain, N-terminal GTPase binding subdomain

Domain ID domain_id	2h7vC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	1230 — Rac1-binding domain, C-terminal subdomain

Domain ID domain_id	2h7vD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1330 — Rac1-binding domain, N-terminal GTPase binding subdomain

Domain ID domain_id	2h7vD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	1230 — Rac1-binding domain, C-terminal subdomain

▶

Unit-cell length a length_a	66.398 Å
Unit-cell length b length_b	75.519 Å
Unit-cell length c length_c	99.772 Å
Unit-cell angle α angle_alpha	92.08 °
Unit-cell angle β angle_beta	103.38 °
Unit-cell angle γ angle_gamma	115.79 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	95.780 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2570

Co-crystal structure of YpkA-Rac1
