2hld

Crystal structure of yeast mitochondrial F1-ATPase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase alpha chain, mitochondrial

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 7	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PHOSPHATE ION × 1 water × 8	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPA_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 36–545 Author chain B； PDBConstruct 1–510； UniProt 36–545 Author chain C； PDBConstruct 1–510； UniProt 36–545 Author chain J； PDBConstruct 1–510； UniProt 36–545 Author chain K； PDBConstruct 1–510； UniProt 36–545 Author chain L； PDBConstruct 1–510； UniProt 36–545 Author chain S； PDBConstruct 1–510； UniProt 36–545 Author chain T； PDBConstruct 1–510； UniProt 36–545 Author chain U； PDBConstruct 1–510； UniProt 36–545

ATP synthase beta chain, mitochondrial

Saccharomyces cerevisiae

UniProt P00830

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 7	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PHOSPHATE ION × 1 water × 8	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPB_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–478； UniProt 34–511 Author chain E； PDBConstruct 1–478； UniProt 34–511 Author chain F； PDBConstruct 1–478； UniProt 34–511 Author chain M； PDBConstruct 1–478； UniProt 34–511 Author chain N； PDBConstruct 1–478； UniProt 34–511 Author chain O； PDBConstruct 1–478； UniProt 34–511 Author chain V； PDBConstruct 1–478； UniProt 34–511 Author chain W； PDBConstruct 1–478； UniProt 34–511 Author chain X； PDBConstruct 1–478； UniProt 34–511

ATP synthase gamma chain, mitochondrial

OrganismNot specified

UniProt P38077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 7	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PHOSPHATE ION × 1 water × 8	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase delta chain, mitochondrial × 1 （Q12165） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPG_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–278； UniProt 34–311 Author chain P； PDBConstruct 1–278； UniProt 34–311 Author chain Y； PDBConstruct 1–278； UniProt 34–311

ATP synthase delta chain, mitochondrial

OrganismNot specified

UniProt Q12165

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 7	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PHOSPHATE ION × 1 water × 8	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase epsilon chain, mitochondrial × 1 （P21306） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPD_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–138； UniProt 23–160 Author chain Q； PDBConstruct 1–138； UniProt 23–160 Author chain Z； PDBConstruct 1–138； UniProt 23–160

ATP synthase epsilon chain, mitochondrial

OrganismNot specified

UniProt P21306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 7	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PHOSPHATE ION × 1 water × 8	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase alpha chain, mitochondrial × 3 （P07251） ATP synthase beta chain, mitochondrial × 3 （P00830） ATP synthase gamma chain, mitochondrial × 1 （P38077） ATP synthase delta chain, mitochondrial × 1 （Q12165） MAGNESIUM ION × 5 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5E_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain 1； PDBConstruct 1–61； UniProt 1–61 Author chain I； PDBConstruct 1–61； UniProt 1–61 Author chain R； PDBConstruct 1–61； UniProt 1–61

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hld
Deposition date deposition_date	2006-07-06
Structure title title	Crystal structure of yeast mitochondrial F1-ATPase
Keywords keywords	ATP PHOSPHORYLASE (H+ TRANSPORTING), ATP SYNTHASE, F1FO, F1-ATPASE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hld__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hld__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

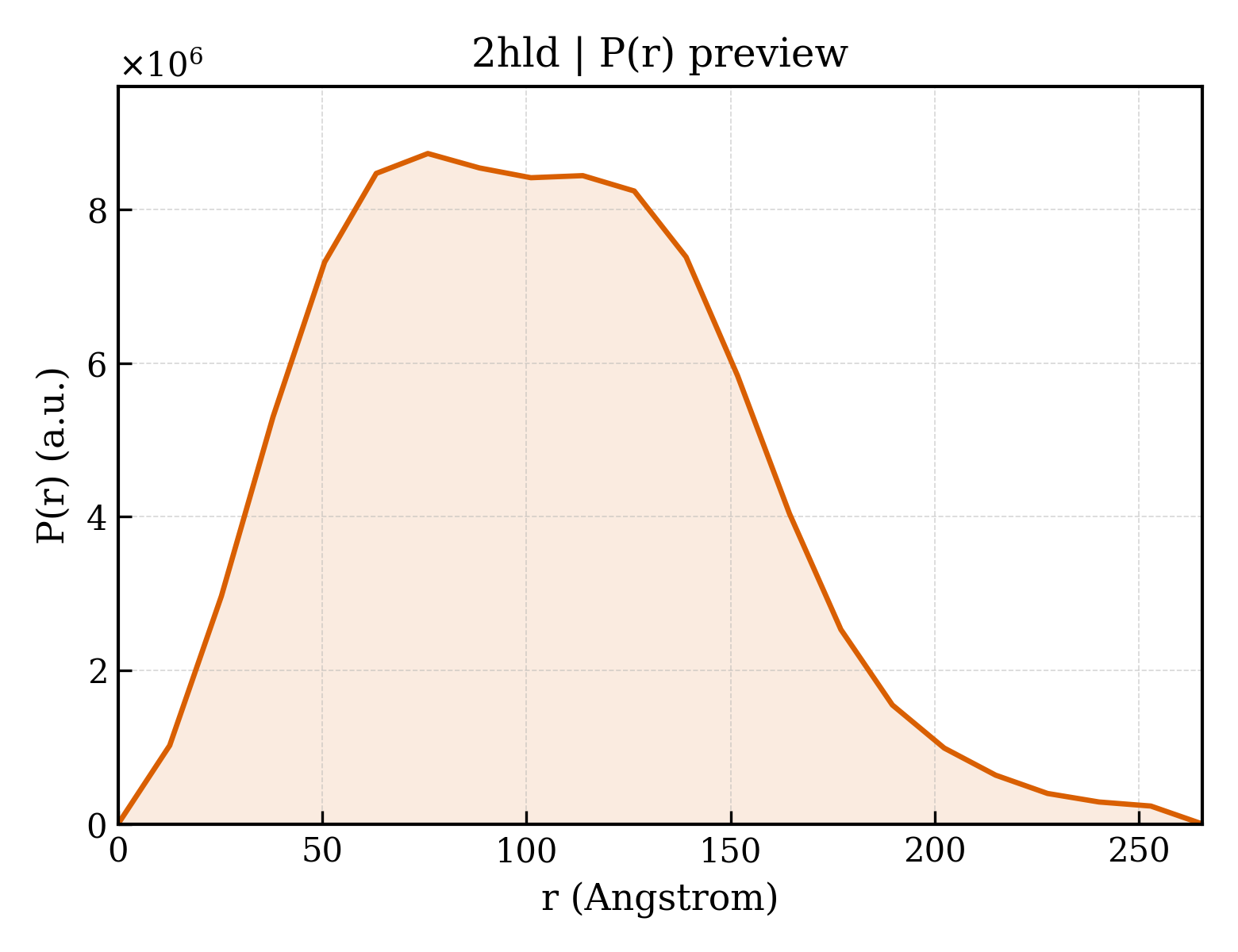

2hld__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.71 Å
Rg (electron density)	43.86 Å
Total Rg	44.16 Å
Atom count	24908
Residues	3289
Excluded volume	444370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hld__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hld__assembly_2__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2hld__assembly_3__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	ATP synthase alpha chain, mitochondrial
Molecular weight formula_weight	55007.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	nat
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,J,K,L,S,T,U
Atom count atom_count	72841

ASTKAQPTEVSSILEERIKGVSDEANLNETGRVLAVGDGIARVFGLNNIQAEELVEFSSGVKGMALNLEPGQVGIVLFGSDRLVKEGELVKRTGNIVDVPVGPGLLGRVVDALGNPIDGKGPIDAAGRSRAQVKAPGILPRRSVHEPVQTGLKAVDALVPIGRGQRELIIGDRQTGKTAVALDTILNQKRWNNGSDESKKLYCVYVAVGQKRSTVAQLVQTLEQHDAMKYSIIVAATASEAAPLQYLAPFTAASIGEWFRDNGKHALIVYDDLSKQAVAYRQLSLLLRRPPGREAYPGDVFYLHSRLLERAAKLSEKEGSGSLTALPVIETQGGDVSAYIPTNVISITDGQIFLEAELFYKGIRPAINVGLSVSRVGSAAQVKALKQVAGSLKLFLAQYREVAAFAQFGSDLDASTKQTLVRGERLTQLLKQNQYSPLATEEQVPLIYAGVNGHLDGIELSRIGEFESSFLSYLKSNHNELLTEIREKGELSKELLASLKSATESFVATF

Entity 2 Entity 2 polymer

Description description	ATP synthase beta chain, mitochondrial
Molecular weight formula_weight	51181.1 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,M,N,O,V,W,X

ASAAQSTPITGKVTAVIGAIVDVHFEQSELPAILNALEIKTPQGKLVLEVAQHLGENTVRTIAMDGTEGLVRGEKVLDTGGPISVPVGRETLGRIINVIGEPIDERGPIKSKLRKPIHADPPSFAEQSTSAEILETGIKVVDLLAPYARGGKIGLFGGAGVGKTVFIQELINNIAKAHGGFSVFTGVGERTREGNDLYREMKETGVINLEGESKVALVFGQMNEPPGARARVALTGLTIAEYFRDEEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGLLQERITTTKKGSVTSVQAVYVPADDLTDPAPATTFAHLDATTVLSRGISELGIYPAVDPLDSKSRLLDAAVVGQEHYDVASKVQETLQTYKSLQDIIAILGMDELSEQDKLTVERARKIQRFLSQPFAVAEVFTGIPGKLVRLKDTVASFKAVLEGKYDNIPEHAFYMVGGIEDVVAKAEKLAAEAN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	ATP synthase gamma chain, mitochondrial
Molecular weight formula_weight	30657.2 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,P,Y

ATLKEVEMRLKSIKNIEKITKTMKIVASTRLSKAEKAKISAKKMDEAEQLFYKNAETKNLDVEATETGAPKELIVAITSDKGLCGSIHSQLAKAVRRHLNDQPNADIVTIGDKIKMQLLRTHPNNIKLSINGIGKDAPTFQESALIADKLLSVMKAGTYPKISIFYNDPVSSLSFEPSEKPIFNAKTIEQSPSFGKFEIDTDANVPRDLFEYTLANQMLTAMAQGYAAEISARRNAMDNASKNAGDMINRYSILYNRTRQAVITNELVDIITGASSLG

Entity 4 Entity 4 polymer

Description description	ATP synthase delta chain, mitochondrial
Molecular weight formula_weight	14565.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,Q,Z

AEAAAASSGLKLQFALPHETLYSGSEVTQVNLPAKSGRIGVLANHVPTVEQLLPGVVEVMEGSNSKKFFISGGFATVQPDSQLCVTAIEAFPLESFSQENIKNLLAEAKKNVSSSDAREAAEAAIQVEVLENLQSVLK

Entity 5 Entity 5 polymer

Description description	ATP synthase epsilon chain, mitochondrial
Molecular weight formula_weight	6618.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,R,1

SAWRKAGISYAAYLNVAAQAIRSSLKTELQTASVLNRSQTDAFYTQYKNGTAASEPTPITK

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 7 Entity 7 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 8 Entity 8 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	183

▼

6. Fold Classification (SCOP + CATH) 129 domains

SCOP 2.08 (65 domains)

Domain ID domain_id	d2hld1_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family family	a.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase

Domain ID domain_id	d2hlda1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hlda2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hlda3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldb1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldb3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldc1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldc3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldd1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldd3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hlde1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hlde2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hlde3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldf1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldf2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldf3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family family	c.49.2.1 — ATP synthase (F1-ATPase), gamma subunit

Domain ID domain_id	d2hldh1
Class class	b — All beta proteins
Fold Fold fold	b.93 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Superfamily Superfamily superfamily	b.93.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Family Family family	b.93.1.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain

Domain ID domain_id	d2hldh2
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.10 — Epsilon subunit of F1F0-ATP synthase C-terminal domain
Family Family family	a.2.10.1 — Epsilon subunit of F1F0-ATP synthase C-terminal domain

Domain ID domain_id	d2hldi_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family family	a.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase

Domain ID domain_id	d2hldj1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldj2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldj3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldk1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldk2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldk3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldl1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldl2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldl3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldm1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldm2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldm3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldn1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldn2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldn3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldo1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldo2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldo3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldp_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family family	c.49.2.1 — ATP synthase (F1-ATPase), gamma subunit

Domain ID domain_id	d2hldq1
Class class	b — All beta proteins
Fold Fold fold	b.93 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Superfamily Superfamily superfamily	b.93.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Family Family family	b.93.1.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain

Domain ID domain_id	d2hldq2
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.10 — Epsilon subunit of F1F0-ATP synthase C-terminal domain
Family Family family	a.2.10.1 — Epsilon subunit of F1F0-ATP synthase C-terminal domain

Domain ID domain_id	d2hldr_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family family	a.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase

Domain ID domain_id	d2hlds1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hlds2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hlds3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldt1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldt2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldt3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldu1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldu2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldu3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldv1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldv2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldv3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldw1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldw2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldw3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldx1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldx2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d2hldx3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d2hldy_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family family	c.49.2.1 — ATP synthase (F1-ATPase), gamma subunit

Domain ID domain_id	d2hldz1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.10 — Epsilon subunit of F1F0-ATP synthase C-terminal domain
Family Family family	a.2.10.1 — Epsilon subunit of F1F0-ATP synthase C-terminal domain

CATH v4.4 (64 domains)

Domain ID domain_id	2hldA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldG01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	2hldG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

Domain ID domain_id	2hldH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily	10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal

Domain ID domain_id	2hldI00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1620 — Atp Synthase Epsilon Chain; Chain: I;
Homologous superfamily homologous superfamily	20 — ATP synthase, F1 complex, epsilon subunit superfamily, mitochondrial

Domain ID domain_id	2hldJ01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldJ02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldJ03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldK01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldK02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldK03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldL01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldL02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldL03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldM01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldM02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldM03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldN01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldN02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldN03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldO01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldO02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldO03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldP01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	2hldP02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

Domain ID domain_id	2hldQ01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily	10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal

Domain ID domain_id	2hldQ02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	880 —

Domain ID domain_id	2hldS01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldS02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldS03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldT01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldT02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldT03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldU01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2hldU02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldU03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	2hldV01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldV02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldV03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldW01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldW02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldW03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldX01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2hldX02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hldX03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	2hldY01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	2hldY02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

▶

7. Citations (7)

Novel features of the rotary catalytic mechanism revealed in the structure of yeast F(1) ATPase.

Embo J. (2006)

PMID: 17082766 · DOI: 10.1038/sj.emboj.7601410 PRIMARY

Crystallization and preliminary crystallographic studies of the mitochondrial F1-ATPase from the yeast Saccharomyces cerevisiae.

Acta Crystallogr.,Sect.D (2004)

The structure of bovine F1-ATPase inhibited by ADP and beryllium fluoride.

Embo J. (2004)

;Structure of bovine mitochondrial F(1)-ATPase with nucleotide bound to all three catalytic sites: implications for the mechanism of rotary catalysis. ;

Cell(Cambridge,Mass.) (2001)

The structure of the central stalk in bovine F1-ATPase at 2.4 A resolution

Nat.Struct.Mol.Biol. (2000)

Molecular architecture of the rotary motor in ATP synthase.

Science (1999)

Structure at 2.8 A resolution of F1-ATPase from bovine heart mitochondria

Nature (1994)

Unit-cell length a length_a	111.524 Å
Unit-cell length b length_b	294.132 Å
Unit-cell length c length_c	190.432 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.67 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2073
R_work r_work	0.2066
R_free r_free	0.2441

Crystal structure of yeast mitochondrial F1-ATPase

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase alpha chain, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase beta chain, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase gamma chain, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase delta chain, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase epsilon chain, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hld__assembly_1__model_1

2hld__assembly_1__model_1 | I(q)

2hld__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 129 domains

SCOP 2.08 (65 domains)

CATH v4.4 (64 domains)

7. Citations (7)
