3oe7

Structure of four mutant forms of yeast f1 ATPase: gamma-I270T

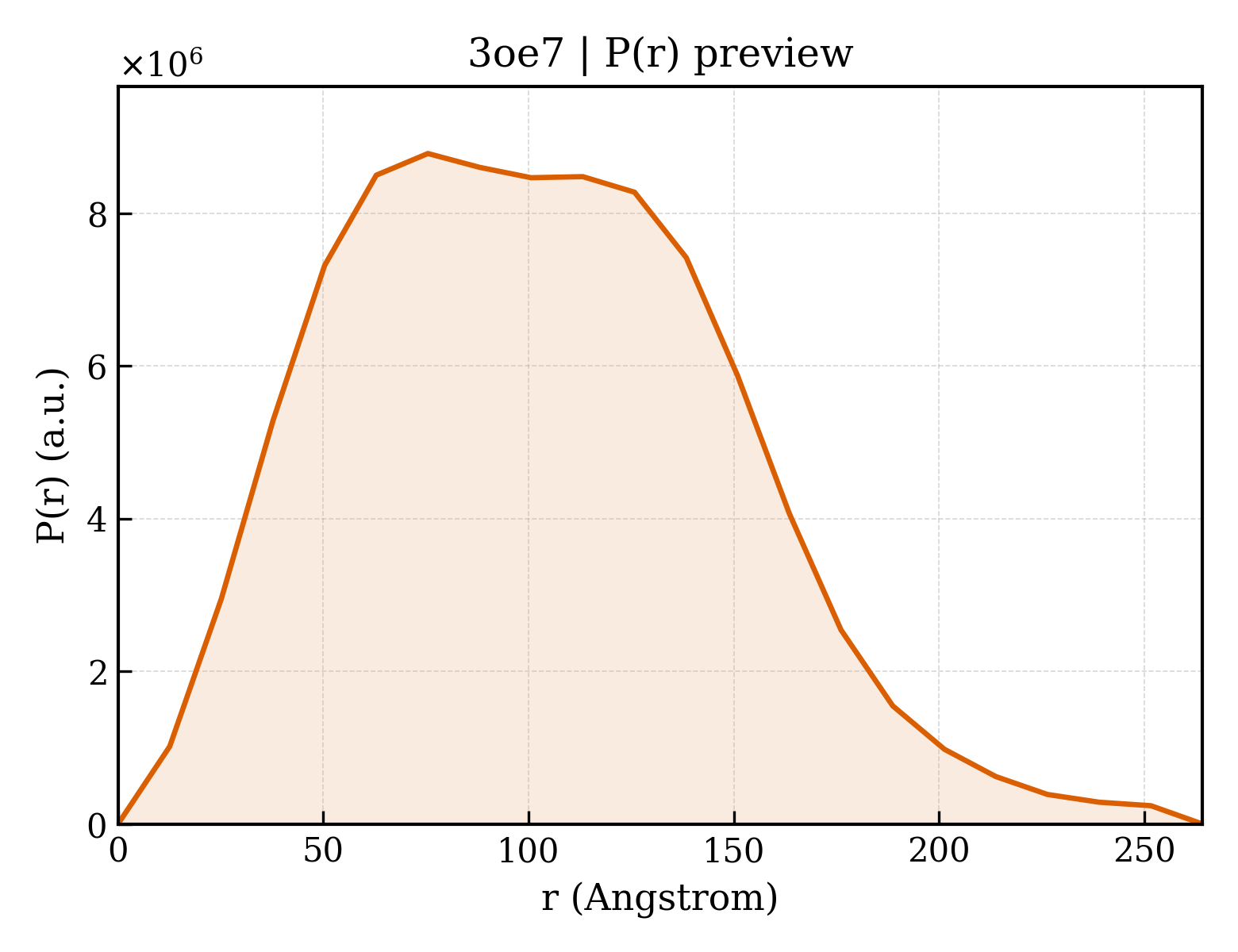

Method: X-RAY DIFFRACTION Dmax: 264.1 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha

Saccharomyces cerevisiae

UniProt P07251

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain A； UniProt 36–545 Chain B； UniProt 36–545 Chain C； UniProt 36–545 Fragment：UNP RESIDUES 36-545 ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
2 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain J； UniProt 36–545 Chain K； UniProt 36–545 Chain L； UniProt 36–545 Fragment：UNP RESIDUES 36-545 ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
3 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain S； UniProt 36–545 Chain T； UniProt 36–545 Chain U； UniProt 36–545 Fragment：UNP RESIDUES 36-545 ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3OE7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain J 36–545（510 aa）
Chain K 36–545（510 aa）
Chain L 36–545（510 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain S 36–545（510 aa）
Chain T 36–545（510 aa）
Chain U 36–545（510 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2WPD The Mg.ADP inhibited state of the yeast F1c10 ATP synthase Deposited 2009-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES/HCL PH 7.5, 12% PEG MME 5000, 100 MM SODIUM CHLORIDE MIXED 1:1 WITH PROTEIN SOLUTION CONTAINING 0.64 MM DDM, 25 MM TRIS/HCL PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 0.02% SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.66 MM ADP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF
Resolution 3.43 Å R-free 0.297
2XOK Refined structure of yeast F1c10 ATPase complex to 3 A resolution Deposited 2010-08-18 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain A 1–545（545 aa）
Chain B 1–545（545 aa）
Chain C 1–545（545 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3. MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE.
Resolution 3.01 Å R-free 0.253
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 36–545（510 aa） Fragment：UNP residues 36-545
Chain B 36–545（510 aa） Fragment：UNP residues 36-545
Chain C 36–545（510 aa） Fragment：UNP residues 36-545
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain J 36–545（510 aa） Fragment：UNP residues 36-545
Chain K 36–545（510 aa） Fragment：UNP residues 36-545
Chain L 36–545（510 aa） Fragment：UNP residues 36-545
Not recorded PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain S 36–545（510 aa） Fragment：UNP residues 36-545
Chain T 36–545（510 aa） Fragment：UNP residues 36-545
Chain U 36–545（510 aa） Fragment：UNP residues 36-545
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain B 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain C 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Mutation：F405S Mutation：F405S Mutation：F405S ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain J 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain K 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain L 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Mutation：F405S Mutation：F405S Mutation：F405S ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain S 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain T 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain U 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Mutation：F405S Mutation：F405S Mutation：F405S ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain B 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain C 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain J 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain K 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain L 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain S 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain T 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain U 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain B 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain C 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Mutation：N67I Mutation：N67I Mutation：N67I ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain J 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain K 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain L 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Mutation：N67I Mutation：N67I Mutation：N67I ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain S 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain T 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Chain U 36–545（510 aa） Fragment：UNP RESIDUES 36-545
Mutation：N67I Mutation：N67I Mutation：N67I ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain K 36–545（510 aa）
Chain L 36–545（510 aa）
Chain M 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZRY Rotor architecture in the F(1)-c(10)-ring complex of the yeast F-ATP synthase Deposited 2011-06-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；10% PEG 4000, 100 MM SODIUM CHLORIDE, 100 MM HEPES PH 6.5 MIXED 1:1 WITH PROTEIN SOLUTION (10 MG/ML) CONTAINING 0.64 MM DDM, 25 MM TRIS PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 3 MM SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.04 MM ADP, 1 MM AMP-PNP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF.
Resolution 6.50 Å R-free 0.339
4B2Q Model of the yeast F1Fo-ATP synthase dimer based on subtomogram average Deposited 2012-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain A 61–545（485 aa） Fragment：RESIDUES 61-545
Chain B 60–545（486 aa） Fragment：RESIDUES 60-545
Chain C 61–545（485 aa） Fragment：RESIDUES 61-545
Chain a 61–545（485 aa） Fragment：RESIDUES 61-545
Chain b 60–545（486 aa） Fragment：RESIDUES 60-545
Chain c 61–545（485 aa） Fragment：RESIDUES 61-545
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 250MM TREHALOSE 10NM TRIS- HCL PH7.4；pH 7.4；250MM TREHALOSE 10NM TRIS- HCL PH7.4
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, TEMPERATURE- 100, INSTRUMENT- HOMEMADE PLUNGER, METHOD- SINGLE SIDE MANUAL BLOTTING FOR 5 SECONDS.,
Resolution 37.00 Å
6B8H Mosaic model of yeast mitochondrial ATP synthase monomer Deposited 2017-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Chain K 36–545（510 aa）
Chain W 36–545（510 aa）
Chain X 36–545（510 aa）
Chain n 36–545（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.60 Å
6CP3 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc with inhibitor of oligomycin bound. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6CP6 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TJT Yeast ATP synthase F1 region State 1-3catalytic beta_tight open without exogenous ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.20 Å
7TJU Yeast ATP synthase F1 region State 1-3binding beta_tight open without exogenous ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.30 Å
7TJV Yeast ATP synthase F1 region State 1catalytic(a) with 10 mM ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.60 Å
7TJW Yeast ATP synthase F1 region State 1catalytic(e-h) with 10 mM ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.00 Å
7TJX Yeast ATP synthase F1 region State 1binding(a-d) with 10 mM ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.00 Å
7TJY Yeast ATP synthase State 1catalytic(a) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.80 Å
7TJZ Yeast ATP synthase State 1catalytic(b) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK0 Yeast ATP synthase State 1catalytic(c) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK1 Yeast ATP synthase State 1catalytic(d) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TK2 Yeast ATP synthase State 1binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK3 Yeast ATP synthase State 1binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TK4 Yeast ATP synthase State 1binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.00 Å
7TK5 Yeast ATP synthase State 1binding(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.80 Å
7TK6 Yeast ATP synthase State 1catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK7 Yeast ATP synthase State 1catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.70 Å
7TK8 Yeast ATP synthase State 1catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.70 Å
7TK9 Yeast ATP synthase State 1catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.00 Å
7TKA Yeast ATP synthase State 1catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKB Yeast ATP synthase State 1catalytic(f) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TKC Yeast ATP synthase State 1catalytic(g) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 5.80 Å
7TKD Yeast ATP synthase State 1catalytic(h) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.70 Å
7TKE Yeast ATP synthase State 2binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKF Yeast ATP synthase State 2binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKG Yeast ATP synthase State 2catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKH Yeast ATP synthase State 2catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TKI Yeast ATP synthase State 2catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKJ Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
7TKK Yeast ATP synthase State 2catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.30 Å
7TKL Yeast ATP synthase State 3binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.40 Å
7TKM Yeast ATP synthase State 3binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKN Yeast ATP synthase State 3binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKO Yeast ATP synthase State 3catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.80 Å
7TKP Yeast ATP synthase State 3catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.60 Å
7TKQ Yeast ATP synthase State 3catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKR Yeast ATP synthase State 3catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TKS Yeast ATP synthase State 3catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 36–545（510 aa）
Chain B 36–545（510 aa）
Chain C 36–545（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
8F29 Yeast ATP synthase in conformation-1 at pH 6 Deposited 2022-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 39–545（507 aa）
Chain B 39–545（507 aa）
Chain C 39–545（507 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8F39 Yeast ATP synthase in conformation-2, at pH 6 Deposited 2022-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain A 39–545（507 aa）
Chain B 39–545（507 aa）
Chain C 39–545（507 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

51 other PDB entries and 62 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPA_YEAST
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–510； UniProt 36–545 Author chain B； PDBConstruct 1–510； UniProt 36–545 Author chain C； PDBConstruct 1–510； UniProt 36–545 Author chain J； PDBConstruct 1–510； UniProt 36–545 Author chain K； PDBConstruct 1–510； UniProt 36–545 Author chain L； PDBConstruct 1–510； UniProt 36–545 Author chain S； PDBConstruct 1–510； UniProt 36–545 Author chain T； PDBConstruct 1–510； UniProt 36–545 Author chain U； PDBConstruct 1–510； UniProt 36–545

ATP synthase subunit beta

Saccharomyces cerevisiae

UniProt P00830

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain D； UniProt 36–511 Chain E； UniProt 36–511 Chain F； UniProt 36–511 Fragment：UNP RESIDUES 34-511 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
2 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain M； UniProt 36–511 Chain N； UniProt 36–511 Chain O； UniProt 36–511 Fragment：UNP RESIDUES 34-511 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
3 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain V； UniProt 36–511 Chain W； UniProt 36–511 Chain X； UniProt 36–511 Fragment：UNP RESIDUES 34-511 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3OE7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain M 34–511（478 aa）
Chain N 34–511（478 aa）
Chain O 34–511（478 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain V 34–511（478 aa）
Chain W 34–511（478 aa）
Chain X 34–511（478 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2WPD The Mg.ADP inhibited state of the yeast F1c10 ATP synthase Deposited 2009-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES/HCL PH 7.5, 12% PEG MME 5000, 100 MM SODIUM CHLORIDE MIXED 1:1 WITH PROTEIN SOLUTION CONTAINING 0.64 MM DDM, 25 MM TRIS/HCL PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 0.02% SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.66 MM ADP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF
Resolution 3.43 Å R-free 0.297
2XOK Refined structure of yeast F1c10 ATPase complex to 3 A resolution Deposited 2010-08-18 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain D 1–507（507 aa）
Chain E 1–507（507 aa）
Chain F 1–507（507 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3. MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE.
Resolution 3.01 Å R-free 0.253
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 34–511（478 aa） Fragment：UNP residues 34-511
Chain E 34–511（478 aa） Fragment：UNP residues 34-511
Chain F 34–511（478 aa） Fragment：UNP residues 34-511
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain M 34–511（478 aa） Fragment：UNP residues 34-511
Chain N 34–511（478 aa） Fragment：UNP residues 34-511
Chain O 34–511（478 aa） Fragment：UNP residues 34-511
Not recorded PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain V 34–511（478 aa） Fragment：UNP residues 34-511
Chain W 34–511（478 aa） Fragment：UNP residues 34-511
Chain X 34–511（478 aa） Fragment：UNP residues 34-511
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain E 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain F 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain M 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain N 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain O 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain V 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain W 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain X 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain E 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain F 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Mutation：V279F Mutation：V279F Mutation：V279F ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain M 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain N 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain O 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Mutation：V279F Mutation：V279F Mutation：V279F ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain V 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain W 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain X 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Mutation：V279F Mutation：V279F Mutation：V279F ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain E 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain F 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain M 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain N 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain O 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain V 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain W 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Chain X 36–511（476 aa） Fragment：UNP RESIDUES 34-511
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain N 34–511（478 aa）
Chain O 34–511（478 aa）
Chain P 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZRY Rotor architecture in the F(1)-c(10)-ring complex of the yeast F-ATP synthase Deposited 2011-06-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；10% PEG 4000, 100 MM SODIUM CHLORIDE, 100 MM HEPES PH 6.5 MIXED 1:1 WITH PROTEIN SOLUTION (10 MG/ML) CONTAINING 0.64 MM DDM, 25 MM TRIS PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 3 MM SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.04 MM ADP, 1 MM AMP-PNP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF.
Resolution 6.50 Å R-free 0.339
4B2Q Model of the yeast F1Fo-ATP synthase dimer based on subtomogram average Deposited 2012-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain D 39–508（470 aa） Fragment：RESIDUES 39-508
Chain E 39–511（473 aa） Fragment：RESIDUES 39-511
Chain F 39–511（473 aa） Fragment：RESIDUES 39-511
Chain d 39–508（470 aa） Fragment：RESIDUES 39-508
Chain e 39–511（473 aa） Fragment：RESIDUES 39-511
Chain f 39–511（473 aa） Fragment：RESIDUES 39-511
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 250MM TREHALOSE 10NM TRIS- HCL PH7.4；pH 7.4；250MM TREHALOSE 10NM TRIS- HCL PH7.4
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, TEMPERATURE- 100, INSTRUMENT- HOMEMADE PLUNGER, METHOD- SINGLE SIDE MANUAL BLOTTING FOR 5 SECONDS.,
Resolution 37.00 Å
6B8H Mosaic model of yeast mitochondrial ATP synthase monomer Deposited 2017-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Chain Y 34–511（478 aa）
Chain Z 34–511（478 aa）
Chain c 34–511（478 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.60 Å
6CP3 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc with inhibitor of oligomycin bound. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6CP6 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TJT Yeast ATP synthase F1 region State 1-3catalytic beta_tight open without exogenous ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.20 Å
7TJU Yeast ATP synthase F1 region State 1-3binding beta_tight open without exogenous ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.30 Å
7TJV Yeast ATP synthase F1 region State 1catalytic(a) with 10 mM ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.60 Å
7TJW Yeast ATP synthase F1 region State 1catalytic(e-h) with 10 mM ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.00 Å
7TJX Yeast ATP synthase F1 region State 1binding(a-d) with 10 mM ATP Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.00 Å
7TJY Yeast ATP synthase State 1catalytic(a) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.80 Å
7TJZ Yeast ATP synthase State 1catalytic(b) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK0 Yeast ATP synthase State 1catalytic(c) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK1 Yeast ATP synthase State 1catalytic(d) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TK2 Yeast ATP synthase State 1binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK3 Yeast ATP synthase State 1binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TK4 Yeast ATP synthase State 1binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.00 Å
7TK5 Yeast ATP synthase State 1binding(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.80 Å
7TK6 Yeast ATP synthase State 1catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK7 Yeast ATP synthase State 1catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.70 Å
7TK8 Yeast ATP synthase State 1catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.70 Å
7TK9 Yeast ATP synthase State 1catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.00 Å
7TKA Yeast ATP synthase State 1catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKB Yeast ATP synthase State 1catalytic(f) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TKC Yeast ATP synthase State 1catalytic(g) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 5.80 Å
7TKD Yeast ATP synthase State 1catalytic(h) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.70 Å
7TKE Yeast ATP synthase State 2binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKF Yeast ATP synthase State 2binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKG Yeast ATP synthase State 2catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKH Yeast ATP synthase State 2catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TKI Yeast ATP synthase State 2catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKJ Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
7TKK Yeast ATP synthase State 2catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.30 Å
7TKL Yeast ATP synthase State 3binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.40 Å
7TKM Yeast ATP synthase State 3binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKN Yeast ATP synthase State 3binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKO Yeast ATP synthase State 3catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.80 Å
7TKP Yeast ATP synthase State 3catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.60 Å
7TKQ Yeast ATP synthase State 3catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKR Yeast ATP synthase State 3catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TKS Yeast ATP synthase State 3catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 34–511（478 aa）
Chain E 34–511（478 aa）
Chain F 34–511（478 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
8F29 Yeast ATP synthase in conformation-1 at pH 6 Deposited 2022-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 39–511（473 aa）
Chain E 39–511（473 aa）
Chain F 39–511（473 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8F39 Yeast ATP synthase in conformation-2, at pH 6 Deposited 2022-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain D 39–511（473 aa）
Chain E 39–511（473 aa）
Chain F 39–511（473 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

51 other PDB entries and 62 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPB_YEAST
Isoform —
PDB entities 2
Chains and sequence ranges Author chain D； PDBConstruct 9–484； UniProt 36–511 Author chain E； PDBConstruct 9–484； UniProt 36–511 Author chain F； PDBConstruct 9–484； UniProt 36–511 Author chain M； PDBConstruct 9–484； UniProt 36–511 Author chain N； PDBConstruct 9–484； UniProt 36–511 Author chain O； PDBConstruct 9–484； UniProt 36–511 Author chain V； PDBConstruct 9–484； UniProt 36–511 Author chain W； PDBConstruct 9–484； UniProt 36–511 Author chain X； PDBConstruct 9–484； UniProt 36–511

ATP synthase subunit gamma

Saccharomyces cerevisiae

UniProt P38077

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain G； UniProt 34–311 Fragment：UNP RESIDUES 34-311 Mutation：I270T ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
2 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain P； UniProt 34–311 Fragment：UNP RESIDUES 34-311 Mutation：I270T ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
3 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain Y； UniProt 34–311 Fragment：UNP RESIDUES 34-311 Mutation：I270T ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3OE7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 34–311（278 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain P 34–311（278 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 34–311（278 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2WPD The Mg.ADP inhibited state of the yeast F1c10 ATP synthase Deposited 2009-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES/HCL PH 7.5, 12% PEG MME 5000, 100 MM SODIUM CHLORIDE MIXED 1:1 WITH PROTEIN SOLUTION CONTAINING 0.64 MM DDM, 25 MM TRIS/HCL PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 0.02% SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.66 MM ADP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF
Resolution 3.43 Å R-free 0.297
2XOK Refined structure of yeast F1c10 ATPase complex to 3 A resolution Deposited 2010-08-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain G 1–311（311 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3. MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE.
Resolution 3.01 Å R-free 0.253
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 34–311（278 aa） Fragment：UNP residues 34-311
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain P 34–311（278 aa） Fragment：UNP residues 34-311
Not recorded PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 34–311（278 aa） Fragment：UNP residues 34-311
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain P 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain P 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain P 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain Y 34–311（278 aa） Fragment：UNP RESIDUES 34-311
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain Q 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZRY Rotor architecture in the F(1)-c(10)-ring complex of the yeast F-ATP synthase Deposited 2011-06-21 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 34–311（278 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；10% PEG 4000, 100 MM SODIUM CHLORIDE, 100 MM HEPES PH 6.5 MIXED 1:1 WITH PROTEIN SOLUTION (10 MG/ML) CONTAINING 0.64 MM DDM, 25 MM TRIS PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 3 MM SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.04 MM ADP, 1 MM AMP-PNP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF.
Resolution 6.50 Å R-free 0.339
4B2Q Model of the yeast F1Fo-ATP synthase dimer based on subtomogram average Deposited 2012-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain G 34–311（278 aa） Fragment：RESIDUES 34-311
Chain g 34–311（278 aa） Fragment：RESIDUES 34-311
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 250MM TREHALOSE 10NM TRIS- HCL PH7.4；pH 7.4；250MM TREHALOSE 10NM TRIS- HCL PH7.4
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, TEMPERATURE- 100, INSTRUMENT- HOMEMADE PLUNGER, METHOD- SINGLE SIDE MANUAL BLOTTING FOR 5 SECONDS.,
Resolution 37.00 Å
6B8H Mosaic model of yeast mitochondrial ATP synthase monomer Deposited 2017-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric
Chain G 34–311（278 aa）
Chain j 34–311（278 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.60 Å
6CP3 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc with inhibitor of oligomycin bound. Deposited 2018-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6CP6 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc. Deposited 2018-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TJT Yeast ATP synthase F1 region State 1-3catalytic beta_tight open without exogenous ATP Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.20 Å
7TJU Yeast ATP synthase F1 region State 1-3binding beta_tight open without exogenous ATP Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.30 Å
7TJV Yeast ATP synthase F1 region State 1catalytic(a) with 10 mM ATP Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.60 Å
7TJW Yeast ATP synthase F1 region State 1catalytic(e-h) with 10 mM ATP Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.00 Å
7TJX Yeast ATP synthase F1 region State 1binding(a-d) with 10 mM ATP Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 34–311（278 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.00 Å
7TJY Yeast ATP synthase State 1catalytic(a) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.80 Å
7TJZ Yeast ATP synthase State 1catalytic(b) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK0 Yeast ATP synthase State 1catalytic(c) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK1 Yeast ATP synthase State 1catalytic(d) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TK2 Yeast ATP synthase State 1binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK3 Yeast ATP synthase State 1binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TK4 Yeast ATP synthase State 1binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.00 Å
7TK5 Yeast ATP synthase State 1binding(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.80 Å
7TK6 Yeast ATP synthase State 1catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK7 Yeast ATP synthase State 1catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.70 Å
7TK8 Yeast ATP synthase State 1catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.70 Å
7TK9 Yeast ATP synthase State 1catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.00 Å
7TKA Yeast ATP synthase State 1catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKB Yeast ATP synthase State 1catalytic(f) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TKC Yeast ATP synthase State 1catalytic(g) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 5.80 Å
7TKD Yeast ATP synthase State 1catalytic(h) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.70 Å
7TKE Yeast ATP synthase State 2binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKF Yeast ATP synthase State 2binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKG Yeast ATP synthase State 2catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKH Yeast ATP synthase State 2catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TKI Yeast ATP synthase State 2catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKJ Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
7TKK Yeast ATP synthase State 2catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.30 Å
7TKL Yeast ATP synthase State 3binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.40 Å
7TKM Yeast ATP synthase State 3binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKN Yeast ATP synthase State 3binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKO Yeast ATP synthase State 3catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.80 Å
7TKP Yeast ATP synthase State 3catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.60 Å
7TKQ Yeast ATP synthase State 3catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKR Yeast ATP synthase State 3catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TKS Yeast ATP synthase State 3catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 34–311（278 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
8F29 Yeast ATP synthase in conformation-1 at pH 6 Deposited 2022-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 38–307（270 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8F39 Yeast ATP synthase in conformation-2, at pH 6 Deposited 2022-11-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 38–307（270 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8FL8 Yeast ATP Synthase structure in presence of MgATP Deposited 2022-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain G 38–307（270 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å

52 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPG_YEAST
Isoform —
PDB entities 3
Chains and sequence ranges Author chain G； PDBConstruct 1–278； UniProt 34–311 Author chain P； PDBConstruct 1–278； UniProt 34–311 Author chain Y； PDBConstruct 1–278； UniProt 34–311

ATP synthase subunit delta

Saccharomyces cerevisiae

UniProt Q12165

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain H； UniProt 24–160 Fragment：UNP RESIDUES 23-160 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
2 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain Q； UniProt 24–160 Fragment：UNP RESIDUES 23-160 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
3 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain Z； UniProt 24–160 Fragment：UNP RESIDUES 23-160 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3OE7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 23–160（138 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Q 23–160（138 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Z 23–160（138 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2WPD The Mg.ADP inhibited state of the yeast F1c10 ATP synthase Deposited 2009-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain H 23–160（138 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES/HCL PH 7.5, 12% PEG MME 5000, 100 MM SODIUM CHLORIDE MIXED 1:1 WITH PROTEIN SOLUTION CONTAINING 0.64 MM DDM, 25 MM TRIS/HCL PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 0.02% SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.66 MM ADP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF
Resolution 3.43 Å R-free 0.297
2XOK Refined structure of yeast F1c10 ATPase complex to 3 A resolution Deposited 2010-08-18 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain H 1–160（160 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3. MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE.
Resolution 3.01 Å R-free 0.253
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 23–160（138 aa） Fragment：UNP residues 23-160
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Q 23–160（138 aa） Fragment：UNP residues 23-160
Not recorded PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Z 23–160（138 aa） Fragment：UNP residues 23-160
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Q 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Z 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Q 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Z 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Q 23–160（138 aa） Fragment：UNP RESIDUES 23-160
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain R 23–160（138 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain H 23–160（138 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZRY Rotor architecture in the F(1)-c(10)-ring complex of the yeast F-ATP synthase Deposited 2011-06-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 23–160（138 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；10% PEG 4000, 100 MM SODIUM CHLORIDE, 100 MM HEPES PH 6.5 MIXED 1:1 WITH PROTEIN SOLUTION (10 MG/ML) CONTAINING 0.64 MM DDM, 25 MM TRIS PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 3 MM SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.04 MM ADP, 1 MM AMP-PNP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF.
Resolution 6.50 Å R-free 0.339
4B2Q Model of the yeast F1Fo-ATP synthase dimer based on subtomogram average Deposited 2012-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain H 29–160（132 aa） Fragment：RESIDUES 29-160
Chain h 29–160（132 aa） Fragment：RESIDUES 29-160
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 250MM TREHALOSE 10NM TRIS- HCL PH7.4；pH 7.4；250MM TREHALOSE 10NM TRIS- HCL PH7.4
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, TEMPERATURE- 100, INSTRUMENT- HOMEMADE PLUNGER, METHOD- SINGLE SIDE MANUAL BLOTTING FOR 5 SECONDS.,
Resolution 37.00 Å
6B8H Mosaic model of yeast mitochondrial ATP synthase monomer Deposited 2017-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric
Chain H 23–160（138 aa）
Chain l 23–160（138 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.60 Å
6CP3 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc with inhibitor of oligomycin bound. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6CP6 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TJY Yeast ATP synthase State 1catalytic(a) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.80 Å
7TJZ Yeast ATP synthase State 1catalytic(b) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK0 Yeast ATP synthase State 1catalytic(c) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK1 Yeast ATP synthase State 1catalytic(d) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TK2 Yeast ATP synthase State 1binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK3 Yeast ATP synthase State 1binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TK4 Yeast ATP synthase State 1binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.00 Å
7TK5 Yeast ATP synthase State 1binding(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.80 Å
7TK6 Yeast ATP synthase State 1catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK7 Yeast ATP synthase State 1catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.70 Å
7TK8 Yeast ATP synthase State 1catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.70 Å
7TK9 Yeast ATP synthase State 1catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.00 Å
7TKA Yeast ATP synthase State 1catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKB Yeast ATP synthase State 1catalytic(f) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TKC Yeast ATP synthase State 1catalytic(g) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 5.80 Å
7TKD Yeast ATP synthase State 1catalytic(h) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.70 Å
7TKE Yeast ATP synthase State 2binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKF Yeast ATP synthase State 2binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKG Yeast ATP synthase State 2catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKH Yeast ATP synthase State 2catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TKI Yeast ATP synthase State 2catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKJ Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
7TKK Yeast ATP synthase State 2catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.30 Å
7TKL Yeast ATP synthase State 3binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.40 Å
7TKM Yeast ATP synthase State 3binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKN Yeast ATP synthase State 3binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKO Yeast ATP synthase State 3catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.80 Å
7TKP Yeast ATP synthase State 3catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.60 Å
7TKQ Yeast ATP synthase State 3catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKR Yeast ATP synthase State 3catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TKS Yeast ATP synthase State 3catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 23–160（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
8F29 Yeast ATP synthase in conformation-1 at pH 6 Deposited 2022-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 29–160（132 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8F39 Yeast ATP synthase in conformation-2, at pH 6 Deposited 2022-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 29–160（132 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8FKJ Yeast ATP Synthase in conformation-3, at pH 6 Deposited 2022-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 29–160（132 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8FL8 Yeast ATP Synthase structure in presence of MgATP Deposited 2022-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain H 29–160（132 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å

48 other PDB entries and 58 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPD_YEAST
Isoform —
PDB entities 4
Chains and sequence ranges Author chain H； PDBConstruct 1–137； UniProt 24–160 Author chain Q； PDBConstruct 1–137； UniProt 24–160 Author chain Z； PDBConstruct 1–137； UniProt 24–160

ATP synthase subunit epsilon

Saccharomyces cerevisiae

UniProt P21306

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain I； UniProt 2–62 Fragment：UNP RESIDUES 2-62 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
2 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain R； UniProt 2–62 Fragment：UNP RESIDUES 2-62 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245
3 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain 1； UniProt 2–62 Fragment：UNP RESIDUES 2-62 ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, PH 7.3, VAPOR DIFFUSION SITTING DROP, TEMPERATURE 277K Resolution 3.19 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3OE7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 1–61（61 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 1–61（61 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2HLD Crystal structure of yeast mitochondrial F1-ATPase Deposited 2006-07-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain 1 1–61（61 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% glycerol, 4% methanol, 0.05M sodium acetate, 0.5mM nickel sulphate, 0.5mM AMP/PNP, 0.025 mM ADP, 2mM magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.244
2WPD The Mg.ADP inhibited state of the yeast F1c10 ATP synthase Deposited 2009-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain I 2–62（61 aa） Fragment：RESIDUES 2-62
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES/HCL PH 7.5, 12% PEG MME 5000, 100 MM SODIUM CHLORIDE MIXED 1:1 WITH PROTEIN SOLUTION CONTAINING 0.64 MM DDM, 25 MM TRIS/HCL PH 8.0, 100 MM SODIUM CHLORIDE, 25 MM TREHALOSE, 0.5 MM EDTA, 0.02% SODIUM AZIDE, 2 MM MAGNESIUM CHLORIDE, 0.66 MM ADP, 0.1 MM DCCD, 2.5 MM DTT, 0.5 MM PMSF
Resolution 3.43 Å R-free 0.297
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 2–62（61 aa） Fragment：UNP residues 2-62
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 2–62（61 aa） Fragment：UNP residues 2-62
Not recorded PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3FKS Yeast F1 ATPase in the absence of bound nucleotides Deposited 2008-12-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain 1 2–62（61 aa） Fragment：UNP residues 2-62
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；6.25% PEG 6000, 10% Glycerol, 4% Methanol, 0.05M Sodium acetate, 0.5mM Nickel sulfate, 2 mM Sodium pyrophosphate, 2mM Magnesium chloride, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.59 Å R-free 0.306
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEE Structure of four mutant forms of yeast F1 ATPase: alpha-F405S Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain 1 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.74 Å R-free 0.259
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OEH Structure of four mutant forms of yeast F1 ATPase: beta-V279F Deposited 2010-08-12 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain 1 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.270
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3OFN Structure of four mutant forms of yeast F1 ATPase: alpha-N67I Deposited 2010-08-15 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 2–62（61 aa） Fragment：UNP RESIDUES 2-62
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；277 K；5.5% PEG 6000, 10% GLYCEROL, 4% METHANOL, 0.05M SODIUM ACETATE, 0.5MM NICKEL SULPHATE, 0.5MM AMP/PNP, 0.025 MM ADP, 2MM MAGNESIUM CHLORIDE, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.20 Å R-free 0.276
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain S 2–62（61 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
3ZIA The structure of F1-ATPase from Saccharomyces cerevisiae inhibited by its regulatory protein IF1 Deposited 2013-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain I 2–62（61 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；296 K；ACTIVE F1-ATPASE (12 MG/ML) WAS EXCHANGED ON A DESALTING COLUMN INTO CRYSTALLISATION BUFFER, PREPARED IN D2O CONSISTING OF 100 MM BIS-TRIS PROPANE, PH 7.5, 100 MM SUCROSE, 1 MM ADP AND 10 MM MAGNESIUM SULPHATE. THEN THE ENZYME WAS INHIBITED AT 23C WITH A 4-FOLD MOLAR EXCESS OF YI1-53 (MUTATION E21A) IN THE PRESENCE OF 1 MM ATP AND 2 MM MAGNESIUM SULPHATE. FURTHER PORTIONS (5 UL OF A NEUTRALISED STOCK SOLUTION CONTAINING 200 MM ATP AND 400 MM MAGNESIUM SULPHATE/ML PROTEIN SOLUTION) WERE ADDED AFTER 5 AND 10 MIN. MORE THAN 95% OF THE ATP HYDROLYSIS ACTIVITY OF THE ENZYME WAS INHIBITED. SODIUM-POTASSIUM TARTRATE WAS ADDED TO 100 MM, AND THE CONCENTRATION OF THE PROTEIN SOLUTION WAS ADJUSTED TO 10 MG/ML WITH CRYSTALLISATION BUFFER. CRYSTALS WERE GROWN AT 23C IN 72 WELL MICRO-BATCH PLATES UNDER FILTERED PARAFFIN OIL. THE CRYSTALLISATION DROPS (4 UL) CONTAINED A 1:1 MIXTURE OF PROTEIN SOLUTION AND PRECIPITANT SOLUTION (20%-26% POLYETHYLENE GLYCOL 3000 AND 600 MM NACL PREPARED IN D2O).
Resolution 2.50 Å R-free 0.262
4B2Q Model of the yeast F1Fo-ATP synthase dimer based on subtomogram average Deposited 2012-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain I 2–60（59 aa） Fragment：RESIDUES 2-60
Chain i 2–60（59 aa） Fragment：RESIDUES 2-60
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 250MM TREHALOSE 10NM TRIS- HCL PH7.4；pH 7.4；250MM TREHALOSE 10NM TRIS- HCL PH7.4
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, TEMPERATURE- 100, INSTRUMENT- HOMEMADE PLUNGER, METHOD- SINGLE SIDE MANUAL BLOTTING FOR 5 SECONDS.,
Resolution 37.00 Å
6CP3 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc with inhibitor of oligomycin bound. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6CP6 Monomer yeast ATP synthase (F1Fo) reconstituted in nanodisc. Deposited 2018-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris-HCl, 150 mM NaCl, pH 8.0
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7MD2 The F1 region of ammocidin-bound Saccharomyces cerevisiae ATP synthase Deposited 2021-04-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 2–62（61 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ZHD (3~{E},5~{Z},7~{E},9~{R},10~{S},11~{E},13~{E},15~{E},17~{R},18~{S},20~{S})-20-[(1~{R})-1-[(2~{S},3~{R},4~{R},5~{S},6~{R})-5-[(2~{S},4~{S},5~{S},6~{R})-5-[(2~{S},4~{R},5~{R},6~{R})-4,6-dimethyl-4,5-bis(oxidanyl)oxan-2-yl]oxy-6-methyl-4-oxidanyl-oxan-2-yl]oxy-3-methoxy-6-(3-methoxypropyl)-5-methyl-2,4-bis(oxidanyl)oxan-2-yl]ethyl]-5,18-dimethoxy-3,7,9,11,13,15-hexamethyl-10-[(2~{R},3~{S},4~{R},5~{R},6~{S})-6-methyl-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-17-oxidanyl-1-oxacycloicosa-3,5,7,11,13,15-hexaen-2-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.10 Å
7MD3 The F1 region of apoptolidin-bound Saccharomyces cerevisiae ATP synthase Deposited 2021-04-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 2–62（61 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 1 ZH7 (3~{E},5~{E},7~{E},9~{R},10~{R},11~{E},13~{E},17~{S},18~{S},20~{S})-18-methoxy-20-[(~{R})-[(2~{R},3~{R},4~{S},5~{R},6~{R})-6-[(2~{R})-3-methoxy-2-[(2~{R},4~{S},5~{S},6~{S})-5-[(2~{S},4~{R},5~{R},6~{R})-4-methoxy-6-methyl-5-oxidanyl-oxan-2-yl]oxy-4,6-dimethyl-4-oxidanyl-oxan-2-yl]oxy-propyl]-3,5-dimethyl-2,4-bis(oxidanyl)oxan-2-yl]-oxidanyl-methyl]-10-[(2~{R},3~{S},4~{S},5~{R},6~{S})-5-methoxy-6-methyl-3,4-bis(oxidanyl)oxan-2-yl]oxy-3,5,7,9,13-pentamethyl-17-oxidanyl-1-oxacycloicosa-3,5,7,11,13-pentaen-2-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.30 Å
7TJY Yeast ATP synthase State 1catalytic(a) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.80 Å
7TJZ Yeast ATP synthase State 1catalytic(b) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK0 Yeast ATP synthase State 1catalytic(c) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TK1 Yeast ATP synthase State 1catalytic(d) without exogenous ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TK2 Yeast ATP synthase State 1binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK3 Yeast ATP synthase State 1binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TK4 Yeast ATP synthase State 1binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.00 Å
7TK5 Yeast ATP synthase State 1binding(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.80 Å
7TK6 Yeast ATP synthase State 1catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TK7 Yeast ATP synthase State 1catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.70 Å
7TK8 Yeast ATP synthase State 1catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.70 Å
7TK9 Yeast ATP synthase State 1catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.00 Å
7TKA Yeast ATP synthase State 1catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKB Yeast ATP synthase State 1catalytic(f) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.30 Å
7TKC Yeast ATP synthase State 1catalytic(g) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 5.80 Å
7TKD Yeast ATP synthase State 1catalytic(h) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.70 Å
7TKE Yeast ATP synthase State 2binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKF Yeast ATP synthase State 2binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKG Yeast ATP synthase State 2catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKH Yeast ATP synthase State 2catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7TKI Yeast ATP synthase State 2catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKJ Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
7TKK Yeast ATP synthase State 2catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.30 Å
7TKL Yeast ATP synthase State 3binding(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.40 Å
7TKM Yeast ATP synthase State 3binding(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKN Yeast ATP synthase State 3binding(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.10 Å
7TKO Yeast ATP synthase State 3catalytic(a) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.80 Å
7TKP Yeast ATP synthase State 3catalytic(b) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.60 Å
7TKQ Yeast ATP synthase State 3catalytic(c) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.50 Å
7TKR Yeast ATP synthase State 3catalytic(d) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.50 Å
7TKS Yeast ATP synthase State 3catalytic(e) with 10 mM ATP backbone model Deposited 2022-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–62（61 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.50 Å
8F29 Yeast ATP synthase in conformation-1 at pH 6 Deposited 2022-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–60（59 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8F39 Yeast ATP synthase in conformation-2, at pH 6 Deposited 2022-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–60（59 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8FKJ Yeast ATP Synthase in conformation-3, at pH 6 Deposited 2022-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–60（59 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8FL8 Yeast ATP Synthase structure in presence of MgATP Deposited 2022-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain I 2–60（59 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å

47 other PDB entries and 57 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATP5E_YEAST
Isoform —
PDB entities 5
Chains and sequence ranges Author chain 1； PDBConstruct 1–61； UniProt 2–62 Author chain I； PDBConstruct 1–61； UniProt 2–62 Author chain R； PDBConstruct 1–61； UniProt 2–62

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 3oe7

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 3oe7
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3oe7
Deposition date deposition_date2010-08-12
Structure title titleStructure of four mutant forms of yeast f1 ATPase: gamma-I270T
Keywords keywordsATP SYNTHASE, ATP PHOSPHATASE, F1F0 ATPASE, ATP SYNTHESIS, ADP, PO4, mitochondria, HYDROLASE; HYDROLASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier75.79 Å
Radius of gyration Rg (electron density) rg_electron75.45 Å
Forward intensity I(0) i014478000000.00
Molecular weight molecular_weight1030000.0 kDa
Excluded volume excluded_volume1293500 ų
Envelope volume envelope_volume1912600 ų
Hydration-shell volume shell_volume202400 ų
Envelope diameter envelope_diameter248.7 Å
Shell Rg shell_rg79.46 Å
Envelope Rg envelope_rg74.19 Å
Shape Rg shape_rg75.47 Å
Total Rg total_rg75.41 Å
Total atoms total_atoms72533
Residues n_residues9591
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax264.1 Å
Rg (real space) rg_real78.92 Å
Rg uncertainty (real space) rg_real_error1.37 Å
I(0) (real space) i0_real1.4490e+10
I(0) uncertainty (real space) i0_real_error2.9090e+08
Rg (reciprocal space) rg_reciprocal76.14 Å
I(0) (reciprocal space) i0_reciprocal14490000000.0000
Solution quality estimate total_estimate0.8988
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary75.5 Å
Skewness Skewness skewness0.365
Kurtosis Kurtosis kurtosis-0.244
Angular range angular_range— – 0.1050 Å−1
Current regularization parameter α current_alpha1.1450
Highest regularization parameter α highest_alpha4462000000.0000
Real-space data points n_real_points22
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.842; Stabil: 0.873; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.593
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

▼

7. Fold Classification (SCOP + CATH) 96 domains

SCOP 2.08 (33 domains)

Domain ID domain_idd3oe7d1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7d2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7d3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7e1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7e2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7e3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7f1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7f2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7f3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7g_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamilyc.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family familyc.49.2.1 — ATP synthase (F1-ATPase), gamma subunit
Domain ID domain_idd3oe7h1
Class classb — All beta proteins
Fold Fold foldb.93 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Superfamily Superfamily superfamilyb.93.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Family Family familyb.93.1.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Domain ID domain_idd3oe7h2
Class classa — All alpha proteins
Fold Fold folda.2 — Long alpha-hairpin
Superfamily Superfamily superfamilya.2.10 — Epsilon subunit of F1F0-ATP synthase C-terminal domain
Family Family familya.2.10.0 — automated matches
Domain ID domain_idd3oe7i_
Class classa — All alpha proteins
Fold Fold folda.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamilya.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family familya.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Domain ID domain_idd3oe7m1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7m2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7m3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7n1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7n2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7n3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7o1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7o2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7o3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7p_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamilyc.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family familyc.49.2.1 — ATP synthase (F1-ATPase), gamma subunit
Domain ID domain_idd3oe7r_
Class classa — All alpha proteins
Fold Fold folda.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamilya.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family familya.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Domain ID domain_idd3oe7v1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7v2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7v3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7w1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7w2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7w3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7x1
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd3oe7x2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd3oe7x3
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

CATH v4.4 (63 domains)

Domain ID domain_id3oe7A01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7A02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7A03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7B01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7B02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7B03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7C01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7C02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7C03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7D01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7D02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7D03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7E01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7E02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7E03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7F01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7F02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7F03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7G01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily80 — ATP synthase, gamma subunit, helix hairpin domain
Domain ID domain_id3oe7G02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily10 — ATP synthase, F1 complex, gamma subunit
Domain ID domain_id3oe7H01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal
Domain ID domain_id3oe7I00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1620 — Atp Synthase Epsilon Chain; Chain: I;
Homologous superfamily homologous superfamily20 — ATP synthase, F1 complex, epsilon subunit superfamily, mitochondrial
Domain ID domain_id3oe7J01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7J02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7J03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7K01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7K02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7K03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7L01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7L02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7L03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7M01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7M02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7M03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7N01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7N02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7N03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7O01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7O02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7O03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7P01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily80 — ATP synthase, gamma subunit, helix hairpin domain
Domain ID domain_id3oe7P02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily10 — ATP synthase, F1 complex, gamma subunit
Domain ID domain_id3oe7Q00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal
Domain ID domain_id3oe7S01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7S02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7S03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7T01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7T02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7T03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7U01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3oe7U02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7U03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id3oe7V01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7V02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7V03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7W01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7W02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7W03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7X01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id3oe7X02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id3oe7X03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id3oe7Y01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily80 — ATP synthase, gamma subunit, helix hairpin domain
Domain ID domain_id3oe7Y02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily10 — ATP synthase, F1 complex, gamma subunit
▶

8. Citations (1)

▶

9. Files and Curves (10)
