3oeh

Structure of four mutant forms of yeast F1 ATPase: beta-V279F

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPA_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 36–545 Author chain B； PDBConstruct 1–510； UniProt 36–545 Author chain C； PDBConstruct 1–510； UniProt 36–545 Author chain J； PDBConstruct 1–510； UniProt 36–545 Author chain K； PDBConstruct 1–510； UniProt 36–545 Author chain L； PDBConstruct 1–510； UniProt 36–545 Author chain S； PDBConstruct 1–510； UniProt 36–545 Author chain T； PDBConstruct 1–510； UniProt 36–545 Author chain U； PDBConstruct 1–510； UniProt 36–545

ATP synthase subunit beta

Saccharomyces cerevisiae

UniProt P00830

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPB_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 9–484； UniProt 36–511 Author chain E； PDBConstruct 9–484； UniProt 36–511 Author chain F； PDBConstruct 9–484； UniProt 36–511 Author chain M； PDBConstruct 9–484； UniProt 36–511 Author chain N； PDBConstruct 9–484； UniProt 36–511 Author chain O； PDBConstruct 9–484； UniProt 36–511 Author chain V； PDBConstruct 9–484； UniProt 36–511 Author chain W； PDBConstruct 9–484； UniProt 36–511 Author chain X； PDBConstruct 9–484； UniProt 36–511

ATP synthase subunit gamma

Saccharomyces cerevisiae

UniProt P38077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPG_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–278； UniProt 34–311 Author chain P； PDBConstruct 1–278； UniProt 34–311 Author chain Y； PDBConstruct 1–278； UniProt 34–311

ATP synthase subunit delta

Saccharomyces cerevisiae

UniProt Q12165

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPD_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–138； UniProt 23–160 Author chain Q； PDBConstruct 1–138； UniProt 23–160 Author chain Z； PDBConstruct 1–138； UniProt 23–160

ATP synthase subunit epsilon

Saccharomyces cerevisiae

UniProt P21306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5E_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain 1； PDBConstruct 1–61； UniProt 2–62 Author chain I； PDBConstruct 1–61； UniProt 2–62 Author chain R； PDBConstruct 1–61； UniProt 2–62

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3oeh
Deposition date deposition_date	2010-08-12
Structure title title	Structure of four mutant forms of yeast F1 ATPase: beta-V279F
Keywords keywords	ATP SYNTHASE, ATP PHOSPHATASE, F1F0 ATPASE, ATP SYNTHESIS, HYDROLASE, ADP, PO4, MITOCHONDRIA; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3oeh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

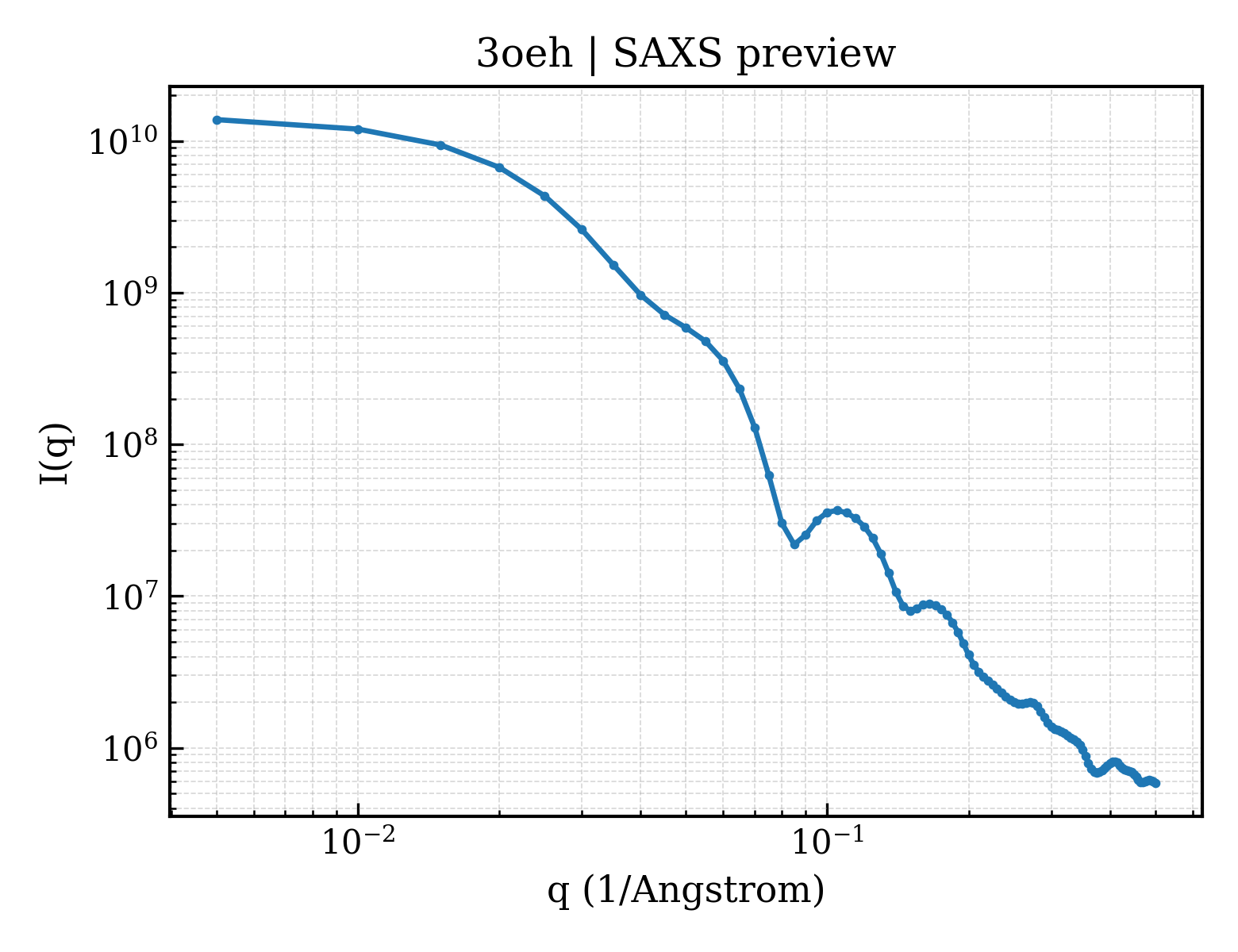

3oeh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

3oeh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.56 Å
Rg (electron density)	43.71 Å
Total Rg	44.04 Å
Atom count	24922
Residues	3287
Excluded volume	444730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3oeh__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3oeh__assembly_2__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3oeh__assembly_3__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	ATP synthase subunit alpha
Molecular weight formula_weight	55007.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,J,K,L,S,T,U
Atom count atom_count	72707

ASTKAQPTEVSSILEERIKGVSDEANLNETGRVLAVGDGIARVFGLNNIQAEELVEFSSGVKGMALNLEPGQVGIVLFGSDRLVKEGELVKRTGNIVDVPVGPGLLGRVVDALGNPIDGKGPIDAAGRSRAQVKAPGILPRRSVHEPVQTGLKAVDALVPIGRGQRELIIGDRQTGKTAVALDTILNQKRWNNGSDESKKLYCVYVAVGQKRSTVAQLVQTLEQHDAMKYSIIVAATASEAAPLQYLAPFTAASIGEWFRDNGKHALIVYDDLSKQAVAYRQLSLLLRRPPGREAYPGDVFYLHSRLLERAAKLSEKEGSGSLTALPVIETQGGDVSAYIPTNVISITDGQIFLEAELFYKGIRPAINVGLSVSRVGSAAQVKALKQVAGSLKLFLAQYREVAAFAQFGSDLDASTKQTLVRGERLTQLLKQNQYSPLATEEQVPLIYAGVNGHLDGIELSRIGEFESSFLSYLKSNHNELLTEIREKGELSKELLASLKSATESFVATF

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 2 Entity 2 polymer

Description description	ATP synthase subunit beta
Molecular weight formula_weight	52058.0 kDa
EC 编号 ec_number	3.6.3.14
Mutation mutation	V279F
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,M,N,O,V,W,X

ASHHHHHHAAQSTPITGKVTAVIGAIVDVHFEQSELPAILNALEIKTPQGKLVLEVAQHLGENTVRTIAMDGTEGLVRGEKVLDTGGPISVPVGRETLGRIINVIGEPIDERGPIKSKLRKPIHADPPSFAEQSTSAEILETGIKVVDLLAPYARGGKIGLFGGAGVGKTVFIQELINNIAKAHGGFSVFTGVGERTREGNDLYREMKETGVINLEGESKVALVFGQMNEPPGARARVALTGLTIAEYFRDEEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAFGYQPTLATDMGLLQERITTTKKGSVTSVQAVYVPADDLTDPAPATTFAHLDATTVLSRGISELGIYPAVDPLDSKSRLLDAAVVGQEHYDVASKVQETLQTYKSLQDIIAILGMDELSEQDKLTVERARKIQRFLSQPFAVAEVFTGIPGKLVRLKDTVASFKAVLEGKYDNIPEHAFYMVGGIEDVVAKAEKLAAEAN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 3 Entity 3 polymer

Description description	ATP synthase subunit gamma
Molecular weight formula_weight	30657.2 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,P,Y

ATLKEVEMRLKSIKNIEKITKTMKIVASTRLSKAEKAKISAKKMDEAEQLFYKNAETKNLDVEATETGAPKELIVAITSDKGLCGSIHSQLAKAVRRHLNDQPNADIVTIGDKIKMQLLRTHPNNIKLSINGIGKDAPTFQESALIADKLLSVMKAGTYPKISIFYNDPVSSLSFEPSEKPIFNAKTIEQSPSFGKFEIDTDANVPRDLFEYTLANQMLTAMAQGYAAEISARRNAMDNASKNAGDMINRYSILYNRTRQAVITNELVDIITGASSLG

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 4 Entity 4 polymer

Description description	ATP synthase subunit delta
Molecular weight formula_weight	14565.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,Q,Z

AEAAAASSGLKLQFALPHETLYSGSEVTQVNLPAKSGRIGVLANHVPTVEQLLPGVVEVMEGSNSKKFFISGGFATVQPDSQLCVTAIEAFPLESFSQENIKNLLAEAKKNVSSSDAREAAEAAIQVEVLENLQSVLK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 5 Entity 5 polymer

Description description	ATP synthase subunit epsilon
Molecular weight formula_weight	6618.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,R,1

SAWRKAGISYAAYLNVAAQAIRSSLKTELQTASVLNRSQTDAFYTQYKNGTAASEPTPITK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 6 Entity 6 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	15

▼

6. Fold Classification (SCOP + CATH) 95 domains

SCOP 2.08 (33 domains)

Domain ID domain_id	d3oehd1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehd3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehe1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehe2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehe3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehf1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehf2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehf3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family family	c.49.2.1 — ATP synthase (F1-ATPase), gamma subunit

Domain ID domain_id	d3oehh1
Class class	b — All beta proteins
Fold Fold fold	b.93 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Superfamily Superfamily superfamily	b.93.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain
Family Family family	b.93.1.1 — Epsilon subunit of F1F0-ATP synthase N-terminal domain

Domain ID domain_id	d3oehh2
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.10 — Epsilon subunit of F1F0-ATP synthase C-terminal domain
Family Family family	a.2.10.0 — automated matches

Domain ID domain_id	d3oehi_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family family	a.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase

Domain ID domain_id	d3oehm1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehm2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehm3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehn1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehn2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehn3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oeho1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oeho2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oeho3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehp_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family family	c.49.2.1 — ATP synthase (F1-ATPase), gamma subunit

Domain ID domain_id	d3oehr_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.8 — Epsilon subunit of mitochondrial F1F0-ATP synthase
Family Family family	a.137.8.1 — Epsilon subunit of mitochondrial F1F0-ATP synthase

Domain ID domain_id	d3oehv1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehv2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehv3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehw1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehw2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehw3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehx1
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d3oehx2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d3oehx3
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

CATH v4.4 (62 domains)

Domain ID domain_id	3oehA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehG01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	3oehG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

Domain ID domain_id	3oehH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily	10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal

Domain ID domain_id	3oehI00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1620 — Atp Synthase Epsilon Chain; Chain: I;
Homologous superfamily homologous superfamily	20 — ATP synthase, F1 complex, epsilon subunit superfamily, mitochondrial

Domain ID domain_id	3oehJ01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehJ02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehJ03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehK01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehK02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehK03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehL01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehL02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehL03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehM01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehM02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehM03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehN01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehN02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehN03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehO01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehO02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehO03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehP01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	3oehP02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

Domain ID domain_id	3oehS01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehS02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehS03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehT01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehT02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehT03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehU01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3oehU02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehU03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3oehV01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehV02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehV03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehW01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehW02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehW03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehX01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3oehX02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3oehX03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3oehY01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	3oehY02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

▶

Unit-cell length a length_a	110.931 Å
Unit-cell length b length_b	291.896 Å
Unit-cell length c length_c	188.765 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.91 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2100
R_work r_work	0.2090
R_free r_free	0.2700

Structure of four mutant forms of yeast F1 ATPase: beta-V279F

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3oeh__assembly_1__model_1

3oeh__assembly_1__model_1 | I(q)

3oeh__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

6. Fold Classification (SCOP + CATH) 95 domains

SCOP 2.08 (33 domains)

CATH v4.4 (62 domains)

7. Citations (1)
