3ofn

Structure of four mutant forms of yeast F1 ATPase: alpha-N67I

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 7	ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPA_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 36–545 Author chain B； PDBConstruct 1–510； UniProt 36–545 Author chain C； PDBConstruct 1–510； UniProt 36–545 Author chain J； PDBConstruct 1–510； UniProt 36–545 Author chain K； PDBConstruct 1–510； UniProt 36–545 Author chain L； PDBConstruct 1–510； UniProt 36–545 Author chain S； PDBConstruct 1–510； UniProt 36–545 Author chain T； PDBConstruct 1–510； UniProt 36–545 Author chain U； PDBConstruct 1–510； UniProt 36–545

ATP synthase subunit beta

Saccharomyces cerevisiae

UniProt P00830

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 7	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPB_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 9–484； UniProt 36–511 Author chain E； PDBConstruct 9–484； UniProt 36–511 Author chain F； PDBConstruct 9–484； UniProt 36–511 Author chain M； PDBConstruct 9–484； UniProt 36–511 Author chain N； PDBConstruct 9–484； UniProt 36–511 Author chain O； PDBConstruct 9–484； UniProt 36–511 Author chain V； PDBConstruct 9–484； UniProt 36–511 Author chain W； PDBConstruct 9–484； UniProt 36–511 Author chain X； PDBConstruct 9–484； UniProt 36–511

ATP synthase subunit gamma

Saccharomyces cerevisiae

UniProt P38077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 7	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPG_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–278； UniProt 34–311 Author chain P； PDBConstruct 1–278； UniProt 34–311 Author chain Y； PDBConstruct 1–278； UniProt 34–311

ATP synthase subunit delta

Saccharomyces cerevisiae

UniProt Q12165

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPD_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–138； UniProt 23–160 Author chain Q； PDBConstruct 1–138； UniProt 23–160

ATP synthase subunit epsilon

Saccharomyces cerevisiae

UniProt P21306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 9	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5E_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–61； UniProt 2–62 Author chain R； PDBConstruct 1–61； UniProt 2–62

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ofn
Deposition date deposition_date	2010-08-15
Structure title title	Structure of four mutant forms of yeast F1 ATPase: alpha-N67I
Keywords keywords	ATP SYNTHASE, ATP PHOSPHATASE, F1F0 ATPASE, ATP SYNTHESIS, HYDROLASE, ADP, PO4, MITOCHONDRIA; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3ofn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3ofn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

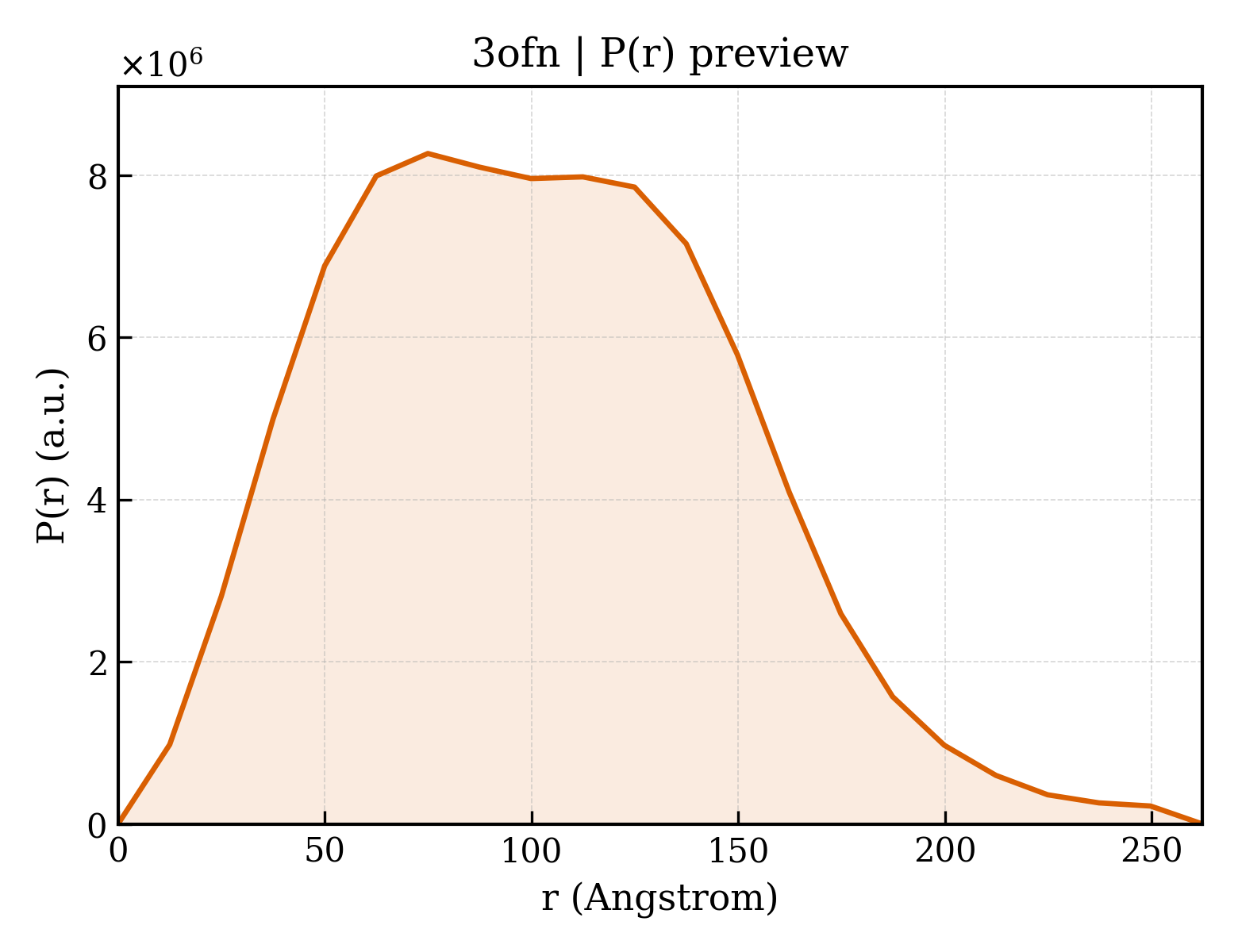

3ofn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.71 Å
Rg (electron density)	43.89 Å
Total Rg	44.21 Å
Atom count	25083
Residues	3308
Excluded volume	447840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3ofn__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3ofn__assembly_2__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3ofn__assembly_3__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	ATP synthase subunit alpha
Molecular weight formula_weight	55006.5 kDa
EC 编号 ec_number	3.6.3.14
Mutation mutation	N67I
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,J,K,L,S,T,U
Atom count atom_count	70481

ASTKAQPTEVSSILEERIKGVSDEANLNETGRVLAVGDGIARVFGLNNIQAEELVEFSSGVKGMALILEPGQVGIVLFGSDRLVKEGELVKRTGNIVDVPVGPGLLGRVVDALGNPIDGKGPIDAAGRSRAQVKAPGILPRRSVHEPVQTGLKAVDALVPIGRGQRELIIGDRQTGKTAVALDTILNQKRWNNGSDESKKLYCVYVAVGQKRSTVAQLVQTLEQHDAMKYSIIVAATASEAAPLQYLAPFTAASIGEWFRDNGKHALIVYDDLSKQAVAYRQLSLLLRRPPGREAYPGDVFYLHSRLLERAAKLSEKEGSGSLTALPVIETQGGDVSAYIPTNVISITDGQIFLEAELFYKGIRPAINVGLSVSRVGSAAQVKALKQVAGSLKLFLAQYREVAAFAQFGSDLDASTKQTLVRGERLTQLLKQNQYSPLATEEQVPLIYAGVNGHLDGIELSRIGEFESSFLSYLKSNHNELLTEIREKGELSKELLASLKSATESFVATF

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 2 Entity 2 polymer

Description description	ATP synthase subunit beta
Molecular weight formula_weight	52010.0 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,M,N,O,V,W,X

ASHHHHHHAAQSTPITGKVTAVIGAIVDVHFEQSELPAILNALEIKTPQGKLVLEVAQHLGENTVRTIAMDGTEGLVRGEKVLDTGGPISVPVGRETLGRIINVIGEPIDERGPIKSKLRKPIHADPPSFAEQSTSAEILETGIKVVDLLAPYARGGKIGLFGGAGVGKTVFIQELINNIAKAHGGFSVFTGVGERTREGNDLYREMKETGVINLEGESKVALVFGQMNEPPGARARVALTGLTIAEYFRDEEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGLLQERITTTKKGSVTSVQAVYVPADDLTDPAPATTFAHLDATTVLSRGISELGIYPAVDPLDSKSRLLDAAVVGQEHYDVASKVQETLQTYKSLQDIIAILGMDELSEQDKLTVERARKIQRFLSQPFAVAEVFTGIPGKLVRLKDTVASFKAVLEGKYDNIPEHAFYMVGGIEDVVAKAEKLAAEAN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 3 Entity 3 polymer

Description description	ATP synthase subunit gamma
Molecular weight formula_weight	30657.2 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,P,Y

ATLKEVEMRLKSIKNIEKITKTMKIVASTRLSKAEKAKISAKKMDEAEQLFYKNAETKNLDVEATETGAPKELIVAITSDKGLCGSIHSQLAKAVRRHLNDQPNADIVTIGDKIKMQLLRTHPNNIKLSINGIGKDAPTFQESALIADKLLSVMKAGTYPKISIFYNDPVSSLSFEPSEKPIFNAKTIEQSPSFGKFEIDTDANVPRDLFEYTLANQMLTAMAQGYAAEISARRNAMDNASKNAGDMINRYSILYNRTRQAVITNELVDIITGASSLG

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 4 Entity 4 polymer

Description description	ATP synthase subunit delta
Molecular weight formula_weight	14565.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,Q

AEAAAASSGLKLQFALPHETLYSGSEVTQVNLPAKSGRIGVLANHVPTVEQLLPGVVEVMEGSNSKKFFISGGFATVQPDSQLCVTAIEAFPLESFSQENIKNLLAEAKKNVSSSDAREAAEAAIQVEVLENLQSVLK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 5 Entity 5 polymer

Description description	ATP synthase subunit epsilon
Molecular weight formula_weight	6618.4 kDa
EC 编号 ec_number	3.6.3.14
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,R

SAWRKAGISYAAYLNVAAQAIRSSLKTELQTASVLNRSQTDAFYTQYKNGTAASEPTPITK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 6 Entity 6 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	15

▼

6. Fold Classification (SCOP + CATH) 62 domains

CATH v4.4 (62 domains)

Domain ID domain_id	3ofnA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnG01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	3ofnG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

Domain ID domain_id	3ofnH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily	10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal

Domain ID domain_id	3ofnI00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1620 — Atp Synthase Epsilon Chain; Chain: I;
Homologous superfamily homologous superfamily	20 — ATP synthase, F1 complex, epsilon subunit superfamily, mitochondrial

Domain ID domain_id	3ofnJ01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnJ02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnJ03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnK01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnK02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnK03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnL01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnL02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnL03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnM01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnM02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnM03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnN01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnN02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnN03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnO01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnO02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnO03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnP01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

Domain ID domain_id	3ofnP02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — ATP synthase, F1 complex, gamma subunit

Domain ID domain_id	3ofnQ01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	15 — ATP Synthase; domain 1
Homologous superfamily homologous superfamily	10 — F0F1 ATP synthase delta/epsilon subunit, N-terminal

Domain ID domain_id	3ofnR00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1620 — Atp Synthase Epsilon Chain; Chain: I;
Homologous superfamily homologous superfamily	20 — ATP synthase, F1 complex, epsilon subunit superfamily, mitochondrial

Domain ID domain_id	3ofnS01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnS02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnS03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnT01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnT02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnT03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnU01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	3ofnU02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnU03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	3ofnV01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnV02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnW01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnW02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnW03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnX01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3ofnX02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3ofnX03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	3ofnY00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

▶

Unit-cell length a length_a	112.019 Å
Unit-cell length b length_b	290.619 Å
Unit-cell length c length_c	188.465 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	102.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2116
R_work r_work	0.2103
R_free r_free	0.2760

Structure of four mutant forms of yeast F1 ATPase: alpha-N67I

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3ofn__assembly_1__model_1

3ofn__assembly_1__model_1 | I(q)

3ofn__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

6. Fold Classification (SCOP + CATH) 62 domains

CATH v4.4 (62 domains)

7. Citations (1)
