7tkj

Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit 9

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP9_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 0； PDBConstruct 1–76； UniProt 1–76 Author chain 1； PDBConstruct 1–76； UniProt 1–76 Author chain 2； PDBConstruct 1–76； UniProt 1–76 Author chain 3； PDBConstruct 1–76； UniProt 1–76 Author chain 4； PDBConstruct 1–76； UniProt 1–76 Author chain 5； PDBConstruct 1–76； UniProt 1–76 Author chain 6； PDBConstruct 1–76； UniProt 1–76 Author chain 7； PDBConstruct 1–76； UniProt 1–76 Author chain 8； PDBConstruct 1–76； UniProt 1–76 Author chain 9； PDBConstruct 1–76； UniProt 1–76

ATP synthase subunit alpha

OrganismNot specified

UniProt P07251

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPA_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 36–545 Author chain B； PDBConstruct 1–510； UniProt 36–545 Author chain C； PDBConstruct 1–510； UniProt 36–545

ATP synthase subunit beta

OrganismNot specified

UniProt P00830

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPB_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–478； UniProt 34–511 Author chain E； PDBConstruct 1–478； UniProt 34–511 Author chain F； PDBConstruct 1–478； UniProt 34–511

ATP synthase subunit gamma

OrganismNot specified

UniProt P38077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPG_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–278； UniProt 34–311

ATP synthase subunit delta

OrganismNot specified

UniProt Q12165

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPD_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain H； PDBConstruct 1–138； UniProt 23–160

ATP synthase subunit epsilon

OrganismNot specified

UniProt P21306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5E_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain I； PDBConstruct 1–61； UniProt 2–62

ATP synthase subunit 5

OrganismNot specified

UniProt P09457

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPO_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain O； PDBConstruct 1–195； UniProt 18–212

ATP synthase subunit a

OrganismNot specified

UniProt P00854

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP6_YEAST
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain T； PDBConstruct 1–249； UniProt 11–259

ATP synthase subunit 4

OrganismNot specified

UniProt P05626

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPF_YEAST
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain U； PDBConstruct 1–209； UniProt 36–244

ATP synthase subunit d

OrganismNot specified

UniProt P30902

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP7_YEAST
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain V； PDBConstruct 1–173； UniProt 2–174

ATP synthase subunit f

OrganismNot specified

UniProt Q06405

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPK_YEAST
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain W； PDBConstruct 1–95； UniProt 7–101

ATP synthase subunit H

OrganismNot specified

UniProt Q12349

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit J × 1 （P81450） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP14_YEAST
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain X； PDBConstruct 1–92； UniProt 33–124

ATP synthase subunit J

OrganismNot specified

UniProt P81450

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase protein 8 × 1 （P00856）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP18_YEAST
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain Y； PDBConstruct 1–59； UniProt 1–59

ATP synthase protein 8

OrganismNot specified

UniProt P00856

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 27	ATP synthase subunit 9 × 10 （P61829） ATP synthase subunit alpha × 3 （P07251） ATP synthase subunit beta × 3 （P00830） ATP synthase subunit gamma × 1 （P38077） ATP synthase subunit delta × 1 （Q12165） ATP synthase subunit epsilon × 1 （P21306） ATP synthase subunit 5 × 1 （P09457） ATP synthase subunit a × 1 （P00854） ATP synthase subunit 4 × 1 （P05626） ATP synthase subunit d × 1 （P30902） ATP synthase subunit f × 1 （Q06405） ATP synthase subunit H × 1 （Q12349） ATP synthase subunit J × 1 （P81450）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP8_YEAST
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain Z； PDBConstruct 1–48； UniProt 1–48

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7tkj
Deposition date deposition_date	2022-01-17
Structure title title	Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model
Keywords keywords	F1-ATPase, ATP Synthase, Nanomotor, HYDROLASE; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7tkj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

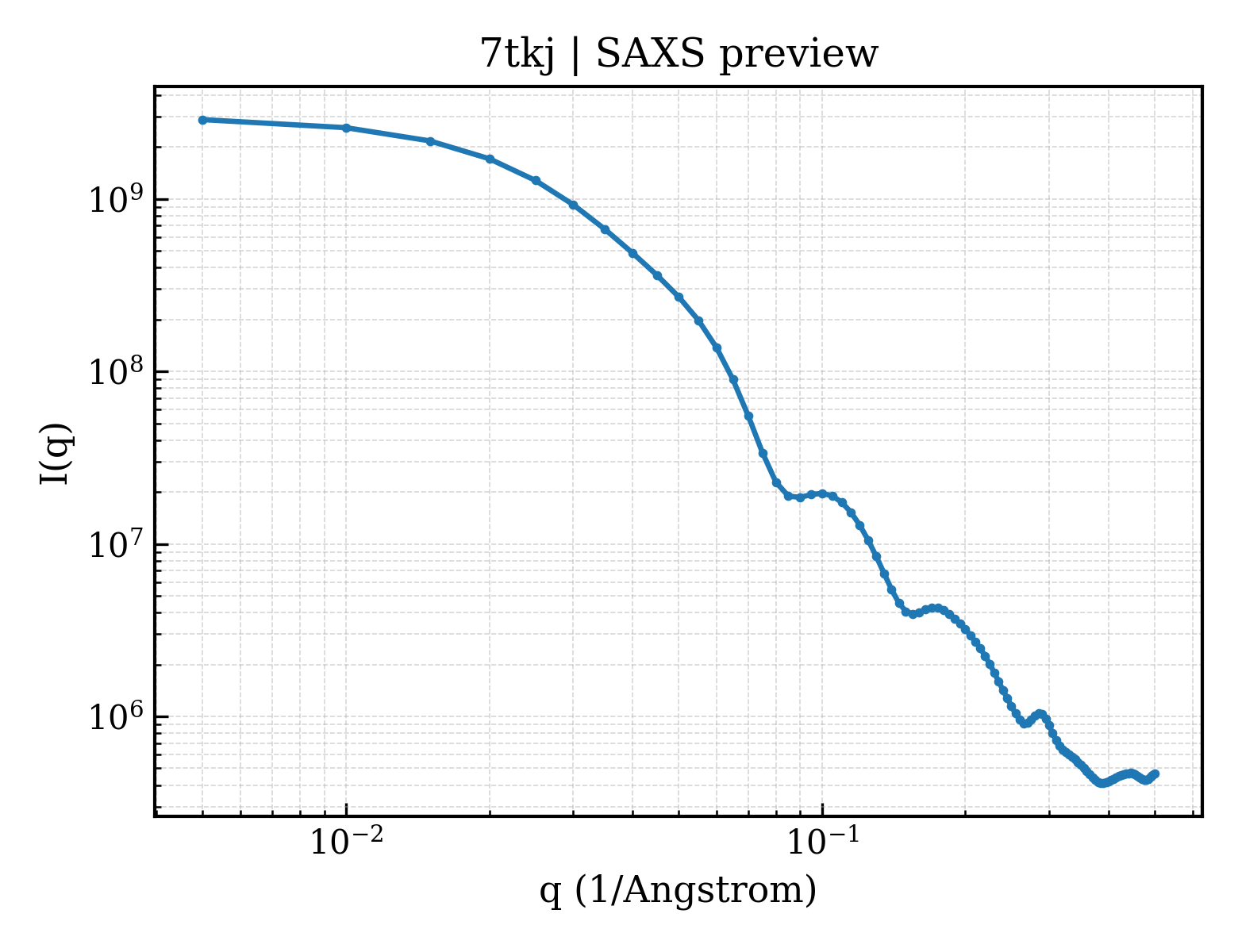

7tkj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

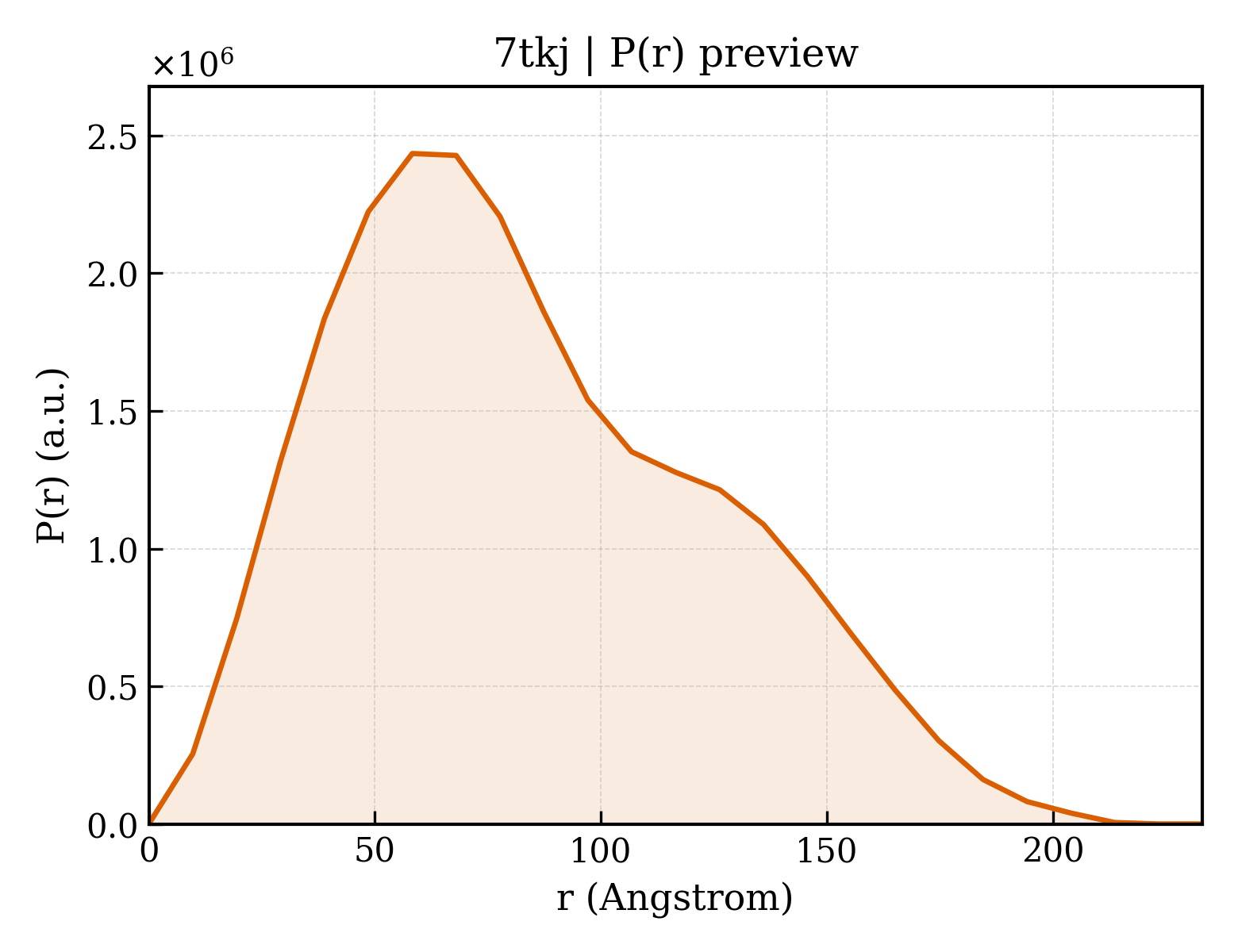

7tkj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.27 Å
Rg (electron density)	66.02 Å
Total Rg	65.98 Å
Atom count	20207
Residues	5051
Excluded volume	279160 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7tkj__assembly_1__model_1`	27-meric （27）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	ATP synthase subunit 9
Molecular weight formula_weight	7762.4 kDa
Source method src_method	nat
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	0,1,2,3,4,5,6,7,8,9
Atom count atom_count	20207

MQLVLAAKYIGAGISTIGLLGAGIGIAIVFAALINGVSRNPSIKDTVFPMAILGFALSEATGLFCLMVSFLLLFGV

Entity 2 Entity 2 polymer

Description description	ATP synthase subunit alpha
Molecular weight formula_weight	55007.4 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C

ASTKAQPTEVSSILEERIKGVSDEANLNETGRVLAVGDGIARVFGLNNIQAEELVEFSSGVKGMALNLEPGQVGIVLFGSDRLVKEGELVKRTGNIVDVPVGPGLLGRVVDALGNPIDGKGPIDAAGRSRAQVKAPGILPRRSVHEPVQTGLKAVDALVPIGRGQRELIIGDRQTGKTAVALDTILNQKRWNNGSDESKKLYCVYVAVGQKRSTVAQLVQTLEQHDAMKYSIIVAATASEAAPLQYLAPFTAASIGEWFRDNGKHALIVYDDLSKQAVAYRQLSLLLRRPPGREAYPGDVFYLHSRLLERAAKLSEKEGSGSLTALPVIETQGGDVSAYIPTNVISITDGQIFLEAELFYKGIRPAINVGLSVSRVGSAAQVKALKQVAGSLKLFLAQYREVAAFAQFGSDLDASTKQTLVRGERLTQLLKQNQYSPLATEEQVPLIYAGVNGHLDGIELSRIGEFESSFLSYLKSNHNELLTEIREKGELSKELLASLKSATESFVATF

Entity 3 Entity 3 polymer

Description description	ATP synthase subunit beta
Molecular weight formula_weight	51181.1 kDa
EC 编号 ec_number	7.1.2.2
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

ASAAQSTPITGKVTAVIGAIVDVHFEQSELPAILNALEIKTPQGKLVLEVAQHLGENTVRTIAMDGTEGLVRGEKVLDTGGPISVPVGRETLGRIINVIGEPIDERGPIKSKLRKPIHADPPSFAEQSTSAEILETGIKVVDLLAPYARGGKIGLFGGAGVGKTVFIQELINNIAKAHGGFSVFTGVGERTREGNDLYREMKETGVINLEGESKVALVFGQMNEPPGARARVALTGLTIAEYFRDEEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGLLQERITTTKKGSVTSVQAVYVPADDLTDPAPATTFAHLDATTVLSRGISELGIYPAVDPLDSKSRLLDAAVVGQEHYDVASKVQETLQTYKSLQDIIAILGMDELSEQDKLTVERARKIQRFLSQPFAVAEVFTGIPGKLVRLKDTVASFKAVLEGKYDNIPEHAFYMVGGIEDVVAKAEKLAAEAN

Entity 4 Entity 4 polymer

Description description	ATP synthase subunit gamma
Molecular weight formula_weight	30657.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ATLKEVEMRLKSIKNIEKITKTMKIVASTRLSKAEKAKISAKKMDEAEQLFYKNAETKNLDVEATETGAPKELIVAITSDKGLCGSIHSQLAKAVRRHLNDQPNADIVTIGDKIKMQLLRTHPNNIKLSINGIGKDAPTFQESALIADKLLSVMKAGTYPKISIFYNDPVSSLSFEPSEKPIFNAKTIEQSPSFGKFEIDTDANVPRDLFEYTLANQMLTAMAQGYAAEISARRNAMDNASKNAGDMINRYSILYNRTRQAVITNELVDIITGASSLG

Entity 5 Entity 5 polymer

Description description	ATP synthase subunit delta
Molecular weight formula_weight	14565.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

AEAAAASSGLKLQFALPHETLYSGSEVTQVNLPAKSGRIGVLANHVPTVEQLLPGVVEVMEGSNSKKFFISGGFATVQPDSQLCVTAIEAFPLESFSQENIKNLLAEAKKNVSSSDAREAAEAAIQVEVLENLQSVLK

Entity 6 Entity 6 polymer

Description description	ATP synthase subunit epsilon
Molecular weight formula_weight	6618.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

SAWRKAGISYAAYLNVAAQAIRSSLKTELQTASVLNRSQTDAFYTQYKNGTAASEPTPITK

Entity 7 Entity 7 polymer

Description description	ATP synthase subunit 5
Molecular weight formula_weight	20901.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

ASKAAAPPPVRLFGVEGTYATALYQAAAKNSSIDAAFQSLQKVESTVKKNPKLGHLLLNPALSLKDRNSVIDAIVETHKNLDGYVVNLLKVLSENNRLGCFEKIASDFGVLNDAHNGLLKGTVTSAEPLDPKSFKRIEKALSASKLVGQGKSLKLENVVKPEIKGGLIVELGDKTVDLSISTKIQKLNKVLEDSI

Entity 8 Entity 8 polymer

Description description	ATP synthase subunit a
Molecular weight formula_weight	27900.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T

SPLDQFEIRTLFGLQSSFIDLSCLNLTTFSLYTIIVLLVITSLYTLTNNNNKIIGSRWLISQEAIYDTIMNMTKGQIGGKNWGLYFPMIFTLFMFIFIANLISMIPYSFALSAHLVFIISLSIVIWLGNTILGLYKHGWVFFSLFVPAGTPLPLVPLLVIIETLSYFARAISLGLRLGSNILAGHLLMVILAGLTFNFMLINLFTLVFGFVPLAMILAIMMLEFAIGIIQGYVWAILTASYLKDAVYLH

Entity 9 Entity 9 polymer

Description description	ATP synthase subunit 4
Molecular weight formula_weight	23194.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U

MSSTPEKQTDPKAKANSIINAIPGNNILTKTGVLGTSAAAVIYAISNELYVINDESILLLTFLGFTGLVAKYLAPAYKDFADARMKKVSDVLNASRNKHVEAVKDRIDSVSQLQNVAETTKVLFDVSKETVELESEAFELKQKVELAHEAKAVLDSWVRYEASLRQLEQRQLAKSVISRVQSELGNPKFQEKVLQQSISEIEQLLSKLK

Entity 10 Entity 10 polymer

Description description	ATP synthase subunit d
Molecular weight formula_weight	19709.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V

SLAKSAANKLDWAKVISSLRITGSTATQLSSFKKRNDEARRQLLELQSQPTEVDFSHYRSVLKNTSVIDKIESYVKQYKPVKIDASKQLQVIESFEKHAMTNAKETESLVSKELKDLQSTLDNIQSARPFDELTVDDLTKIKPEIDAKVEEMVKKGKWDVPGYKDRFGNLNVM

Entity 11 Entity 11 polymer

Description description	ATP synthase subunit f
Molecular weight formula_weight	10584.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	W

VSTLIPPKVVSSKNIGSAPNAKRIANVVHFYKSLPQGPAPAIKANTRLARYKAKYFDGDNASGKPLWHFALGIIAFGYSMEYYFHLRHHKGAEEH

Entity 12 Entity 12 polymer

Description description	ATP synthase subunit H
Molecular weight formula_weight	10417.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

NVIQDLYLRELKDTKLAPSTLQDAEGNVKPWNPPQKPNLPELELQGPEALKAYTEQNVETAHVAKESEEGESEPIEEDWLVLDDAEETKESH

Entity 13 Entity 13 polymer

Description description	ATP synthase subunit J
Molecular weight formula_weight	6696.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

MLKRFPTPILKVYWPFFVAGAAVYYGMSKAADLSSNTKEFINDPRNPRFAKGGKFVEVD

Entity 14 Entity 14 polymer

Description description	ATP synthase protein 8
Molecular weight formula_weight	5825.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z

MPQLVPFYFMNQLTYGFLLMITLLILFSQFFLPMILRLYVSRLFISKL

▶

Resolution resolution	7.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	3208

Yeast ATP synthase State 2catalytic(d) with 10 mM ATP backbone model

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit 9

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit a

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit d

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
