1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hs3
沉积日期 deposition_date	2006-07-21
结构标题 title	T. maritima PurL complexed with FGAR
关键词 keywords	beta barrel; alpha-beta structure, ligase; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.16 Å
回转半径 Rg (电子) rg_electron	24.50 Å
零角强度 I(0) i0	69401400.00
分子量 molecular_weight	65991.0 kDa
排除体积 excluded_volume	82971 Å³
包络体积 envelope_volume	95453 Å³
水化壳体积 shell_volume	31885 Å³
包络直径 envelope_diameter	89.0 Å
壳层 Rg shell_rg	32.57 Å
包络 Rg envelope_rg	24.77 Å
形状 Rg shape_rg	24.50 Å
总 Rg total_rg	25.34 Å
总原子数 total_atoms	4643
残基数 n_residues	602
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.5 Å
Rg (实空间) rg_real	25.13 Å
Rg 误差 (实空间) rg_real_error	0.63 Å
I(0) (实空间) i0_real	6.9400e+07
I(0) 误差 (实空间) i0_real_error	9.7290e+05
Rg (倒空间) rg_reciprocal	25.14 Å
I(0) (倒空间) i0_reciprocal	69400000.0000
解质量估计 total_estimate	0.8655
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.9 Å
偏度 Skewness skewness	0.400
峰度 Kurtosis kurtosis	-0.136
角度范围 angular_range	— – 0.3150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	23260000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.762; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.986

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Phosphoribosylformylglycinamidine synthase II
分子量 formula_weight	66043.5 kDa
EC 编号 ec_number	6.3.5.3
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5114

MKLRYLNILKEKLGREPTFVELQAFSVMWSEHCGYSHTKKYIRRLPKTGFEGNAGVVNLDDYYSVAFKIESHNHPSAIEPYNGAATGVGGIIRDVLAMGARPTAIFDSLHMSRIIDGIIEGIADYGNSIGVPTVGGELRISSLYAHNPLVNVLAAGVVRNDMLVDSKASRPGQVIVIFGGATGRDGIHGASFASEDLTGDKATKLSIQVGDPFAEKMLIEAFLEMVEEGLVEGAQDLGAGGVLSATSELVAKGNLGAIVHLDRVPLREPDMEPWEILISESQERMAVVTSPQKASRILEIARKHLLFGDVVAEVIEEPVYRVMYRNDLVMEVPVQLLANAPEEDIVEYTPGKIPEFKRVEFEEVNAREVFEQYDHMVGTDTVVPPGFGAAVMRIKRDGGYSLVTHSRADLALQDTYWGTLIAVLESVRKTLSVGAEPLAITNCVNYGDPDVDPVGLSAMMTALKNACEFSGVPVASGNASLYNTYQGKPIPPTLVVGMLGKVNPQKVAKPKPSKVFAVGWNDFELEREKELWRAIRKLSEEGAFILSSSQLLTRTHVETFREYGLKIEVKLPEVRPAHQMVLVFSERTPVVDVPVKEIGTLSR

来源 Source

来源生物 organism	Thermotoga maritima
NCBI 分类编号 ncbi_taxonomy_id	2336
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	N-(N-FORMYLGLYCYL)-5-O-PHOSPHONO-BETA-D-RIBOFURANOSYLAMINE
分子量 formula_weight	314.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	471

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2hs3a1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.4 — PurM N-terminal domain-like
家族 Family family	d.79.4.1 — PurM N-terminal domain-like

结构域编号 domain_id	d2hs3a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.4 — PurM N-terminal domain-like
家族 Family family	d.79.4.1 — PurM N-terminal domain-like

结构域编号 domain_id	d2hs3a3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.139 — PurM C-terminal domain-like
超家族 Superfamily superfamily	d.139.1 — PurM C-terminal domain-like
家族 Family family	d.139.1.1 — PurM C-terminal domain-like

结构域编号 domain_id	d2hs3a4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.139 — PurM C-terminal domain-like
超家族 Superfamily superfamily	d.139.1 — PurM C-terminal domain-like
家族 Family family	d.139.1.1 — PurM C-terminal domain-like

CATH v4.4 (4 domains)

结构域编号 domain_id	2hs3A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	650 — Phosphoribosyl-aminoimidazole Synthetase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — PurM-like C-terminal domain

结构域编号 domain_id	2hs3A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — PurM-like, N-terminal domain

结构域编号 domain_id	2hs3A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — PurM-like, N-terminal domain

结构域编号 domain_id	2hs3A04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1670 — Formylglycinamide ribonucleotide amidotransferase, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	69.672 Å
晶胞边长 b length_b	57.355 Å
晶胞边长 c length_c	75.451 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	114.18 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	44.060 Å
R 因子 r_factor	0.1931
R_work r_work	0.1930
R_free r_free	0.2500

fit	/app/data/saxs_computation/hs/2hs3/2hs3.fit
pddf	/app/data/pr_computation/hs/2hs3/2hs3.pr.out
profile	/app/data/saxs_computation/hs/2hs3/2hs3.dat

T. maritima PurL complexed with FGAR

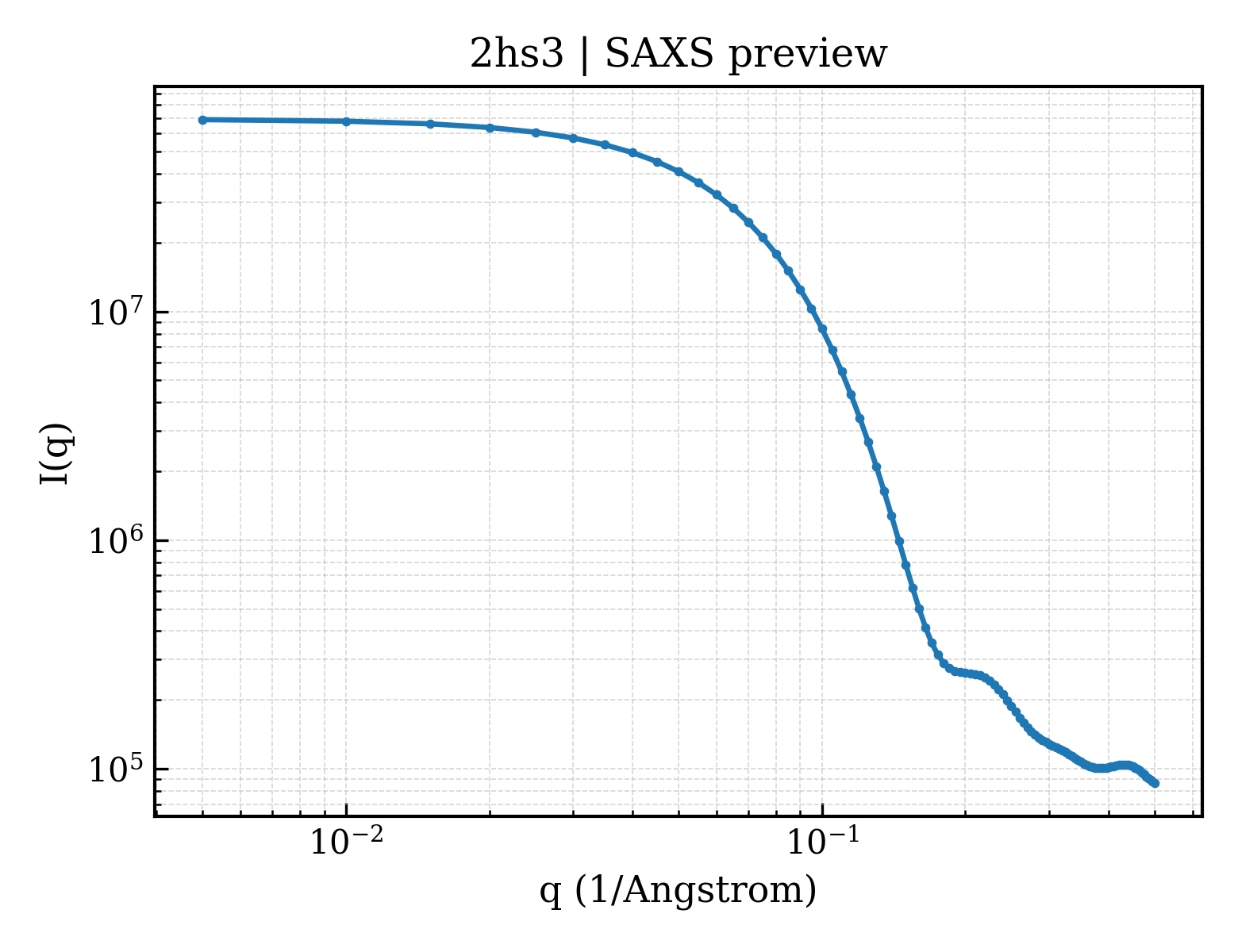

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
