2hv8

Crystal structure of GTP-bound Rab11 in complex with FIP3

Method: X-RAY DIFFRACTION D_max: 102.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

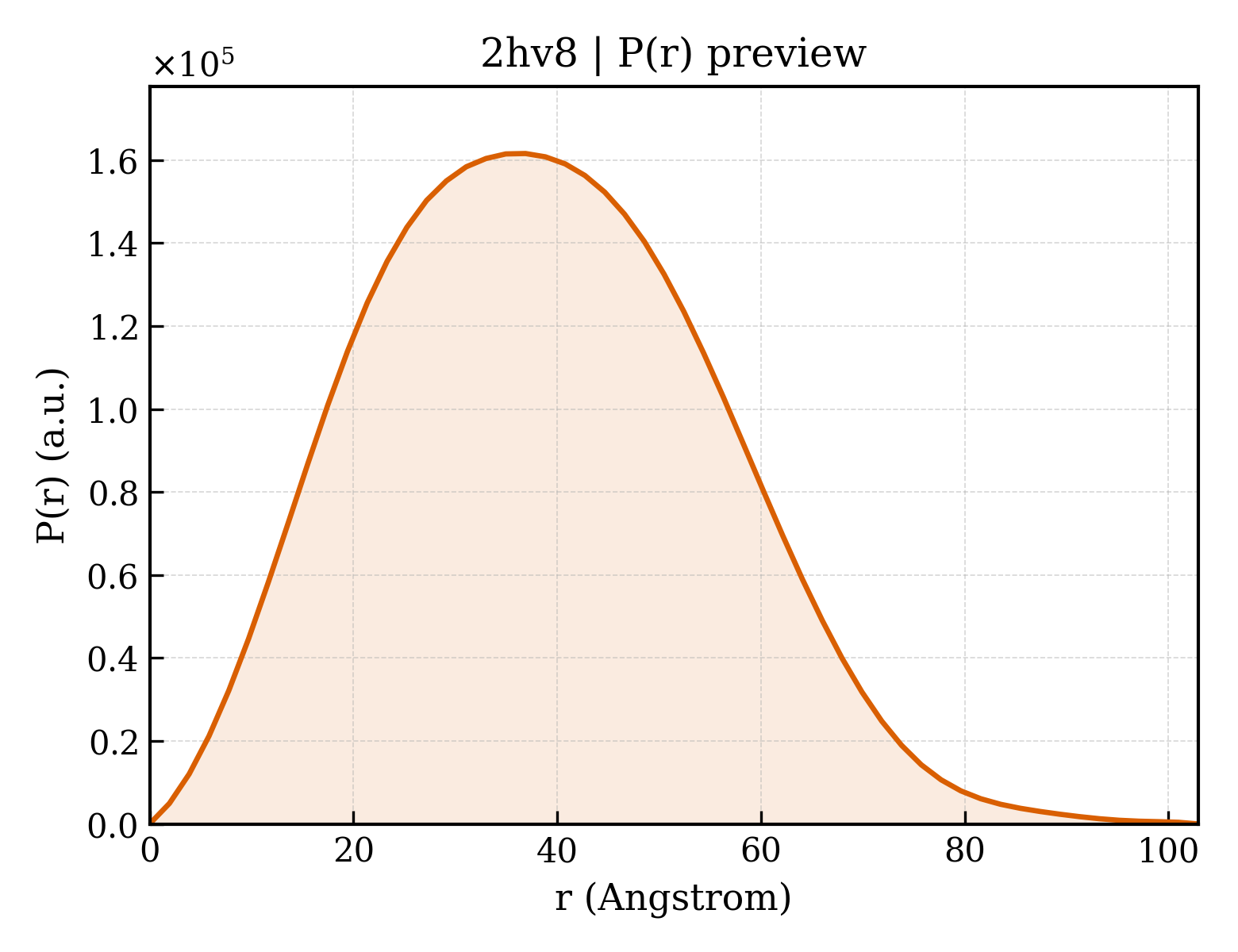

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hv8
沉积日期 deposition_date	2006-07-27
结构标题 title	Crystal structure of GTP-bound Rab11 in complex with FIP3
关键词 keywords	Protein transport, Rab11a, FIP3, cytokinesis, recycling endosomes; PROTEIN TRANSPORT
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.72 Å
回转半径 Rg (电子) rg_electron	29.15 Å
零角强度 I(0) i0	93015800.00
分子量 molecular_weight	74158.0 kDa
排除体积 excluded_volume	92194 Å³
包络体积 envelope_volume	121290 Å³
水化壳体积 shell_volume	34943 Å³
包络直径 envelope_diameter	110.0 Å
壳层 Rg shell_rg	35.81 Å
包络 Rg envelope_rg	29.45 Å
形状 Rg shape_rg	29.17 Å
总 Rg total_rg	29.72 Å
总原子数 total_atoms	5213
残基数 n_residues	657
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	102.9 Å
Rg (实空间) rg_real	29.66 Å
Rg 误差 (实空间) rg_real_error	0.72 Å
I(0) (实空间) i0_real	9.3020e+07
I(0) 误差 (实空间) i0_real_error	1.4070e+06
Rg (倒空间) rg_reciprocal	29.69 Å
I(0) (倒空间) i0_reciprocal	93020000.0000
解质量估计 total_estimate	0.8804
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.9 Å
偏度 Skewness skewness	0.252
峰度 Kurtosis kurtosis	-0.353
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	13040000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.987

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Ras-related protein Rab-11A
分子量 formula_weight	19353.8 kDa
突变 mutation	Q70L
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	6119

GSDEYDYLFKVVLIGDSGVGKSNLLSRFTRNEFNLESKSTIGVEFATRSIQVDGKTIKAQIWDTAGLERYRAITSAYYRGAVGALLVYDIAKHLTYENVERWLKELRDHADSNIVIMLVGNKSDLRHLRAVPTDEARAFAEKNGLSFIETSALDSTNVEAAFQTILTEIYRI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Rab11 family-interacting protein 3
分子量 formula_weight	7127.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

GSGAKSLFSTAFSESLAAEISSVSRDELMEAIQKQEEINFRLQDYIDRIIVAIMETNPSILEVK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 non-polymer

描述 description	GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	METHOXYETHANE
分子量 formula_weight	60.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
分子量 formula_weight	195.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	906

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2hv8a_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

结构域编号 domain_id	d2hv8b_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

结构域编号 domain_id	d2hv8c_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

结构域编号 domain_id	d2hv8d1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.31 — Eferin C-derminal domain-like
家族 Family family	h.1.31.1 — Eferin C-derminal domain-like

结构域编号 domain_id	d2hv8e_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.31 — Eferin C-derminal domain-like
家族 Family family	h.1.31.1 — Eferin C-derminal domain-like

结构域编号 domain_id	d2hv8f_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.31 — Eferin C-derminal domain-like
家族 Family family	h.1.31.1 — Eferin C-derminal domain-like

CATH v4.4 (6 domains)

结构域编号 domain_id	2hv8A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	2hv8B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	2hv8C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	2hv8D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	2440 —

结构域编号 domain_id	2hv8E00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	2440 —

结构域编号 domain_id	2hv8F00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	2440 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	218.291 Å
晶胞边长 b length_b	52.601 Å
晶胞边长 c length_c	70.679 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.56 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.860 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.2051
R_work r_work	0.2034
R_free r_free	0.2369

fit	/app/data/saxs_computation/hv/2hv8/2hv8.fit
pddf	/app/data/pr_computation/hv/2hv8/2hv8.pr.out
profile	/app/data/saxs_computation/hv/2hv8/2hv8.dat
