OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | water × 2 | Consistent with protein count |
| UniProt name | MNTR_BACSU |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain D； PDBConstruct 1–142； UniProt 1–142 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2hyg |
| Deposition date deposition_date | 2006-08-06 |
| Structure title title | The Structure of apo-MntR from Bacillus subtilis, Native Form |
| Keywords keywords | transcriptional regulator, transcription; TRANSCRIPTION |
| Experimental Method method | X-RAY DIFFRACTION |

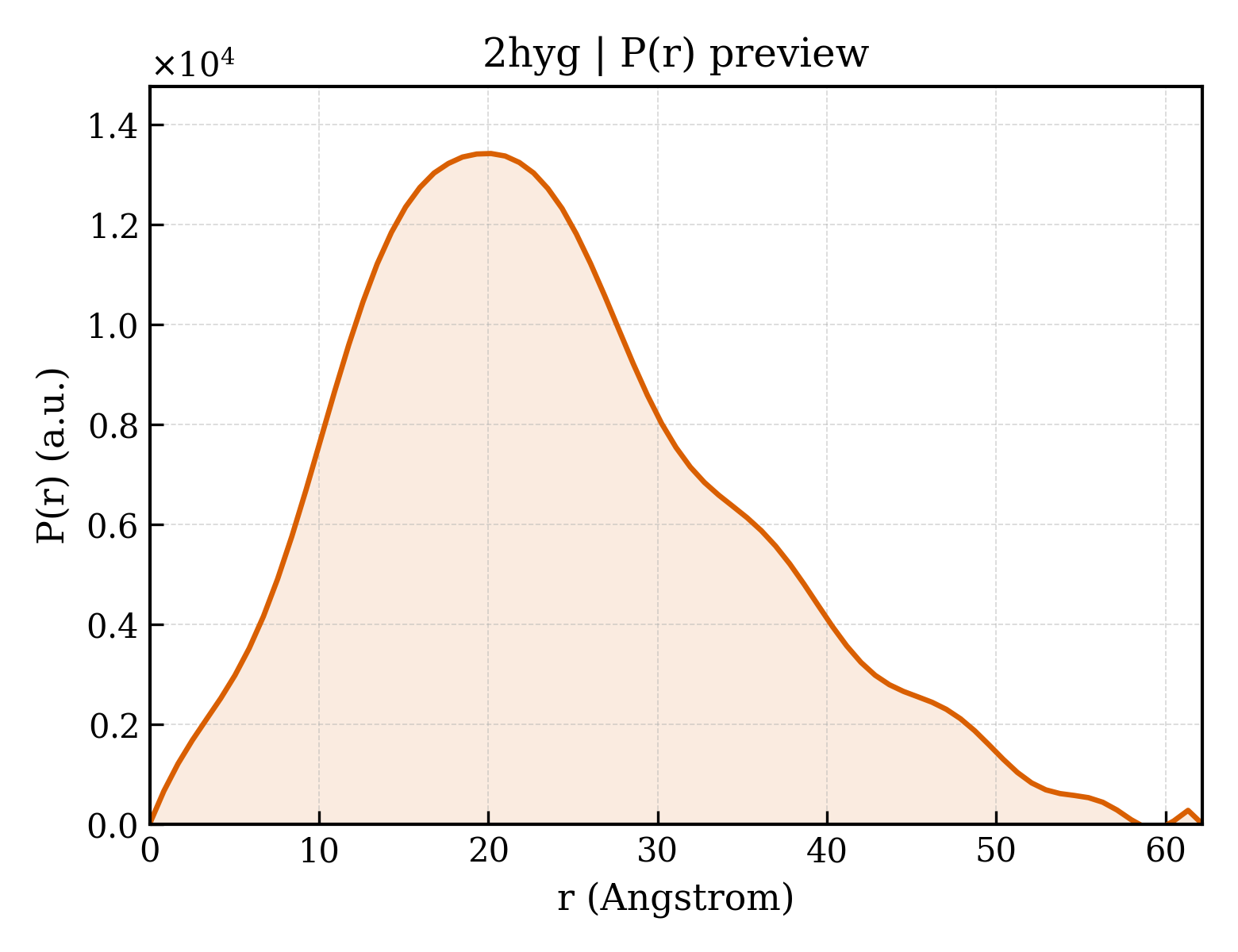

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 23.16 Å |
| Rg (electron density) | 22.53 Å |
| Total Rg | 23.40 Å |
| Atom count | 2204 |
| Residues | 266 |
| Excluded volume | 39495 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2hygd1 |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| Superfamily Superfamily superfamily | a.4.5 — 'Winged helix' DNA-binding domain |
| Family Family family | a.4.5.24 — Iron-dependent repressor protein |
| Domain ID domain_id | d2hygd2 |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.76 — Iron-dependent repressor protein, dimerization domain |
| Superfamily Superfamily superfamily | a.76.1 — Iron-dependent repressor protein, dimerization domain |
| Family Family family | a.76.1.1 — Iron-dependent repressor protein, dimerization domain |
| Domain ID domain_id | 2hygD01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 10 — Arc Repressor Mutant, subunit A |
| Homologous superfamily homologous superfamily | 10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain |
| Domain ID domain_id | 2hygD02 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 60 — Diphtheria Toxin Repressor; domain 2 |
| Homologous superfamily homologous superfamily | 10 — Iron dependent repressor, metal binding and dimerisation domain |
