SAXSdb — 9c4c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HTH-type transcriptional regulator MntR

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 4 DNA 2	DNA (39-MER) × 1 DNA (38-MER) × 1 MANGANESE (II) ION × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MNTR_BACSU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–142； UniProt 1–142 Author chain F； PDBConstruct 1–142； UniProt 1–142 Author chain G； PDBConstruct 1–142； UniProt 1–142 Author chain H； PDBConstruct 1–142； UniProt 1–142

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9c4c
Deposition date deposition_date	2024-06-04
Structure title title	The structure of two MntR dimers bound to the native mnep promoter sequence
Keywords keywords	Manganese, metal ion homeostasis, transcription regulation, transcription activation, cooperative binding, GENE REGULATION; GENE REGULATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9c4c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9c4c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

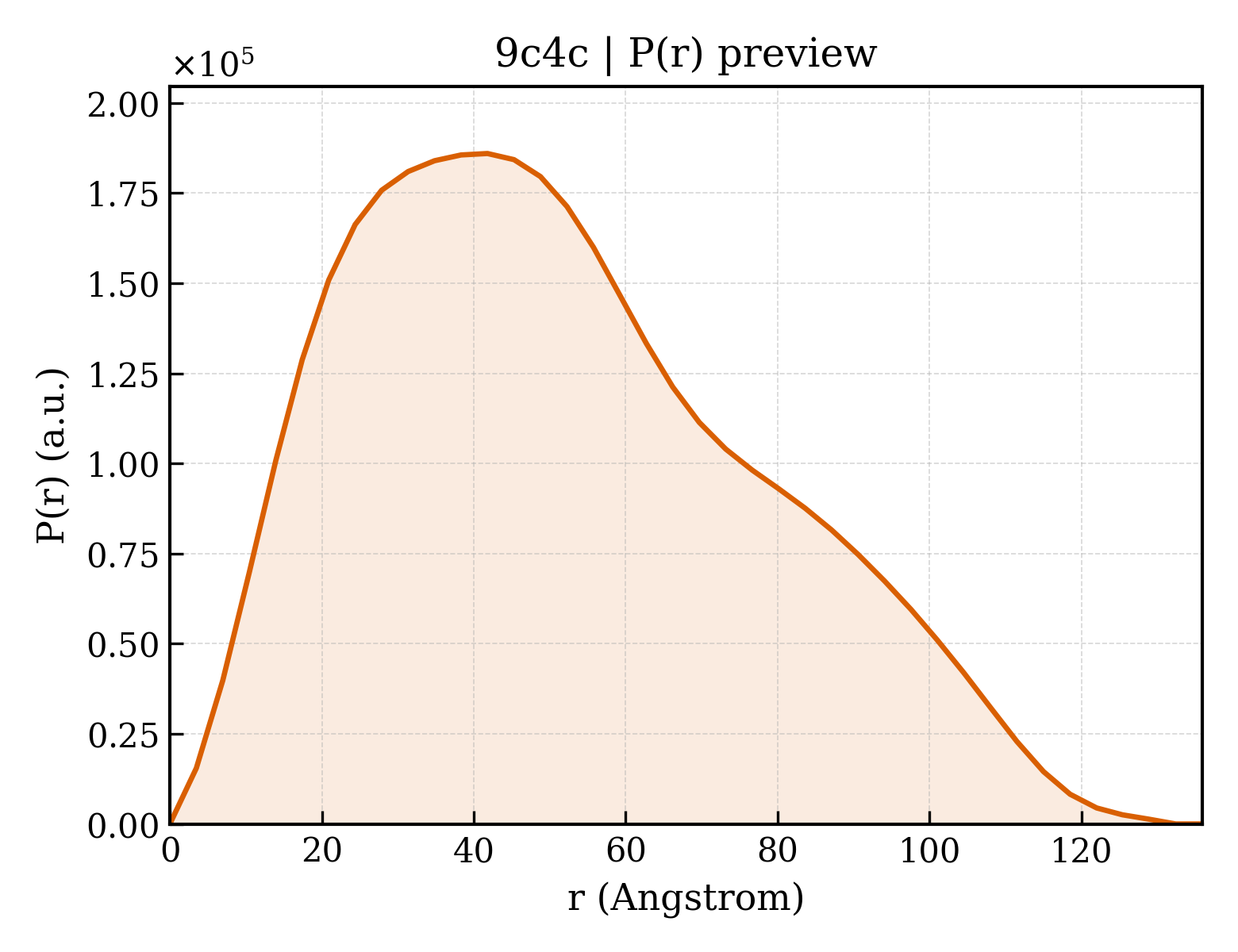

9c4c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.44 Å
Rg (electron density)	40.58 Å
Total Rg	40.67 Å
Atom count	11490
Residues	619
Excluded volume	103950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9c4c__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA (39-MER)
Molecular weight formula_weight	11936.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A
Atom count atom_count	11490

TTTTTTTCTGTCACCTTATTTATTAGTAAACAGGAAACA

Entity 2 Entity 2 polymer

Description description	DNA (38-MER)
Molecular weight formula_weight	11748.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

TGTTTCCTGTTTACTAATAAATAAGGTGACAGAAAAAA

Entity 3 Entity 3 polymer

Description description	HTH-type transcriptional regulator MntR
Molecular weight formula_weight	16787.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

MTTPSMEDYIEQIYMLIEEKGYARVSDIAEALAVHPSSVTKMVQKLDKDEYLIYEKYRGLVLTSKGKKIGKRLVYRHELLEQFLRIIGVDEEKIYNDVEGIEHHLSWNSIDRIGDLVQYFEEDDARKKDLKSIQKKTEHHNQ

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	8

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.09 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	194072

The structure of two MntR dimers bound to the native mnep promoter sequence
