2i5y

;Crystal structure of CD4M47, a scorpion-toxin mimic of CD4, in complex with HIV-1 YU2 GP120 envelope glycoprotein and anti-HIV-1 antibody 17B ;

Method: X-RAY DIFFRACTION D_max: 165.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2i5y
沉积日期 deposition_date	2006-08-26
结构标题 title	;Crystal structure of CD4M47, a scorpion-toxin mimic of CD4, in complex with HIV-1 YU2 GP120 envelope glycoprotein and anti-HIV-1 antibody 17B ;
关键词 keywords	HIV-1, GP120, YU2, SCORPION TOXIN, CD4 MIMIC, CD4M47, ANTIBODY, VIRAL PROTEIN-IMMUNE SYSTEM COMPLEX; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.04 Å
回转半径 Rg (电子) rg_electron	44.79 Å
零角强度 I(0) i0	449391000.00
分子量 molecular_weight	170780.0 kDa
排除体积 excluded_volume	212600 Å³
包络体积 envelope_volume	310600 Å³
水化壳体积 shell_volume	59513 Å³
包络直径 envelope_diameter	180.5 Å
壳层 Rg shell_rg	47.41 Å
包络 Rg envelope_rg	44.28 Å
形状 Rg shape_rg	44.75 Å
总 Rg total_rg	45.06 Å
总原子数 total_atoms	11984
残基数 n_residues	1489
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

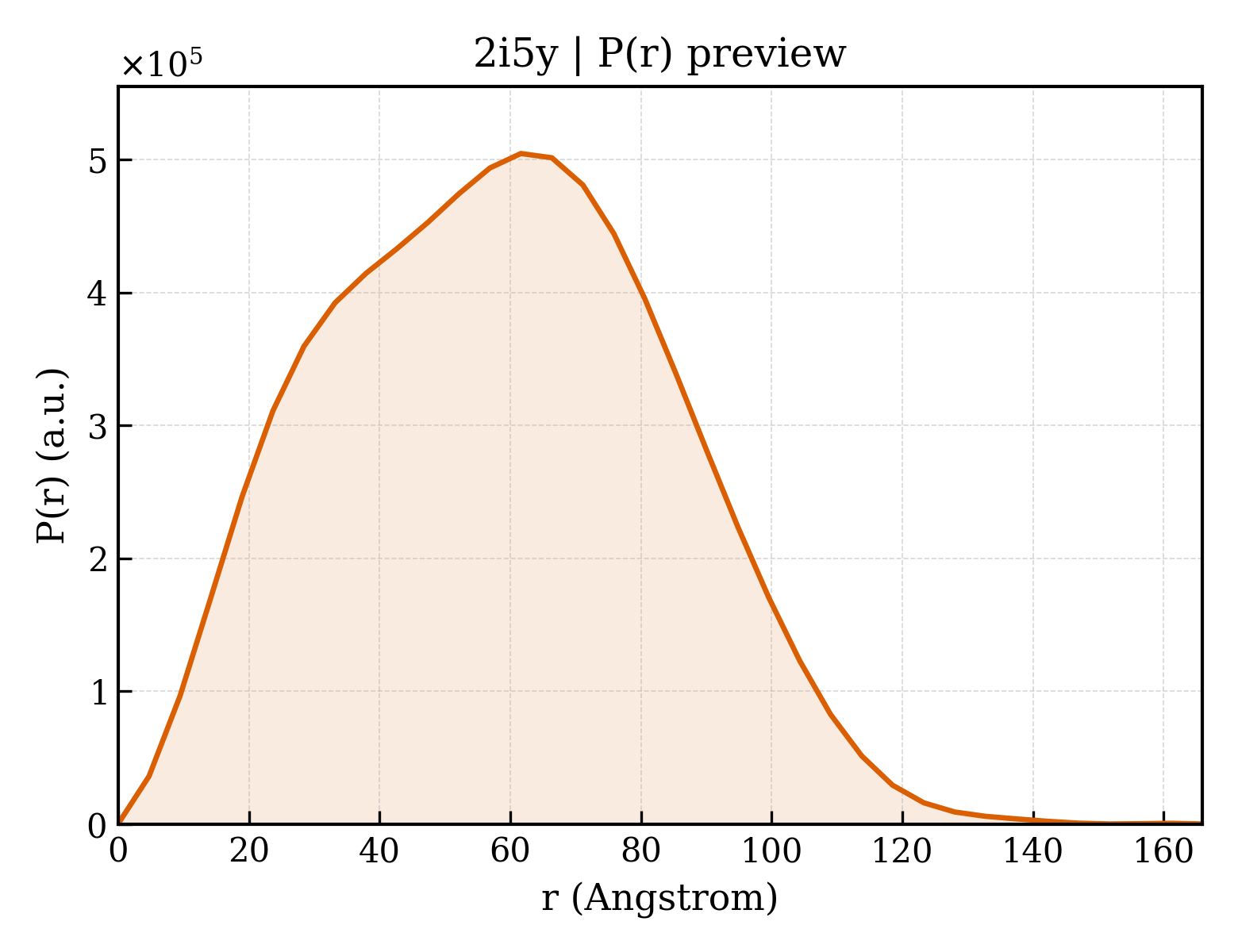

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	165.9 Å
Rg (实空间) rg_real	44.94 Å
Rg 误差 (实空间) rg_real_error	1.73 Å
I(0) (实空间) i0_real	4.4940e+08
I(0) 误差 (实空间) i0_real_error	7.7300e+06
Rg (倒空间) rg_reciprocal	45.04 Å
I(0) (倒空间) i0_reciprocal	449400000.0000
解质量估计 total_estimate	0.8535
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	61.6 Å
偏度 Skewness skewness	0.145
峰度 Kurtosis kurtosis	-0.553
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	39480000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.727; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.912; Smooth: 0.998

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Exterior membrane glycoprotein(GP120)
分子量 formula_weight	34838.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,P
原子数 atom_count	12533

GARSEVKLENVTENFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVGAGSCNTSVITQACPKVSFEPIPIHYCAPAGFAILKCNDKKFNGTGPCTNVSTVQCTHGIRPVVSTQLLLNGSLAEEEIVIRSENFTNNAKTIIVQLNESVVINCTGAGHCNLSKTQWENTLEQIAIKLKEQFGNNKTIIFNPSSGGDPEIVTHSFNCGGEFFYCNSTQLFTWNDTRKLNNTGRNITLPCRIKQIINMWQEVGKAMYAPPIRGQIRCSSNITGLLLTRDGGKDTNGTEIFRPGGGDMRDNWRSELYKYKVVKIE

来源 Source

来源生物 organism	Human immunodeficiency virus
NCBI 分类编号 ncbi_taxonomy_id	12721
宿主生物 host_organism	Drosophila melanogaster

Entity 2 polymer

描述 description	Antibody 17B Light chain
分子量 formula_weight	23399.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,Q

DIVMTQSPATLSVSPGERATLSCRASESVSSDLAWYQQKPGQAPRLLIYGASTRATGVPARFSGSGSGAEFTLTISSLQSEDFAVYYCQQYNNWPPRYTFGQGTRLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Human herpesvirus 4

Entity 3 polymer

描述 description	Antibody 17B Heavy chain
分子量 formula_weight	24457.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,R

EVQLVESGAEVKKPGSSVKVSCKASGDTFIRYSFTWVRQAPGQGLEWMGRIITILDVAHYAPHLQGRVTITADKSTSTVYLELRNLRSDDTAVYFCAGVYEGEADEGEYDNNGFLKHWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Human herpesvirus 4

Entity 4 polymer

描述 description	CD4M47, SCORPION-TOXIN MIMIC OF CD4
分子量 formula_weight	3021.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,S

XNLHFCQLRCKSLGLLGRCAPTFCACX

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	549

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (14 domains)

结构域编号 domain_id	d2i5yg2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.172 — gp120 core
超家族 Superfamily superfamily	d.172.1 — gp120 core
家族 Family family	d.172.1.1 — gp120 core

结构域编号 domain_id	d2i5yg3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2i5yh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2i5yh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2i5yl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2i5yl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2i5ym1
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.23 — Scorpion toxin-based designs
超家族 Superfamily superfamily	k.23.1 — Scorpion toxin-based designs
家族 Family family	k.23.1.2 — Mini-protein reproducing the core of the CD4 surface

结构域编号 domain_id	d2i5yp2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.172 — gp120 core
超家族 Superfamily superfamily	d.172.1 — gp120 core
家族 Family family	d.172.1.1 — gp120 core

结构域编号 domain_id	d2i5yp3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2i5yq1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2i5yq2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2i5yr1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2i5yr2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2i5ys1
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.23 — Scorpion toxin-based designs
超家族 Superfamily superfamily	k.23.1 — Scorpion toxin-based designs
家族 Family family	k.23.1.2 — Mini-protein reproducing the core of the CD4 surface

CATH v4.4 (10 domains)

结构域编号 domain_id	2i5yG00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	40 — HIV Envelope Protein Gp120; Chain G
同源超家族 H-superfamily homologous superfamily	20 — Human immunodeficiency virus 1, Gp160, envelope glycoprotein

结构域编号 domain_id	2i5yH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yP00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	40 — HIV Envelope Protein Gp120; Chain G
同源超家族 H-superfamily homologous superfamily	20 — Human immunodeficiency virus 1, Gp160, envelope glycoprotein

结构域编号 domain_id	2i5yQ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yQ02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yR01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2i5yR02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	51.437 Å
晶胞边长 b length_b	158.160 Å
晶胞边长 c length_c	109.933 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	93.67 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	19.990 Å
R 因子 r_factor	0.2140
R_work r_work	0.2140
R_free r_free	0.2730

fit	/app/data/saxs_computation/i5/2i5y/2i5y.fit
pddf	/app/data/pr_computation/i5/2i5y/2i5y.pr.out
profile	/app/data/saxs_computation/i5/2i5y/2i5y.dat
