2j04

The tau60-tau91 subcomplex of yeast transcription factor IIIC

Method: X-RAY DIFFRACTION D_max: 217.1 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2j04
沉积日期 deposition_date	2006-07-31
结构标题 title	The tau60-tau91 subcomplex of yeast transcription factor IIIC
关键词 keywords	;BETA PROPELLER, TYPE 2 PROMOTERS, TRANSCRIPTION, HYPOTHETICAL PROTEIN, PREINITIATION COMPLEX, YEAST RNA POLYMERASE III, TRANSCRIPTION FACTOR IIIC ;; TRANSCRIPTION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.44 Å
回转半径 Rg (电子) rg_electron	64.87 Å
零角强度 I(0) i0	781375000.00
分子量 molecular_weight	240120.0 kDa
排除体积 excluded_volume	303180 Å³
包络体积 envelope_volume	423720 Å³
水化壳体积 shell_volume	63957 Å³
包络直径 envelope_diameter	245.1 Å
壳层 Rg shell_rg	49.65 Å
包络 Rg envelope_rg	65.85 Å
形状 Rg shape_rg	64.84 Å
总 Rg total_rg	64.55 Å
总原子数 total_atoms	16930
残基数 n_residues	2114
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

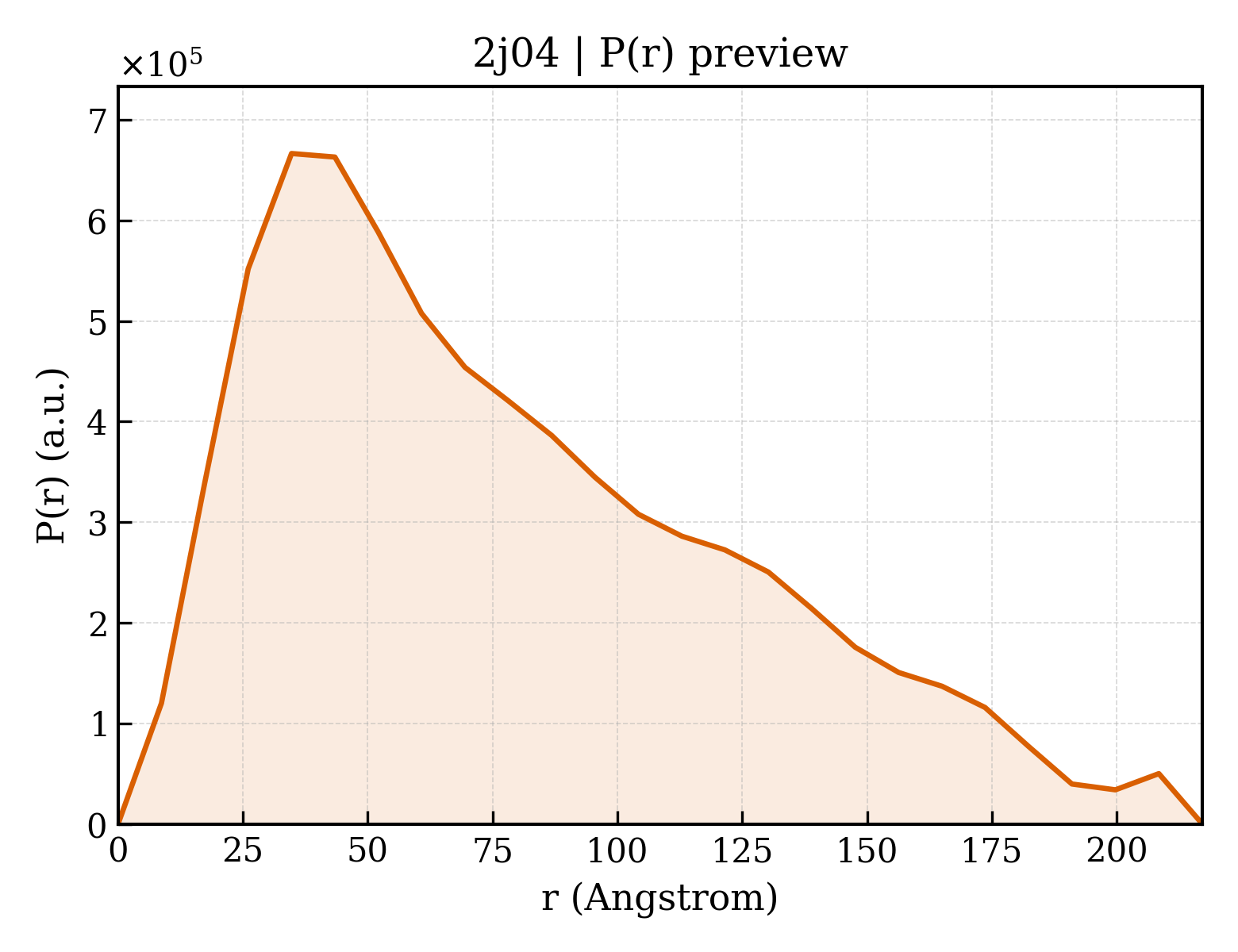

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	217.1 Å
Rg (实空间) rg_real	63.93 Å
Rg 误差 (实空间) rg_real_error	2.37 Å
I(0) (实空间) i0_real	7.8050e+08
I(0) 误差 (实空间) i0_real_error	1.6830e+07
Rg (倒空间) rg_reciprocal	60.92 Å
I(0) (倒空间) i0_reciprocal	777100000.0000
解质量估计 total_estimate	0.6527
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.7 Å
偏度 Skewness skewness	0.697
峰度 Kurtosis kurtosis	-0.315
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0029
最高正则化参数 α highest_alpha	39340000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.274; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.366; Smooth: 0.303

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	HYPOTHETICAL PROTEIN YPL007C
分子量 formula_weight	67755.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	16935

MKLLKDLLVDRKEFEDWKNNLTWARDGTLYLTTFPDISIGQPKYAKDINCNSKNLFHVKEFPLEFENKLDFELAQQNGLLNSQPVCYPRVCKPSPIDDWMAVLSNNGNVSVFKDNKMLTNLDSKGNLSSRTYHCFEWNPIESSIVVGNEDGELQFFSIRKNSENTPEFYFESSIRLSDAGSKDWVTHIVWYEDVLVAALSNNSVFSMTVSASSHQPVSRMIQNASRRKITDLKIVDYKVVLTCPGYVHKIDLKNYSISSLKTGSLENFHIIPLNHEKESTILLMSNKTSYKVLLEDELHVTADNIIAPYLEKKFKKWSTIWNEFNNYETTLVIHGISLSPDGYSIAIVYDMERVAFKYKIASEQSFNIMFAPLYHTWTISERAVGLAWYQTYQIYNQSLPKLPENFSMNKKLLNGNYPISLDFQSYLNALMKSEEMRIIMFLNMTIDKPSILSFLEALYEYAINKKSELTNSFDLACVLSIAAILKREAPIYNGTLLMKNSFLEETFNLESFTADPETVTSTTNNTWKRCGVTLLPILTTHVKICPVSKQRVIDIKRDDLNDYGWFTRGLLERFNEISVYCGTTLEVM

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 polymer

描述 description	YDR362CP
分子量 formula_weight	58928.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MGLLKDLSSARDKIERIYGLNKEKLLLLAKVKEGFETSVFDFPFKNIQPDSPYFVCLDPPCKKESAYNKVIGDKNRTVYHEINKTEFENMIKLRTKRLKLLIGEVDAEVSTGDKIEFPVLANGKRRGFIYNVGGLVTDIAWLNIEENTDIGKDIQYLAVAVSQYMDEPLNEHLEMFDKEKHSSCIQIFKMNTSTLHCVKVQTIVHSFGEVWDLKWHEGCHAPHLVGCLSFVSQEGTINFLEIIDNATDVHVFKMCEKPSLTLSLADSLITTFDFLSPTTVVCGFKNGFVAEFDLTDPEVPSFYDQVHDSYILSVSTAYSDFEDTVVSTVAVDGYFYIFNPKDIATTKTTVSRFRGSNLVPVVYCPQIYSYIYSDGASSLRAVPSRAAFAVHPLVSRETTITAIGVSRLHPMVLAGSADGSLIITNAARRLLHGIKNSSATQKSLRLWKWDYSIKDDKYRIDSSYEVYPLTVNDVSKAKIDAHGINITCTKWNETSAGGKCYAFSNSAGLLTLEYLSLEHHHHHH

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	61.420 Å
晶胞边长 b length_b	125.800 Å
晶胞边长 c length_c	210.470 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.49 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	208.510 Å
R 因子 r_factor	0.2140
R_work r_work	0.2120
R_free r_free	0.2570
