SAXSdb — 2jdq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

IMPORTIN ALPHA-1 SUBUNIT

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 66–512	Fragment：RESIDUES 66-512	POLYMERASE BASIC PROTEIN 2 × 1 （P31345）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；1 MICROLITRE OF PROTEIN SOLUTION, AT 20 MG/ML IN 30 MM TRIS-HCL, PH 7.5, 150 MM NACL, 3 MM BETA-MERCAPTOETHANOL WAS MIXED WITH AN EQUAL VOLUME OF RESERVOIR SOLUTION (0.1 M NAAC, PH 4.6, 5 MM CACL2, 15% MPD)	Resolution 2.20 Å R-free 0.247
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 66–512	Fragment：RESIDUES 66-512	POLYMERASE BASIC PROTEIN 2 × 1 （P31345）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；1 MICROLITRE OF PROTEIN SOLUTION, AT 20 MG/ML IN 30 MM TRIS-HCL, PH 7.5, 150 MM NACL, 3 MM BETA-MERCAPTOETHANOL WAS MIXED WITH AN EQUAL VOLUME OF RESERVOIR SOLUTION (0.1 M NAAC, PH 4.6, 5 MM CACL2, 15% MPD)	Resolution 2.20 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JDQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3TJ3 Structure of importin a5 bound to the N-terminus of Nup50 Deposited 2011-08-23	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 66–512（447 aa） Fragment：UNP residues 66-512	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；24% PEG3350, 100 mM Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.255
3TJ3 Structure of importin a5 bound to the N-terminus of Nup50 Deposited 2011-08-23	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 66–512（447 aa） Fragment：UNP residues 66-512	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；24% PEG3350, 100 mM Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.255
4B18 The crystal structure of human Importin alpha 5 with TERT NLS peptide Deposited 2012-07-08	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 66–512（447 aa） Fragment：RESIDUES 66-512	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.52 Å R-free 0.253
6WX9 SOX2 bound to Importin-alpha 5 Deposited 2020-05-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 73–538（466 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2M sodium/potassium phosphate, 20% (w/v) PEG3350	Resolution 2.80 Å R-free 0.251

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IMA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–450； UniProt 66–512 Author chain B； PDBConstruct 4–450； UniProt 66–512

POLYMERASE BASIC PROTEIN 2

INFLUENZA A VIRUS

UniProt P31345

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 678–759	Fragment：C-TERMINAL DOMAIN, RESIDUES 678-759	IMPORTIN ALPHA-1 SUBUNIT × 1 （P52294）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；1 MICROLITRE OF PROTEIN SOLUTION, AT 20 MG/ML IN 30 MM TRIS-HCL, PH 7.5, 150 MM NACL, 3 MM BETA-MERCAPTOETHANOL WAS MIXED WITH AN EQUAL VOLUME OF RESERVOIR SOLUTION (0.1 M NAAC, PH 4.6, 5 MM CACL2, 15% MPD)	Resolution 2.20 Å R-free 0.247
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 678–759	Fragment：C-TERMINAL DOMAIN, RESIDUES 678-759	IMPORTIN ALPHA-1 SUBUNIT × 1 （P52294）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；1 MICROLITRE OF PROTEIN SOLUTION, AT 20 MG/ML IN 30 MM TRIS-HCL, PH 7.5, 150 MM NACL, 3 MM BETA-MERCAPTOETHANOL WAS MIXED WITH AN EQUAL VOLUME OF RESERVOIR SOLUTION (0.1 M NAAC, PH 4.6, 5 MM CACL2, 15% MPD)	Resolution 2.20 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JDQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2GMO NMR-structure of an independently folded C-terminal domain of influenza polymerase subunit PB2 Deposited 2006-04-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 678–759（82 aa） Fragment：PB2 C-terminal 678-759 fragment	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；283 K；Ionic strength (raw mmCIF value) 200 mM NaCl；Pressure ambient NMR sample composition 50 mM Tris buffer pH 7.5, 200 mM NaCl, 1 mM EDTA, 0.01% NaN3, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 50 mM Tris buffer pH 7.5, 200 mM NaCl, 1 mM EDTA, 0.01% NaN3, 100% D2O \| 100% D2O	Resolution not provided
2VQZ Structure of the cap-binding domain of influenza virus polymerase subunit PB2 with bound m7GTP Deposited 2008-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 318–483（166 aa） Fragment：CAP-BINDING DOMAIN, RESIDUES 318-483 Chain B 318–483（166 aa） Fragment：CAP-BINDING DOMAIN, RESIDUES 318-483 Chain D 318–483（166 aa） Fragment：CAP-BINDING DOMAIN, RESIDUES 318-483 Chain E 318–483（166 aa） Fragment：CAP-BINDING DOMAIN, RESIDUES 318-483 Chain F 318–483（166 aa） Fragment：CAP-BINDING DOMAIN, RESIDUES 318-483	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MGT 7N-METHYL-8-HYDROGUANOSINE-5'-TRIPHOSPHATE × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；1 MICROLITRE OF PROTEIN SOLUTION AT 11 MG PER ML IN 50 MM TRIS-HCL (PH 8.0), 200 MM NACL, 2 MM DTT, 5 MM M7GTP WITH AN EQUAL VOLUME OF A SOLUTION CONTAINING 0.1 M CITRIC ACID PH 4.6, 1.6-1.8 M SODIUM FORMATE.	Resolution 2.30 Å R-free 0.235
2VY6 Two domains from the C-terminal region of influenza A virus polymerase PB2 subunit Deposited 2008-07-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–753（216 aa） Fragment：627- AND NLS-DOMAINS, RESIDUES 538-753	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 1 MICROLITRE OF 5.5 MG/ML PROTEIN SOLUTION IN 10 MM TRIS-HCL PH 7.0 AND 200 MM NACL WITH EQUAL VOLUME OF 100 MM HEPES PH 7.5 AND K/NA TARTRATE AT 1.2 M.	Resolution 1.95 Å R-free 0.258
2VY7 The 627-domain from influenza A virus polymerase PB2 subunit Deposited 2008-07-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–693（156 aa） Fragment：627- DOMAIN, RESIDUES 538-693	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 1 MICROLITRE OF 2.4 MG/ML PROTEIN SOLUTION IN 10 MM TRIS-HCL PH 7.0 AND 200 MM NACL WITH 1 MICROLITRE OF 100 MM CITRIC ACID PH 4.0-7.0 AND 1.4-1.6 M AMMONIUM SULFATE SOLUTION	Resolution 1.53 Å R-free 0.185
2VY8 The 627-domain from influenza A virus polymerase PB2 subunit with Glu- 627 Deposited 2008-07-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–693（156 aa） Fragment：627-DOMAIN, RESIDUES 538-693	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 1 MICROLITRE OF 2.4 MG/ML PROTEIN SOLUTION IN 10 MM TRIS-HCL PH 7.0 AND 200 MM NACL WITH 1 MICROLITRE OF 100 MM CITRIC ACID PH 4.0-7.0 AND 1.4-1.6 M AMMONIUM SULFATE SOLUTION	Resolution 1.20 Å R-free 0.214
4NCE Influenza polymerase basic protein 2 (PB2) bound to 7-methyl-GTP Deposited 2013-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 317–483（167 aa） Fragment：CAP-BINDING DOMAIN	Mutation：R389K	MGT 7N-METHYL-8-HYDROGUANOSINE-5'-TRIPHOSPHATE × 1 11H 9,10-dioxo-9,10-dihydroanthracene-2,6-disulfonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；298 K；0.7 uL of protein solution (9.7 mg/mL protein, 50 mM Tris buffer pH 8, 200 mM sodium chloride, 2 mM dithiothreitol, 5 mM m7GTP) was mixed with 0.35 uL Hampton Research Silver Bullet screening reagent #36. This mixture was combined with 0.35 uL of well solution (approximately 1.3 M sodium formate, 100 mM sodium citrate buffer pH 4.6, 5 mM dithiothreitol) and suspended over 1 mL of well solution, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.229
4NCM Influenza polymerase basic protein 2 (PB2) bound to a small-molecule inhibitor Deposited 2013-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 317–483（167 aa） Fragment：CAP-BINDING DOMAIN	Mutation：R389K	704 N~2~-[2-(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)-5-fluoropyrimidin-4-yl]-N,N-dimethyl-L-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；298 K；0.7 uL of protein solution (9.7 mg/mL protein, 50 mM Tris buffer pH 8, 200 mM sodium chloride, 2 mM dithiothreitol, 5 mM m7GTP) was mixed with 0.35 uL Hampton Research Silver Bullet screening reagent #36. This mixture was combined with 0.35 uL of well solution (approximately 1.3 M sodium formate, 100 mM sodium citrate buffer pH 4.6, 5 mM dithiothreitol) and suspended over 1 mL of well solution, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.82 Å R-free 0.191
4P1U Influenza A (flu) virus polymerase basic protein 2 (PB2) bound to VX787, an azaindole inhibitor Deposited 2014-02-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 318–483（166 aa）	Not recorded	21G (2S,3S)-3-[[5-fluoranyl-2-(5-fluoranyl-1H-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；293 K；1 ?L protein solution (2.8 mg/ml protein, 50 mM Tris buffer pH 8, 200 mM sodium chloride, 2 mM dithiothreitol, 1 mM anthraquinone-2,6-disulfonic acid disodium salt, 7.5 mM GTP) and 0.4 ?L well solution (1.5 M sodium formate, 100 mM sodium citrate buffer pH 4.7, 10 mM dithiothreitol) was suspended over 1 mL of well solution. The crystals were transferred to a soaking solution (3.25 M sodium formate, 100 mM sodium citrate buffer pH 4.7) containing 1 mM VRT-0928787. Crystals were incubated approximately 15 hours t room temperature, and then transferred to a cryo-preservative solution (soaking solution with 25 % v/v glycerol) prior to freezing in liquid nitrogen.	Resolution 2.52 Å R-free 0.243
4UAD Importin alpha 7 delta IBB in complex with Influenza PB2 Nuclear Localization Domain Deposited 2014-08-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 683–759（77 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M magnesium acetate 12% PEG 8000 0.1M Na cacodylate at pH 6.5	Resolution 2.42 Å R-free 0.231
4UAE Importin alpha 3 delta IBB in complex with Influenza PB2 Nuclear Localization Domain Deposited 2014-08-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 678–759（82 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.1 M Na cacodylate, pH 6.5 0.1 M NaCl 1.1 M ammonium sulfate	Resolution 2.70 Å R-free 0.239
4UAF Importin alpha 1 delta IBB in complex with Influenza PB2 nuclear localization domain Deposited 2014-08-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 678–759（82 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.49 M Na phosphate monobasic 0.91 M K phosphate dibasic pH 6.9	Resolution 1.70 Å R-free 0.193
6EUV Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindole cap-binding inhibitor (VX-787) Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 247–536（290 aa）	Not recorded	21G (2S,3S)-3-[[5-fluoranyl-2-(5-fluoranyl-1H-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 2 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；Crystals were obtained by mixing protein at 16 mg per mL mixed with 2 mM VX-787 in 0.1 M MES pH6, 0.7 M sodium formate pH 6.	Resolution 2.70 Å R-free 0.282
6EUV Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindole cap-binding inhibitor (VX-787) Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 247–536（290 aa）	Not recorded	21G (2S,3S)-3-[[5-fluoranyl-2-(5-fluoranyl-1H-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 2 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；Crystals were obtained by mixing protein at 16 mg per mL mixed with 2 mM VX-787 in 0.1 M MES pH6, 0.7 M sodium formate pH 6.	Resolution 2.70 Å R-free 0.282
6EUV Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindole cap-binding inhibitor (VX-787) Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 247–536（290 aa）	Not recorded	21G (2S,3S)-3-[[5-fluoranyl-2-(5-fluoranyl-1H-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；Crystals were obtained by mixing protein at 16 mg per mL mixed with 2 mM VX-787 in 0.1 M MES pH6, 0.7 M sodium formate pH 6.	Resolution 2.70 Å R-free 0.282
6EUV Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindole cap-binding inhibitor (VX-787) Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 247–536（290 aa）	Not recorded	21G (2S,3S)-3-[[5-fluoranyl-2-(5-fluoranyl-1H-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；Crystals were obtained by mixing protein at 16 mg per mL mixed with 2 mM VX-787 in 0.1 M MES pH6, 0.7 M sodium formate pH 6.	Resolution 2.70 Å R-free 0.282
6EUY Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindazole cap-binding inhibitor Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 247–536（290 aa）	Not recorded	BYB (2~{S},3~{S})-3-[[5-fluoranyl-2-(5-fluoranyl-1~{H}-pyrazolo[3,4-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals were obtained with A/H3N2 double domain at 15 mg/ml in 20 mM Tris pH 8, 150 mM NaCl, 5% glycerol, 2 mM beta-mercaptoethanolmixed with 5 mM of VX-787 mixed with 0.2 M ammonium sulphate, 20% PEG3350	Resolution 3.00 Å R-free 0.263
6EUY Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindazole cap-binding inhibitor Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 247–536（290 aa）	Not recorded	BYB (2~{S},3~{S})-3-[[5-fluoranyl-2-(5-fluoranyl-1~{H}-pyrazolo[3,4-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals were obtained with A/H3N2 double domain at 15 mg/ml in 20 mM Tris pH 8, 150 mM NaCl, 5% glycerol, 2 mM beta-mercaptoethanolmixed with 5 mM of VX-787 mixed with 0.2 M ammonium sulphate, 20% PEG3350	Resolution 3.00 Å R-free 0.263
6EUY Structure of the midlink and cap-binding domains of influenza A polymerase PB2 subunit with a bound azaindazole cap-binding inhibitor Deposited 2017-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 247–536（290 aa）	Not recorded	BYB (2~{S},3~{S})-3-[[5-fluoranyl-2-(5-fluoranyl-1~{H}-pyrazolo[3,4-b]pyridin-3-yl)pyrimidin-4-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals were obtained with A/H3N2 double domain at 15 mg/ml in 20 mM Tris pH 8, 150 mM NaCl, 5% glycerol, 2 mM beta-mercaptoethanolmixed with 5 mM of VX-787 mixed with 0.2 M ammonium sulphate, 20% PEG3350	Resolution 3.00 Å R-free 0.263
7XME Structure of Influenza A virus polymerase basic protein 2 (PB2) with an azazindole derivative Deposited 2022-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 318–483（166 aa）	Not recorded	IOD IODIDE ION × 1 GIH (2~{S},3~{S})-3-[[5-dimethoxyphosphoryl-4-(5-fluoranyl-1~{H}-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-2-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；Soudium,BIS-Tris propane pH 8.5,PEG3350	Resolution 2.52 Å R-free 0.330
7XME Structure of Influenza A virus polymerase basic protein 2 (PB2) with an azazindole derivative Deposited 2022-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 318–483（166 aa）	Not recorded	IOD IODIDE ION × 1 GIH (2~{S},3~{S})-3-[[5-dimethoxyphosphoryl-4-(5-fluoranyl-1~{H}-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-2-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；Soudium,BIS-Tris propane pH 8.5,PEG3350	Resolution 2.52 Å R-free 0.330
7XME Structure of Influenza A virus polymerase basic protein 2 (PB2) with an azazindole derivative Deposited 2022-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 318–483（166 aa）	Not recorded	IOD IODIDE ION × 1 GIH (2~{S},3~{S})-3-[[5-dimethoxyphosphoryl-4-(5-fluoranyl-1~{H}-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-2-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；Soudium,BIS-Tris propane pH 8.5,PEG3350	Resolution 2.52 Å R-free 0.330
7XME Structure of Influenza A virus polymerase basic protein 2 (PB2) with an azazindole derivative Deposited 2022-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 318–483（166 aa）	Not recorded	IOD IODIDE ION × 1 GIH (2~{S},3~{S})-3-[[5-dimethoxyphosphoryl-4-(5-fluoranyl-1~{H}-pyrrolo[2,3-b]pyridin-3-yl)pyrimidin-2-yl]amino]bicyclo[2.2.2]octane-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；Soudium,BIS-Tris propane pH 8.5,PEG3350	Resolution 2.52 Å R-free 0.330
9V44 Coupling of polymerase-nucleoprotein-RNA in an influenza virus mini ribonucleoprotein complex Deposited 2025-05-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain C 1–759（759 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å
9V46 Coupling of polymerase-nucleoprotein-RNA in an influenza virus mini ribonucleoprotein complex Deposited 2025-05-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain C 1–759（759 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å

16 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PB2_IAVI7
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 2–83； UniProt 678–759 Author chain E； PDBConstruct 2–83； UniProt 678–759

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jdq
Deposition date deposition_date	2007-01-11
Structure title title	C-terminal domain of influenza A virus polymerase PB2 subunit in complex with human importin alpha5
Keywords keywords	;TRANSPORT, PB2 SUBUNIT, NUCLEAR PROTEIN, PROTEIN TRANSPORT, ARMADILLO REPEATS, INFLUENZA A VIRUS RNA-DEPENDENT RNA POLYMERASE, BIPARTITE NUCLEAR LOCALISATION SIGNAL, NUCLEAR IMPORT ADAPTER, HUMAN IMPORTIN ALPHA5, HOST-VIRUS INTERACTION ;; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.72 Å
Radius of gyration Rg (electron density) rg_electron	38.92 Å
Forward intensity I(0) i0	173965000.00
Molecular weight molecular_weight	108210.0 kDa
Excluded volume excluded_volume	136360 Å³
Envelope volume envelope_volume	186210 Å³
Hydration-shell volume shell_volume	42219 Å³
Envelope diameter envelope_diameter	148.8 Å
Shell Rg shell_rg	41.60 Å
Envelope Rg envelope_rg	39.29 Å
Shape Rg shape_rg	38.94 Å
Total Rg total_rg	39.05 Å
Total atoms total_atoms	7597
Residues n_residues	978
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

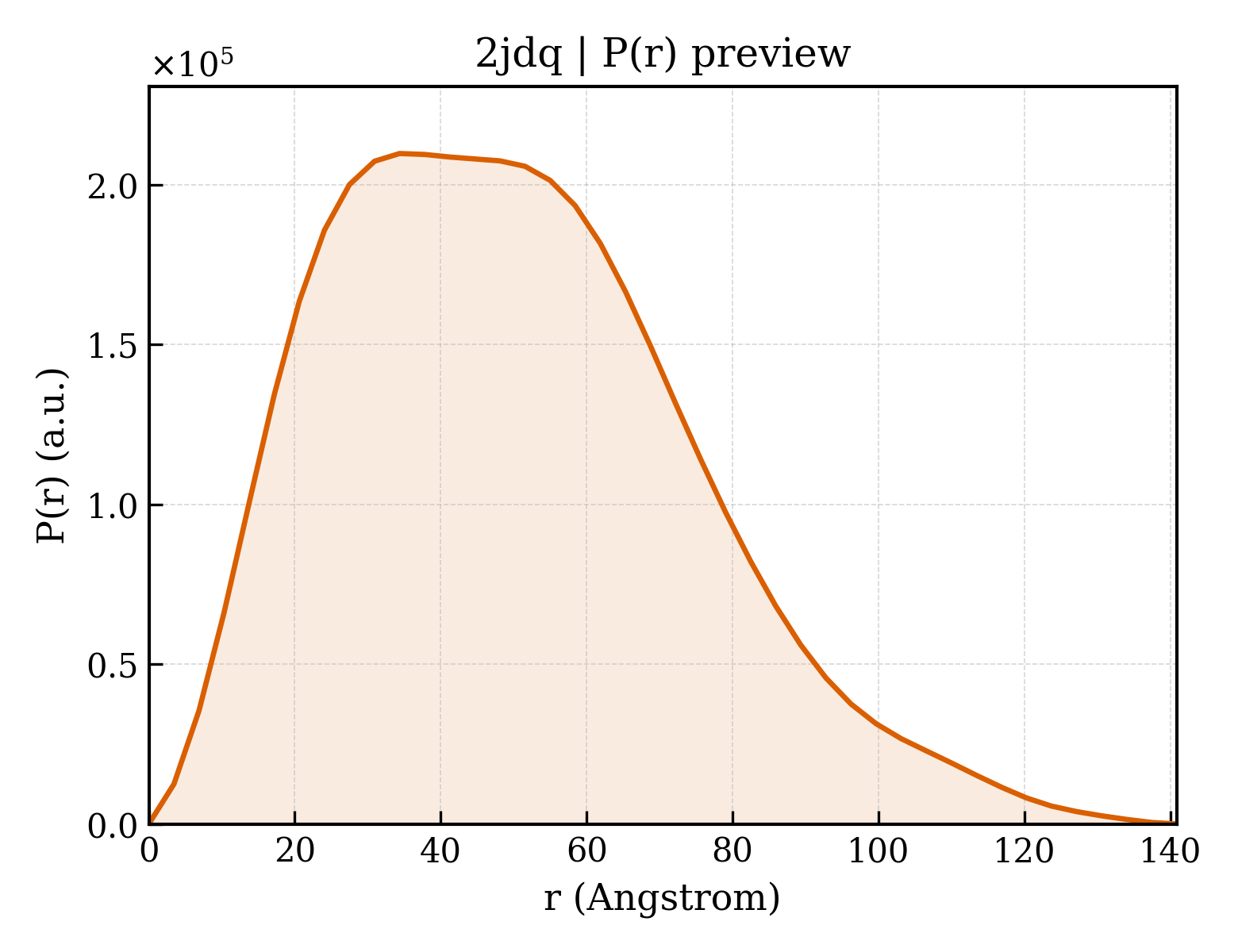

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.9 Å
Rg (real space) rg_real	39.07 Å
Rg uncertainty (real space) rg_real_error	1.60 Å
I(0) (real space) i0_real	1.7400e+08
I(0) uncertainty (real space) i0_real_error	3.1470e+06
Rg (reciprocal space) rg_reciprocal	38.86 Å
I(0) (reciprocal space) i0_reciprocal	173900000.0000
Solution quality estimate total_estimate	0.8290
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.4 Å
Skewness Skewness skewness	0.512
Kurtosis Kurtosis kurtosis	-0.105
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	32770000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.718; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.779; Smooth: 0.842

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	IMPORTIN ALPHA-1 SUBUNIT
Molecular weight formula_weight	49687.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7862

GAMGFHEAQINNMEMAPGGVITSDMIEMIFSKSPEQQLSATQKFRKLLSKEPNPPIDEVISTPGVVARFVEFLKRKENCTLQFESAWVLTNIASGNSLQTRIVIQAGAVPIFIELLSSEFEDVQEQAVWALGNIAGDSTMCRDYVLDCNILPPLLQLFSKQNRLTMTRNAVWALSNLCRGKSPPPEFAKVSPCLNVLSWLLFVSDTDVLADACWALSYLSDGPNDKIQAVIDAGVCRRLVELLMHNDYKVVSPALRAVGNIVTGDDIQTQVILNCSALQSLLHLLSSPKESIKKEACWTISNITAGNRAQIQTVIDANIFPALISILQTAEFRTRKEAAWAITNATSGGSAEQIKYLVELGCIKPLCDLLTVMDSKIVQVALNGLENILRLGEQEAKRNGTGINPYCALIEEAYGLDKIEFLQSHENQEIYQKAFDLIEHYFGTEDEDSS

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	POLYMERASE BASIC PROTEIN 2
Molecular weight formula_weight	8985.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

GDPDESTSGVESAVLRGFLILGKEDRRYGPALSINELSNLAKGEKANVLIGQGDVVLVMKRKRDSSILTDSQTATKRIRMAIN

来源 Source

来源生物 organism	INFLUENZA A VIRUS
NCBI Class编号 ncbi_taxonomy_id	11320
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	265

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2jdqa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.0 — automated matches

Domain ID domain_id	d2jdqb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.0 — automated matches

Domain ID domain_id	d2jdqd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.361 — PB2 C-terminal domain-like
Superfamily Superfamily superfamily	d.361.1 — PB2 C-terminal domain-like
Family Family family	d.361.1.1 — PB2 C-terminal domain-like

Domain ID domain_id	d2jdqe_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.361 — PB2 C-terminal domain-like
Superfamily Superfamily superfamily	d.361.1 — PB2 C-terminal domain-like
Family Family family	d.361.1.1 — PB2 C-terminal domain-like

CATH v4.4 (4 domains)

Domain ID domain_id	2jdqA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2jdqB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2jdqD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	90 — Polymerase Basic Protein 2, C-terminal domain

Domain ID domain_id	2jdqE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	90 — Polymerase Basic Protein 2, C-terminal domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	94.970 Å
Unit-cell length b length_b	100.550 Å
Unit-cell length c length_c	151.840 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2080
R_work r_work	0.2060
R_free r_free	0.2470

fit	/app/data/saxs_computation/jd/2jdq/2jdq.fit
pddf	/app/data/pr_computation/jd/2jdq/2jdq.pr.out
profile	/app/data/saxs_computation/jd/2jdq/2jdq.dat

C-terminal domain of influenza A virus polymerase PB2 subunit in complex with human importin alpha5
