2jk5

Potassium Channel KcsA in complex with Tetrabutylammonium in high K

Method: X-RAY DIFFRACTION D_max: 80.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

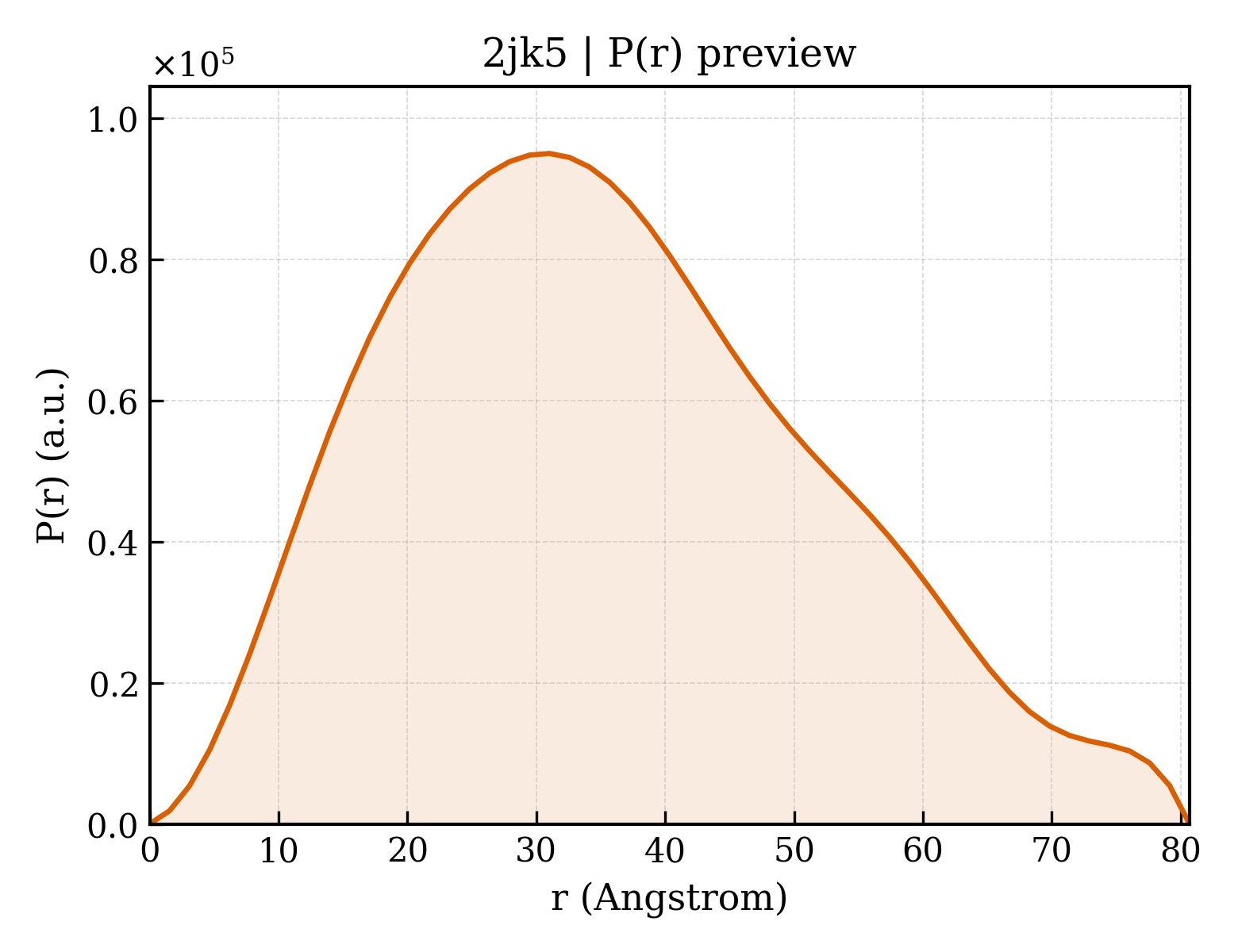

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2jk5
沉积日期 deposition_date	2008-08-15
结构标题 title	Potassium Channel KcsA in complex with Tetrabutylammonium in high K
关键词 keywords	IMMUNE SYSTEM-METAL TRANSPORT COMPLEX, QUATERNARY AMMONIUM, PROTEIN-ANTIBODY FAB COMPLEX, IONIC CHANNEL, ION TRANSPORT; IMMUNE SYSTEM/METAL TRANSPORT
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.46 Å
回转半径 Rg (电子) rg_electron	31.11 Å
零角强度 I(0) i0	53083700.00
分子量 molecular_weight	58608.0 kDa
排除体积 excluded_volume	73797 Å³
包络体积 envelope_volume	95881 Å³
水化壳体积 shell_volume	28576 Å³
包络直径 envelope_diameter	130.9 Å
壳层 Rg shell_rg	34.23 Å
包络 Rg envelope_rg	32.54 Å
形状 Rg shape_rg	31.02 Å
总 Rg total_rg	31.69 Å
总原子数 total_atoms	4120
残基数 n_residues	534
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	80.7 Å
Rg (实空间) rg_real	27.56 Å
Rg 误差 (实空间) rg_real_error	0.20 Å
I(0) (实空间) i0_real	5.0160e+07
I(0) 误差 (实空间) i0_real_error	6.3600e+05
Rg (倒空间) rg_reciprocal	30.87 Å
I(0) (倒空间) i0_reciprocal	53070000.0000
解质量估计 total_estimate	0.6840
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.0 Å
偏度 Skewness skewness	0.381
峰度 Kurtosis kurtosis	-0.443
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	1.3490
最高正则化参数 α highest_alpha	5082000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.004; Oscil: 0.982; Stabil: 0.987; Sysdev: 0.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	ANTIBODY FAB FRAGMENT LIGHT CHAIN
分子量 formula_weight	23411.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4420

QVQLQQPGAELVKPGASVKLSCKASGYTFTSDWIHWVKQRPGHGLEWIGEIIPSYGRANYNEKIQKKATLTADKSSSTAFMQLSSLTSEDSAVYYCARERGDGYFAVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRD

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	HOUSE MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	MUS MUSCULUS

Entity 2 polymer

描述 description	ANTIBODY FAB FRAGMENT HEAVY CHAIN
分子量 formula_weight	23435.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

DILLTQSPAILSVSPGERVSFSCRASQSIGTDIHWYQQRTNGSPRLLIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIANYYCQQSNRWPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	HOUSE MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	MUS MUSCULUS

Entity 3 polymer

描述 description	VOLTAGE-GATED POTASSIUM CHANNEL
分子量 formula_weight	13237.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MPPMLSGLLARLVKLLLGRHGSALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRCVAVVVMVAGITSFGLVTAALATWFVGREQERRGH

来源 Source

来源生物 organism	STREPTOMYCES LIVIDANS
NCBI 分类编号 ncbi_taxonomy_id	1916
宿主生物 host_organism	ESCHERICHIA COLI

Entity 4 non-polymer

描述 description	COBALT (II) ION
分子量 formula_weight	58.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 6 non-polymer

描述 description	NONAN-1-OL
分子量 formula_weight	144.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	(2S)-3-HYDROXY-2-(NONANOYLOXY)PROPYL LAURATE
分子量 formula_weight	414.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	TETRABUTYLAMMONIUM ION
分子量 formula_weight	242.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	HEPTANE
分子量 formula_weight	100.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	204

▼

6. 折叠分类 (SCOP + CATH) 11 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2jk5a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2jk5a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2jk5a3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2jk5b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2jk5b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2jk5c_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.14 — Gated ion channels
超家族 Superfamily superfamily	f.14.1 — Voltage-gated ion channels
家族 Family family	f.14.1.1 — Voltage-gated potassium channels

CATH v4.4 (5 domains)

结构域编号 domain_id	2jk5A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2jk5A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2jk5B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2jk5B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2jk5C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	70 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	156.145 Å
晶胞边长 b length_b	156.145 Å
晶胞边长 c length_c	76.326 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 4
空间群编号 int_tables_number	79
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2050
R_work r_work	0.2020
R_free r_free	0.2490

fit	/app/data/saxs_computation/jk/2jk5/2jk5.fit
pddf	/app/data/pr_computation/jk/2jk5/2jk5.pr.out
profile	/app/data/saxs_computation/jk/2jk5/2jk5.dat
