1. Protein Identity and Related Structures Protein Identity & Related Structures

Plexin-B1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1743–1862	Fragment：Sequence database residues 1743-1862 Mutation：W1830F	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.8；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition：1.75 mM [U-100% 13C; U-100% 15N] protein, 90%H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：1.25 mM [U-100% 13C; U-100% 15N; 80% 2H] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JPH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2OS6 Solution structure of LARG PDZ domain in complex with C-terminal octa-peptide of Plexin B1 Deposited 2007-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2128–2135（8 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；293 K；Ionic strength (raw mmCIF value) 50 mM phosphate buffer, 50mM NaCl；Pressure 1 NMR sample composition 0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 90% H2O, 10% D2O \| 50mM phosphate buffer, 90% H2O, 10% D2O NMR sample composition 0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 99.9% D2O \| 50mM phosphate buffer, 99.9% D2O	Resolution not provided
2R2O Crystal structure of the effector domain of human Plexin B1 Deposited 2007-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1743–1862（120 aa） Fragment：Effector domain: Residues 1743-1862 Chain B 1743–1862（120 aa） Fragment：Effector domain: Residues 1743-1862	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291 K；2.6M Sodium chloride, 18% Ethylene glycol, 0.1M Tris-HCl, pH 8.0, VAPOR DIFFUSION, temperature 291K	Resolution 2.00 Å R-free 0.269
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 15 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 15 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 30 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 60 MG MAGNESIUM ION × 4 CA CALCIUM ION × 4 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 30 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
3HM6 Crystal structure of the cytoplasmic domain of human plexin B1 Deposited 2009-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1511–2135（625 aa） Fragment：Cytoplasmic domain (UNP residues 1511-2135)	Mutation：S1625T	UNX UNKNOWN LIGAND × 19	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；16% peg-2000 mme, 0.1M TRIS, 0.2M TMAO, pH 8, vapor diffusion, hanging drop, temperature 291K	Resolution 2.40 Å R-free 0.262
3OL2 Receptor-ligand structure of Human Semaphorin 4D with Plexin B1. Deposited 2010-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 20–535（516 aa） Fragment：Extracellular domainsl (1-2)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；294 K；0.1 M Tris,0.2 M calcium acetate, 6% v/v glycerol, 20% PEG3000, pH 7, VAPOR DIFFUSION, temperature 294K	Resolution 2.99 Å R-free 0.237
3SU8 Crystal structure of a truncated intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1533–2135（603 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.238
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1511–2135（625 aa） Fragment：UNP residues 1533-2135 Chain E 1511–2135（625 aa） Fragment：UNP residues 1533-2135 Chain F 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 3 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
7VF3 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m7 peptide Deposited 2021-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–535（517 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1M sodium acetate buffer, 20% PEG 400, 0.2M Calcium acetate	Resolution 2.29 Å R-free 0.226
7VF3 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m7 peptide Deposited 2021-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–535（517 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PGE TRIETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1M sodium acetate buffer, 20% PEG 400, 0.2M Calcium acetate	Resolution 2.29 Å R-free 0.226
7VG7 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m6A9 peptide Deposited 2021-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–535（517 aa）	Mutation：T19S	PGE TRIETHYLENE GLYCOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M MES or HEPES, 14-16% PEG 3350	Resolution 2.50 Å R-free 0.243
8B3K Crystal structure of human Plexin-B1 (20-535) in the unbound state Deposited 2022-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–535（516 aa） Chain B 20–535（516 aa）	Not recorded	CD CADMIUM ION × 14 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；1.0 M sodium acetate, 0.2 M cadmium sulphate, 0.1 M HEPES, pH 7.5	Resolution 2.69 Å R-free 0.245

11 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLXB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–123； UniProt 1743–1862

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jph
Deposition date deposition_date	2007-05-11
Structure title title	NMR solution structure of the Rho GTPase binding domain of human plexin-b1
Keywords keywords	protein, ubiquitin fold, SIGNALING PROTEIN, PROTEIN BINDING; SIGNALING PROTEIN, PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.77 Å
Radius of gyration Rg (electron density) rg_electron	14.56 Å
Forward intensity I(0) i0	998212000.00
Molecular weight molecular_weight	268810.0 kDa
Excluded volume excluded_volume	337760 Å³
Envelope volume envelope_volume	42341 Å³
Hydration-shell volume shell_volume	19154 Å³
Envelope diameter envelope_diameter	65.7 Å
Shell Rg shell_rg	24.90 Å
Envelope Rg envelope_rg	18.98 Å
Shape Rg shape_rg	14.55 Å
Total Rg total_rg	14.83 Å
Total atoms total_atoms	38280
Residues n_residues	2440
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.5 Å
Rg (real space) rg_real	14.73 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	9.9820e+08
I(0) uncertainty (real space) i0_real_error	1.3930e+07
Rg (reciprocal space) rg_reciprocal	14.74 Å
I(0) (reciprocal space) i0_reciprocal	998200000.0000
Solution quality estimate total_estimate	0.7267
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	18.3 Å
Skewness Skewness skewness	0.323
Kurtosis Kurtosis kurtosis	0.038
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	428000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.508; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2jpha1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.10 — Rho GTPase binding domain

Domain ID domain_id	d2jpha2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2jphA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (7)

Insights into Oncogenic Mutations of Plexin-B1 Based on the Solution Structure of the Rho GTPase Binding Domain

Structure (2008)

PMID: 18275816 · DOI: 10.1016/j.str.2007.12.012 PRIMARY

;Binding of Rac1, Rnd1, and RhoD to a novel Rho GTPase interaction motif destabilizes dimerization of the plexin-B1 effector domain ;

J.Biol.Chem. (2007)

PMID: 17916560 · DOI: 10.1074/jbc.M703800200

When monomers are preferred: a strategy for the identification and disruption of weakly oligomerized proteins.

Structure (2005)

PMID: 15642257 · DOI: 10.1016/j.str.2004.10.018

;1H, 15N and 13C Resonance assignments and secondary structure determination reveal that the minimal Rac1 GTPase binding domain of plexin-B1 has a ubiquitin fold. ;

J.Biomol.NMR (2005)

PMID: 15929008 · DOI: 10.1007/s10858-005-0943-9

The Semaphorin 4D receptor Plexin-B1 is a GTPase activating protein for R-Ras.

Science (2004)

PMID: 15297673 · DOI: 10.1126/science.1097545

Plexin-B semaphorin receptors interact directly with active Rac and regulate the actin cytoskeleton by activating Rho.

CURR.BIOL. (2001)

PMID: 11267870 · DOI: 10.1016/S0960-9822(01)00092-6

The semaphorin receptor plexin-B1 specifically interacts with active Rac in a ligand-dependent manner.

Proc.Natl.Acad.Sci.USA (2000)

PMID: 11035813 · DOI: 10.1073/pnas.220421797

▶

Description description	Plexin-B1
Molecular weight formula_weight	13590.6 kDa
Mutation mutation	W1830F
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	38280

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

fit	/app/data/saxs_computation/jp/2jph/2jph.fit
pddf	/app/data/pr_computation/jp/2jph/2jph.pr.out
profile	/app/data/saxs_computation/jp/2jph/2jph.dat

NMR solution structure of the Rho GTPase binding domain of human plexin-b1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plexin-B1

State in the Current Structure

Other States of the Same Protein in the Database

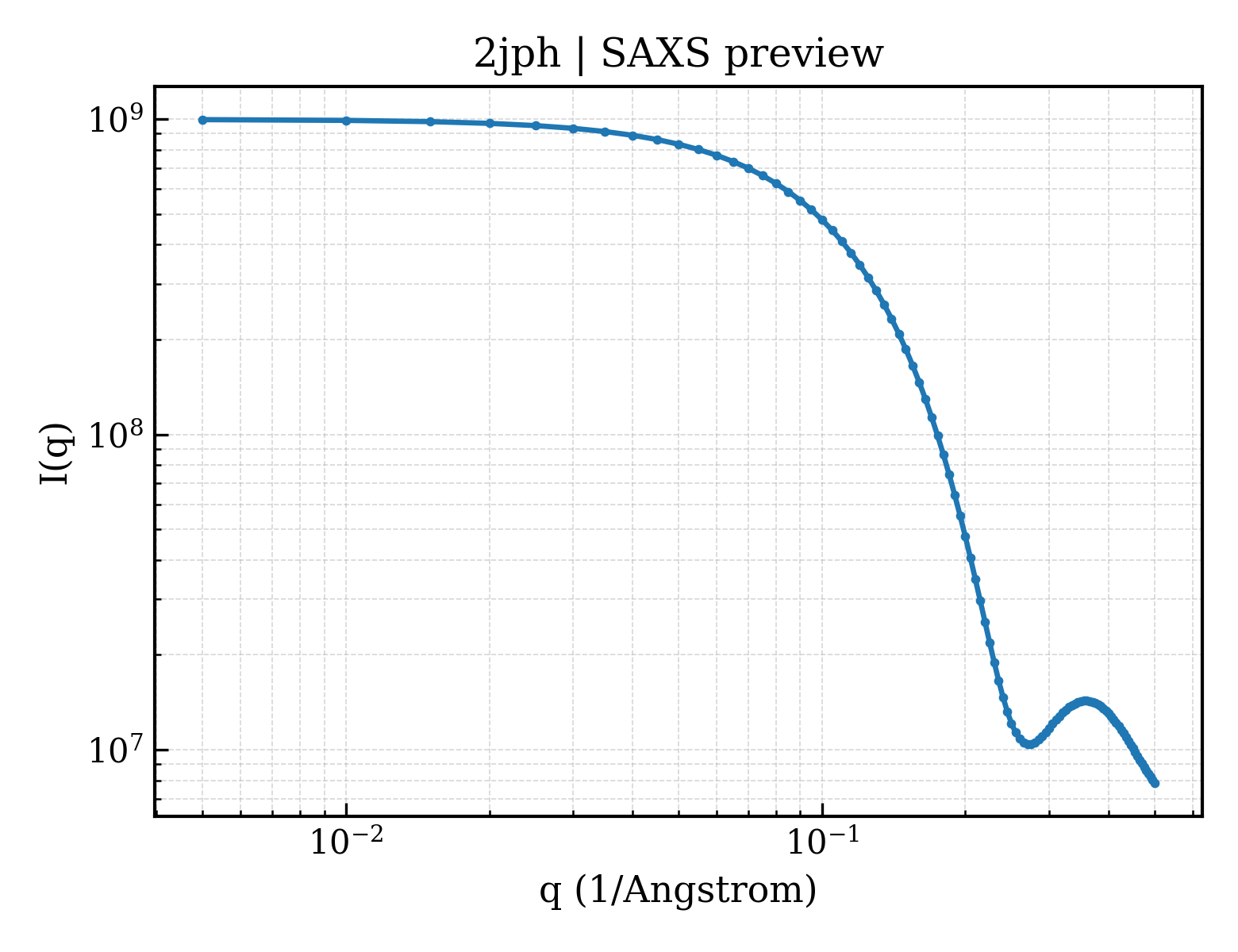

SAXS scattering curve SAXS Profile

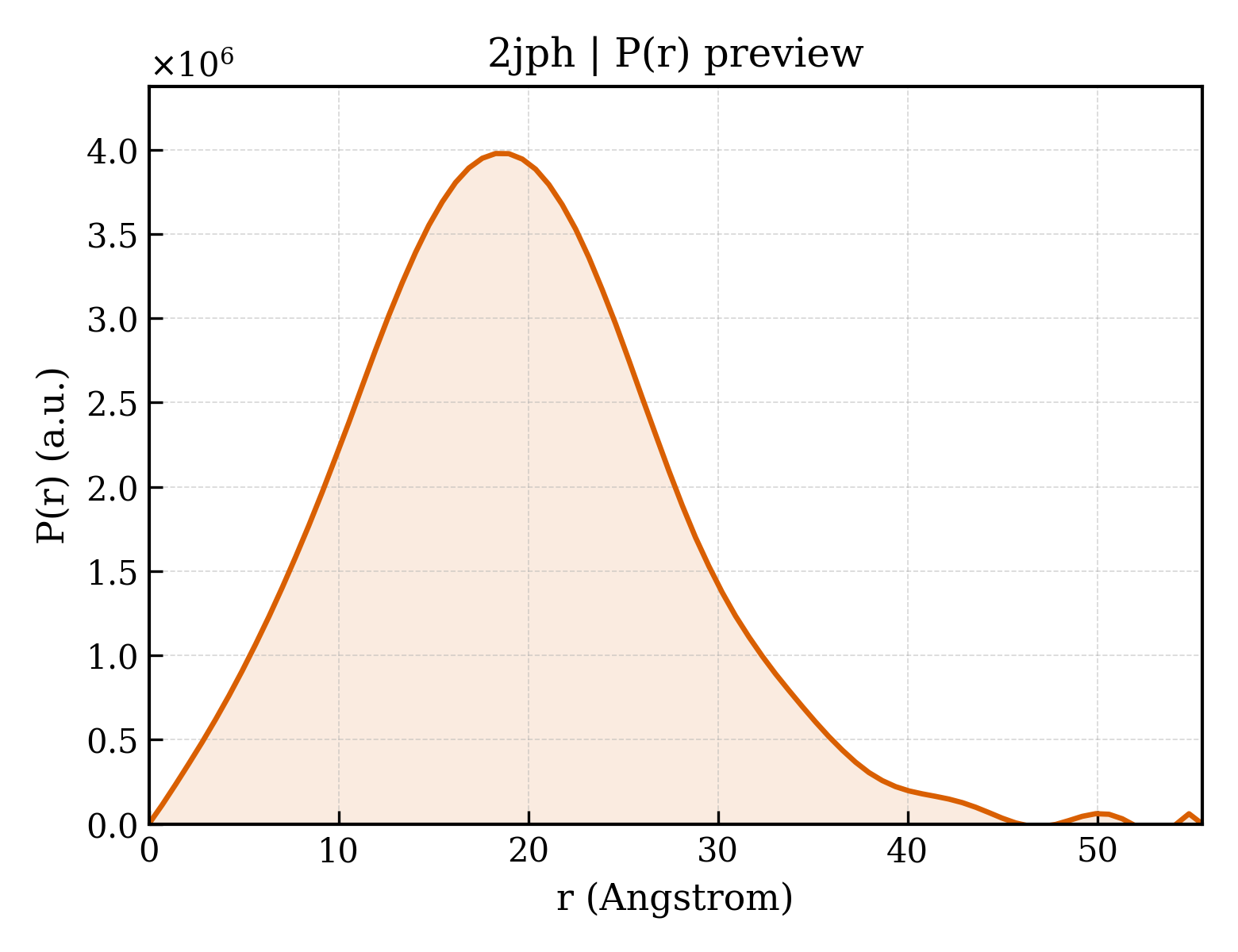

P(r) Distance Distribution P(r) Distribution
