SAXSdb — 2os6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rho guanine nucleotide exchange factor 12

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 67–151	Fragment：PDZ domain	C-terminal peptide of Plexin-B1 × 1 （O43157）	SOLUTION NMR NMR measurement conditions：pH 6；293 K；Ionic strength (raw mmCIF value) 50 mM phosphate buffer, 50mM NaCl；Pressure 1 NMR sample composition：0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 90% H2O, 10% D2O \| 50mM phosphate buffer, 90% H2O, 10% D2O NMR sample composition：0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 99.9% D2O \| 50mM phosphate buffer, 99.9% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2OS6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1TXD Crystal Structure of the DH/PH domains of Leukemia-associated RhoGEF Deposited 2004-07-03	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 764–1138（375 aa） Fragment：DH/PH domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG3350, sodium chloride, sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.13 Å R-free 0.274
1X86 Crystal Structure of the DH/PH domains of Leukemia-associated RhoGEF in complex with RhoA Deposited 2004-08-17	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 764–1138（375 aa） Fragment：DH/PH domains	Mutation：Tyr973Phe	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；PEG8K, sodium phosphate, sodium chloride, EDTA, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.22 Å R-free 0.279
1X86 Crystal Structure of the DH/PH domains of Leukemia-associated RhoGEF in complex with RhoA Deposited 2004-08-17	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 764–1138（375 aa） Fragment：DH/PH domains	Mutation：Tyr973Phe	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；PEG8K, sodium phosphate, sodium chloride, EDTA, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.22 Å R-free 0.279
1X86 Crystal Structure of the DH/PH domains of Leukemia-associated RhoGEF in complex with RhoA Deposited 2004-08-17	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 764–1138（375 aa） Fragment：DH/PH domains	Mutation：Tyr973Phe	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；PEG8K, sodium phosphate, sodium chloride, EDTA, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.22 Å R-free 0.279
1X86 Crystal Structure of the DH/PH domains of Leukemia-associated RhoGEF in complex with RhoA Deposited 2004-08-17	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 764–1138（375 aa） Fragment：DH/PH domains	Mutation：Tyr973Phe	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；PEG8K, sodium phosphate, sodium chloride, EDTA, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.22 Å R-free 0.279
2OMJ solution structure of LARG PDZ domain Deposited 2007-01-22	Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 67–151（85 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；293 K；Ionic strength (raw mmCIF value) 50mM phosphate buffer, 50mM NaCl；Pressure 1 NMR sample composition 1.3mM LARG PDZ domain, 15N, 13C-labeled, 5mM EDTA, 1mM EDTA, 50mM phosphate buffer, 90% H2O, 10% D2O \| 50mM phosphate buffer, 90% H2O, 10% D2O NMR sample composition 1.3mM LARG PDZ domain, 15N, 13C-labeled, 5mM EDTA, 1mM EDTA, 50mM phosphate buffer, 99.9% D2O \| 50mM phosphate buffer, 99.9% D2O	Resolution not provided

3 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARHGC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–89； UniProt 67–151

C-terminal peptide of Plexin-B1

OrganismNot specified

UniProt O43157

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2128–2135	Not recorded	Rho guanine nucleotide exchange factor 12 × 1 （Q9NZN5）	SOLUTION NMR NMR measurement conditions：pH 6；293 K；Ionic strength (raw mmCIF value) 50 mM phosphate buffer, 50mM NaCl；Pressure 1 NMR sample composition：0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 90% H2O, 10% D2O \| 50mM phosphate buffer, 90% H2O, 10% D2O NMR sample composition：0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 99.9% D2O \| 50mM phosphate buffer, 99.9% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2OS6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JPH NMR solution structure of the Rho GTPase binding domain of human plexin-b1 Deposited 2007-05-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1743–1862（120 aa） Fragment：Sequence database residues 1743-1862	Mutation：W1830F	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1.75 mM [U-100% 13C; U-100% 15N] protein, 90%H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.25 mM [U-100% 13C; U-100% 15N; 80% 2H] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2R2O Crystal structure of the effector domain of human Plexin B1 Deposited 2007-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1743–1862（120 aa） Fragment：Effector domain: Residues 1743-1862 Chain B 1743–1862（120 aa） Fragment：Effector domain: Residues 1743-1862	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291 K；2.6M Sodium chloride, 18% Ethylene glycol, 0.1M Tris-HCl, pH 8.0, VAPOR DIFFUSION, temperature 291K	Resolution 2.00 Å R-free 0.269
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 15 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 15 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 30 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 60 MG MAGNESIUM ION × 4 CA CALCIUM ION × 4 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 30 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
3HM6 Crystal structure of the cytoplasmic domain of human plexin B1 Deposited 2009-05-28	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1511–2135（625 aa） Fragment：Cytoplasmic domain (UNP residues 1511-2135)	Mutation：S1625T	UNX UNKNOWN LIGAND × 19	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；16% peg-2000 mme, 0.1M TRIS, 0.2M TMAO, pH 8, vapor diffusion, hanging drop, temperature 291K	Resolution 2.40 Å R-free 0.262
3OL2 Receptor-ligand structure of Human Semaphorin 4D with Plexin B1. Deposited 2010-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 20–535（516 aa） Fragment：Extracellular domainsl (1-2)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；294 K；0.1 M Tris,0.2 M calcium acetate, 6% v/v glycerol, 20% PEG3000, pH 7, VAPOR DIFFUSION, temperature 294K	Resolution 2.99 Å R-free 0.237
3SU8 Crystal structure of a truncated intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1533–2135（603 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.238
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1511–2135（625 aa） Fragment：UNP residues 1533-2135 Chain E 1511–2135（625 aa） Fragment：UNP residues 1533-2135 Chain F 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 3 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
7VF3 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m7 peptide Deposited 2021-09-10	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–535（517 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1M sodium acetate buffer, 20% PEG 400, 0.2M Calcium acetate	Resolution 2.29 Å R-free 0.226
7VF3 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m7 peptide Deposited 2021-09-10	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–535（517 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PGE TRIETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1M sodium acetate buffer, 20% PEG 400, 0.2M Calcium acetate	Resolution 2.29 Å R-free 0.226
7VG7 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m6A9 peptide Deposited 2021-09-14	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–535（517 aa）	Mutation：T19S	PGE TRIETHYLENE GLYCOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M MES or HEPES, 14-16% PEG 3350	Resolution 2.50 Å R-free 0.243
8B3K Crystal structure of human Plexin-B1 (20-535) in the unbound state Deposited 2022-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–535（516 aa） Chain B 20–535（516 aa）	Not recorded	CD CADMIUM ION × 14 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；1.0 M sodium acetate, 0.2 M cadmium sulphate, 0.1 M HEPES, pH 7.5	Resolution 2.69 Å R-free 0.245

11 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLXB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–8； UniProt 2128–2135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2os6
Deposition date deposition_date	2007-02-05
Structure title title	Solution structure of LARG PDZ domain in complex with C-terminal octa-peptide of Plexin B1
Keywords keywords	nerve system development, cytoskeleton rearrangement, cell adhesion; CELL ADHESION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.05 Å
Radius of gyration Rg (electron density) rg_electron	13.48 Å
Forward intensity I(0) i0	619910000.00
Molecular weight molecular_weight	205520.0 kDa
Excluded volume excluded_volume	255990 Å³
Envelope volume envelope_volume	30665 Å³
Hydration-shell volume shell_volume	15470 Å³
Envelope diameter envelope_diameter	55.2 Å
Shell Rg shell_rg	22.85 Å
Envelope Rg envelope_rg	17.66 Å
Shape Rg shape_rg	13.46 Å
Total Rg total_rg	13.76 Å
Total atoms total_atoms	29220
Residues n_residues	1940
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	54.0 Å
Rg (real space) rg_real	14.04 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	6.1990e+08
I(0) uncertainty (real space) i0_real_error	7.5920e+06
Rg (reciprocal space) rg_reciprocal	14.04 Å
I(0) (reciprocal space) i0_reciprocal	619900000.0000
Solution quality estimate total_estimate	0.7058
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	17.1 Å
Skewness Skewness skewness	0.336
Kurtosis Kurtosis kurtosis	-0.044
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	239500.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.433; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.893; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2os6A00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

8. Citations (1)

▶

Description description	Rho guanine nucleotide exchange factor 12
Molecular weight formula_weight	9369.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	29220

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Description description	C-terminal peptide of Plexin-B1
Molecular weight formula_weight	918.0 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/os/2os6/2os6.fit
pddf	/app/data/pr_computation/os/2os6/2os6.pr.out
profile	/app/data/saxs_computation/os/2os6/2os6.dat

Solution structure of LARG PDZ domain in complex with C-terminal octa-peptide of Plexin B1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rho guanine nucleotide exchange factor 12

State in the Current Structure

Other States of the Same Protein in the Database

C-terminal peptide of Plexin-B1

State in the Current Structure

Other States of the Same Protein in the Database

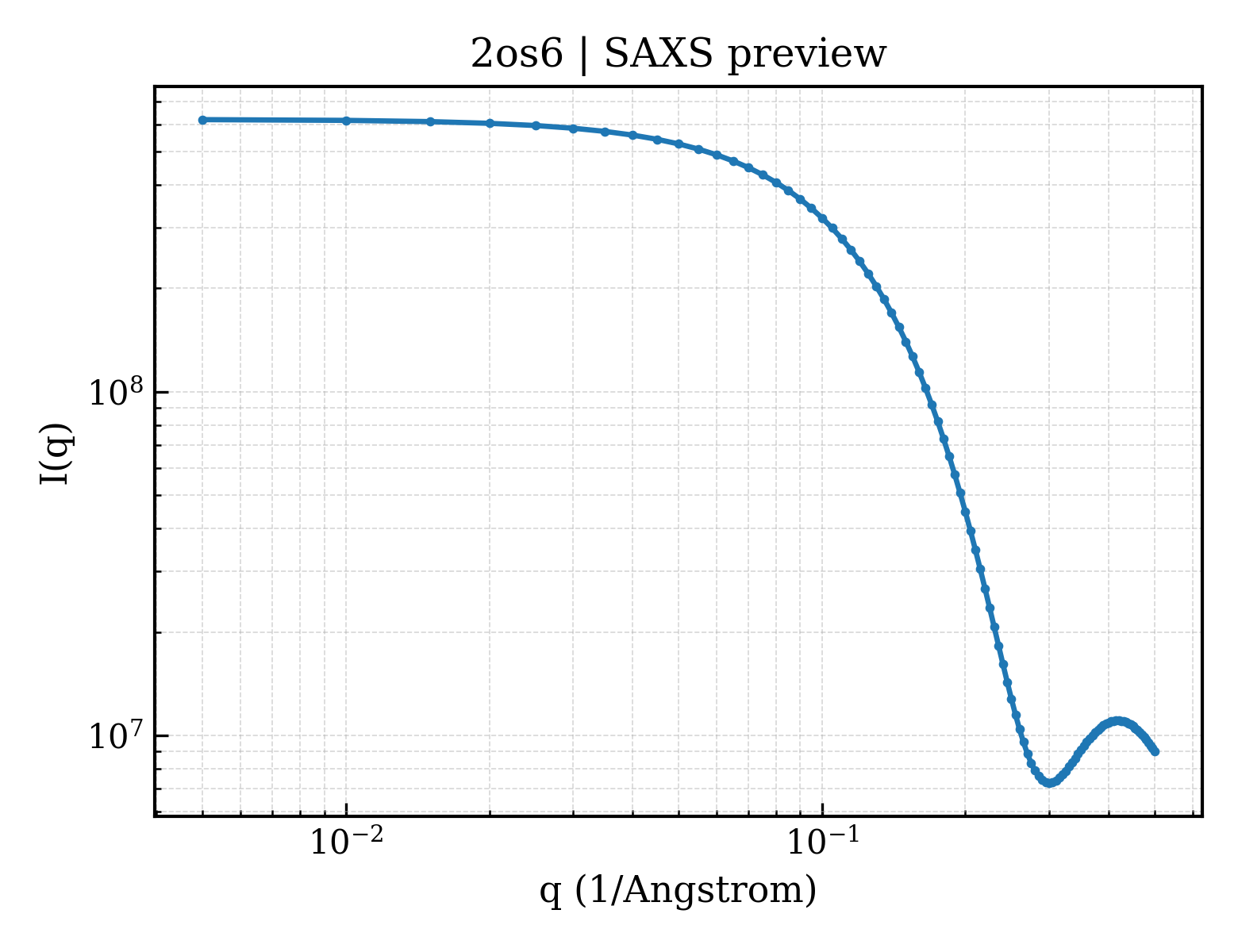

SAXS scattering curve SAXS Profile

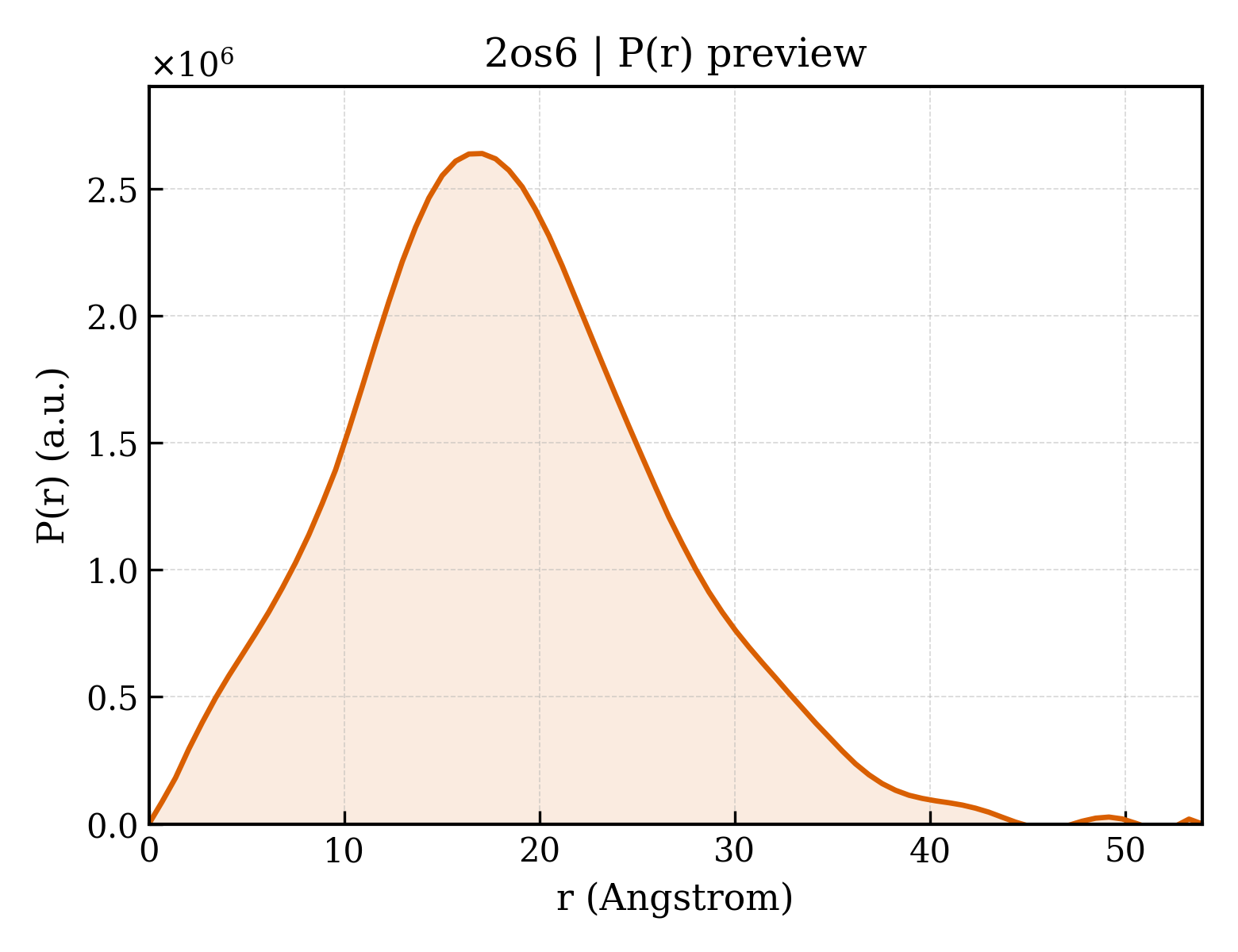

P(r) Distance Distribution P(r) Distribution
