SAXSdb — 3sua

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related C3 botulinum toxin substrate 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Plexin-B1 × 1 （O43157） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Plexin-B1 × 1 （O43157） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Plexin-B1 × 1 （O43157） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 6	Plexin-B1 × 3 （O43157） MAGNESIUM ION × 3 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–177； UniProt 1–177 Author chain B； PDBConstruct 1–177； UniProt 1–177 Author chain C； PDBConstruct 1–177； UniProt 1–177

Plexin-B1

Homo sapiens

UniProt O43157

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ras-related C3 botulinum toxin substrate 1 × 1 （P63000） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ras-related C3 botulinum toxin substrate 1 × 1 （P63000） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Ras-related C3 botulinum toxin substrate 1 × 1 （P63000） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 6	Ras-related C3 botulinum toxin substrate 1 × 3 （P63000） MAGNESIUM ION × 3 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PLXB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 9–633； UniProt 1511–2135 Author chain E； PDBConstruct 9–633； UniProt 1511–2135 Author chain F； PDBConstruct 9–633； UniProt 1511–2135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3sua
Deposition date deposition_date	2011-07-11
Structure title title	Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1
Keywords keywords	Axon guidance, signal transduction, APOPTOSIS-SIGNALING PROTEIN complex; APOPTOSIS/SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3sua__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3sua__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

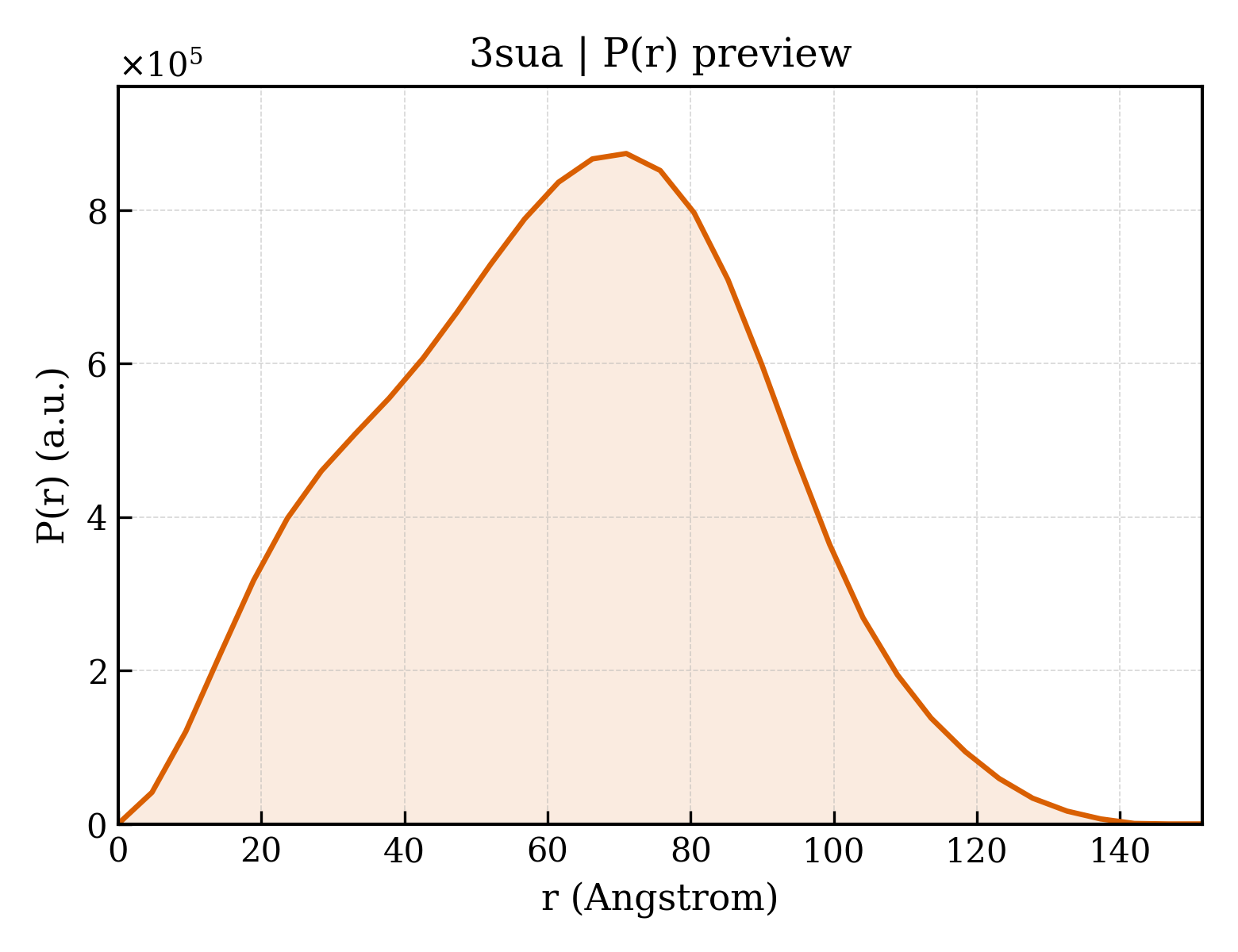

3sua__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.28 Å
Rg (electron density)	36.31 Å
Total Rg	36.67 Å
Atom count	5486
Residues	681
Excluded volume	98530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3sua__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3sua__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3sua__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`3sua__assembly_4__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ras-related C3 botulinum toxin substrate 1
Molecular weight formula_weight	20668.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	16493

MQAIKCVVVGDGAVGKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGQEDYDRLRPLSYPQTDVFLICFSLVSPASFENVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVLKHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Plexin-B1
Molecular weight formula_weight	72628.0 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

MGHHHHHHYRRKSKQALRDYKKVQIQLENLESSVRDRCKKEFTDLMTEMTDLTSDLLGSGIPFLDYKVYAERIFFPGHRESPLHRDLGVPESRRPTVEQGLGQLSNLLNSKLFLTKFIHTLETQRTFSARDRAYVASLLTVALHGKLEYFTDILRTLLSDLVAQYVAKNPKLMLRRTETVVEKLLTNWMSICLYTFVRDSVGEPLYMLFRGIKHQVDKGPVDSVTGKAKYTLNDNRLLREDVEYRPLTLNALLAVGPGAGEAQGVPVKVLDCDTISQAKEKMLDQLYKGVPLTQRPDPRTLDVEWRSGVAGHLILSDEDVTSEVQGLWRRLNTLQHYKVPDGATVALVPCLTKHVLRENQDYVPGERTPMLEDVDEGGIRPWHLVKPSDEPEPPRPRRGSLRGGERERAKAIPEIYLTRLLSMKGTLQKFVDDLFQVILSTSRPVPLAVKYFFDLLDEQAQQHGISDQDTIHIWKTNSLPLRFWINIIKNPQFVFDVQTSDNMDAVLLVIAQTFMDACTLADHKLGRDSPINKLLYARDIPRYKRMVERYYADIRQTVPASDQEMNSVLAELSWNYSGDLGARVALHELYKYINKYYDQIITALEEDGTAQKMQLGYRLQQIAAAVENKVTDL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	142.340 Å
Unit-cell length b length_b	224.250 Å
Unit-cell length c length_c	258.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 21 21 21
Space-group number int_tables_number	24
Crystal system crystal_system	—

Resolution resolution	4.390 Å
Low-resolution limit resolution_low	47.810 Å
R factor r_factor	0.2351
R_work r_work	0.2336
R_free r_free	0.2638

Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1
