SAXSdb — 8b3k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plexin-B1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 20–535 Chain B； UniProt 20–535	Not recorded	CD CADMIUM ION × 14 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；291 K；1.0 M sodium acetate, 0.2 M cadmium sulphate, 0.1 M HEPES, pH 7.5	Resolution 2.69 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8B3K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JPH NMR solution structure of the Rho GTPase binding domain of human plexin-b1 Deposited 2007-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1743–1862（120 aa） Fragment：Sequence database residues 1743-1862	Mutation：W1830F	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1.75 mM [U-100% 13C; U-100% 15N] protein, 90%H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.25 mM [U-100% 13C; U-100% 15N; 80% 2H] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2OS6 Solution structure of LARG PDZ domain in complex with C-terminal octa-peptide of Plexin B1 Deposited 2007-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2128–2135（8 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；293 K；Ionic strength (raw mmCIF value) 50 mM phosphate buffer, 50mM NaCl；Pressure 1 NMR sample composition 0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 90% H2O, 10% D2O \| 50mM phosphate buffer, 90% H2O, 10% D2O NMR sample composition 0.8mM 15N, 13C-labeled LARG PDZ domain, 5mM EDTA, 1mM DTT, 7.6mM synthetic peptide, 50mM phosphate buffer, 99.9% D2O \| 50mM phosphate buffer, 99.9% D2O	Resolution not provided
2R2O Crystal structure of the effector domain of human Plexin B1 Deposited 2007-08-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1743–1862（120 aa） Fragment：Effector domain: Residues 1743-1862 Chain B 1743–1862（120 aa） Fragment：Effector domain: Residues 1743-1862	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291 K；2.6M Sodium chloride, 18% Ethylene glycol, 0.1M Tris-HCl, pH 8.0, VAPOR DIFFUSION, temperature 291K	Resolution 2.00 Å R-free 0.269
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 15 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 15 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 30 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 60 MG MAGNESIUM ION × 4 CA CALCIUM ION × 4 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
2REX Crystal structure of the effector domain of PLXNB1 bound with Rnd1 GTPase Deposited 2007-09-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1743–1862（120 aa） Fragment：Residues 1743-1862 Chain C 1743–1862（120 aa） Fragment：Residues 1743-1862	Not recorded	UNX UNKNOWN LIGAND × 30 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 0.2M Calcium chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.248
3HM6 Crystal structure of the cytoplasmic domain of human plexin B1 Deposited 2009-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1511–2135（625 aa） Fragment：Cytoplasmic domain (UNP residues 1511-2135)	Mutation：S1625T	UNX UNKNOWN LIGAND × 19	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；16% peg-2000 mme, 0.1M TRIS, 0.2M TMAO, pH 8, vapor diffusion, hanging drop, temperature 291K	Resolution 2.40 Å R-free 0.262
3OL2 Receptor-ligand structure of Human Semaphorin 4D with Plexin B1. Deposited 2010-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 20–535（516 aa） Fragment：Extracellular domainsl (1-2)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；294 K；0.1 M Tris,0.2 M calcium acetate, 6% v/v glycerol, 20% PEG3000, pH 7, VAPOR DIFFUSION, temperature 294K	Resolution 2.99 Å R-free 0.237
3SU8 Crystal structure of a truncated intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1533–2135（603 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.238
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
3SUA Crystal structure of the intracellular domain of Plexin-B1 in complex with Rac1 Deposited 2011-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1511–2135（625 aa） Fragment：UNP residues 1533-2135 Chain E 1511–2135（625 aa） Fragment：UNP residues 1533-2135 Chain F 1511–2135（625 aa） Fragment：UNP residues 1533-2135	Not recorded	MG MAGNESIUM ION × 3 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.39 Å R-free 0.264
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
5B4W Crystal structure of Plexin inhibitor complex Deposited 2016-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 20–535（516 aa） Fragment：UNP residues 20-535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M tri-sodium citrate, 13% PEG 8000	Resolution 2.60 Å R-free 0.265
7VF3 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m7 peptide Deposited 2021-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–535（517 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1M sodium acetate buffer, 20% PEG 400, 0.2M Calcium acetate	Resolution 2.29 Å R-free 0.226
7VF3 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m7 peptide Deposited 2021-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–535（517 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PGE TRIETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1M sodium acetate buffer, 20% PEG 400, 0.2M Calcium acetate	Resolution 2.29 Å R-free 0.226
7VG7 Plexin B1 extracellular fragment in complex with lasso-grafted PB1m6A9 peptide Deposited 2021-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–535（517 aa）	Mutation：T19S	PGE TRIETHYLENE GLYCOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M MES or HEPES, 14-16% PEG 3350	Resolution 2.50 Å R-free 0.243

11 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLXB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–516； UniProt 20–535 Author chain B； PDBConstruct 1–516； UniProt 20–535

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8b3k
Deposition date deposition_date	2022-09-16
Structure title title	Crystal structure of human Plexin-B1 (20-535) in the unbound state
Keywords keywords	receptor, unbound, guidance, adherence, neurodevelopment, axonogenesis, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.60 Å
Radius of gyration Rg (electron density) rg_electron	36.15 Å
Forward intensity I(0) i0	197227000.00
Molecular weight molecular_weight	108020.0 kDa
Excluded volume excluded_volume	132450 Å³
Envelope volume envelope_volume	174080 Å³
Hydration-shell volume shell_volume	41332 Å³
Envelope diameter envelope_diameter	124.4 Å
Shell Rg shell_rg	40.94 Å
Envelope Rg envelope_rg	35.91 Å
Shape Rg shape_rg	36.12 Å
Total Rg total_rg	36.56 Å
Total atoms total_atoms	7503
Residues n_residues	984
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

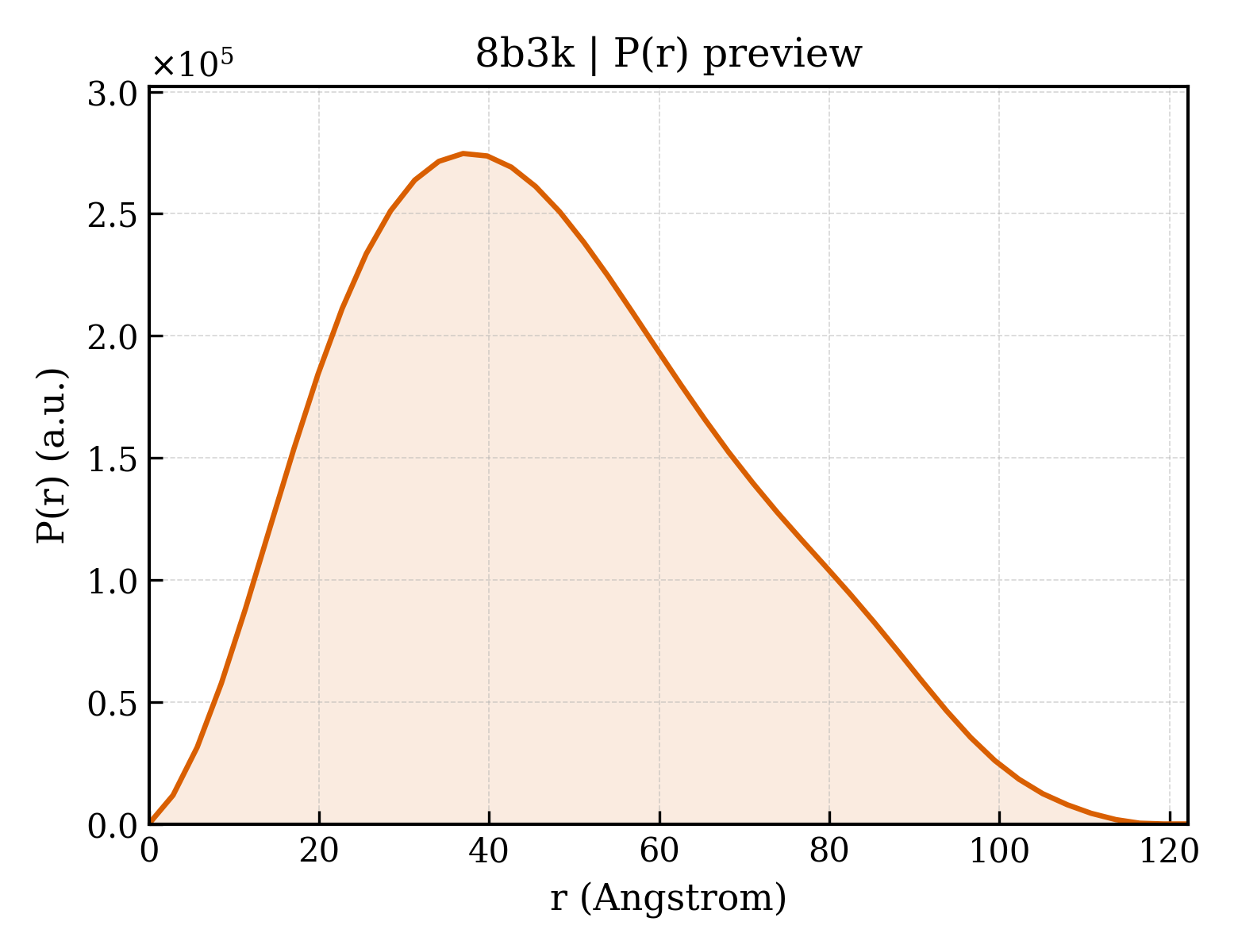

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	122.2 Å
Rg (real space) rg_real	36.75 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	1.9720e+08
I(0) uncertainty (real space) i0_real_error	3.5020e+06
Rg (reciprocal space) rg_reciprocal	36.66 Å
I(0) (reciprocal space) i0_reciprocal	197200000.0000
Solution quality estimate total_estimate	0.8705
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	36.9 Å
Skewness Skewness skewness	0.397
Kurtosis Kurtosis kurtosis	-0.474
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19130000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.899; Smooth: 0.767

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Plexin-B1
Molecular weight formula_weight	56479.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	7722

LQPLPPTAFTPNGTYLQHLARDPTSGTLYLGATNFLFQLSPGLQLEATVSTGPVLDSRDCLPPVMPDECPQAQPTNNPNQLLLVSPGALVVCGSVHQGVCEQRRLGQLEQLLLRPERPGDTQYVAANDPAVSTVGLVAQGLAGEPLLFVGRGYTSRGVGGGIPPITTRALWPPDPQAAFSYEETAKLAVGRLSEYSHHFVSAFARGASAYFLFLRRDLQAQSRAFRAYVSRVCLRDQHYYSYVELPLACEGGRYGLIQAAAVATSREVAHGEVLFAAFSSAAPPTVGRPPSAAAGASGASALCAFPLDEVDRLANRTRDACYTREGRAEDGTEVAYIEYDVNSDCAQLPVDTLDAYPCGSDHTPSPMASRVPLEATPILEWPGIQLTAVAVTMEDGHTIAFLGDSQGQLHRVYLGPGSDGHPYSTQSIQQGSAVSRDLTFDGTFEHLYVMTQSTLLKVPVASCAQHLDCASCLAHRDPYCGWCVLLGRCSRRSECSRGQGPEQWLWSFQPELGCLQKHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▶

8. Citations (1)

▶

Unit-cell length a length_a	266.692 Å
Unit-cell length b length_b	266.692 Å
Unit-cell length c length_c	108.728 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.685 Å
Low-resolution limit resolution_low	66.670 Å
R factor r_factor	—
R_work r_work	0.1993
R_free r_free	0.2451

fit	/app/data/saxs_computation/b3/8b3k/8b3k.fit
pddf	/app/data/pr_computation/b3/8b3k/8b3k.pr.out
profile	/app/data/saxs_computation/b3/8b3k/8b3k.dat
