2jxo

Structure of the second PDZ domain of NHERF-1

Method: SOLUTION NMR Dmax: 44.4 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ezrin-radixin-moesin-binding phosphoprotein 50

Homo sapiens

UniProt O14745

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 150–240 Fragment：PDZ 2 domain No other associated polymer SOLUTION NMR NMR measurement conditions：pH 7.5；288.1 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition：1 mM PDZ2, HEPES, DTT, H2O, DSS, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1 mM [U-100% 15N] PDZ2, HEPES, DTT, H2O, DSS, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1 mM [U-100% 13C; U-100% 15N] PDZ2, HEPES, DTT, H2O, DSS, 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JXO Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1G9O FIRST PDZ DOMAIN OF THE HUMAN NA+/H+ EXCHANGER REGULATORY FACTOR Deposited 2000-11-26 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–99（89 aa） Fragment：PDZ1 DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；291 K；potassium sodium tartrate, sodium citrate, ammonium sulfate, manganese chloride, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.50 Å R-free 0.201
1GQ4 STRUCTURAL DETERMINANTS OF THE NHERF INTERACTION WITH BETA2AR AND PDGFR Deposited 2001-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：PDZ1 DOMAIN, RESIDUES 11-94
Not recorded CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.24；CITRIC ACID, LITHIUM CHLORIDE, pH 4.24
Resolution 1.90 Å R-free 0.186
1GQ5 Structural Determinants of the NHERF Interaction with beta2-AR and PDGFR Deposited 2001-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：PDZ1 DOMAIN, RESIDUES 11-94
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；SODIUM ACETATE, SODIUM CHLORIDE, pH 4.60
Resolution 2.20 Å R-free 0.263
1I92 STRUCTURAL BASIS OF THE NHERF PDZ1-CFTR INTERACTION Deposited 2001-03-16 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：PDZ1 DOMAIN (RESIDUES 11-94)
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；Sodium Acetate, Sodium Chloride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.70 Å R-free 0.217
1SGH Moesin FERM domain bound to EBP50 C-terminal peptide Deposited 2004-02-23 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 321–358（38 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；Tris, PEG 4000, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.50 Å R-free 0.401
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 330–357（28 aa） Fragment：residues 331-358
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.268
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 330–357（28 aa） Fragment：residues 331-358
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.268
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 330–357（28 aa） Fragment：residues 331-358
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.268
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 330–357（28 aa） Fragment：residues 331-358
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.268
2KJD Solution structure of extended PDZ2 domain from NHERF1 (150-270) Deposited 2009-05-27 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 150–270（121 aa） Fragment：Extended PDZ2 domain: UNP residues 150-270
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 0.150；Pressure ambient
NMR sample composition 550 uM [U-100% 13C; U-100% 15N] PDZ2-270-1, 20 mM HEPES-2, 0.5 mM DTT-3, 0.1 mM PMSF-4, 150 mM sodium chloride-5, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2KRG Solution Structure of human sodium/ hydrogen exchange regulatory factor 1(150-358) Deposited 2009-12-17 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 150–358（209 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；303 K；Pressure ambient
NMR sample composition 557 uM [U-100% 13C; U-100% 15N] NHERF1 (150-358), 20 mM HEPES, 150 mM sodium chloride, 0.5 mM DTT, 0.1 mM PMSF, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 389 uM [U-100% 13C; U-100% 15N; U-80% 2H] NHERF1 (150-358), 20 mM HEPES, 150 mM sodium chloride, 0.5 mM DTT, 0.1 mM PMSF, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 413 uM [U-100% 13C; U-100% 15N]-Leu,Val,Phe NHERF1 (150-358), 20 mM HEPES, 150 mM sodium chloride, 0.5 mM DTT, 0.1 mM PMSF, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2M0T Structural characterization of the extended PDZ1 domain from NHERF1 Deposited 2012-11-06 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–120（110 aa） Fragment：PDZ1 domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure ambient
NMR sample composition 400 uM [U-99% 13C; U-99% 15N] PDZ1, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2M0U Complex structure of C-terminal CFTR peptide and extended PDZ1 domain from NHERF1 Deposited 2012-11-06 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 11–120（110 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure ambient
NMR sample composition 286 uM [U-99% 13C; U-99% 15N] PDZ1, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 275 uM CFTR, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2M0V Complex structure of C-terminal CFTR peptide and extended PDZ2 domain from NHERF1 Deposited 2012-11-06 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 150–270（121 aa） Fragment：PDZ2 domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure ambient
NMR sample composition 400 uM [U-99% 13C; U-99% 15N] PDZ2, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 688 uM CFTR, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 200 uM [U-99% 13C; U-99% 15N] PDZ2, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 275 uM CFTR, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2OZF The crystal structure of the 2nd PDZ domain of the human NHERF-1 (SLC9A3R1) Deposited 2007-02-26 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 150–235（86 aa） Fragment：Second PDZ domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.2M NaNO3, 0.1M BTProp, 20% PEG 3350, 10% Ethylene glycol, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.50 Å R-free 0.211
4JL7 Crystal Structure of the Chemokine Receptor CXCR2 in Complex with the First PDZ Domain of NHERF1 Deposited 2013-03-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–95（85 aa） Fragment：unp residues 11-95
Not recorded CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM sodium acetate, 2.7 M sodium chloride, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.16 Å R-free 0.208
4LMM Crystal structure of NHERF1 PDZ1 domain complexed with the CXCR2 C-terminal tail in P21 space group Deposited 2013-07-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：UNP residues 11-95
Not recorded ACY ACETIC ACID × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；100 mM sodium acetate, 0.2 M ammonium acetate, 24% PEG4000, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.10 Å R-free 0.217
4MPA Crystal structure of NHERF1-CXCR2 signaling complex in P21 space group Deposited 2013-09-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：SEE REMARK 999
Not recorded ACY ACETIC ACID × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；100 mM sodium acetate, pH 4.8, 0.2 M ammonium acetate, 24% PEG4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.10 Å R-free 0.157
4N6X Crystal Structure of the Chemokine Receptor CXCR2 in Complex with the First PDZ Domain of NHERF1 Deposited 2013-10-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：First PDZ Domain (UNP residues 11-94)
Not recorded CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM sodium acetate, pH 4.6, 2.7 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.05 Å R-free 0.163
4PQW Crystal Structure of Phospholipase C beta 3 in Complex with PDZ1 of NHERF1 Deposited 2014-03-04 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa） Fragment：unp residues 11-94
Not recorded CL CHLORIDE ION × 4 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM sodium acetate, pH 4.6, 2.5 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.47 Å R-free 0.196
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 150–234（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.44 Å R-free 0.195
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 150–234（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.44 Å R-free 0.195
6RQR Extended NHERF1 PDZ2 domain in complex with the PDZ-binding motif of CFTR Deposited 2019-05-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 150–269（120 aa）
Chain B 150–269（120 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；1.65 M ammonium sulphate, 100 mM tri-sodium citrate pH 5.6
Resolution 2.20 Å R-free 0.233
9RXQ Structure of the PDZ1 domain from human NHERF1 with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；100 mM sodium acetate pH 4.8 200 mM ammonium acetate 24% PEG 4000
Resolution 1.38 Å R-free 0.183
9RXQ Structure of the PDZ1 domain from human NHERF1 with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 11–94（84 aa）
Not recorded ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；100 mM sodium acetate pH 4.8 200 mM ammonium acetate 24% PEG 4000
Resolution 1.38 Å R-free 0.183
9RXT Structure of the PDZ1 domain from human NHERF1 with the C-terminal residues (NATRL) of the human sodium-dependent phosphate transporter 2A (NaPi-IIa, SLC34A1) Deposited 2025-07-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 11–94（84 aa）
Not recorded TOE 2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXYL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；100mM Bicine pH 9, 100mM NaCl, 30% PEG 550 MME
Resolution 1.36 Å R-free 0.198

21 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NHERF_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 8–98； UniProt 150–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

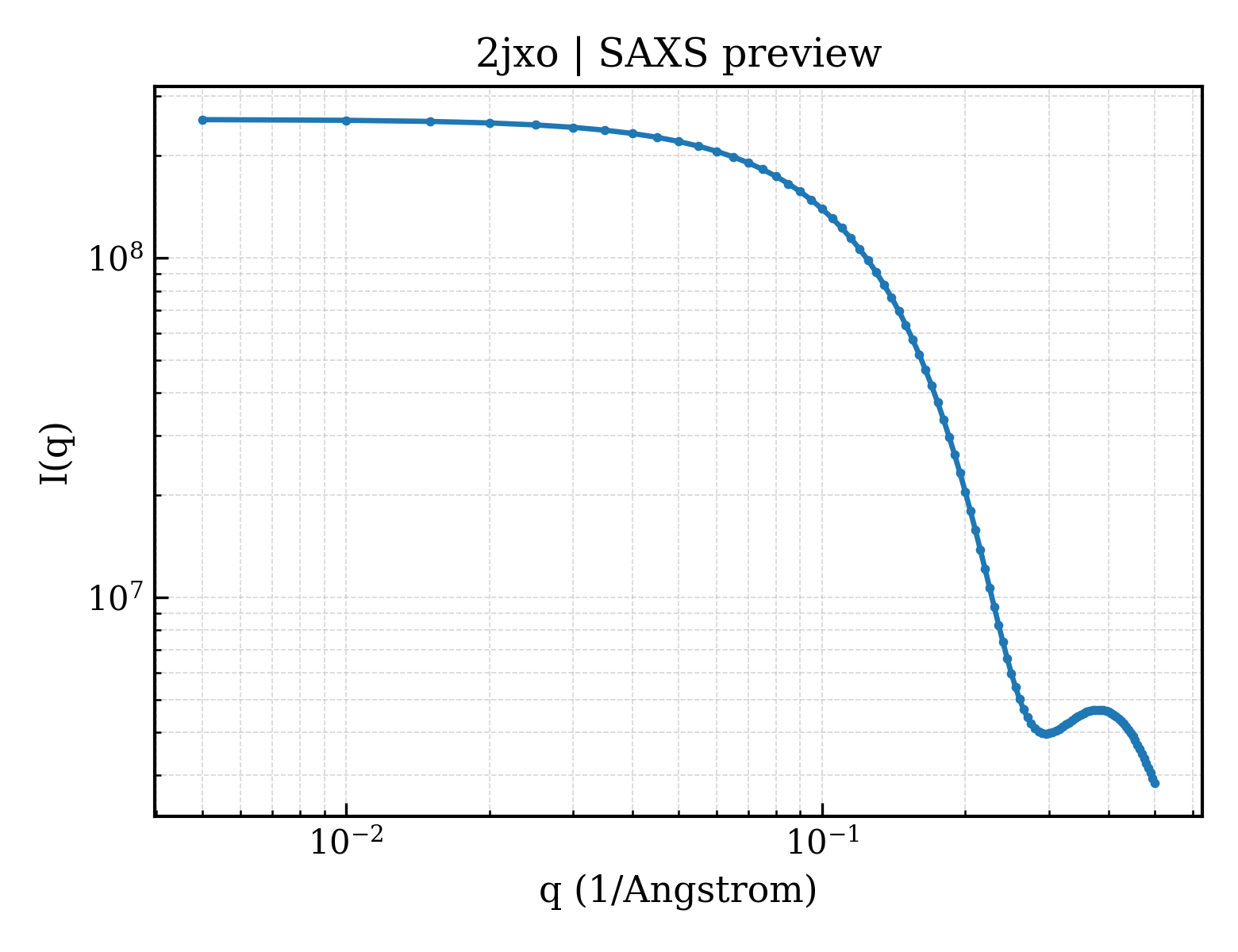

SAXS scattering curve SAXS Profile

SAXS profile for 2jxo

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2jxo
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2jxo
Deposition date deposition_date2007-11-27
Structure title titleStructure of the second PDZ domain of NHERF-1
Keywords keywords;NHERF-1, PDZ domain, PDZ2, Acetylation, Cell projection, Membrane, Phosphoprotein, Polymorphism, Wnt signaling pathway, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier13.43 Å
Radius of gyration Rg (electron density) rg_electron13.36 Å
Forward intensity I(0) i0255958000.00
Molecular weight molecular_weight128500.0 kDa
Excluded volume excluded_volume158660 ų
Envelope volume envelope_volume24421 ų
Hydration-shell volume shell_volume13670 ų
Envelope diameter envelope_diameter50.5 Å
Shell Rg shell_rg21.00 Å
Envelope Rg envelope_rg15.66 Å
Shape Rg shape_rg13.36 Å
Total Rg total_rg13.62 Å
Total atoms total_atoms17928
Residues n_residues1176
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax44.4 Å
Rg (real space) rg_real13.37 Å
Rg uncertainty (real space) rg_real_error0.36 Å
I(0) (real space) i0_real2.5600e+08
I(0) uncertainty (real space) i0_real_error3.0290e+06
Rg (reciprocal space) rg_reciprocal13.37 Å
I(0) (reciprocal space) i0_reciprocal256000000.0000
Solution quality estimate total_estimate0.7973
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary17.4 Å
Skewness Skewness skewness0.182
Kurtosis Kurtosis kurtosis-0.270
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha163300.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.790; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2jxoa1
Class classb — All beta proteins
Fold Fold foldb.36 — PDZ domain-like
Superfamily Superfamily superfamilyb.36.1 — PDZ domain-like
Family Family familyb.36.1.1 — PDZ domain
Domain ID domain_idd2jxoa2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id2jxoA00
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology42 — Pdz3 Domain
Homologous superfamily homologous superfamily10 — PDZ domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
