SAXSdb — 4mpa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF1, C-X-C chemokine receptor type 2 chimera

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 11–94	Fragment：SEE REMARK 999	ACY ACETIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；100 mM sodium acetate, pH 4.8, 0.2 M ammonium acetate, 24% PEG4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.10 Å R-free 0.157

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4MPA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1G9O FIRST PDZ DOMAIN OF THE HUMAN NA+/H+ EXCHANGER REGULATORY FACTOR Deposited 2000-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–99（89 aa） Fragment：PDZ1 DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；291 K；potassium sodium tartrate, sodium citrate, ammonium sulfate, manganese chloride, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.50 Å R-free 0.201
1GQ4 STRUCTURAL DETERMINANTS OF THE NHERF INTERACTION WITH BETA2AR AND PDGFR Deposited 2001-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa） Fragment：PDZ1 DOMAIN, RESIDUES 11-94	Not recorded	CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.24；CITRIC ACID, LITHIUM CHLORIDE, pH 4.24	Resolution 1.90 Å R-free 0.186
1GQ5 Structural Determinants of the NHERF Interaction with beta2-AR and PDGFR Deposited 2001-11-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa） Fragment：PDZ1 DOMAIN, RESIDUES 11-94	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；SODIUM ACETATE, SODIUM CHLORIDE, pH 4.60	Resolution 2.20 Å R-free 0.263
1I92 STRUCTURAL BASIS OF THE NHERF PDZ1-CFTR INTERACTION Deposited 2001-03-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa） Fragment：PDZ1 DOMAIN (RESIDUES 11-94)	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；Sodium Acetate, Sodium Chloride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.70 Å R-free 0.217
1SGH Moesin FERM domain bound to EBP50 C-terminal peptide Deposited 2004-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 321–358（38 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；Tris, PEG 4000, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.50 Å R-free 0.401
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 330–357（28 aa） Fragment：residues 331-358	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 330–357（28 aa） Fragment：residues 331-358	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 330–357（28 aa） Fragment：residues 331-358	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
2D10 Crystal structure of the Radixin FERM domain complexed with the NHERF-1 C-terminal tail peptide Deposited 2005-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 330–357（28 aa） Fragment：residues 331-358	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
2JXO Structure of the second PDZ domain of NHERF-1 Deposited 2007-11-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–240（91 aa） Fragment：PDZ 2 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；288.1 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1 mM PDZ2, HEPES, DTT, H2O, DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM [U-100% 15N] PDZ2, HEPES, DTT, H2O, DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] PDZ2, HEPES, DTT, H2O, DSS, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KJD Solution structure of extended PDZ2 domain from NHERF1 (150-270) Deposited 2009-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–270（121 aa） Fragment：Extended PDZ2 domain: UNP residues 150-270	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 0.150；Pressure ambient NMR sample composition 550 uM [U-100% 13C; U-100% 15N] PDZ2-270-1, 20 mM HEPES-2, 0.5 mM DTT-3, 0.1 mM PMSF-4, 150 mM sodium chloride-5, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KRG Solution Structure of human sodium/ hydrogen exchange regulatory factor 1(150-358) Deposited 2009-12-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–358（209 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；303 K；Pressure ambient NMR sample composition 557 uM [U-100% 13C; U-100% 15N] NHERF1 (150-358), 20 mM HEPES, 150 mM sodium chloride, 0.5 mM DTT, 0.1 mM PMSF, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 389 uM [U-100% 13C; U-100% 15N; U-80% 2H] NHERF1 (150-358), 20 mM HEPES, 150 mM sodium chloride, 0.5 mM DTT, 0.1 mM PMSF, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 413 uM [U-100% 13C; U-100% 15N]-Leu,Val,Phe NHERF1 (150-358), 20 mM HEPES, 150 mM sodium chloride, 0.5 mM DTT, 0.1 mM PMSF, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M0T Structural characterization of the extended PDZ1 domain from NHERF1 Deposited 2012-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–120（110 aa） Fragment：PDZ1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure ambient NMR sample composition 400 uM [U-99% 13C; U-99% 15N] PDZ1, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M0U Complex structure of C-terminal CFTR peptide and extended PDZ1 domain from NHERF1 Deposited 2012-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 11–120（110 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure ambient NMR sample composition 286 uM [U-99% 13C; U-99% 15N] PDZ1, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 275 uM CFTR, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M0V Complex structure of C-terminal CFTR peptide and extended PDZ2 domain from NHERF1 Deposited 2012-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 150–270（121 aa） Fragment：PDZ2 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure ambient NMR sample composition 400 uM [U-99% 13C; U-99% 15N] PDZ2, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 688 uM CFTR, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 200 uM [U-99% 13C; U-99% 15N] PDZ2, 20 mM TRIS, 150 mM sodium chloride, 0.5 mM DTT, 0.5 mM EDTA, 275 uM CFTR, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2OZF The crystal structure of the 2nd PDZ domain of the human NHERF-1 (SLC9A3R1) Deposited 2007-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–235（86 aa） Fragment：Second PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.2M NaNO3, 0.1M BTProp, 20% PEG 3350, 10% Ethylene glycol, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.50 Å R-free 0.211
4JL7 Crystal Structure of the Chemokine Receptor CXCR2 in Complex with the First PDZ Domain of NHERF1 Deposited 2013-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–95（85 aa） Fragment：unp residues 11-95	Not recorded	CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM sodium acetate, 2.7 M sodium chloride, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.16 Å R-free 0.208
4LMM Crystal structure of NHERF1 PDZ1 domain complexed with the CXCR2 C-terminal tail in P21 space group Deposited 2013-07-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa） Fragment：UNP residues 11-95	Not recorded	ACY ACETIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；100 mM sodium acetate, 0.2 M ammonium acetate, 24% PEG4000, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.10 Å R-free 0.217
4N6X Crystal Structure of the Chemokine Receptor CXCR2 in Complex with the First PDZ Domain of NHERF1 Deposited 2013-10-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa） Fragment：First PDZ Domain (UNP residues 11-94)	Not recorded	CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM sodium acetate, pH 4.6, 2.7 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.05 Å R-free 0.163
4PQW Crystal Structure of Phospholipase C beta 3 in Complex with PDZ1 of NHERF1 Deposited 2014-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa） Fragment：unp residues 11-94	Not recorded	CL CHLORIDE ION × 4 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM sodium acetate, pH 4.6, 2.5 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.47 Å R-free 0.196
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–234（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.195
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 150–234（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.195
6RQR Extended NHERF1 PDZ2 domain in complex with the PDZ-binding motif of CFTR Deposited 2019-05-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 150–269（120 aa） Chain B 150–269（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；1.65 M ammonium sulphate, 100 mM tri-sodium citrate pH 5.6	Resolution 2.20 Å R-free 0.233
9RXQ Structure of the PDZ1 domain from human NHERF1 with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；100 mM sodium acetate pH 4.8 200 mM ammonium acetate 24% PEG 4000	Resolution 1.38 Å R-free 0.183
9RXQ Structure of the PDZ1 domain from human NHERF1 with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 11–94（84 aa）	Not recorded	ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；100 mM sodium acetate pH 4.8 200 mM ammonium acetate 24% PEG 4000	Resolution 1.38 Å R-free 0.183
9RXT Structure of the PDZ1 domain from human NHERF1 with the C-terminal residues (NATRL) of the human sodium-dependent phosphate transporter 2A (NaPi-IIa, SLC34A1) Deposited 2025-07-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–94（84 aa）	Not recorded	TOE 2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXYL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；100mM Bicine pH 9, 100mM NaCl, 30% PEG 550 MME	Resolution 1.36 Å R-free 0.198

21 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NHRF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–86； UniProt 11–94

Na(+)/H(+) exchange regulatory cofactor NHE-RF1, C-X-C chemokine receptor type 2 chimera

Homo sapiens

UniProt P25025

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 356–360	Fragment：SEE REMARK 999	ACY ACETIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；100 mM sodium acetate, pH 4.8, 0.2 M ammonium acetate, 24% PEG4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.10 Å R-free 0.157

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4MPA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 356–360（5 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.195
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 356–360（5 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.195
5TYT Crystal Structure of the PDZ domain of RhoGEF bound to CXCR2 C-terminal peptide Deposited 2016-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360) Chain B 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG8000, 0.1 M sodium citrate, 0.2 M sodium acetate	Resolution 2.40 Å R-free 0.240
5TYT Crystal Structure of the PDZ domain of RhoGEF bound to CXCR2 C-terminal peptide Deposited 2016-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360) Chain D 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG8000, 0.1 M sodium citrate, 0.2 M sodium acetate	Resolution 2.40 Å R-free 0.240
6KVA Structure of anti-hCXCR2 abN48-2 in complex with its CXCR2 epitope Deposited 2019-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 9–19（11 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES pH 7.5, 25% w/v Polyethylene glycol 3350	Resolution 2.20 Å R-free 0.234
6KVA Structure of anti-hCXCR2 abN48-2 in complex with its CXCR2 epitope Deposited 2019-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain b 9–19（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES pH 7.5, 25% w/v Polyethylene glycol 3350	Resolution 2.20 Å R-free 0.234
6KVF Structure of anti-hCXCR2 abN48 in complex with its CXCR2 epitope Deposited 2019-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain b 9–19（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium pH 7.5, 2% v/v Polyethylene glycol 400, 2.0M Ammonium sulfate	Resolution 2.79 Å R-free 0.264
6KVF Structure of anti-hCXCR2 abN48 in complex with its CXCR2 epitope Deposited 2019-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 9–19（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium pH 7.5, 2% v/v Polyethylene glycol 400, 2.0M Ammonium sulfate	Resolution 2.79 Å R-free 0.264
6LFL Crystal structure of a class A GPCR Deposited 2019-12-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–241（205 aa） Chain A 244–344（101 aa）	Mutation：L135W, A249E, G303A Mutation：L135W, A249E, G303A	EBX 4-[[3,4-bis(oxidanylidene)-2-[[(1~{R})-1-(4-propan-2-ylfuran-2-yl)propyl]amino]cyclobuten-1-yl]amino]-~{N},~{N}-dimethyl-3-oxidanyl-pyridine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；100mM HEPES pH7.0, 32% PEG 400, 50-150 mM Sodium tartrate dibasic dihydrate salt	Resolution 3.20 Å R-free 0.264
6LFM Cryo-EM structure of a class A GPCR Deposited 2019-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 1–360（360 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6LFO Cryo-EM structure of a class A GPCR monomer Deposited 2019-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 1–360（360 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8XVU Structure of CXCR2 bound to CXCL2 (Ligand-receptor focused map) Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8XWA Structure of CXCR2 bound to CXCL1 (Ligand-receptor focused map) Deposited 2024-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.48 Å
8XWF Structure of CXCR2 bound to CXCL3 (Ligand-receptor focused map) Deposited 2024-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
8XWM Structure of CXCR2 bound to CXCL6 (Ligand-receptor focused map) Deposited 2024-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.71 Å
8XWN Structure of CXCR2 bound to CXCL8 (Ligand-receptor focused map) Deposited 2024-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
8XWS Structure of CXCR2 bound to CXCL5 (Ligand-receptor focused map) Deposited 2024-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–360（359 aa） Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.06 Å
8XWV Structure of CXCR2 bound to CXCL1 (CXCR2-CXCL1-Go Full map) Deposited 2024-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
8XX3 Structure of CXCR2 bound to CXCL3 (CXCR2-CXCL3-Go Full map) Deposited 2024-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
8XX6 Structure of CXCR2 bound to CXCL8 (CXCR2-CXCL8-Go Full map) Deposited 2024-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8XX7 Structure of CXCR2 bound to CXCL5 (CXCR2-CXCL5-Go Full map) Deposited 2024-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C 2–360（359 aa） Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.32 Å
8XXH Structure of CXCR2 bound to CXCL2 (CXCR2-CXCL2-Go Full map) Deposited 2024-01-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8XXR Structure of CXCR2 bound to CXCL6 (CXCR2-CXCL6-Go Full map) Deposited 2024-01-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8XXX Structure of CXCR2 bound to CXCL6 (Composite map) Deposited 2024-01-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å

20 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CXCR2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 87–91； UniProt 356–360

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4mpa
Deposition date deposition_date	2013-09-12
Structure title title	Crystal structure of NHERF1-CXCR2 signaling complex in P21 space group
Keywords keywords	neutrophil, inflammatory diseases, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.33 Å
Radius of gyration Rg (electron density) rg_electron	13.20 Å
Forward intensity I(0) i0	2204250.00
Molecular weight molecular_weight	9942.0 kDa
Excluded volume excluded_volume	12401 Å³
Envelope volume envelope_volume	14827 Å³
Hydration-shell volume shell_volume	9999 Å³
Envelope diameter envelope_diameter	53.8 Å
Shell Rg shell_rg	18.42 Å
Envelope Rg envelope_rg	13.90 Å
Shape Rg shape_rg	13.16 Å
Total Rg total_rg	14.54 Å
Total atoms total_atoms	1404
Residues n_residues	91
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.6 Å
Rg (real space) rg_real	14.31 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	2.2040e+06
I(0) uncertainty (real space) i0_real_error	3.2110e+04
Rg (reciprocal space) rg_reciprocal	14.31 Å
I(0) (reciprocal space) i0_reciprocal	2204000.0000
Solution quality estimate total_estimate	0.7296
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	18.6 Å
Skewness Skewness skewness	0.403
Kurtosis Kurtosis kurtosis	0.269
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	402800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.510; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Na(+)/H(+) exchange regulatory cofactor NHE-RF1, C-X-C chemokine receptor type 2 chimera
Molecular weight formula_weight	9860.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1622

GMLPRLCCLEKGPNGYGFHLHGEKGKLGQYIRLVEPGSPAEKAGLLAGDRLVEVNGENVEKETHQQVVSRIRAALNAVRLLVVDPETSTTL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	158

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4mpaa1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d4mpaa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4mpaA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	26.593 Å
Unit-cell length b length_b	45.509 Å
Unit-cell length c length_c	33.446 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.71 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.097 Å
Low-resolution limit resolution_low	25.893 Å
R factor r_factor	0.1441
R_work r_work	0.1434
R_free r_free	0.1569

fit	/app/data/saxs_computation/mp/4mpa/4mpa.fit
pddf	/app/data/pr_computation/mp/4mpa/4mpa.pr.out
profile	/app/data/saxs_computation/mp/4mpa/4mpa.dat

Crystal structure of NHERF1-CXCR2 signaling complex in P21 space group

1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF1, C-X-C chemokine receptor type 2 chimera

State in the Current Structure

Other States of the Same Protein in the Database

Na(+)/H(+) exchange regulatory cofactor NHE-RF1, C-X-C chemokine receptor type 2 chimera

State in the Current Structure

Other States of the Same Protein in the Database

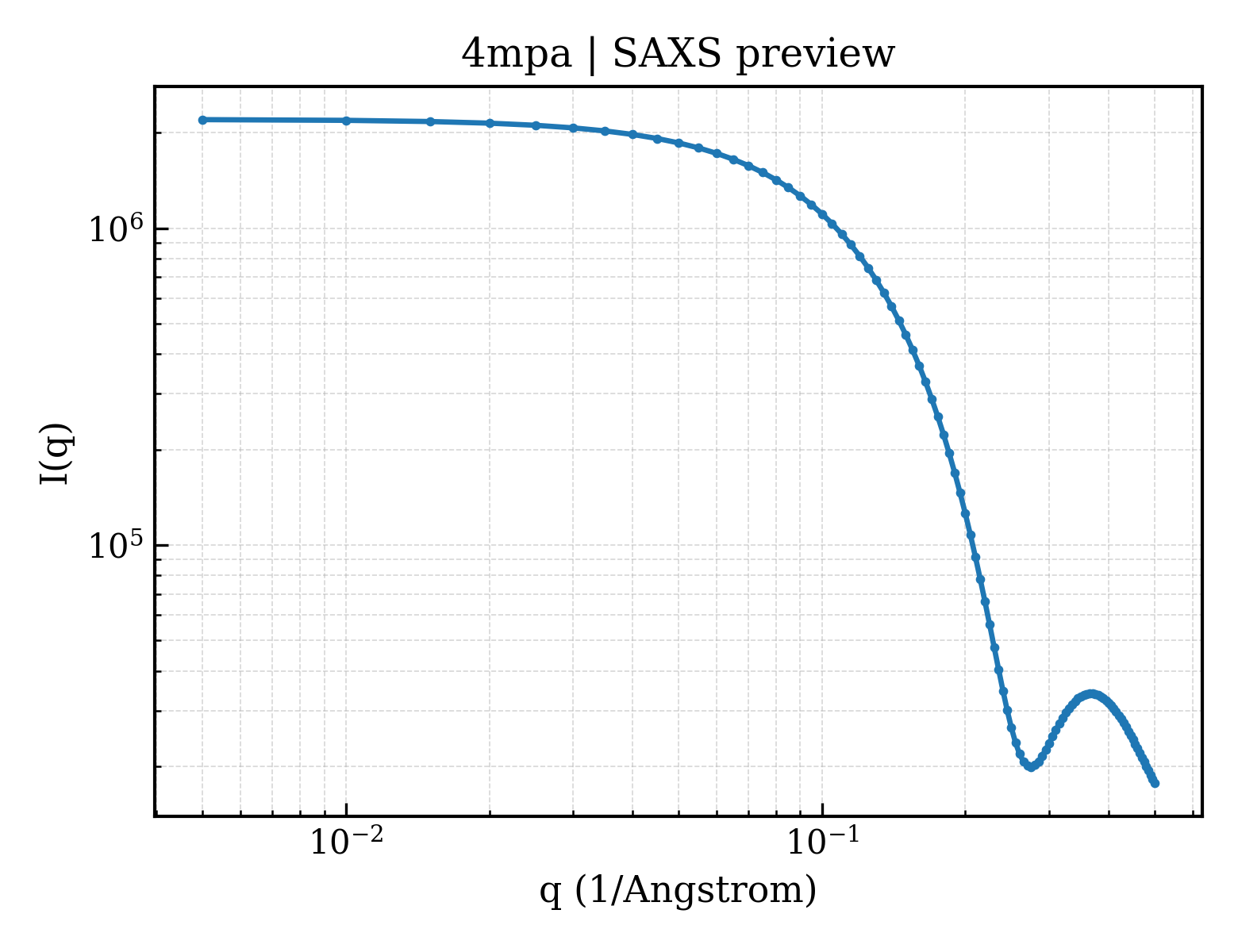

SAXS scattering curve SAXS Profile

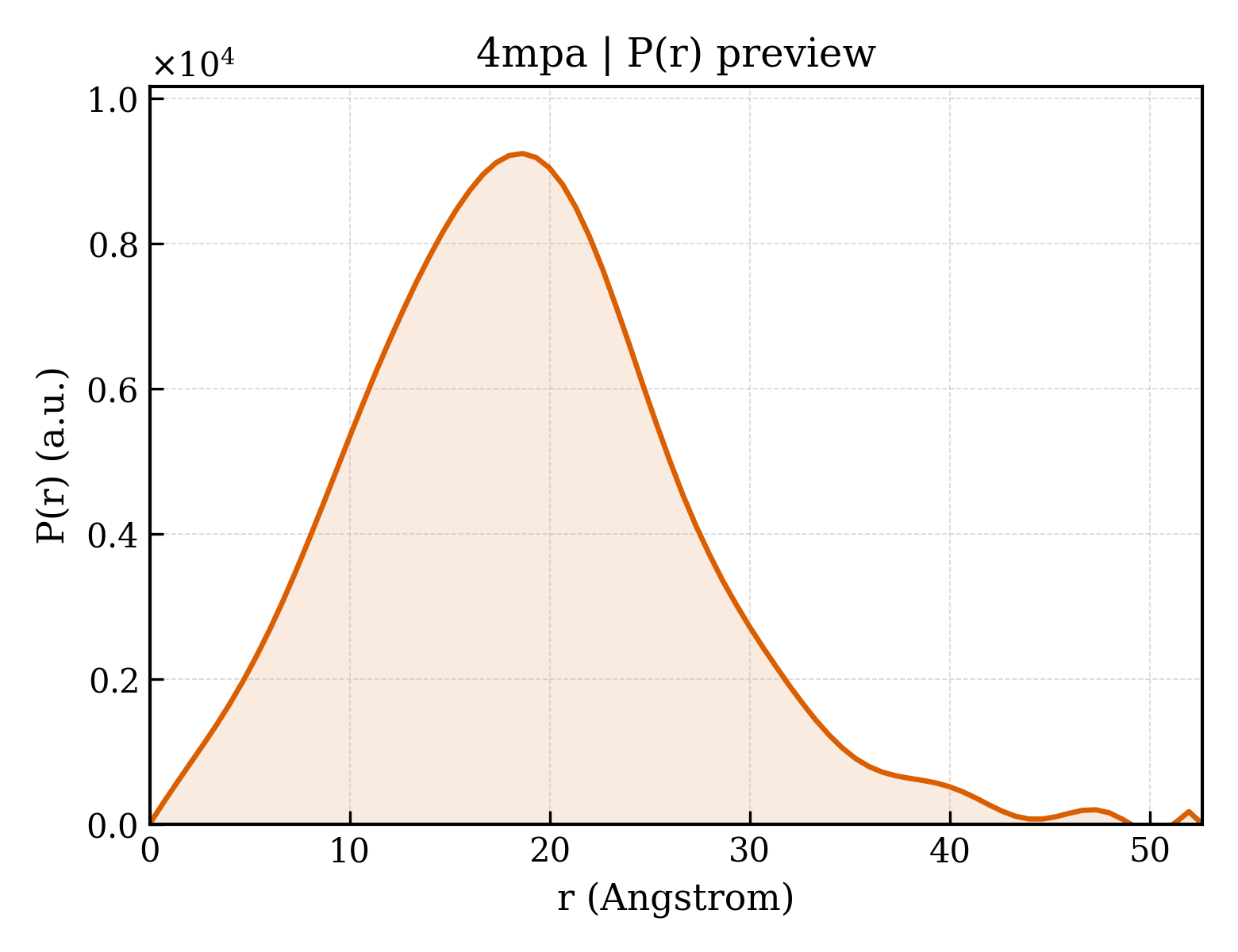

P(r) Distance Distribution P(r) Distribution
