SAXSdb — 2l3h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Prostatic acid phosphatase

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 248–286	Fragment：UNP residues 248-286	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.3；310 K；Ionic strength (raw mmCIF value) 20；Pressure ambient NMR sample composition：2.5 mM PAP248-286-1, 120 mM sodium chloride-2, 20 mM sodium phosphate-3, 200 mM [U-99% 2H] SDS-4, 10 % [U-99% 2H] D2O-5, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L3H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CVI CRYSTAL STRUCTURE OF HUMAN PROSTATIC ACID PHOSPHATASE Deposited 1999-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–374（342 aa） Chain B 33–374（342 aa） Chain C 33–374（342 aa） Chain D 33–374（342 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GLY GLYCINE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；289 K；PEG 1450, POTASSIUM CHLORIDE, GLYCINE, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.274
1CVI CRYSTAL STRUCTURE OF HUMAN PROSTATIC ACID PHOSPHATASE Deposited 1999-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–374（342 aa） Chain B 33–374（342 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GLY GLYCINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；289 K；PEG 1450, POTASSIUM CHLORIDE, GLYCINE, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.274
1CVI CRYSTAL STRUCTURE OF HUMAN PROSTATIC ACID PHOSPHATASE Deposited 1999-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 33–374（342 aa） Chain D 33–374（342 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GLY GLYCINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；289 K；PEG 1450, POTASSIUM CHLORIDE, GLYCINE, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.274
1ND5 Crystal Structures of Human Prostatic Acid Phosphatase in Complex with a Phosphate Ion and alpha-Benzylaminobenzylphosphonic Acid Update the Mechanistic Picture and Offer New Insights into Inhibitor Design Deposited 2002-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 33–386（354 aa） Chain B 33–386（354 aa） Chain C 33–386（354 aa）	Not recorded	2BF ALPHA-BENZYL-AMINOBENZYL-PHOSPHONIC ACID × 3 1PE PENTAETHYLENE GLYCOL × 7 NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；298 K；PEG, KCL, Glycine, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.279
1ND5 Crystal Structures of Human Prostatic Acid Phosphatase in Complex with a Phosphate Ion and alpha-Benzylaminobenzylphosphonic Acid Update the Mechanistic Picture and Offer New Insights into Inhibitor Design Deposited 2002-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 33–386（354 aa） Chain D 33–386（354 aa）	Not recorded	2BF ALPHA-BENZYL-AMINOBENZYL-PHOSPHONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；298 K；PEG, KCL, Glycine, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.279
1ND6 Crystal Structures of Human Prostatic Acid Phosphatase in Complex with a Phosphate Ion and alpha-Benzylaminobenzylphosphonic Acid Update the Mechanistic Picture and Offer New Insights into Inhibitor Design Deposited 2002-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–386（354 aa） Chain B 33–386（354 aa）	Not recorded	PO4 PHOSPHATE ION × 2 1PE PENTAETHYLENE GLYCOL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GLY GLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；298 K；PEG, KCL, Glycine, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.256
1ND6 Crystal Structures of Human Prostatic Acid Phosphatase in Complex with a Phosphate Ion and alpha-Benzylaminobenzylphosphonic Acid Update the Mechanistic Picture and Offer New Insights into Inhibitor Design Deposited 2002-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 33–386（354 aa） Chain D 33–386（354 aa）	Not recorded	PO4 PHOSPHATE ION × 2 1PE PENTAETHYLENE GLYCOL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；298 K；PEG, KCL, Glycine, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.256
1ND6 Crystal Structures of Human Prostatic Acid Phosphatase in Complex with a Phosphate Ion and alpha-Benzylaminobenzylphosphonic Acid Update the Mechanistic Picture and Offer New Insights into Inhibitor Design Deposited 2002-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–386（354 aa） Chain B 33–386（354 aa） Chain C 33–386（354 aa） Chain D 33–386（354 aa）	Not recorded	PO4 PHOSPHATE ION × 4 1PE PENTAETHYLENE GLYCOL × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GLY GLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；298 K；PEG, KCL, Glycine, pH 10.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.256
2HPA STRUCTURAL ORIGINS OF L(+)-TARTRATE INHIBITION OF HUMAN PROSTATIC ACID PHOSPHATASE Deposited 1998-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–374（342 aa） Chain B 33–374（342 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PT3 N-PROPYL-TARTRAMIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；pH 10	Resolution 2.90 Å R-free 0.308
2HPA STRUCTURAL ORIGINS OF L(+)-TARTRATE INHIBITION OF HUMAN PROSTATIC ACID PHOSPHATASE Deposited 1998-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 33–374（342 aa） Chain D 33–374（342 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PT3 N-PROPYL-TARTRAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；pH 10	Resolution 2.90 Å R-free 0.308
2HPA STRUCTURAL ORIGINS OF L(+)-TARTRATE INHIBITION OF HUMAN PROSTATIC ACID PHOSPHATASE Deposited 1998-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–374（342 aa） Chain B 33–374（342 aa） Chain C 33–374（342 aa） Chain D 33–374（342 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 PT3 N-PROPYL-TARTRAMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；pH 10	Resolution 2.90 Å R-free 0.308
2L77 Solution NMR structure of PAP248-286 in 50% TFE Deposited 2010-12-03	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 248–286（39 aa） Fragment：UNP residues 248-286	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；298 K；Pressure ambient NMR sample composition 1.2 mM PAP248-286-1; 20 mM sodium phosphate-2; 10 % [U-99% 2H] D2O-3; 50 % [U-99% 2H] TFE-4; trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2L79 Solution NMR structure of PAP248-286 in 30% TFE Deposited 2010-12-03	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 248–286（39 aa） Fragment：UNP residues 248-286	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；298 K；Pressure ambient NMR sample composition 1.2 mM PAP248-286-1; 20 mM sodium phosphate-2; 10 % [U-99% 2H] D2O-3; 30 % [U-99% 2H] TFE-4; trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2MG0 PAP262-270 in SDS micelles Deposited 2013-10-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 262–270（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K NMR sample composition 300 uM protein_1-1, 50 mM [U-99% 2H] SDS-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3PPD GGVLVN segment from Human Prostatic Acid Phosphatase Residues 260-265, involved in Semen-Derived Enhancer of Viral Infection Deposited 2010-11-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 260–265（6 aa） Fragment：Residue 260-265	Not recorded	ZN ZINC ION × 6 ACY ACETIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；0.1M MES pH6.0, 0.2M Zn(OAc)2, 10%(w/v)PEG-8000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.50 Å R-free 0.219
7ZZV Prostatic acid phosphatase (PAP) fragment (85-120) Deposited 2022-05-26	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 85–120（36 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 0.8 mM pap85_120, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8XJ4 Structure of prostatic acid phosphatase in human semen Deposited 2023-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–377（347 aa） Chain B 31–377（347 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MAN alpha-D-mannopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9NMU TCR156 bound to HLA A*02:01-PAP Deposited 2025-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 112–120（9 aa）	Not recorded	GOL GLYCEROL × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；0.2 M Sodium malonate, 0.1 M bis Tris-propane pH 7.5, 17% PEG 3500	Resolution 2.10 Å R-free 0.227
9NMV TCR156 S32Halpha bound to HLA A*02:01-PAP Deposited 2025-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 112–120（9 aa）	Not recorded	GOL GLYCEROL × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；0.2 M Sodium malonate, 0.1 M bis Tris-propane pH 7.5, 20% PEG3500	Resolution 1.97 Å R-free 0.217
9NMW TCR156 S30Ealpha S32Qalpha bound to HLA A*02:01-PAP Deposited 2025-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 112–120（9 aa）	Not recorded	GOL GLYCEROL × 11 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；0.2 M Na2SO4, bis tris propane pH 7.5, 20% PEG 3350	Resolution 2.11 Å R-free 0.232
9NMX TCR156 S32Malpha variant bound to HLA A*02:01-PAP Deposited 2025-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 112–120（9 aa）	Not recorded	MLI MALONATE ION × 2 GOL GLYCEROL × 12 NA SODIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；0.2 M Sodium malonate, 0.1 M bis Tris-propane pH 7.5, 17% PEG 3500	Resolution 2.19 Å R-free 0.229
9NMY TCR156 S32Qalpha bound to HLA A*02:01-PAP Deposited 2025-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 112–120（9 aa）	Not recorded	GOL GLYCEROL × 9 MLI MALONATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.3；295 K；0.2 M sodium malonat, 20% PEG 3350	Resolution 2.01 Å R-free 0.227
9YTD Designed antibody vAB66 targeting PAP-HLA A*02:01 Deposited 2025-10-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 112–120（9 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å

16 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PPAP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–39； UniProt 248–286

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l3h
Deposition date deposition_date	2010-09-13
Structure title title	NMR Structure in a Membrane Environment Reveals Putative Amyloidogenic Regions of the SEVI Precursor Peptide PAP248-286
Keywords keywords	SEVI, PAP248-286, HYDROLASE; HYDROLASE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.35 Å
Radius of gyration Rg (electron density) rg_electron	15.97 Å
Forward intensity I(0) i0	20398000.00
Molecular weight molecular_weight	36460.0 kDa
Excluded volume excluded_volume	46488 Å³
Envelope volume envelope_volume	33435 Å³
Hydration-shell volume shell_volume	15812 Å³
Envelope diameter envelope_diameter	69.0 Å
Shell Rg shell_rg	23.82 Å
Envelope Rg envelope_rg	18.72 Å
Shape Rg shape_rg	15.92 Å
Total Rg total_rg	17.06 Å
Total atoms total_atoms	4760
Residues n_residues	312
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

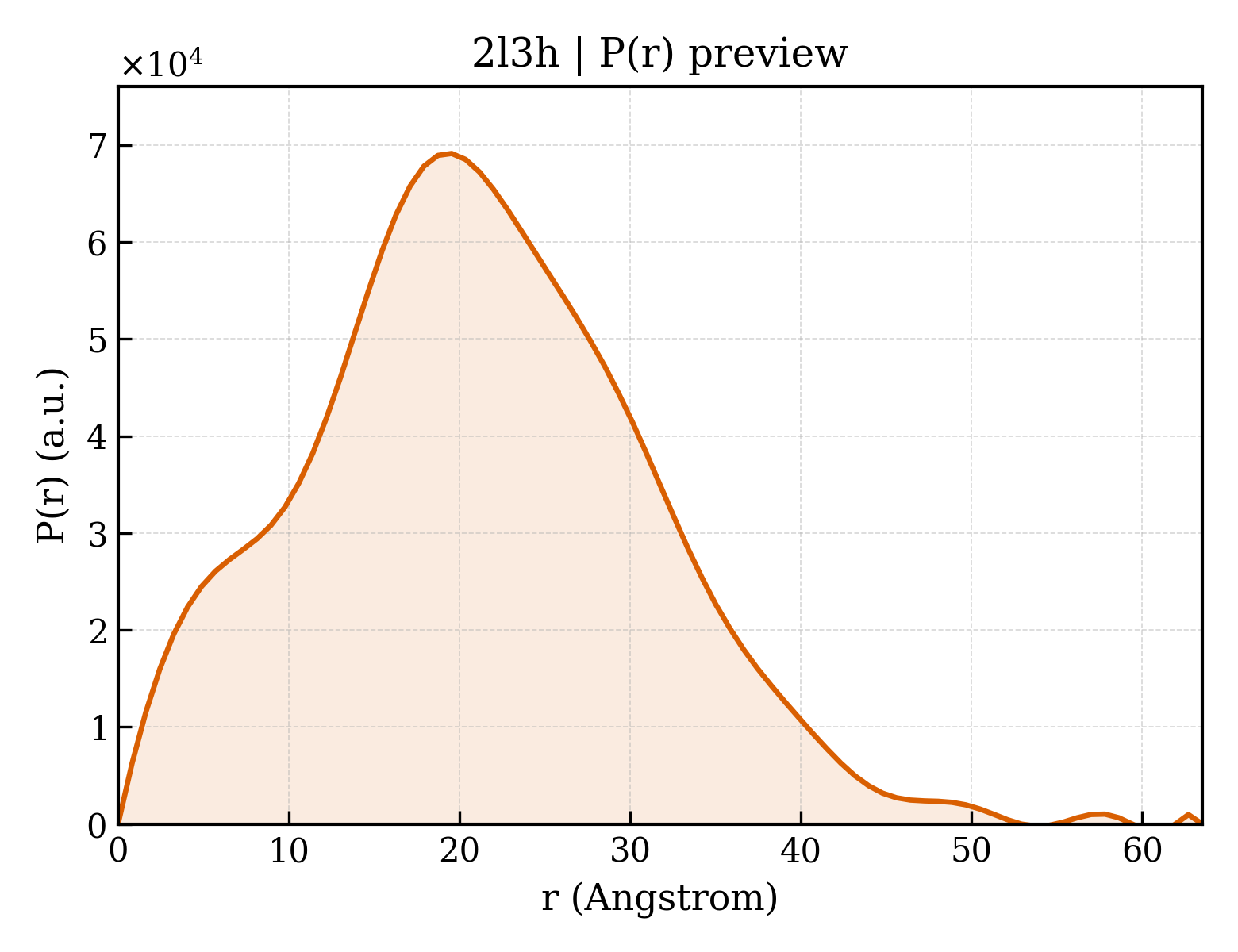

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	63.5 Å
Rg (real space) rg_real	16.38 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	2.0400e+07
I(0) uncertainty (real space) i0_real_error	2.6200e+05
Rg (reciprocal space) rg_reciprocal	16.38 Å
I(0) (reciprocal space) i0_reciprocal	20400000.0000
Solution quality estimate total_estimate	0.5713
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	19.5 Å
Skewness Skewness skewness	0.266
Kurtosis Kurtosis kurtosis	-0.082
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	60070.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.433; Stabil: 1.000; Sysdev: 0.409; Positv: 1.000; Valcen: 0.897; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	Prostatic acid phosphatase
Molecular weight formula_weight	4561.5 kDa
EC 编号 ec_number	3.1.3.2
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4760

fit	/app/data/saxs_computation/l3/2l3h/2l3h.fit
pddf	/app/data/pr_computation/l3/2l3h/2l3h.pr.out
profile	/app/data/saxs_computation/l3/2l3h/2l3h.dat
