SAXSdb — 2l45

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-TERMINAL ZINC KNUCLE OF THE HIV-NCP7

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 1 PDB declaration: dimeric（2） Consistent with all polymer counts	Chain A； UniProt 411–429	Not recorded	;DNA (5'-D(PTPAPCPGPCPC)-3') ; × 1 ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions：pH 5.7；298 K；Ionic strength (raw mmCIF value) 6.0；Pressure ambient NMR sample composition：1 mM C-terminal zinc knuckle of the HIVNCp7, 1 mM DNA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L45	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2L44 C-terminal zinc knuckle of the HIVNCp7 Deposited 2010-10-01	Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–429（19 aa）	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 5.7；298 K；Ionic strength (raw mmCIF value) 6；Pressure ambient NMR sample composition 1 mM C-terminal zinc knuckle of the HIVNCp7, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2L46 C-terminal zinc finger of the HIVNCp7 with platinated DNA Deposited 2010-10-01	Parsed fields agree	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 411–429（19 aa）	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 5.7；298 K；Ionic strength (raw mmCIF value) 6.0；Pressure ambient NMR sample composition 1 mM C-terminal zinc knuckle of the HIVNCp7, 1 mM DNA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3OUA MDR769 HIV-1 protease complexed with p1/p6 hepta-peptide Deposited 2010-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 446–452（7 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；0.8M NaCl 01 M MES , pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.226
3OUC MDR769 HIV-1 protease complexed with p2/NC hepta-peptide Deposited 2010-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 375–381（7 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；0.8M NaCl 0.1 M MES , pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.262
3P9G Crystal structure of the TSG101 UEV domain in complex with FA459 peptide Deposited 2010-10-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 453–461（9 aa） Fragment：Modified HIV-1 Gag PTAP Motif	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1M HEPES-NAOH (PH7.5), 25% PEG 3350, 0.2M SODIUM NITRATE, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.242
3P9H Crystal structure of the TSG101 UEV domain in complex with FA258 peptide Deposited 2010-10-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 453–461（9 aa） Fragment：Modified HIV-1 Gag PTAP Motif	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1M HEPES-NAOH (PH7.5), 25% PEG 3350, 0.2M SODIUM NITRATE , VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.253
4EP3 Crystal Structure of inactive single chain wild-type HIV-1 Protease in Complex with the substrate CA-p2 Deposited 2012-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 359–367（9 aa）	Not recorded	GOL GLYCEROL × 3 BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；126mM Phosphate buffer pH 6.2, 63mM Sodium Citrate, 24-29% Ammonium Sulfate, hanging drop, vapor diffusion, temperature 295K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.81 Å R-free 0.227
4EPJ Crystal Structure of inactive single chain wild-type HIV-1 Protease in Complex with the substrate p2-NC Deposited 2012-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 374–381（8 aa）	Not recorded	GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 1 DMS DIMETHYL SULFOXIDE × 1 ACT ACETATE ION × 1 BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；126mM Phosphate buffer pH 6.2, 63mM Sodium Citrate, 24-29% Ammonium Sulfate, hanging drop, vapor diffusion, temperature 295K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.69 Å R-free 0.227
4EQ0 Crystal Structure of inactive single chain variant of HIV-1 Protease in Complex with the substrate p2-NC Deposited 2012-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 374–381（8 aa）	Not recorded	BME BETA-MERCAPTOETHANOL × 1 EDO 1,2-ETHANEDIOL × 3 GOL GLYCEROL × 3 ACT ACETATE ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；126mM Phosphate buffer pH 6.2, 63mM Sodium Citrate, 24-29% Ammonium Sulfate, hanging drop, vapor diffusion, temperature 295K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.70 Å R-free 0.264
4FAE Substrate p2/NC in Complex with a Human Immunodeficiency Virus Type 1 Protease Variant Deposited 2012-05-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 375–381（7 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；0.1 M citric acid, 2.4 M ammonium sulfate, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.279

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9YP46_9HIV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–19； UniProt 411–429

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l45
Deposition date deposition_date	2010-10-01
Structure title title	C-terminal zinc knuckle of the HIVNCp7 with DNA
Keywords keywords	NCP7, HIV, Platinum, VIRAL PROTEIN-DNA complex; VIRAL PROTEIN/DNA
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	9.12 Å
Radius of gyration Rg (electron density) rg_electron	9.15 Å
Forward intensity I(0) i0	160912000.00
Molecular weight molecular_weight	76916.0 kDa
Excluded volume excluded_volume	83866 Å³
Envelope volume envelope_volume	9525 Å³
Hydration-shell volume shell_volume	7687 Å³
Envelope diameter envelope_diameter	38.5 Å
Shell Rg shell_rg	16.26 Å
Envelope Rg envelope_rg	11.53 Å
Shape Rg shape_rg	9.19 Å
Total Rg total_rg	9.27 Å
Total atoms total_atoms	9196
Residues n_residues	475
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	35.1 Å
Rg (real space) rg_real	9.11 Å
Rg uncertainty (real space) rg_real_error	0.46 Å
I(0) (real space) i0_real	1.6090e+08
I(0) uncertainty (real space) i0_real_error	2.2760e+06
Rg (reciprocal space) rg_reciprocal	9.11 Å
I(0) (reciprocal space) i0_reciprocal	160900000.0000
Solution quality estimate total_estimate	0.8134
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	10.7 Å
Skewness Skewness skewness	0.325
Kurtosis Kurtosis kurtosis	-0.221
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	35970.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.606; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.758; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	C-TERMINAL ZINC KNUCLE OF THE HIV-NCP7
Molecular weight formula_weight	2230.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9196

KGCWKCGKEGHQMKDCTER

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PTPAPCPGPCPC)-3') ;
Molecular weight formula_weight	1769.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

TACGCC

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/l4/2l45/2l45.fit
pddf	/app/data/pr_computation/l4/2l45/2l45.pr.out
profile	/app/data/saxs_computation/l4/2l45/2l45.dat

C-terminal zinc knuckle of the HIVNCp7 with DNA

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-TERMINAL ZINC KNUCLE OF THE HIV-NCP7

State in the Current Structure

Other States of the Same Protein in the Database

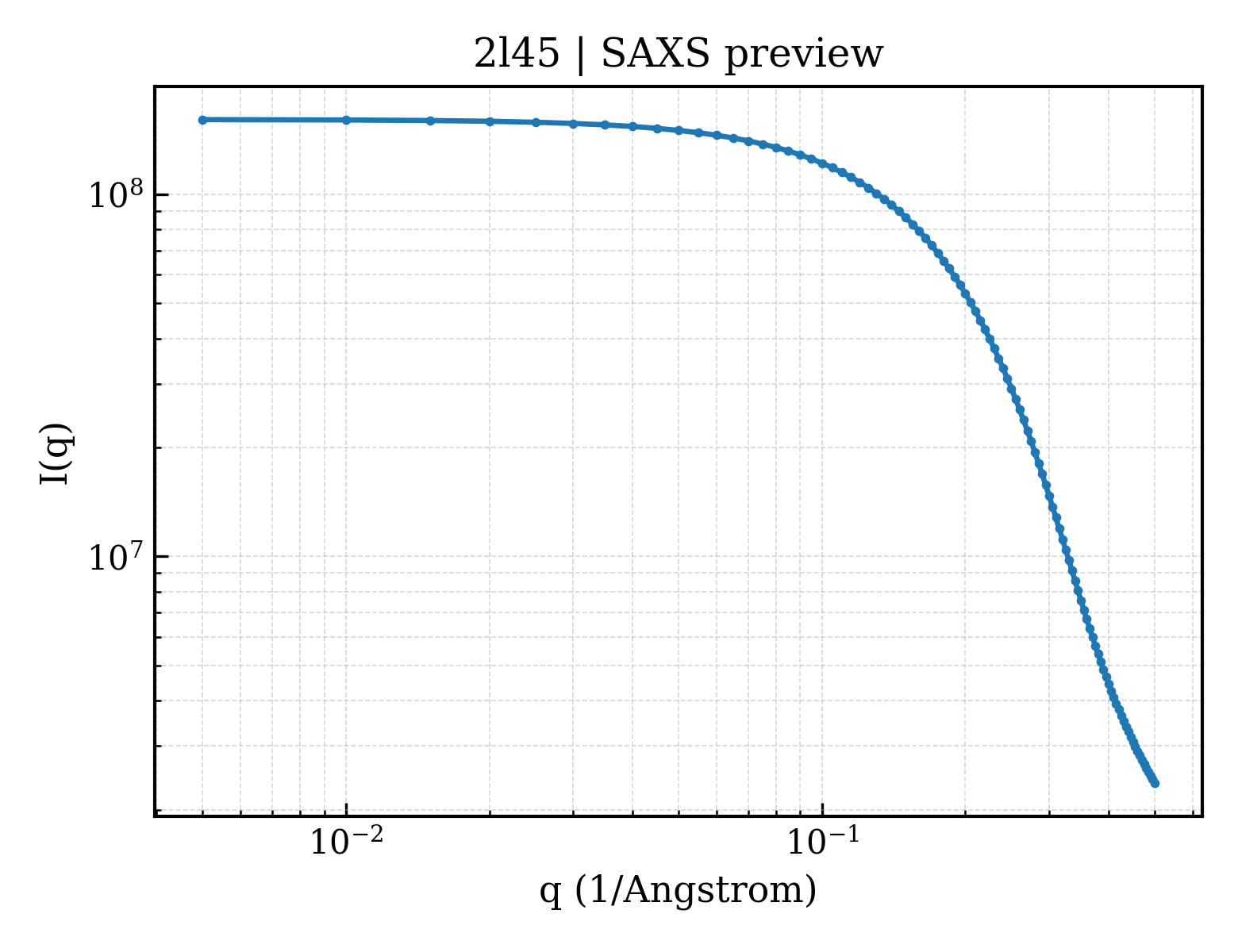

SAXS scattering curve SAXS Profile

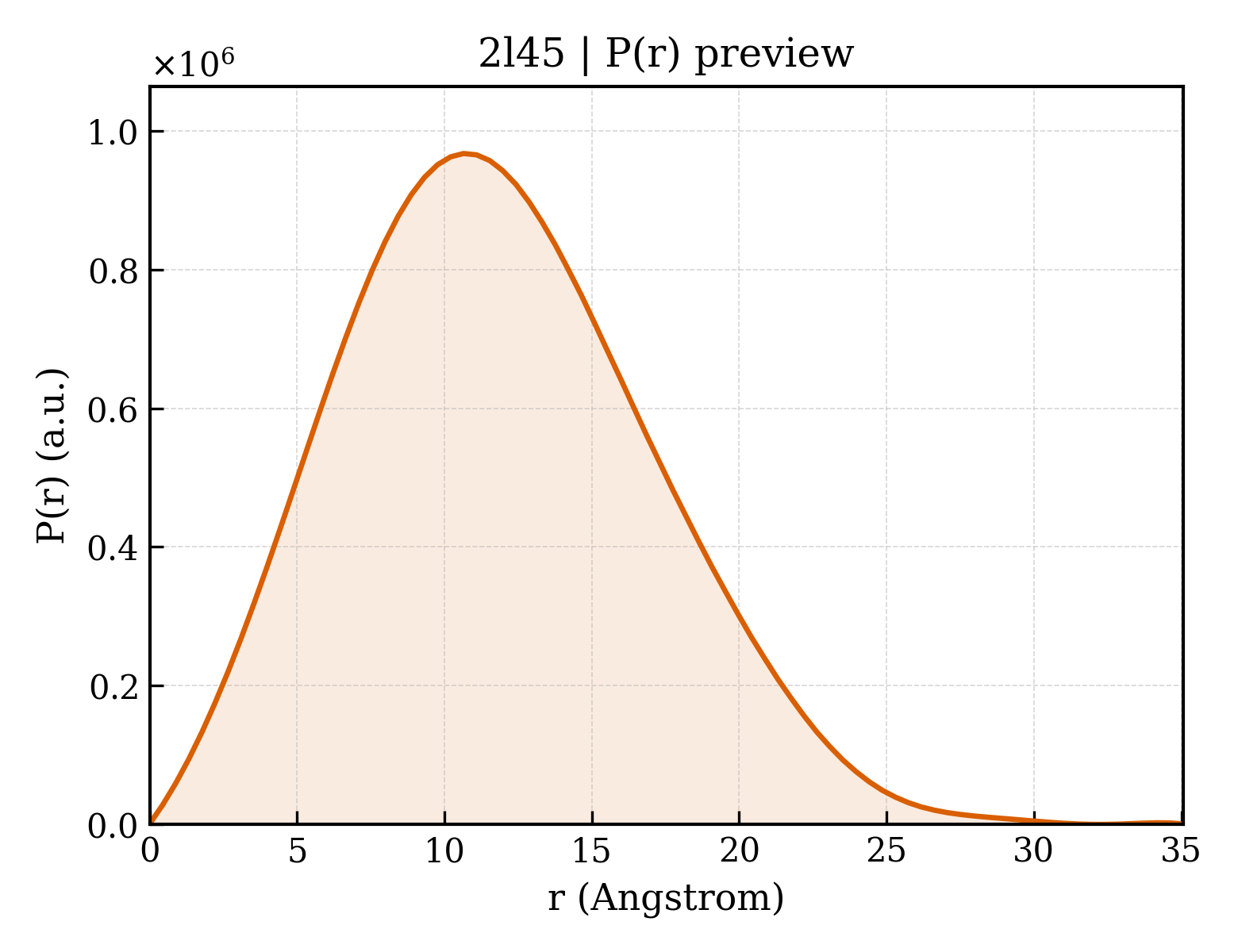

P(r) Distance Distribution P(r) Distribution
