2nn6

Structure of the human RNA exosome composed of Rrp41, Rrp45, Rrp46, Rrp43, Mtr3, Rrp42, Csl4, Rrp4, and Rrp40

Method: X-RAY DIFFRACTION D_max: 121.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polymyositis/scleroderma autoantigen 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain A； UniProt 1–302	Not recorded	Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q86Y41_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 18–319； UniProt 1–302

Exosome complex exonuclease RRP41

Homo sapiens

UniProt Q9NPD3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain B； UniProt 1–244	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain B 1–245（245 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain B 1–245（245 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain L 1–245（245 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain L 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain N 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain L 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–249； UniProt 1–244

Exosome complex exonuclease RRP43

Homo sapiens

UniProt Q96B26

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain C； UniProt 1–276	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain C 1–276（276 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain C 1–276（276 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain C 1–276（276 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain N 1–276（276 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain N 1–276（276 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain L 1–276（276 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain N 1–276（276 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 3–278； UniProt 1–276

Exosome complex exonuclease RRP46

Homo sapiens

UniProt Q9NQT4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain D； UniProt 1–235	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain D 1–235（235 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain D 1–235（235 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain D 1–235（235 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain O 1–235（235 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain O 1–235（235 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain O 1–235（235 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain O 1–235（235 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS5_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 3–237； UniProt 1–235

Exosome complex exonuclease RRP42

Homo sapiens

UniProt Q15024

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain E； UniProt 1–291	Mutation：L274V	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain E 1–291（291 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain E 1–291（291 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain E 1–291（291 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain F 1–291（291 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain F 1–291（291 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain F 1–291（291 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain F 1–291（291 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS7_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 15–305； UniProt 1–291

Exosome component 6

Homo sapiens

UniProt Q5RKV6

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain F； UniProt 1–272	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain F 1–272（272 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain F 1–272（272 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain F 1–272（272 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain G 1–272（272 aa） Chain H 181–272（92 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain G 1–272（272 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain G 1–272（272 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain G 1–272（272 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q5RKV6_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–272； UniProt 1–272

Exosome complex exonuclease RRP40

Homo sapiens

UniProt Q9NQT5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain G； UniProt 0–274	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP4 × 1 （Q13868） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain G 1–275（275 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain G 1–275（275 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain G 1–275（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain H 1–275（275 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain H 1–275（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain H 1–275（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain H 1–275（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS3_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 15–289； UniProt 0–274

Exosome complex exonuclease RRP4

Homo sapiens

UniProt Q13868

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain H； UniProt 1–293	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） ;3'-5' exoribonuclease CSL4 homolog ; × 1 （Q9Y3B2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain H 1–293（293 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain H 1–293（293 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain H 1–293（293 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain I 1–293（293 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain I 1–293（293 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain I 1–293（293 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain I 1–293（293 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS2_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain H； PDBConstruct 16–308； UniProt 1–293

;3'-5' exoribonuclease CSL4 homolog ;

Homo sapiens

UniProt Q9Y3B2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count	Chain I； UniProt 1–195	Not recorded	Polymyositis/scleroderma autoantigen 1 × 1 （Q86Y41） Exosome complex exonuclease RRP41 × 1 （Q9NPD3） Exosome complex exonuclease RRP43 × 1 （Q96B26） Exosome complex exonuclease RRP46 × 1 （Q9NQT4） Exosome complex exonuclease RRP42 × 1 （Q15024） Exosome component 6 × 1 （Q5RKV6） Exosome complex exonuclease RRP40 × 1 （Q9NQT5） Exosome complex exonuclease RRP4 × 1 （Q13868）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；4.5-8% w/v PEG4000, 0.1M Sodium citrate, 1 mM TCEP, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.35 Å R-free 0.344

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6D6Q Human nuclear exosome-MTR4 RNA complex - overall reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain I 1–195（195 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6D6R Human nuclear exosome-MTR4 RNA complex - composite map after focused reconstruction Deposited 2018-04-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain I 1–195（195 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；30 sec wait time, 2.5 sec blot time	Resolution 3.45 Å
6H25 Human nuclear RNA exosome EXO-10-MPP6 complex Deposited 2018-07-13	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: dodecameric	Chain I 1–195（195 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain J 1–195（195 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain J 1–195（195 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain J 1–195（195 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain J 1–195（195 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EXOS1_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain I； PDBConstruct 15–209； UniProt 1–195

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

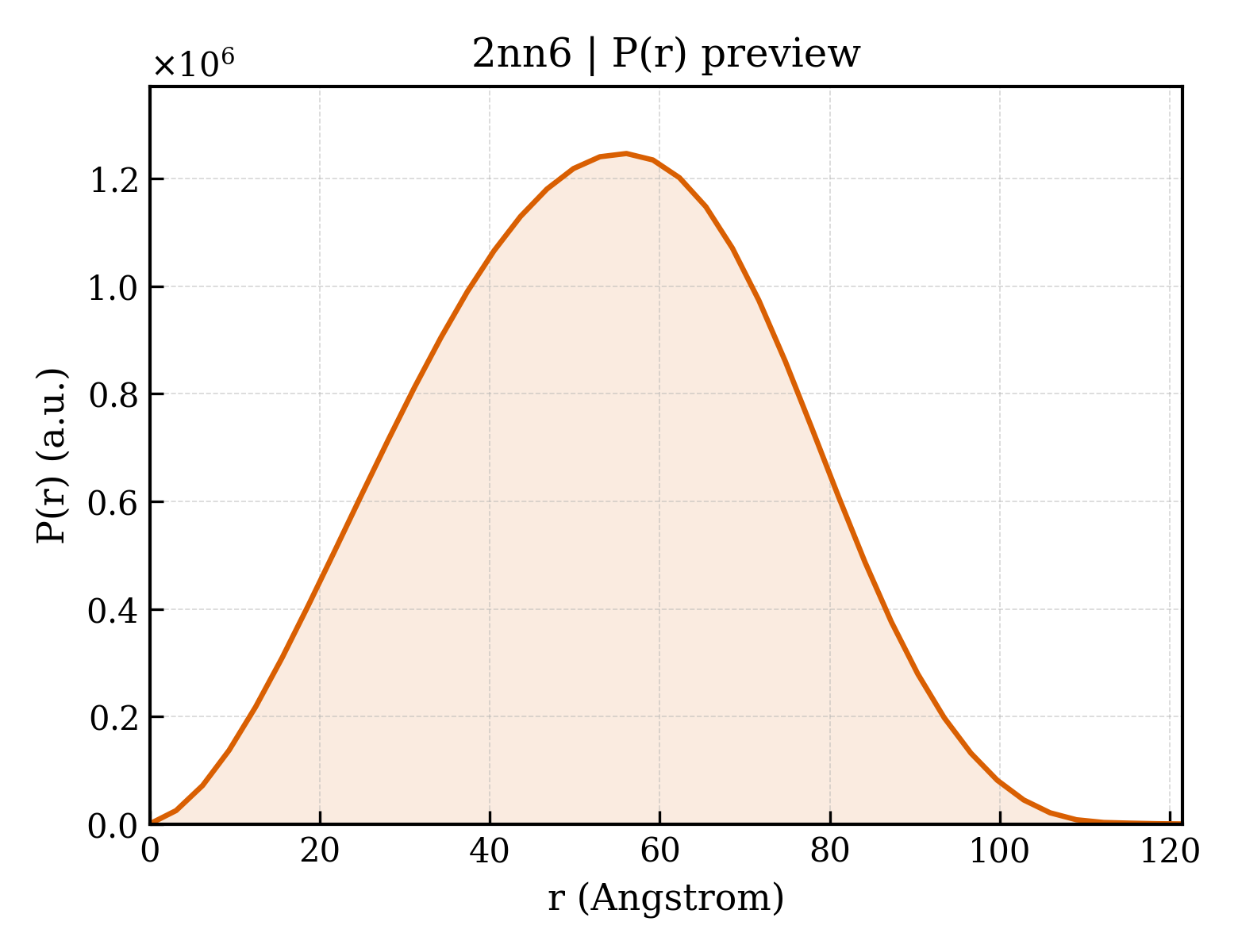

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2nn6
Deposition date deposition_date	2006-10-23
Structure title title	Structure of the human RNA exosome composed of Rrp41, Rrp45, Rrp46, Rrp43, Mtr3, Rrp42, Csl4, Rrp4, and Rrp40
Keywords keywords	RNA, exosome, PM/Scl, exoribonuclease, phosphorolytic, ribonuclease, HYDROLASE-TRANSFERASE COMPLEX; HYDROLASE/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.50 Å
Radius of gyration Rg (electron density) rg_electron	39.74 Å
Forward intensity I(0) i0	871386000.00
Molecular weight molecular_weight	240640.0 kDa
Excluded volume excluded_volume	301280 Å³
Envelope volume envelope_volume	421650 Å³
Hydration-shell volume shell_volume	83650 Å³
Envelope diameter envelope_diameter	127.4 Å
Shell Rg shell_rg	49.30 Å
Envelope Rg envelope_rg	38.58 Å
Shape Rg shape_rg	39.74 Å
Total Rg total_rg	40.24 Å
Total atoms total_atoms	16858
Residues n_residues	2214
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.5 Å
Rg (real space) rg_real	40.22 Å
Rg uncertainty (real space) rg_real_error	0.58 Å
I(0) (real space) i0_real	8.7140e+08
I(0) uncertainty (real space) i0_real_error	1.2740e+07
Rg (reciprocal space) rg_reciprocal	40.49 Å
I(0) (reciprocal space) i0_reciprocal	871600000.0000
Solution quality estimate total_estimate	0.8976
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	56.1 Å
Skewness Skewness skewness	-0.007
Kurtosis Kurtosis kurtosis	-0.563
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	151700000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.942

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Polymyositis/scleroderma autoantigen 1
Molecular weight formula_weight	39405.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16858

MGSSHHHHHHSQDPNSHMKETPLSNCERRFLLRAIEEKKRLDGRQTYDYRNIRISFGTDYGCCIVELGKTRVLGQVSCELVSPKLNRATEGILFFNLELSQMAAPAFEPGRQSDLLVKLNRLMERCLRNSKCIDTESLCVVAGEKVWQIRVDLHLLNHDGNIIDAASIAAIVALCHFRRPDVSVQGDEVTLYTPEERDPVPLSIHHMPICVSFAFFQQGTYLLVDPNEREERVMDGLLVIAMNKHREICTIQSSGGIMLLKDQVLRCSKIAGVKVAEITELILKALENDQKVRKEGGKFGFAESIANQRITAFKMEKAPXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Exosome complex exonuclease RRP41
Molecular weight formula_weight	26831.5 kDa
EC 编号 ec_number	3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MADPMAGLELLSDQGYRVDGRRAGELRKIQARMGVFAQADGSAYIEQGNTKALAVVYGPHEIRGSRARALPDRALVNCQYSSATFSTGERKRRPHGDRKSCEMGLQLRQTFEAAILTQLHPRSQIDIYVQVLQADGGTYAACVNAATLAVLDAGIPMRDFVCACSAGFVDGTALADLSHVEEAAGGPQLALALLPASGQIALLEMDARLHEDHLERVLEAAAQAARDVHTLLDRVVRQHVREASILLGD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Exosome complex exonuclease RRP43
Molecular weight formula_weight	30285.8 kDa
EC 编号 ec_number	3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DPMAAGFKTVEPLEYYRRFLKENCRPDGRELGEFRTTTVNIGSISTADGSALVKLGNTTVICGVKAEFAAPSTDAPDKGYVVPNVDLPPLCSSRFRSGPPGEEAQVASQFIADVIENSQIIQKEDLCISPGKLVWVLYCDLICLDYDGNILDACTFALLAALKNVQLPEVTINEETALAEVNLKKKSYLNIRTHPVATSFAVFDDTLLIVDPTGEEEHLATGTLTIVMDEEGKLCCLHKPGGSGLTGAKLQDCMSRAVTRHKEVKKLMDEVIKSMKPK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Exosome complex exonuclease RRP46
Molecular weight formula_weight	25480.2 kDa
EC 编号 ec_number	3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SLMEEETHTDAKIRAENGTGSSPRGPGCSLRHFACEQNLLSRPDGSASFLQGDTSVLAGVYGPAEVKVSKEIFNKATLEVILRPKIGLPGVAEKSRERLIRNTCEAVVLGTLHPRTSITVVLQVVSDAGSLLACCLNAACMALVDAGVPMRALFCGVACALDSDGTLVLDPTSKQEKEARAVLTFALDSVERKLLMSSTKGLYSDTELQQCLAAAQAASQHVFRFYRESLQRRYSKS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Exosome complex exonuclease RRP42
Molecular weight formula_weight	33479.1 kDa
EC 编号 ec_number	3.1.13.-
Mutation mutation	L274V
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MGSSHHHHHHSQDPMASVTLSEAEKVYIVHGVQEDLRVDGRGCEDYRCVEVETDVVSNTSGSARVKLGHTDILVGVKAEMGTPKLEKPNEGYLEFFVDCSASATPEFEGRGGDDLGTEIANTLYRIFNNKSSVDLKTLCISPREHCWVLYVDVLLLECGGNLFDAISIAVKAALFNTRIPRVRVLEDEEGSKDIELSDDPYDCIRLSVENVPCIVTLCKIGYRHVVDATLQEEACSLASLLVSVTSKGVVTCMRKVGKGSLDPESIFEMMETGKRVGKVLHASLQSVVHKEESLGPKRQKVGFLG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Exosome component 6
Molecular weight formula_weight	28267.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MPGDHRRIRGPEESQPPQLYAADEEEAPGTRDPTRLRPVYARAGLLSQAKGSAYLEAGGTKVLCAVSGPRQAEGGERGGGPAGAGGEAPAALRGRLLCDFRRAPFAGRRRRAPPGGCEERELALALQEALEPAVRLGRYPRAQLEVSALLLEDGGSALAAALTAAALALADAGVEMYDLVVGCGLSLAPGPAPTWLLDPTRLEEERAAAGLTVALMPVLNQVAGLLGSGEGGLTESWAEAVRLGLEGCQRLYPVLQQSLVRAARRRGAAAQP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Exosome complex exonuclease RRP40
Molecular weight formula_weight	31227.9 kDa
EC 编号 ec_number	3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MGSSHHHHHHSQDPMAEPASVAAESLAGSRARAARTVLGQVVLPGEELLLPEQEDAEGPGGAVERPLSLNARACSRVRVVCGPGLRRCGDRLLVTKCGRLRHKEPGSGSGGGVYWVDSQQKRYVPVKGDHVIGIVTAKSGDIFKVDVGGSEPASLSYLSFEGATKRNRPNVQVGDLIYGQFVVANKDMEPEMVCIDSCGRANGMGVIGQDGLLFKVTLGLIRKLLAPDCEIIQEVGKLYPLEIVFGMNGRIWVKAKTIQQTLILANILEACEHMTSDQRKQIFSRLAES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Exosome complex exonuclease RRP4
Molecular weight formula_weight	34590.9 kDa
EC 编号 ec_number	3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MGSSHHHHHHSQDPHMAMEMRLPVARKPLSERLGRDTKKHLVVPGDTITTDTGFMRGHGTYMGEEKLIASVAGSVERVNKLICVKALKTRYIGEVGDIVVGRITEVQQKRWKVETNSRLDSVLLLSSMNLPGGELRRRSAEDELAMRGFLQEGDLISAEVQAVFSDGAVSLHTRSLKYGKLGQGVLVQVSPSLVKRQKTHFHDLPCGASVILGNNGFIWIYPTPEHKEEEAGGFIANLEPVSLADREVISRLRNCIISLVTQRMMLYDTSILYCYEASLPHQIKDILKPEIMEEIVMETRQRLLEQEG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	;3'-5' exoribonuclease CSL4 homolog ;
Molecular weight formula_weight	23097.5 kDa
EC 编号 ec_number	3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MGSSHHHHHHSQDPMAPPVRYCIPGERLCNLEEGSPGSGTYTRHGYIFSSLAGCLMKSSENGALPVVSVVRETESQLLPDVGAIVTCKVSSINSRFAKVHILYVGSMPLKNSFRGTIRKEDVRATEKDKVEIYKSFRPGDIVLAKVISLGDAQSNYLLTTAENELGVVVAHSESGIQMVPISWCEMQCPKTHTKEFRKVARVQPEFLQT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (20 domains)

Domain ID domain_id	d2nn6a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.4 — Ribonuclease PH domain 1-like

Domain ID domain_id	d2nn6a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.101 — Ribonuclease PH domain 2-like
Superfamily Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
Family Family family	d.101.1.1 — Ribonuclease PH domain 2-like

Domain ID domain_id	d2nn6b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.4 — Ribonuclease PH domain 1-like

Domain ID domain_id	d2nn6b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.101 — Ribonuclease PH domain 2-like
Superfamily Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
Family Family family	d.101.1.1 — Ribonuclease PH domain 2-like

Domain ID domain_id	d2nn6c1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.4 — Ribonuclease PH domain 1-like

Domain ID domain_id	d2nn6c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.101 — Ribonuclease PH domain 2-like
Superfamily Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
Family Family family	d.101.1.1 — Ribonuclease PH domain 2-like

Domain ID domain_id	d2nn6d1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.4 — Ribonuclease PH domain 1-like

Domain ID domain_id	d2nn6d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.101 — Ribonuclease PH domain 2-like
Superfamily Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
Family Family family	d.101.1.1 — Ribonuclease PH domain 2-like

Domain ID domain_id	d2nn6e1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.4 — Ribonuclease PH domain 1-like

Domain ID domain_id	d2nn6e2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.101 — Ribonuclease PH domain 2-like
Superfamily Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
Family Family family	d.101.1.1 — Ribonuclease PH domain 2-like

Domain ID domain_id	d2nn6f1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.4 — Ribonuclease PH domain 1-like

Domain ID domain_id	d2nn6f2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.101 — Ribonuclease PH domain 2-like
Superfamily Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
Family Family family	d.101.1.1 — Ribonuclease PH domain 2-like

Domain ID domain_id	d2nn6g1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2nn6g2
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.4 — Ribosomal L27 protein-like
Family Family family	b.84.4.2 — ECR1 N-terminal domain-like

Domain ID domain_id	d2nn6g3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.51 — Eukaryotic type KH-domain (KH-domain type I)
Superfamily Superfamily superfamily	d.51.1 — Eukaryotic type KH-domain (KH-domain type I)
Family Family family	d.51.1.1 — Eukaryotic type KH-domain (KH-domain type I)

Domain ID domain_id	d2nn6h1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2nn6h2
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.4 — Ribosomal L27 protein-like
Family Family family	b.84.4.2 — ECR1 N-terminal domain-like

Domain ID domain_id	d2nn6h3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.51 — Eukaryotic type KH-domain (KH-domain type I)
Superfamily Superfamily superfamily	d.51.1 — Eukaryotic type KH-domain (KH-domain type I)
Family Family family	d.51.1.1 — Eukaryotic type KH-domain (KH-domain type I)

Domain ID domain_id	d2nn6i1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2nn6i2
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.4 — Ribosomal L27 protein-like
Family Family family	b.84.4.2 — ECR1 N-terminal domain-like

CATH v4.4 (12 domains)

Domain ID domain_id	2nn6A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	2nn6B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	2nn6C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	2nn6D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	2nn6E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	2nn6F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	2nn6G01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2nn6G02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	2nn6G03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1370 — Ribosomal Protein S8; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — K Homology domain, type 1

Domain ID domain_id	2nn6H01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2nn6I01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2nn6I02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	307.800 Å
Unit-cell length b length_b	307.800 Å
Unit-cell length c length_c	307.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 4 3 2
Space-group number int_tables_number	207
Crystal system crystal_system	—

Resolution resolution	3.350 Å
Low-resolution limit resolution_low	14.980 Å
R factor r_factor	0.2910
R_work r_work	0.2910
R_free r_free	0.3440

fit	/app/data/saxs_computation/nn/2nn6/2nn6.fit
pddf	/app/data/pr_computation/nn/2nn6/2nn6.pr.out
profile	/app/data/saxs_computation/nn/2nn6/2nn6.dat

Structure of the human RNA exosome composed of Rrp41, Rrp45, Rrp46, Rrp43, Mtr3, Rrp42, Csl4, Rrp4, and Rrp40

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polymyositis/scleroderma autoantigen 1

State in the Current Structure

Other States of the Same Protein in the Database

Exosome complex exonuclease RRP41

State in the Current Structure

Other States of the Same Protein in the Database

Exosome complex exonuclease RRP43

State in the Current Structure

Other States of the Same Protein in the Database

Exosome complex exonuclease RRP46

State in the Current Structure

Other States of the Same Protein in the Database

Exosome complex exonuclease RRP42

State in the Current Structure

Other States of the Same Protein in the Database

Exosome component 6

State in the Current Structure

Other States of the Same Protein in the Database

Exosome complex exonuclease RRP40

State in the Current Structure

Other States of the Same Protein in the Database

Exosome complex exonuclease RRP4

State in the Current Structure

Other States of the Same Protein in the Database

;3'-5' exoribonuclease CSL4 homolog ;

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

Entity 7 Entity 7 polymer

Polymer Polymer

来源 Source

Entity 8 Entity 8 polymer

Polymer Polymer

来源 Source

Entity 9 Entity 9 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (20 domains)

CATH v4.4 (12 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
