SAXSdb — 2qbx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ephrin type-B receptor 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	antagonistic peptide × 1 SULFATE ION × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	antagonistic peptide × 1 SULFATE ION × 8 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	antagonistic peptide × 2 SULFATE ION × 12 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EPHB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 32–208； UniProt 20–196 Author chain B； PDBConstruct 32–208； UniProt 20–196

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2qbx
Deposition date deposition_date	2007-06-18
Structure title title	EphB2/SNEW Antagonistic Peptide Complex
Keywords keywords	;Receptor tyrosine kinase, bi-directional signaling, tumorigenesis, angiogenesis, SIGNALING PROTEIN, Structural Genomics, PSI-2, Protein Structure Initiative, Accelerated Technologies Center for Gene to 3D Structure, ATCG3D ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2qbx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2qbx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

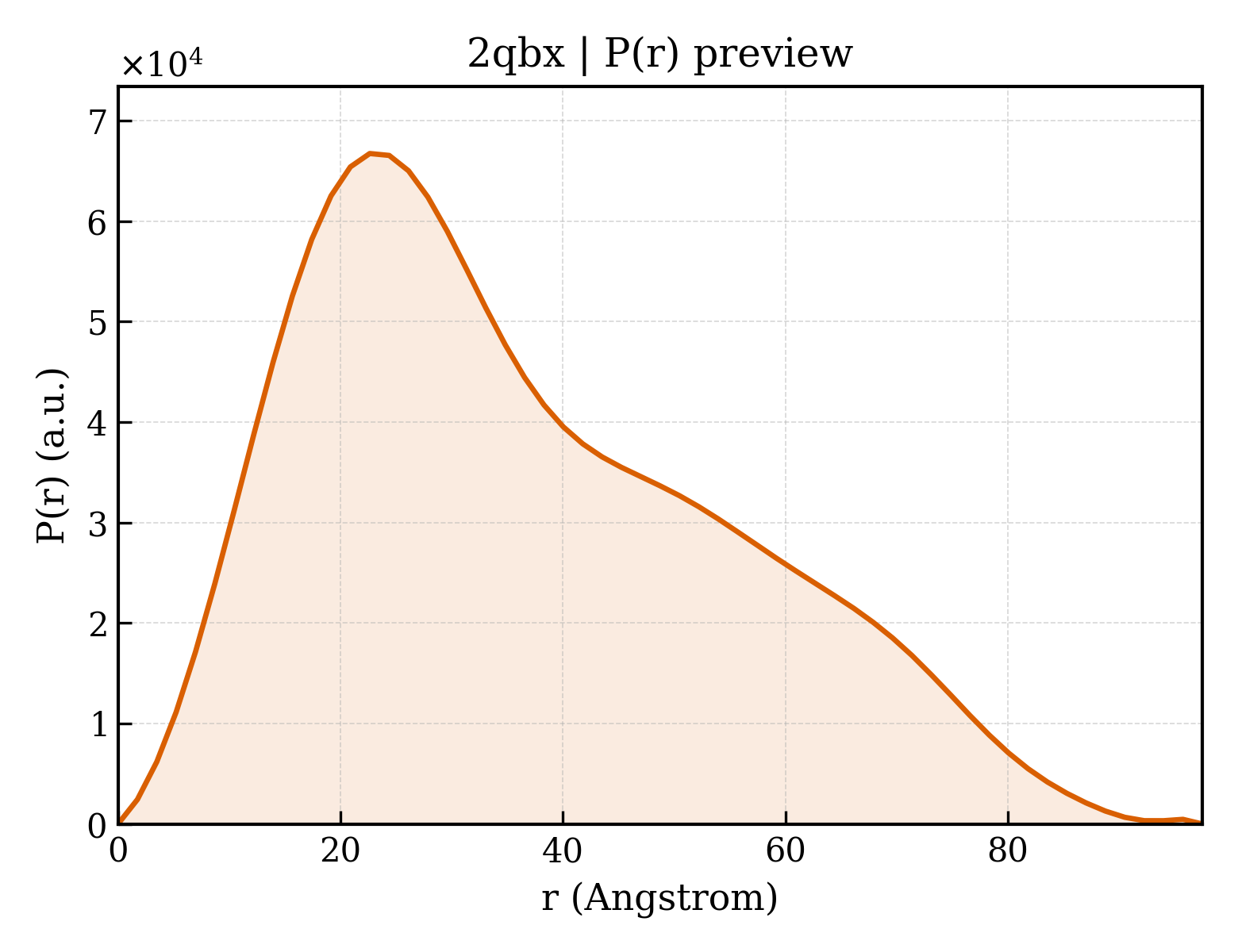

2qbx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.59 Å
Rg (electron density)	16.26 Å
Total Rg	17.31 Å
Atom count	1505
Residues	185
Excluded volume	26383 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2qbx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2qbx__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2qbx__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ephrin type-B receptor 2
Molecular weight formula_weight	23664.7 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3222

MVSAIVLYVLLAAAAHSAFAAMVHHHHHHSAEETLMDSTTATAELGWMVHPPSGWEEVSGYDENMNTIRTYQVCNVFESSQNNWLRTKFIRRRGAHRIHVEMKFSVRDCSSIPSVPGSCKETFNLYYYEADFDSATKTFPNWMENPWVKVDTIAADESFSQVDLGGRVMKINTEVRSFGPVSRSGFYLAFQDYGGCMSLIAVRVFYRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	antagonistic peptide
Molecular weight formula_weight	1506.7 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,P

SNEWIQPRLPQH

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	174

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2qbxA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2qbxB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	40.183 Å
Unit-cell length b length_b	40.183 Å
Unit-cell length c length_c	235.025 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	34.790 Å
R factor r_factor	0.1979
R_work r_work	0.1942
R_free r_free	0.2695

EphB2/SNEW Antagonistic Peptide Complex
