1b4f
OLIGOMERIC STRUCTURE OF THE HUMAN EPHB2 RECEPTOR SAM DOMAIN
SAXS Profile

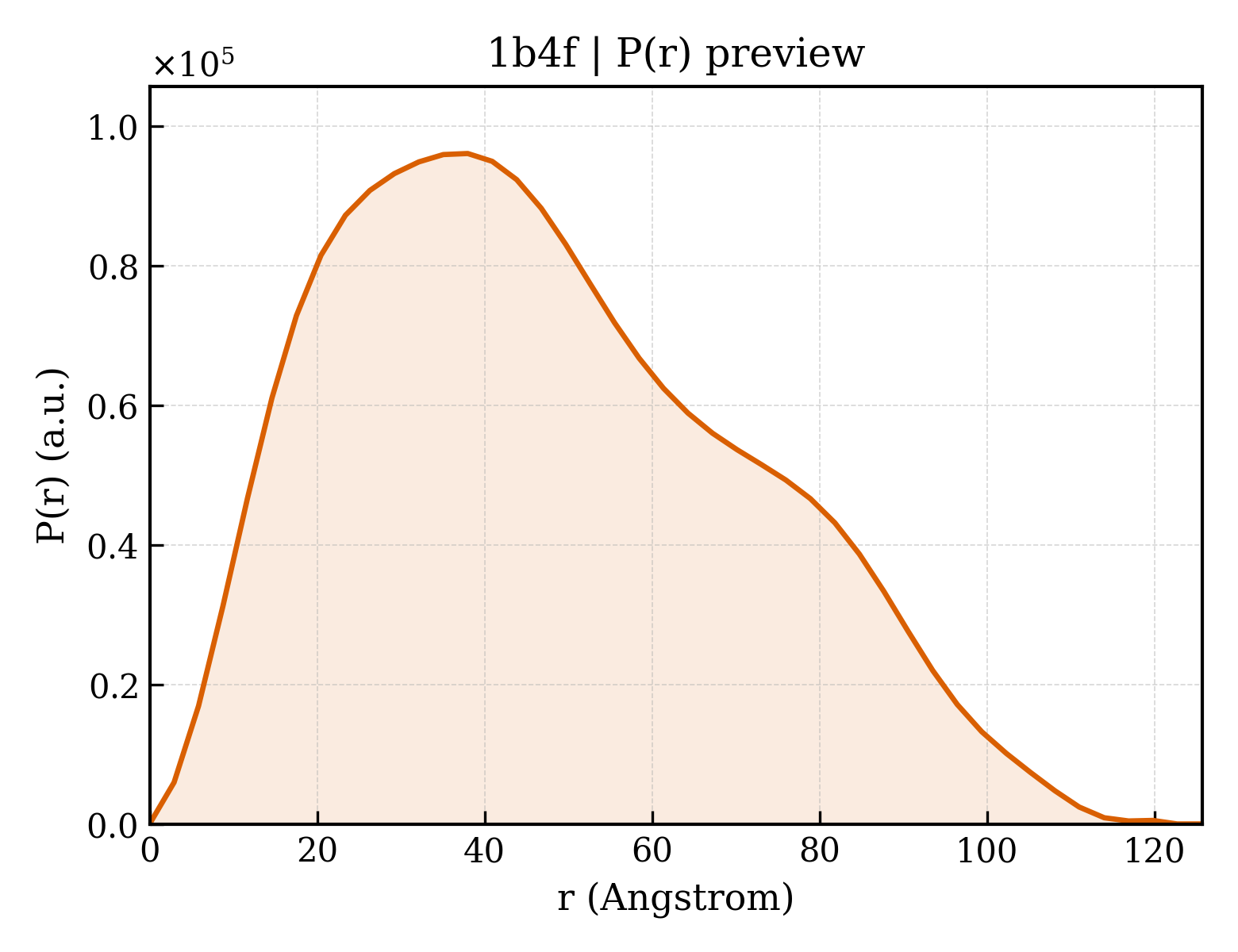

P(r) Distribution
1. Structure Basics
| entry_id | 1b4f |
| deposition_date | 1998-12-20 |
| title | OLIGOMERIC STRUCTURE OF THE HUMAN EPHB2 RECEPTOR SAM DOMAIN |
| keywords | SAM DOMAIN, EPH RECEPTOR, SIGNAL TRANSDUCTION, OLIGOMER; SIGNAL TRANSDUCTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 36.97 Å |
| rg_electron | 37.05 Å |
| i0 | 75224500.00 |
| molecular_weight | 68145.0 kDa |
| excluded_volume | 84929 ų |
| envelope_volume | 129520 ų |
| shell_volume | 31530 ų |
| envelope_diameter | 128.2 Å |
| shell_rg | 39.56 Å |
| envelope_rg | 36.52 Å |
| shape_rg | 37.08 Å |
| total_rg | 37.17 Å |
| total_atoms | 4762 |
| n_residues | 599 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 125.7 Å |
| rg_real | 37.28 Å |
| rg_real_error | 1.65 Å |
| i0_real | 7.5220e+07 |
| i0_real_error | 1.4800e+06 |
| rg_reciprocal | 37.09 Å |
| i0_reciprocal | 75210000.0000 |
| total_estimate | 0.6211 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 38.0 Å |
| skewness | 0.409 |
| kurtosis | -0.616 |
| angular_range | — – 0.2150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5296000.0000 |
| n_real_points | 44 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 0.048; Positv: 1.000; Valcen: 0.636; Smooth: 0.859 |
