1f0m
MONOMERIC STRUCTURE OF THE HUMAN EPHB2 SAM (STERILE ALPHA MOTIF) DOMAIN
SAXS Profile

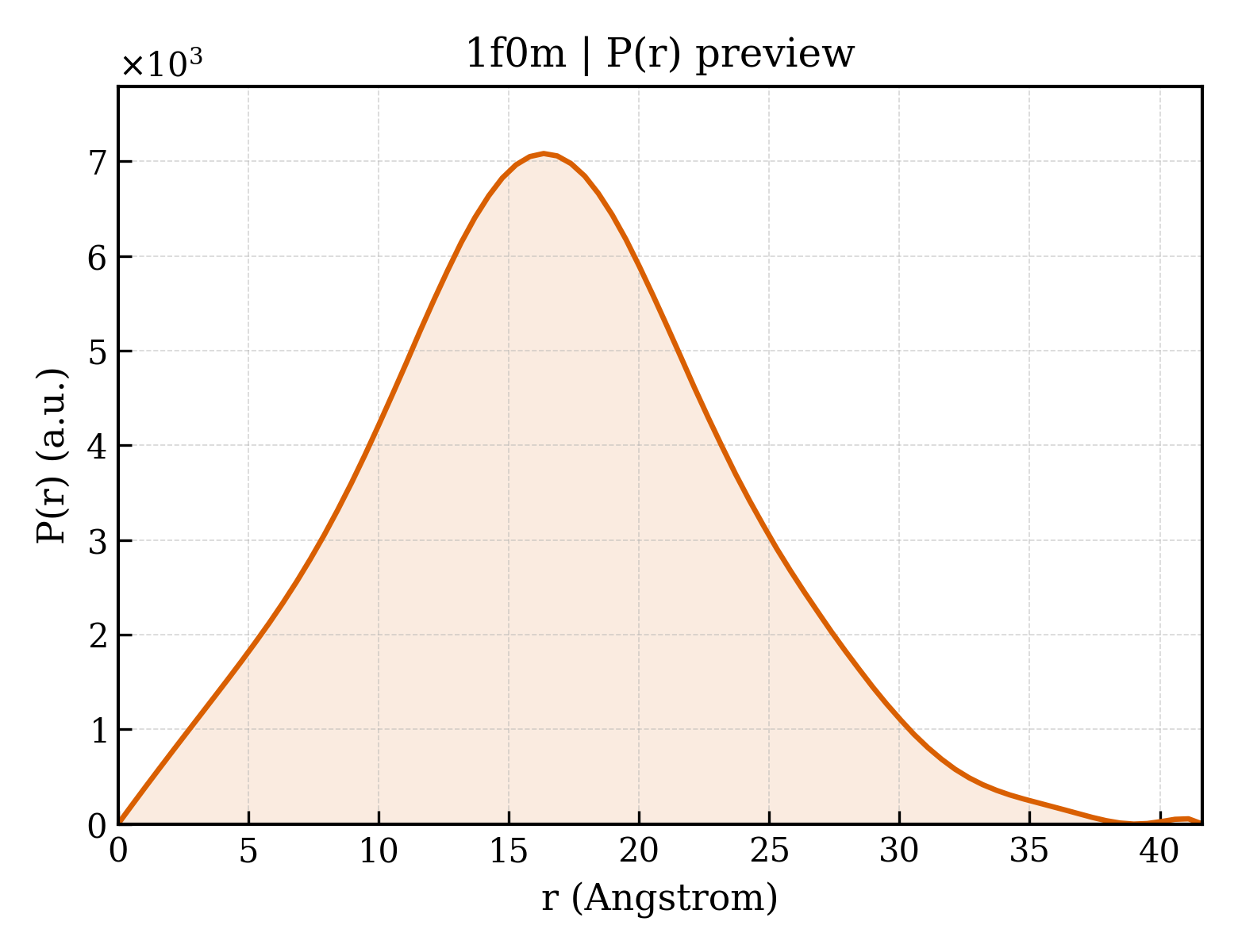

P(r) Distribution
1. Structure Basics
| entry_id | 1f0m |
| deposition_date | 2000-05-16 |
| title | MONOMERIC STRUCTURE OF THE HUMAN EPHB2 SAM (STERILE ALPHA MOTIF) DOMAIN |
| keywords | SAM domain, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.81 Å |
| rg_electron | 11.36 Å |
| i0 | 1468660.00 |
| molecular_weight | 8102.0 kDa |
| excluded_volume | 10127 ų |
| envelope_volume | 10913 ų |
| shell_volume | 8454 ų |
| envelope_diameter | 40.4 Å |
| shell_rg | 16.69 Å |
| envelope_rg | 11.79 Å |
| shape_rg | 11.35 Å |
| total_rg | 12.75 Å |
| total_atoms | 566 |
| n_residues | 71 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.6 Å |
| rg_real | 12.74 Å |
| rg_real_error | 0.26 Å |
| i0_real | 1.4690e+06 |
| i0_real_error | 1.7090e+04 |
| rg_reciprocal | 12.75 Å |
| i0_reciprocal | 1469000.0000 |
| total_estimate | 0.8616 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.3 Å |
| skewness | 0.174 |
| kurtosis | -0.179 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 238100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.766; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.902 |
