SAXSdb — 2uwq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

APOPTOSIS-STIMULATING OF P53 PROTEIN 2

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–83	Fragment：RESIDUES 1-83	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.2；298 K；Ionic strength (raw mmCIF value) 213；Pressure 1.0 NMR measurement conditions：pH 7.2；298 K；Ionic strength (raw mmCIF value) 213；Pressure 1.0 NMR sample composition：25MM PHOSPHATE, PH7.2, 150MM NACL, 5MM DTT, 5%D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2UWQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1YCS P53-53BP2 COMPLEX Deposited 1996-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 769–1003（235 aa） Fragment：RESIDUES 327 - 519	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.286
4A63 Crystal structure of the p73-ASPP2 complex at 2.6A resolution Deposited 2011-10-31	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 892–1128（237 aa） Fragment：ANKYRIN AND SH3 DOMAINS, RESIDUES 892-1128	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 1.00M NA/KPO4, 0.1M ACETATE PH 4.5	Resolution 2.27 Å R-free 0.244
4A63 Crystal structure of the p73-ASPP2 complex at 2.6A resolution Deposited 2011-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 892–1128（237 aa） Fragment：ANKYRIN AND SH3 DOMAINS, RESIDUES 892-1128	Not recorded	ZN ZINC ION × 1 ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions 1.00M NA/KPO4, 0.1M ACETATE PH 4.5	Resolution 2.27 Å R-free 0.244
4A63 Crystal structure of the p73-ASPP2 complex at 2.6A resolution Deposited 2011-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 892–1128（237 aa） Fragment：ANKYRIN AND SH3 DOMAINS, RESIDUES 892-1128	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 1.00M NA/KPO4, 0.1M ACETATE PH 4.5	Resolution 2.27 Å R-free 0.244
4A63 Crystal structure of the p73-ASPP2 complex at 2.6A resolution Deposited 2011-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 892–1128（237 aa） Fragment：ANKYRIN AND SH3 DOMAINS, RESIDUES 892-1128	Not recorded	ZN ZINC ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 1.00M NA/KPO4, 0.1M ACETATE PH 4.5	Resolution 2.27 Å R-free 0.244
4A63 Crystal structure of the p73-ASPP2 complex at 2.6A resolution Deposited 2011-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 892–1128（237 aa） Fragment：ANKYRIN AND SH3 DOMAINS, RESIDUES 892-1128	Not recorded	ZN ZINC ION × 1 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 1.00M NA/KPO4, 0.1M ACETATE PH 4.5	Resolution 2.27 Å R-free 0.244
4A63 Crystal structure of the p73-ASPP2 complex at 2.6A resolution Deposited 2011-10-31	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain L 892–1128（237 aa） Fragment：ANKYRIN AND SH3 DOMAINS, RESIDUES 892-1128	Not recorded	ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 1.00M NA/KPO4, 0.1M ACETATE PH 4.5	Resolution 2.27 Å R-free 0.244
4IRV Structure of the Helicobacter pylori CagA Oncogene Bound to the Human Tumor Suppressor Apoptosis-stimulating Protein of p53-2 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 726–782（57 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；Crystals were grown by vapor diffusion at 25 degrees C using hanging drops formed from mixing a 2ul of the protein complex with 2ul of an equilibration buffer (21% polyethylene glycol (PEG) molecular weight 4 kDa, 200 mM Li2 SO4 , and 100 mM Tris pH 8.5) and 0.6ul of the Silver Bullets additive 43 (Hampton Research HR2-996-43). Significantly higher quality crystals were obtained from selenomethionine-substituted protein complexes and they were used for the final refinement, VAPOR DIFFUSION, HANGING DROP	Resolution 2.04 Å R-free 0.234
4IRV Structure of the Helicobacter pylori CagA Oncogene Bound to the Human Tumor Suppressor Apoptosis-stimulating Protein of p53-2 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 726–782（57 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；Crystals were grown by vapor diffusion at 25 degrees C using hanging drops formed from mixing a 2ul of the protein complex with 2ul of an equilibration buffer (21% polyethylene glycol (PEG) molecular weight 4 kDa, 200 mM Li2 SO4 , and 100 mM Tris pH 8.5) and 0.6ul of the Silver Bullets additive 43 (Hampton Research HR2-996-43). Significantly higher quality crystals were obtained from selenomethionine-substituted protein complexes and they were used for the final refinement, VAPOR DIFFUSION, HANGING DROP	Resolution 2.04 Å R-free 0.234
4IRV Structure of the Helicobacter pylori CagA Oncogene Bound to the Human Tumor Suppressor Apoptosis-stimulating Protein of p53-2 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 726–782（57 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；Crystals were grown by vapor diffusion at 25 degrees C using hanging drops formed from mixing a 2ul of the protein complex with 2ul of an equilibration buffer (21% polyethylene glycol (PEG) molecular weight 4 kDa, 200 mM Li2 SO4 , and 100 mM Tris pH 8.5) and 0.6ul of the Silver Bullets additive 43 (Hampton Research HR2-996-43). Significantly higher quality crystals were obtained from selenomethionine-substituted protein complexes and they were used for the final refinement, VAPOR DIFFUSION, HANGING DROP	Resolution 2.04 Å R-free 0.234
4IRV Structure of the Helicobacter pylori CagA Oncogene Bound to the Human Tumor Suppressor Apoptosis-stimulating Protein of p53-2 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 726–782（57 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；Crystals were grown by vapor diffusion at 25 degrees C using hanging drops formed from mixing a 2ul of the protein complex with 2ul of an equilibration buffer (21% polyethylene glycol (PEG) molecular weight 4 kDa, 200 mM Li2 SO4 , and 100 mM Tris pH 8.5) and 0.6ul of the Silver Bullets additive 43 (Hampton Research HR2-996-43). Significantly higher quality crystals were obtained from selenomethionine-substituted protein complexes and they were used for the final refinement, VAPOR DIFFUSION, HANGING DROP	Resolution 2.04 Å R-free 0.234
6GHM Structure of PP1 alpha phosphatase bound to ASPP2 Deposited 2018-05-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 926–1134（209 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 3 NHE 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 3 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M TRIS pH 8.5 16 % PEG 8000	Resolution 2.15 Å R-free 0.214
6GHM Structure of PP1 alpha phosphatase bound to ASPP2 Deposited 2018-05-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 926–1134（209 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 GOL GLYCEROL × 1 NHE 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 3 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M TRIS pH 8.5 16 % PEG 8000	Resolution 2.15 Å R-free 0.214
6HKP Factor Inhibiting HIF (FIH) in complex with zinc, NOG and ASPP2 (970-992) Deposited 2018-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 976–998（23 aa）	Not recorded	SO4 SULFATE ION × 12 GOL GLYCEROL × 10 OGA N-OXALYLGLYCINE × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Hepes pH = 7.5, 2.0 M ammonium sulfate, 5.5% PEG400	Resolution 1.90 Å R-free 0.195

5 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ASPP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–86； UniProt 1–83

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2uwq
Deposition date deposition_date	2007-03-22
Structure title title	Solution structure of ASPP2 N-terminus
Keywords keywords	ASPP2, UBIQUITIN-LIKE, SH3-DOMAIN, APOPTOSIS, CELL CYCLE, ANK REPEAT, SH3-BINDING; APOPTOSIS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.03 Å
Radius of gyration Rg (electron density) rg_electron	12.47 Å
Forward intensity I(0) i0	628104000.00
Molecular weight molecular_weight	199160.0 kDa
Excluded volume excluded_volume	243400 Å³
Envelope volume envelope_volume	23655 Å³
Hydration-shell volume shell_volume	13338 Å³
Envelope diameter envelope_diameter	52.3 Å
Shell Rg shell_rg	20.93 Å
Envelope Rg envelope_rg	15.87 Å
Shape Rg shape_rg	12.42 Å
Total Rg total_rg	12.80 Å
Total atoms total_atoms	27080
Residues n_residues	1720
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.2 Å
Rg (real space) rg_real	13.00 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	6.2810e+08
I(0) uncertainty (real space) i0_real_error	7.4380e+06
Rg (reciprocal space) rg_reciprocal	13.00 Å
I(0) (reciprocal space) i0_reciprocal	628100000.0000
Solution quality estimate total_estimate	0.7557
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	15.5 Å
Skewness Skewness skewness	0.342
Kurtosis Kurtosis kurtosis	0.041
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	305700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.612; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2uwqA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	APOPTOSIS-STIMULATING OF P53 PROTEIN 2
Molecular weight formula_weight	9976.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	27080

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Solution structure of ASPP2 N-terminus

1. Protein Identity and Related Structures Protein Identity & Related Structures

APOPTOSIS-STIMULATING OF P53 PROTEIN 2

State in the Current Structure

Other States of the Same Protein in the Database

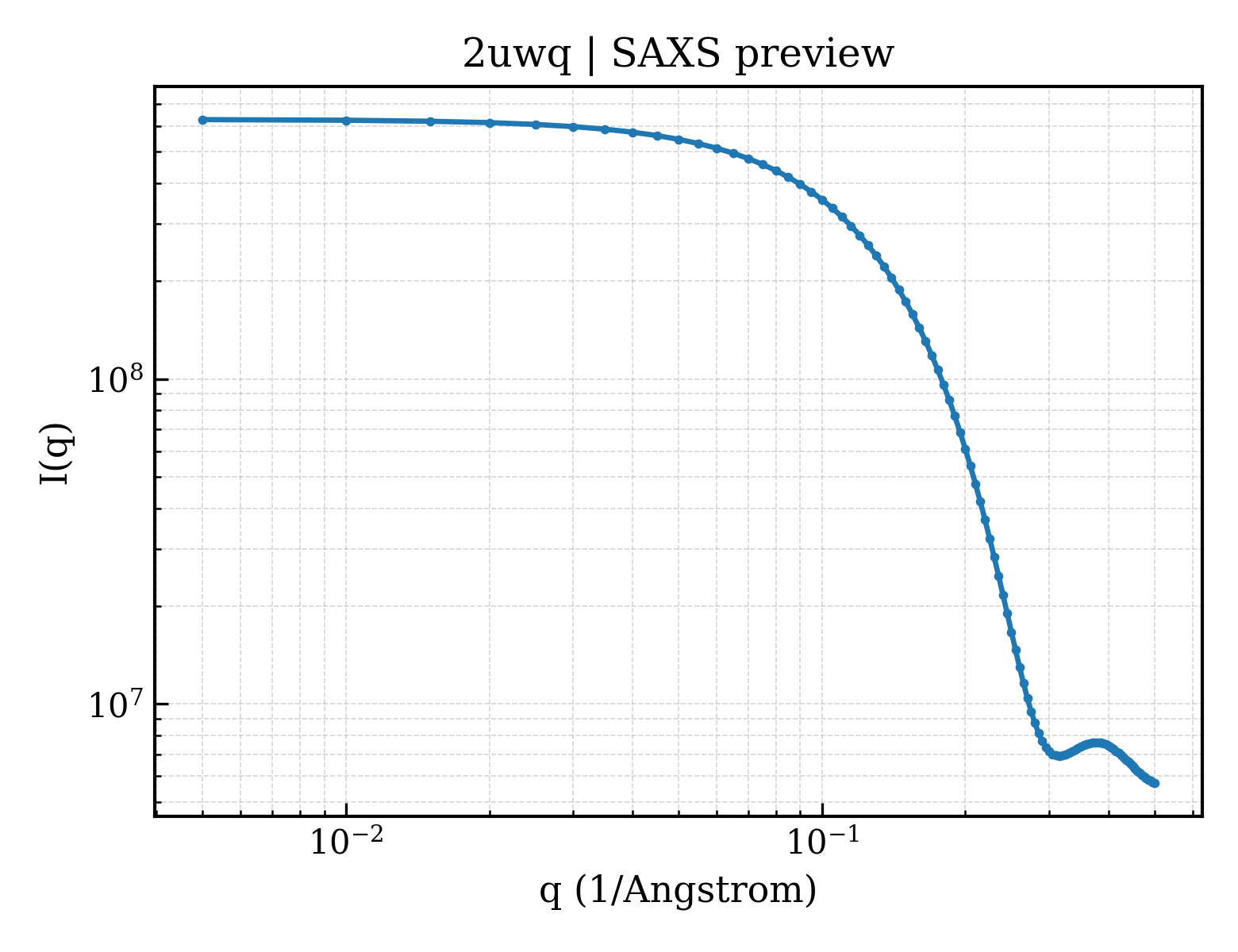

SAXS scattering curve SAXS Profile

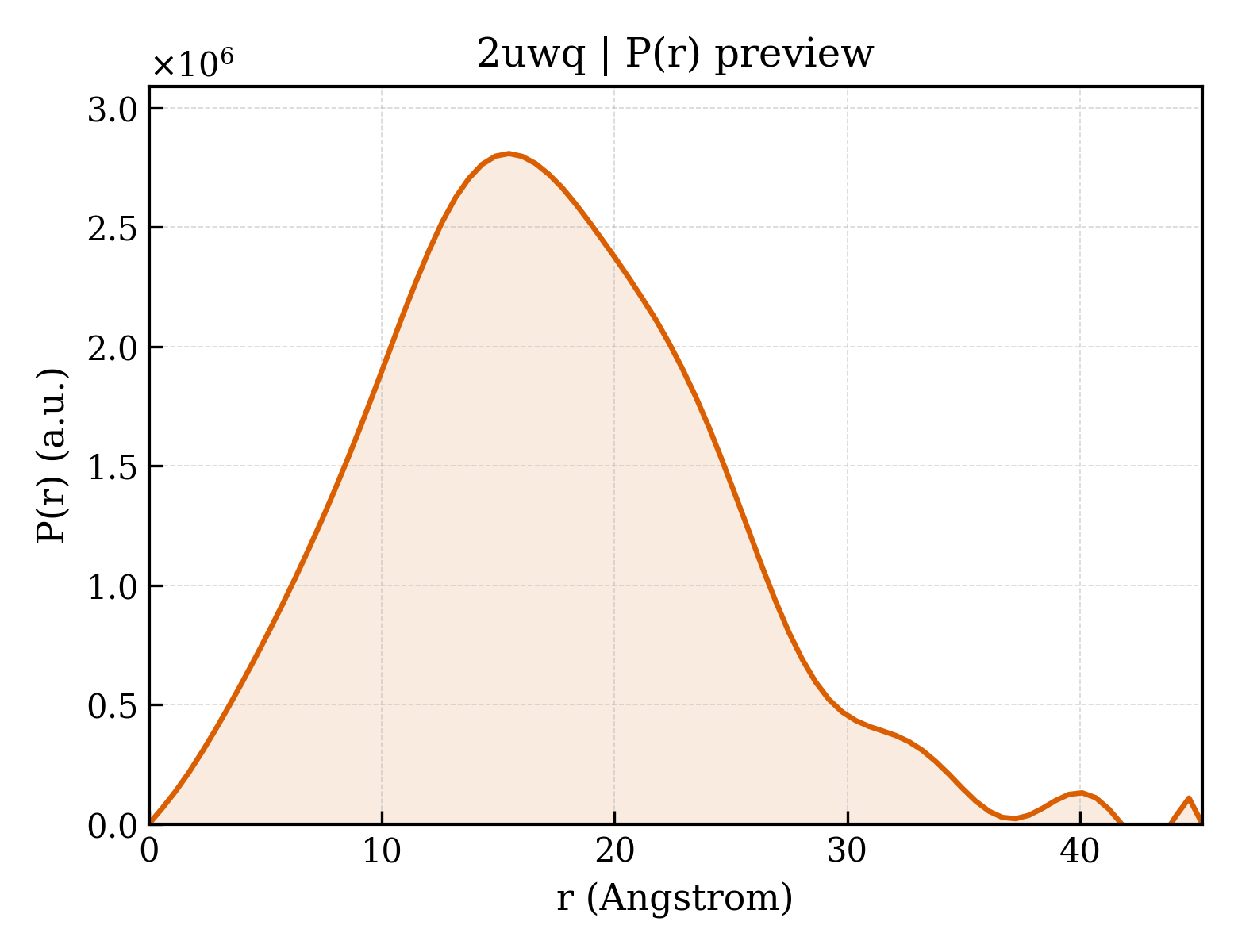

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/uw/2uwq/2uwq.fit
pddf	/app/data/pr_computation/uw/2uwq/2uwq.pr.out
profile	/app/data/saxs_computation/uw/2uwq/2uwq.dat
