SAXSdb — 3al3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA topoisomerase 2-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1264–1493	Fragment：BRCT7 and BRCT8, UNP residues 1264-1493	Peptide of Fanconi anemia group J protein × 1 （Q9BX63） FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；Sodium formate, pH 8, vapor diffusion, hanging drop, temperature 298K	Resolution 2.15 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3AL3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WF6 The third BRCA1 C-terminus (BRCT) domain of Similar to S.pombe rad4+/cut5+ product Deposited 2004-05-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 354–472（119 aa） Fragment：BRCA1 C-turminus (BRCT) domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 220mM；Pressure ambient NMR sample composition 1.06mM 13C/15N-labeled protein; 20mM d-TRIS, 200mM NaCl, 1mM d-DTT, and 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2XNH Structure and function of the Rad9-binding region of the DNA damage checkpoint adaptor TopBP1 Deposited 2010-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–287（287 aa） Fragment：BRCT 0,1 AND 2, RESIDUES 1-287	Non-standard monomer：Yes (specific site not provided by mmCIF)	IOD IODIDE ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；0.1M TRIS-HCL PH 6.8, 0.5M KI, 5% (V/V) GLYCEROL, 22.5% (W/V), 10% PEG 3350	Resolution 2.80 Å R-free 0.251
2XNK Structure and function of the Rad9-binding region of the DNA damage checkpoint adaptor TopBP1 Deposited 2010-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–290（290 aa） Fragment：BRCT 0,1 AND 2, RESIDUES 1-290	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M TRIS-HCL PH 7.5, 0.4 M MGCL2, 25% PEG 4000, 4% GLYCEROL, 0.01 M SPERMIDINE TETRA-HCL	Resolution 2.60 Å R-free 0.266
2XNK Structure and function of the Rad9-binding region of the DNA damage checkpoint adaptor TopBP1 Deposited 2010-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–290（290 aa） Fragment：BRCT 0,1 AND 2, RESIDUES 1-290	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M TRIS-HCL PH 7.5, 0.4 M MGCL2, 25% PEG 4000, 4% GLYCEROL, 0.01 M SPERMIDINE TETRA-HCL	Resolution 2.60 Å R-free 0.266
2XNK Structure and function of the Rad9-binding region of the DNA damage checkpoint adaptor TopBP1 Deposited 2010-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–290（290 aa） Fragment：BRCT 0,1 AND 2, RESIDUES 1-290	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M TRIS-HCL PH 7.5, 0.4 M MGCL2, 25% PEG 4000, 4% GLYCEROL, 0.01 M SPERMIDINE TETRA-HCL	Resolution 2.60 Å R-free 0.266
2XNK Structure and function of the Rad9-binding region of the DNA damage checkpoint adaptor TopBP1 Deposited 2010-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–290（290 aa） Fragment：BRCT 0,1 AND 2, RESIDUES 1-290	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M TRIS-HCL PH 7.5, 0.4 M MGCL2, 25% PEG 4000, 4% GLYCEROL, 0.01 M SPERMIDINE TETRA-HCL	Resolution 2.60 Å R-free 0.266
3AL2 Crystal Structure of TopBP1 BRCT7/8 Deposited 2010-07-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1264–1493（230 aa） Fragment：BRCT7 and BRCT8, UNP residues 1264-1493	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；Li2SO4, Tris-HCl, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.204
3JVE Crystal Structure of the Sixth BRCT Domain of TopBP1 Deposited 2009-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 893–996（104 aa） Fragment：C-terminus (BRCT) domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；0.1M Tris-HCl pH 6.8, PEG 2000 MME, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.34 Å R-free 0.173
3OLC Crystal structure of the N-terminal region of TopBP1 Deposited 2010-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–290（290 aa） Fragment：N-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1M MES, 11%(w/v) PEG3350, 0.85M sodium nitrate, 2mM EDTA, 4mM DTT, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.40 Å R-free 0.258
3PD7 Crystal Structure of the Sixth BRCT Domain of Human TopBP1 Deposited 2010-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 893–994（102 aa） Fragment：Sixth BRCT domain, UNP residues 893-994	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；20% PEG 4000, 0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.26 Å R-free 0.144
3PD7 Crystal Structure of the Sixth BRCT Domain of Human TopBP1 Deposited 2010-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 893–994（102 aa） Fragment：Sixth BRCT domain, UNP residues 893-994	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；20% PEG 4000, 0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.26 Å R-free 0.144
3UEN Crystal structure of TopBP1 BRCT4/5 domains Deposited 2011-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 549–746（198 aa） Fragment：BRCT domain	Not recorded	SCN THIOCYANATE ION × 1 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 3350, NaSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.224
3UEO Crystal structure of TopBP1 BRCT4/5 domains in complex with a phospho-peptide Deposited 2011-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 549–746（198 aa） Fragment：BRCT domain Chain C 549–746（198 aa） Fragment：BRCT domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；PEG 10000, Ammonium acetate, bis-Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.234
3UEO Crystal structure of TopBP1 BRCT4/5 domains in complex with a phospho-peptide Deposited 2011-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 549–746（198 aa） Fragment：BRCT domain Chain D 549–746（198 aa） Fragment：BRCT domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；PEG 10000, Ammonium acetate, bis-Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.234
6RML Crystal structure of TOPBP1 BRCT0,1,2 in complex with a 53BP1 phosphopeptide Deposited 2019-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–290（290 aa） Chain B 1–290（290 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；287.15 K；10% w/v PEG 20 000 20% v/v PEG MME 550 0.03 M of each ethylene glycol 0.1 M MES/imidazole pH 6.5	Resolution 2.81 Å R-free 0.260
6RMM Crystal structure of TOPBP1 BRCT4,5 in complex with a 53BP1 phosphopeptide Deposited 2019-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 548–741（194 aa） Chain B 548–741（194 aa） Chain C 548–741（194 aa） Chain D 548–741（194 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；287.15 K；10% w/v PEG 4000, 20% v/v glycerol 0.02 M of each carboxylic acid 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 3.53 Å R-free 0.234
7CMZ Crystal Structure of BRCT7/8 in Complex with the APS Motif of PHF8 Deposited 2020-07-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1264–1493（230 aa）	Not recorded	K POTASSIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；289 K；Sodium phosphate monobasic monohydrate, Potassium phosphate dibasic	Resolution 1.70 Å R-free 0.215
9MAT TopBP1 BRCT 7-8 Domain Deposited 2025-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1264–1493（230 aa）	Not recorded	MLA MALONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.3 M Sodium malonate pH 7.0, 20% w/v PEG 3350	Resolution 1.65 Å R-free 0.207
9MAW Crystal structure of TOPBP1BRCT7-8 domain in complex with 1-Adamantaneacetic acid Deposited 2025-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1264–1491（228 aa）	Not recorded	A1ENP 1-Adamantylacetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Citric acid, 2.4 M Ammonium sulfate pH 5.0	Resolution 2.45 Å R-free 0.237

14 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOPB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–235； UniProt 1264–1493

Peptide of Fanconi anemia group J protein

OrganismNot specified

UniProt Q9BX63

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1129–1138	Fragment：UNP residues 1129-1138 Non-standard monomer：Yes (specific site not provided by mmCIF)	DNA topoisomerase 2-binding protein 1 × 1 （Q92547） FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；Sodium formate, pH 8, vapor diffusion, hanging drop, temperature 298K	Resolution 2.15 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3AL3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1T29 Crystal structure of the BRCA1 BRCT repeats bound to a phosphorylated BACH1 peptide Deposited 2004-04-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 985–998（14 aa） Fragment：residues 985-998	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；PEG4000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.30 Å R-free 0.266

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FANCJ_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–10； UniProt 1129–1138

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3al3
Deposition date deposition_date	2010-07-22
Structure title title	Crystal Structure of TopBP1 BRCT7/8-BACH1 peptide complex
Keywords keywords	BRCT domain-phosphopeptide complex, DNA BINDING PROTEIN-PROTEIN BINDING complex; DNA BINDING PROTEIN/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.35 Å
Radius of gyration Rg (electron density) rg_electron	18.48 Å
Forward intensity I(0) i0	12091100.00
Molecular weight molecular_weight	25903.0 kDa
Excluded volume excluded_volume	32420 Å³
Envelope volume envelope_volume	37377 Å³
Hydration-shell volume shell_volume	17411 Å³
Envelope diameter envelope_diameter	66.0 Å
Shell Rg shell_rg	24.05 Å
Envelope Rg envelope_rg	18.78 Å
Shape Rg shape_rg	18.47 Å
Total Rg total_rg	19.38 Å
Total atoms total_atoms	1826
Residues n_residues	227
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

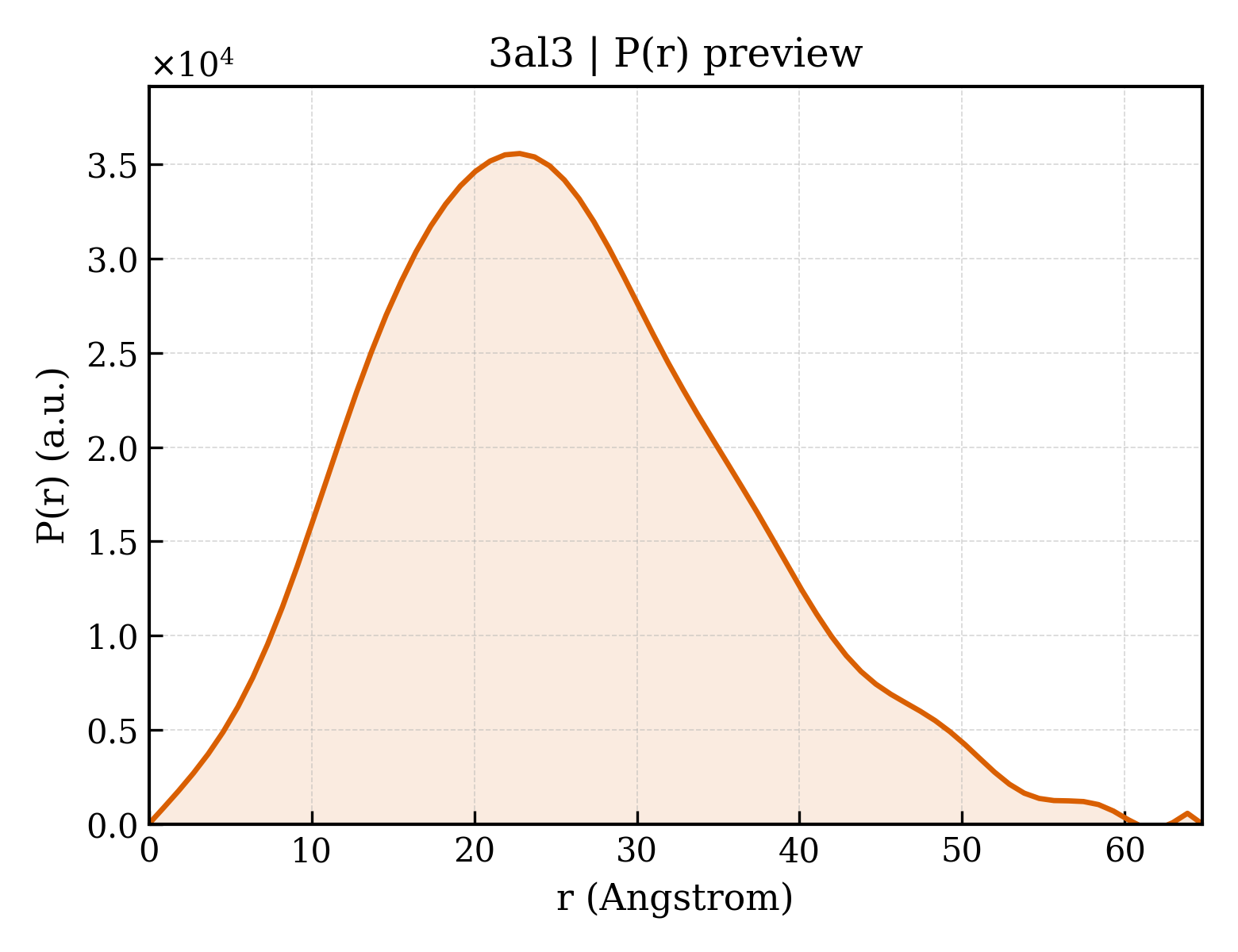

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.8 Å
Rg (real space) rg_real	19.36 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	1.2090e+07
I(0) uncertainty (real space) i0_real_error	1.4560e+05
Rg (reciprocal space) rg_reciprocal	19.36 Å
I(0) (reciprocal space) i0_reciprocal	12090000.0000
Solution quality estimate total_estimate	0.6150
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.8 Å
Skewness Skewness skewness	0.421
Kurtosis Kurtosis kurtosis	-0.136
Angular range angular_range	— – 0.4100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3316000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 1.000; Sysdev: 0.226; Positv: 1.000; Valcen: 0.976; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA topoisomerase 2-binding protein 1
Molecular weight formula_weight	26471.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1961

GPLGSLKKQYIFQLSSLNPQERIDYCHLIEKLGGLVIEKQCFDPTCTHIVVGHPLRNEKYLASVAAGKWVLHRSYLEACRTAGHFVQEEDYEWGSSSILDVLTGINVQQRRLALAAMRWRKKIQQRQESGIVEGAFSGWKVILHVDQSREAGFKRLLQSGGAKVLPGHSVPLFKEATHLFSDLNKLKPDDSGVNIAEAAAQNVYCLRTEYIADYLMQESPPHVENYCLPEAISFI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Peptide of Fanconi anemia group J protein
Molecular weight formula_weight	1327.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SIYFTPELYD

Entity 3 Entity 3 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	96

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3al3A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3al3A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	78.069 Å
Unit-cell length b length_b	78.069 Å
Unit-cell length c length_c	136.766 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	33.900 Å
R factor r_factor	0.1975
R_work r_work	0.1955
R_free r_free	0.2364

fit	/app/data/saxs_computation/al/3al3/3al3.fit
pddf	/app/data/pr_computation/al/3al3/3al3.pr.out
profile	/app/data/saxs_computation/al/3al3/3al3.dat
