SAXSdb — 3ueo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA topoisomerase 2-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	phospho-peptide × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	phospho-peptide × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOPB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–203； UniProt 549–746 Author chain B； PDBConstruct 6–203； UniProt 549–746 Author chain C； PDBConstruct 6–203； UniProt 549–746 Author chain D； PDBConstruct 6–203； UniProt 549–746

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ueo
Deposition date deposition_date	2011-10-31
Structure title title	Crystal structure of TopBP1 BRCT4/5 domains in complex with a phospho-peptide
Keywords keywords	BRCT domain, phospho-peptide binding, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3ueo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

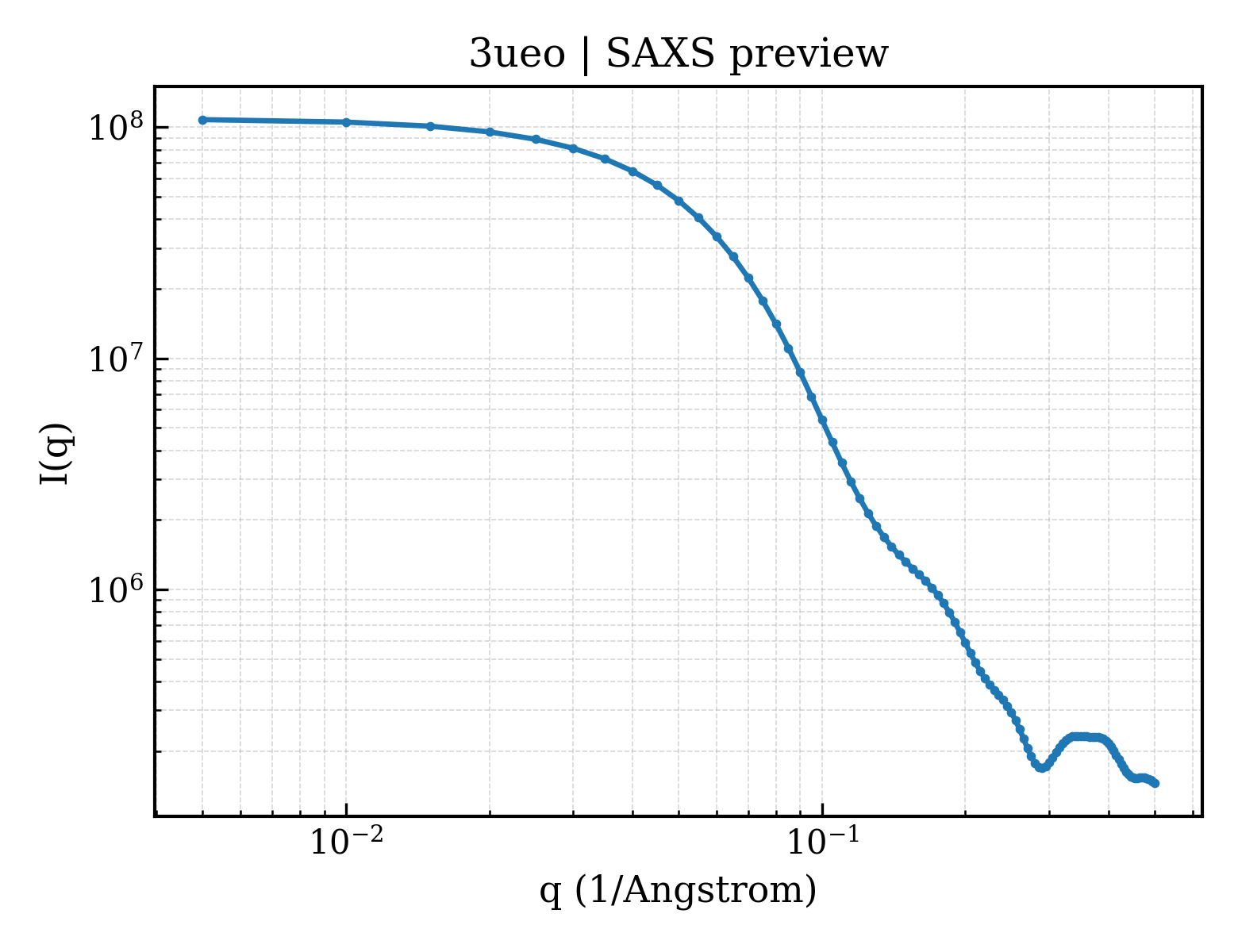

3ueo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

3ueo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.60 Å
Rg (electron density)	24.75 Å
Total Rg	25.71 Å
Atom count	2928
Residues	378
Excluded volume	52482 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3ueo__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3ueo__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	DNA topoisomerase 2-binding protein 1
Molecular weight formula_weight	22238.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6132

GPLGSEEGLFSQKSFLVLGFSNENESNIANIIKENAGKIMSLLSRTVADYAVVPLLGCEVEATVGEVVTNTWLVTCIDYQTLFDPKSNPLFTPVPVMTGMTPLEDCVISFSQCAGAEKESLTFLANLLGASVQEYFVRKSNAKKGMFASTHLILKERGGSKYEAAKKWNLPAVTIAWLLETARTGKRADESHFLIENSTKEER

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	phospho-peptide
Molecular weight formula_weight	1515.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

GFIDSDTDVEEE

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	257

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	3ueoA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3ueoD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

▶

Unit-cell length a length_a	58.810 Å
Unit-cell length b length_b	59.100 Å
Unit-cell length c length_c	78.310 Å
Unit-cell angle α angle_alpha	102.05 °
Unit-cell angle β angle_beta	98.04 °
Unit-cell angle γ angle_gamma	114.34 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	34.566 Å
R factor r_factor	0.1920
R_work r_work	0.1898
R_free r_free	0.2340
