3d2f

Crystal structure of a complex of Sse1p and Hsp70

Method: X-RAY DIFFRACTION D_max: 198.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heat shock protein homolog SSE1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–502 Chain A； UniProt 525–693	Not recorded	Heat shock 70 kDa protein 1 × 1 （P08107） MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；277 K；15 % (w/v) polyethyleneglycol-6000, 100 mM Tris-HCl pH 8.0, 10 mM DTT, VAPOR DIFFUSION, temperature 277K	Resolution 2.30 Å R-free 0.244
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–502 Chain C； UniProt 525–693	Not recorded	Heat shock 70 kDa protein 1 × 1 （P08107） MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；277 K；15 % (w/v) polyethyleneglycol-6000, 100 mM Tris-HCl pH 8.0, 10 mM DTT, VAPOR DIFFUSION, temperature 277K	Resolution 2.30 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3D2F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2QXL Crystal Structure Analysis of Sse1, a yeast Hsp110 Deposited 2007-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–659（658 aa） Fragment：residues 2 to 659 Chain B 2–659（658 aa） Fragment：residues 2 to 659	Not recorded	MG MAGNESIUM ION × 2 K POTASSIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG 6000, 0.1M cacodylate, pH 6.5, temperature 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.41 Å R-free 0.235
3C7N Structure of the Hsp110:Hsc70 Nucleotide Exchange Complex Deposited 2008-02-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–666（666 aa） Fragment：residues 1-666	Not recorded	MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；LiSO4, PEG 400, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.12 Å R-free 0.283
3D2E Crystal structure of a complex of Sse1p and Hsp70, Selenomethionine-labeled crystals Deposited 2008-05-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–502（502 aa） Chain A 525–693（169 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；17 % (w/v) polyethyleneglycol-6000, 50 mM KCl, 100 mM HEPES-KOH pH 7.5, vapor diffusion, temperature 277K	Resolution 2.35 Å R-free 0.262
3D2E Crystal structure of a complex of Sse1p and Hsp70, Selenomethionine-labeled crystals Deposited 2008-05-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–502（502 aa） Chain C 525–693（169 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；17 % (w/v) polyethyleneglycol-6000, 50 mM KCl, 100 mM HEPES-KOH pH 7.5, vapor diffusion, temperature 277K	Resolution 2.35 Å R-free 0.262

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HSP7F_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–502； UniProt 1–502 Author chain A； PDBConstruct 507–675； UniProt 525–693 Author chain C； PDBConstruct 1–502； UniProt 1–502 Author chain C； PDBConstruct 507–675； UniProt 525–693

Heat shock 70 kDa protein 1

Homo sapiens

UniProt P08107

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–382	Not recorded	Heat shock protein homolog SSE1 × 1 （P32589） MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；277 K；15 % (w/v) polyethyleneglycol-6000, 100 mM Tris-HCl pH 8.0, 10 mM DTT, VAPOR DIFFUSION, temperature 277K	Resolution 2.30 Å R-free 0.244
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–382	Not recorded	Heat shock protein homolog SSE1 × 1 （P32589） MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；277 K；15 % (w/v) polyethyleneglycol-6000, 100 mM Tris-HCl pH 8.0, 10 mM DTT, VAPOR DIFFUSION, temperature 277K	Resolution 2.30 Å R-free 0.244

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3D2F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1HJO ATPase domain of human heat shock 70kDa protein 1 Deposited 1998-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–382（380 aa） Fragment：42KD ATPASE N-TERMINAL FRAGMENT	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；8% PEG-8000 25 MM IMIDAZOLE, PH 7.0 20MM CACL2 1MM GAMMA-S-ATP	Resolution 2.30 Å R-free 0.253
1S3X The crystal structure of the human Hsp70 ATPase domain Deposited 2004-01-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–382（382 aa） Fragment：ATPASE DOMAIN	Not recorded	PO4 PHOSPHATE ION × 1 CA CALCIUM ION × 2 NA SODIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；imidazole buffer, PEG 8000, CaCl2, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.84 Å R-free 0.219
1XQS Crystal structure of the HspBP1 core domain complexed with the fragment of Hsp70 ATPase domain Deposited 2004-10-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 184–371（188 aa） Fragment：LOBE II OF ATPASE DOMAIN (184-371)	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG8000, Potassium chloride, Magnesium chloride, AMP-PNP, DTT, HEPES KOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.296
1XQS Crystal structure of the HspBP1 core domain complexed with the fragment of Hsp70 ATPase domain Deposited 2004-10-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 184–371（188 aa） Fragment：LOBE II OF ATPASE DOMAIN (184-371)	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG8000, Potassium chloride, Magnesium chloride, AMP-PNP, DTT, HEPES KOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.296
2LMG Solution Structure of The C-terminal Domain (537-610) of Human Heat Shock Protein 70 Deposited 2011-12-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 537–610（74 aa） Fragment：UNP residues 537-610	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Pressure ambient NMR sample composition 1 mM [U-100% 15N] protein-1, 20 mM sodium phosphate-2, 50 mM sodium chloride-3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] protein-4, 20 mM sodium phosphate-5, 50 mM sodium chloride-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] protein-7, 20 mM sodium phosphate-8, 50 mM sodium chloride-9, 100% D2O \| 100% D2O	Resolution not provided
3A8Y Crystal structure of the complex between the BAG5 BD5 and Hsp70 NBD Deposited 2009-10-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–388（388 aa） Fragment：Nucleotide-binding domain, UNP residues 1-388	Not recorded	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Tris-HCL, 0.25M Trimethylamine n-oxide, 20% PEG MME 2000, 3% Hexanediol , pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.281
3A8Y Crystal structure of the complex between the BAG5 BD5 and Hsp70 NBD Deposited 2009-10-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–388（388 aa） Fragment：Nucleotide-binding domain, UNP residues 1-388	Not recorded	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Tris-HCL, 0.25M Trimethylamine n-oxide, 20% PEG MME 2000, 3% Hexanediol , pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.281
3ATU Crystal structure of human Hsp70 NBD in the ADP- and Mg ion-bound state Deposited 2011-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–388（388 aa） Fragment：Nucleotide-binding domain (UNP RESIDUES 1-388)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1 PG0 2-(2-METHOXYETHOXY)ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M HEPES-NaOH (pH 7.0), 0.15M MgCl2, 30 % PEG MME 500, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.65 Å R-free 0.218
3ATV Crystal structure of human Hsp70 NBD in the ADP-bound and Mg ion-free state Deposited 2011-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–388（388 aa） Fragment：Nucleotide-binding domain (UNP RESIDUES 1-388)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-Tris (pH 5.5), 0.25M KNO3, 25% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.58 Å R-free 0.208
3AY9 Crystal structure of human Hsp70 NBD in the ADP-, Mg ion-, and K ion-bound state Deposited 2011-05-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–388（388 aa） Fragment：nucleotide-binding domain (UNP RESIDUES 1-388)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；293 K；0.05M calcium chloride, 0.1M bis-tris (pH6.5), 30% PEG MME 550, pH 5.7, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.75 Å R-free 0.213
3D2E Crystal structure of a complex of Sse1p and Hsp70, Selenomethionine-labeled crystals Deposited 2008-05-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–382（382 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；17 % (w/v) polyethyleneglycol-6000, 50 mM KCl, 100 mM HEPES-KOH pH 7.5, vapor diffusion, temperature 277K	Resolution 2.35 Å R-free 0.262
3D2E Crystal structure of a complex of Sse1p and Hsp70, Selenomethionine-labeled crystals Deposited 2008-05-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–382（382 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；17 % (w/v) polyethyleneglycol-6000, 50 mM KCl, 100 mM HEPES-KOH pH 7.5, vapor diffusion, temperature 277K	Resolution 2.35 Å R-free 0.262
3JXU Crystal structure of the human 70kDa heat shock protein 1A (Hsp70-1) ATPase domain in complex with ADP and inorganic phosphate Deposited 2009-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–387（387 aa） Fragment：ATPase domain, UNP resiudes 1-387	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.2M magnesium chloride hexahydrate, 0.1M bis-tris, 25% PEG 3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.14 Å R-free 0.262
3LOF C-terminal domain of human heat shock 70kDa protein 1B. Deposited 2010-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 534–641（108 aa） Fragment：C-terminal domain Chain B 534–641（108 aa） Fragment：C-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；2.4 M sodium malonate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.40 Å R-free 0.235
3LOF C-terminal domain of human heat shock 70kDa protein 1B. Deposited 2010-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 534–641（108 aa） Fragment：C-terminal domain Chain D 534–641（108 aa） Fragment：C-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；2.4 M sodium malonate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.40 Å R-free 0.235
3LOF C-terminal domain of human heat shock 70kDa protein 1B. Deposited 2010-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 534–641（108 aa） Fragment：C-terminal domain Chain F 534–641（108 aa） Fragment：C-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；2.4 M sodium malonate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.40 Å R-free 0.235
4J8F Crystal structure of a fusion protein containing the NBD of Hsp70 and the middle domain of Hip Deposited 2013-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–382（382 aa） Fragment：P08107 residues 1-382, P50503 residues 77-247	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 2 IOD IODIDE ION × 34	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；17 % PEG-3350 and 0.2 M NH4I, pH 7.4, vapor diffusion, hanging drop, temperature 291K	Resolution 2.70 Å R-free 0.261
4J8F Crystal structure of a fusion protein containing the NBD of Hsp70 and the middle domain of Hip Deposited 2013-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–382（382 aa） Fragment：P08107 residues 1-382, P50503 residues 77-247	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 IOD IODIDE ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；17 % PEG-3350 and 0.2 M NH4I, pH 7.4, vapor diffusion, hanging drop, temperature 291K	Resolution 2.70 Å R-free 0.261
4PO2 Crystal Structure of the Stress-Inducible Human Heat Shock Protein HSP70 Substrate-Binding Domain in Complex with Peptide Substrate Deposited 2014-02-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 386–613（228 aa） Fragment：C-TERMINAL SUBSTRATE-BINDING DOMAIN	Not recorded	SO4 SULFATE ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M Bis-Tris (pH 5.5), 0.2M Li2SO4, 28~30% PEG3350 in the reservoir and 0.1M Bis-Tris (pH 5.5), 0.2M Li2SO4, 22~25% PEG3350 in the crystallization drop, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.222
4PO2 Crystal Structure of the Stress-Inducible Human Heat Shock Protein HSP70 Substrate-Binding Domain in Complex with Peptide Substrate Deposited 2014-02-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 386–613（228 aa） Fragment：C-TERMINAL SUBSTRATE-BINDING DOMAIN	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M Bis-Tris (pH 5.5), 0.2M Li2SO4, 28~30% PEG3350 in the reservoir and 0.1M Bis-Tris (pH 5.5), 0.2M Li2SO4, 22~25% PEG3350 in the crystallization drop, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.222
4PO2 Crystal Structure of the Stress-Inducible Human Heat Shock Protein HSP70 Substrate-Binding Domain in Complex with Peptide Substrate Deposited 2014-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 386–613（228 aa） Fragment：C-TERMINAL SUBSTRATE-BINDING DOMAIN Chain B 386–613（228 aa） Fragment：C-TERMINAL SUBSTRATE-BINDING DOMAIN	Not recorded	SO4 SULFATE ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M Bis-Tris (pH 5.5), 0.2M Li2SO4, 28~30% PEG3350 in the reservoir and 0.1M Bis-Tris (pH 5.5), 0.2M Li2SO4, 22~25% PEG3350 in the crystallization drop, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.222
4WV5 HEAT SHOCK PROTEIN 70 SUBSTRATE BINDING DOMAIN Deposited 2014-11-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 395–543（149 aa） Fragment：unp residues 395-543	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；11 mg/ml protein in 25mM Tris-HCl, 150 mM NaCl, 1 mM TCEP was mixed 1:1 with reservior solution containing 0.1 M Sodium Acetate, pH 4.5, 2M Ammonium Sulfate	Resolution 2.04 Å R-free 0.224
4WV5 HEAT SHOCK PROTEIN 70 SUBSTRATE BINDING DOMAIN Deposited 2014-11-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 395–543（149 aa） Fragment：unp residues 395-543	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；11 mg/ml protein in 25mM Tris-HCl, 150 mM NaCl, 1 mM TCEP was mixed 1:1 with reservior solution containing 0.1 M Sodium Acetate, pH 4.5, 2M Ammonium Sulfate	Resolution 2.04 Å R-free 0.224
4WV7 HEAT SHOCK PROTEIN 70 SUBSTRATE BINDING DOMAIN WITH COVALENTLY LINKED NOVOLACTONE Deposited 2014-11-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 395–543（149 aa） Fragment：unp residues 395-543	Not recorded	3UM (5beta,6alpha,8alpha,14alpha)-13-ethenyl-5,6-dihydroxy-14-methylpodocarp-12-en-15-oic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；10 mg/ml covalently modified protein in 25 mM Tris-HCl, 50 mM NaCl, 1 mM TCEP was mixed 1:1 with reservior solution containing 0.1 M HEPES, pH 7.0, 70% 2-methyl-2,4-pentanediol	Resolution 2.42 Å R-free 0.272
4WV7 HEAT SHOCK PROTEIN 70 SUBSTRATE BINDING DOMAIN WITH COVALENTLY LINKED NOVOLACTONE Deposited 2014-11-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 395–543（149 aa） Fragment：unp residues 395-543	Not recorded	3UM (5beta,6alpha,8alpha,14alpha)-13-ethenyl-5,6-dihydroxy-14-methylpodocarp-12-en-15-oic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；10 mg/ml covalently modified protein in 25 mM Tris-HCl, 50 mM NaCl, 1 mM TCEP was mixed 1:1 with reservior solution containing 0.1 M HEPES, pH 7.0, 70% 2-methyl-2,4-pentanediol	Resolution 2.42 Å R-free 0.272

15 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HSP71_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–382； UniProt 1–382 Author chain D； PDBConstruct 1–382； UniProt 1–382

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3d2f
Deposition date deposition_date	2008-05-08
Structure title title	Crystal structure of a complex of Sse1p and Hsp70
Keywords keywords	;nucleotide exchange factor, protein folding, ATP-binding, Calmodulin-binding, Chaperone, Nucleotide-binding, Phosphoprotein, Stress response ;; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	50.61 Å
Radius of gyration Rg (electron density) rg_electron	50.88 Å
Forward intensity I(0) i0	709168000.00
Molecular weight molecular_weight	219530.0 kDa
Excluded volume excluded_volume	274180 Å³
Envelope volume envelope_volume	391410 Å³
Hydration-shell volume shell_volume	67778 Å³
Envelope diameter envelope_diameter	216.0 Å
Shell Rg shell_rg	50.71 Å
Envelope Rg envelope_rg	50.37 Å
Shape Rg shape_rg	50.89 Å
Total Rg total_rg	50.82 Å
Total atoms total_atoms	15467
Residues n_residues	2014
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

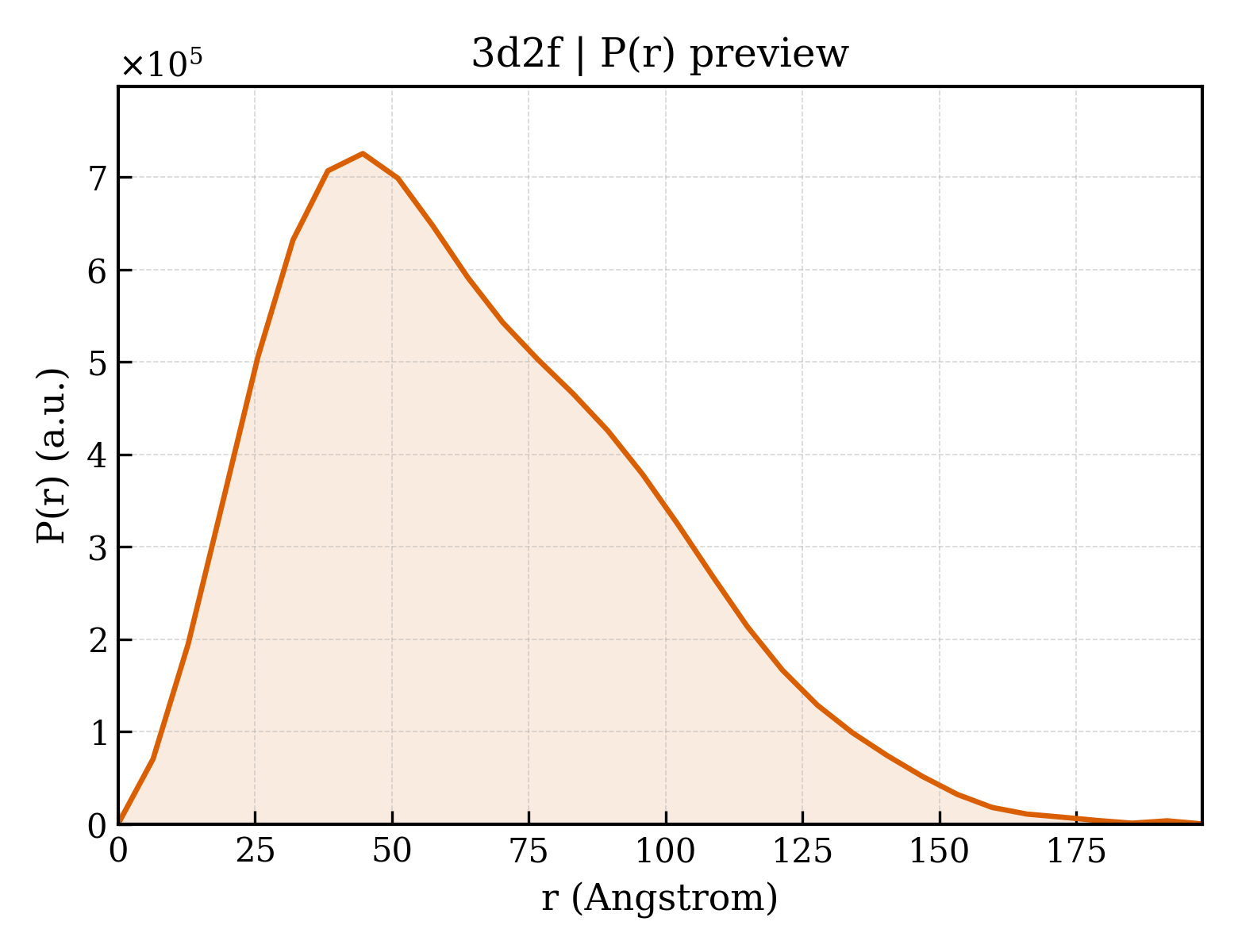

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	198.0 Å
Rg (real space) rg_real	50.99 Å
Rg uncertainty (real space) rg_real_error	2.80 Å
I(0) (real space) i0_real	7.0920e+08
I(0) uncertainty (real space) i0_real_error	1.3850e+07
Rg (reciprocal space) rg_reciprocal	50.29 Å
I(0) (reciprocal space) i0_reciprocal	708500000.0000
Solution quality estimate total_estimate	0.7529
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	44.7 Å
Skewness Skewness skewness	0.586
Kurtosis Kurtosis kurtosis	-0.135
Angular range angular_range	— – 0.1550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	117300000.0000
Real-space data points n_real_points	32
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.462; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.430; Smooth: 0.967

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Heat shock protein homolog SSE1
Molecular weight formula_weight	75305.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	16199

MSTPFGLDLGNNNSVLAVARNRGIDIVVNEVSNRSTPSVVGFGPKNRYLGETGKNKQTSNIKNTVANLKRIIGLDYHHPDFEQESKHFTSKLVELDDKKTGAEVRFAGEKHVFSATQLAAMFIDKVKDTVKQDTKANITDVCIAVPPWYTEEQRYNIADAARIAGLNPVRIVNDVTAAGVSYGIFKTDLPEGEEKPRIVAFVDIGHSSYTCSIMAFKKGQLKVLGTACDKHFGGRDFDLAITEHFADEFKTKYKIDIRENPKAYNRILTAAEKLKKVLSANTNAPFSVESVMNDVDVSSQLSREELEELVKPLLERVTEPVTKALAQAKLSAEEVDFVEIIGGTTRIPTLKQSISEAFGKPLSTTLNQDEAIAKGAAFICAIHSPTLRVRPFKFEDIHPYSVSYSWDKQVEDEDHMEVFPAGSSFPSTKLITLNRTGDFSMAASYTDITQLPPNTPEQIANWEITGVQLPEGQDSVPVKLKLRCDPSGLHTIEEAYTIEDIEAGSDTKTVKKDDLTIVAHTFGLDAKKLNELIEKENEMLAQDKLVAETEDRKNTLEEYIYTLRGKLEEEYAPFASDAEKTKLQGMLNKAEEWLYDEGFDSIKAKYIAKYEELASLGNIIRGRYLAKEEEKKQAIRSKQEASQMAAMAEKLAAQRKAEAEKKEEKKDTEGDVDMD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Heat shock 70 kDa protein 1
Molecular weight formula_weight	42084.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAKAAAIGIDLGTTYSCVGVFQHGKVEIIANDQGNRTTPSYVAFTDTERLIGDAAKNQVALNPQNTVFDAKRLIGRKFGDPVVQSDMKHWPFQVINDGDKPKVQVSYKGETKAFYPEEISSMVLTKMKEIAEAYLGYPVTNAVITVPAYFNDSQRQATKDAGVIAGLNVLRIINEPTAAAIAYGLDRTGKGERNVLIFDLGGGTFDVSILTIDDGIFEVKATAGDTHLGGEDFDNRLVNHFVEEFKRKHKKDISQNKRAVRRLRTACERAKRTLSSSTQASLEIDSLFEGIDFYTSITRARFEELCSDLFRSTLEPVEKALRDAKLDKAQIHDLVLVGGSTRIPKVQKLLQDFFNGRDLNKSINPDEAVAYGAAVQAAILMG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	661

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3d2fb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d3d2fb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d3d2fd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d3d2fd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

CATH v4.4 (20 domains)

Domain ID domain_id	3d2fA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3d2fA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fA04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	3d2fA05
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	34 — Substrate Binding Domain Of DNAk; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Substrate Binding Domain Of DNAk; Chain A, domain 1

Domain ID domain_id	3d2fA06
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3d2fB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3d2fB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fB04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	3d2fC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3d2fC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fC04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	3d2fC05
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	34 — Substrate Binding Domain Of DNAk; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Substrate Binding Domain Of DNAk; Chain A, domain 1

Domain ID domain_id	3d2fC06
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3d2fD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3d2fD03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	3d2fD04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

▶

8. Citations (1)

▶

Unit-cell length a length_a	129.500 Å
Unit-cell length b length_b	141.902 Å
Unit-cell length c length_c	151.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2000
R_work r_work	0.1970
R_free r_free	0.2440

fit	/app/data/saxs_computation/d2/3d2f/3d2f.fit
pddf	/app/data/pr_computation/d2/3d2f/3d2f.pr.out
profile	/app/data/saxs_computation/d2/3d2f/3d2f.dat

Crystal structure of a complex of Sse1p and Hsp70

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heat shock protein homolog SSE1

State in the Current Structure

Other States of the Same Protein in the Database

Heat shock 70 kDa protein 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (4 domains)

CATH v4.4 (20 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
