1. Protein Identity and Related Structures Protein Identity & Related Structures

PR domain zinc finger protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRDM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–196； UniProt 2–187 Author chain B； PDBConstruct 11–196； UniProt 2–187

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3dal
Deposition date deposition_date	2008-05-29
Structure title title	Methyltransferase domain of human PR domain-containing protein 1
Keywords keywords	;Methyltransferase, PRDM1, Structural Genomics, Structural Genomics Consortium, SGC, DNA-binding, Metal-binding, Nucleus, Polymorphism, Repressor, Transcription, Transcription regulation, Zinc, Zinc-finger, DNA BINDING PROTEIN, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3dal__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3dal__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

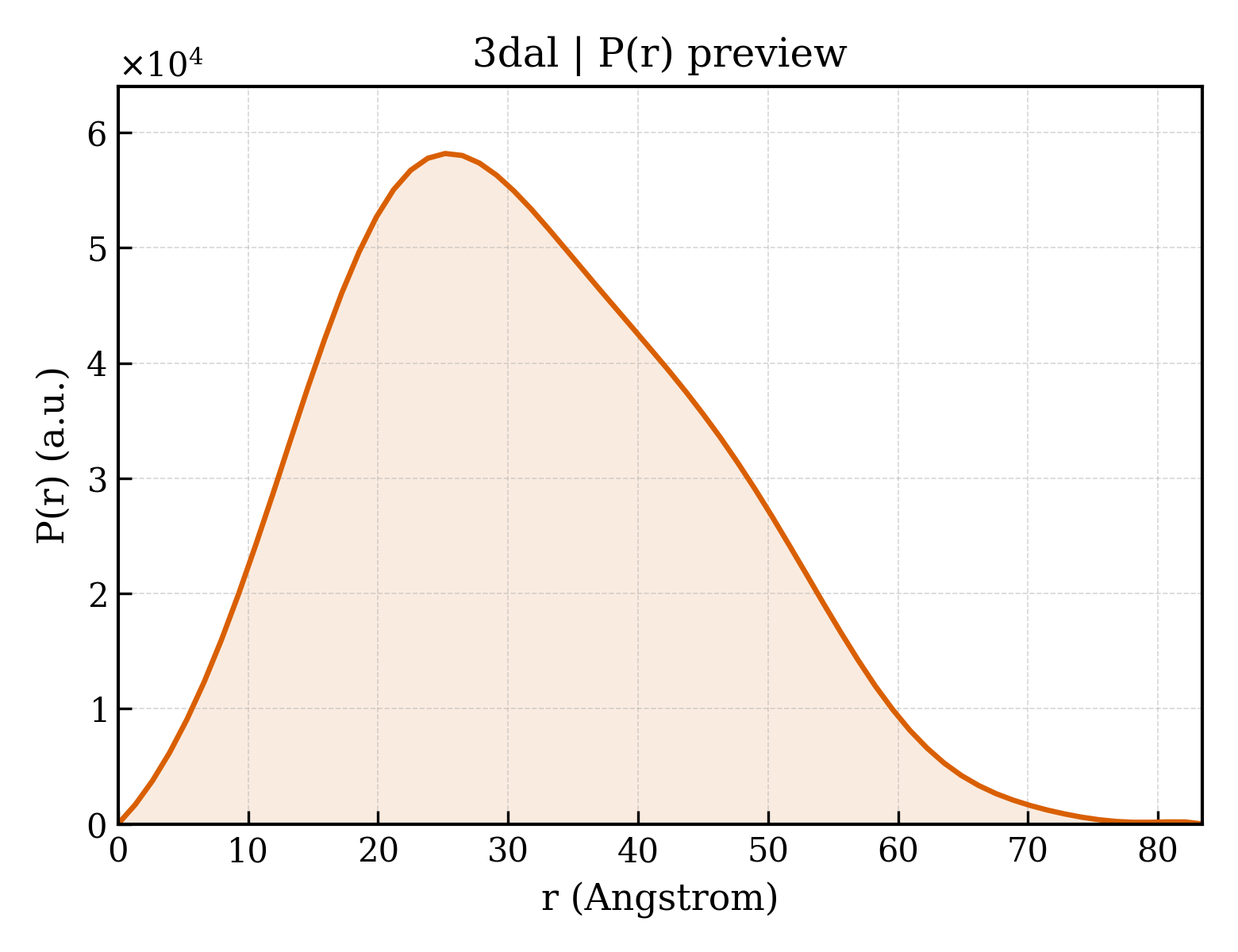

3dal__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.88 Å
Rg (electron density)	25.35 Å
Total Rg	26.13 Å
Atom count	2805
Residues	345
Excluded volume	49725 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3dal__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3dalA00
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	270 — Beta-clip-like
Homologous superfamily homologous superfamily	10 — SET domain

Domain ID domain_id	3dalB00
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	270 — Beta-clip-like
Homologous superfamily homologous superfamily	10 — SET domain

▶

Unit-cell length a length_a	64.834 Å
Unit-cell length b length_b	64.960 Å
Unit-cell length c length_c	112.663 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1970
R_work r_work	0.1960
R_free r_free	0.2170

Description description	PR domain zinc finger protein 1
Molecular weight formula_weight	22692.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3199

Methyltransferase domain of human PR domain-containing protein 1

1. Protein Identity and Related Structures Protein Identity & Related Structures

PR domain zinc finger protein 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3dal__assembly_1__model_1

3dal__assembly_1__model_1 | I(q)

3dal__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	307
