SAXSdb — 3etb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Anthrax Protective Antigen

Bacillus anthracis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Antibody M18 light chain and antibody M18 heavy chain linked with a synthetic (GGGGS)4 linker × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Antibody M18 light chain and antibody M18 heavy chain linked with a synthetic (GGGGS)4 linker × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Antibody M18 light chain and antibody M18 heavy chain linked with a synthetic (GGGGS)4 linker × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Antibody M18 light chain and antibody M18 heavy chain linked with a synthetic (GGGGS)4 linker × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAG_BACAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain J； PDBConstruct 1–144； UniProt 621–764 Author chain K； PDBConstruct 1–144； UniProt 621–764 Author chain L； PDBConstruct 1–144； UniProt 621–764 Author chain M； PDBConstruct 1–144； UniProt 621–764

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3etb
Deposition date deposition_date	2008-10-07
Structure title title	Crystal structure of the engineered neutralizing antibody M18 complexed with anthrax protective antigen domain 4
Keywords keywords	single-chain FV, monoclonal antibody, immunoglobulin, toxin, antibody-antigen complex, IMMUNE SYSTEM-TOXIN COMPLEX; IMMUNE SYSTEM/TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3etb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3etb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

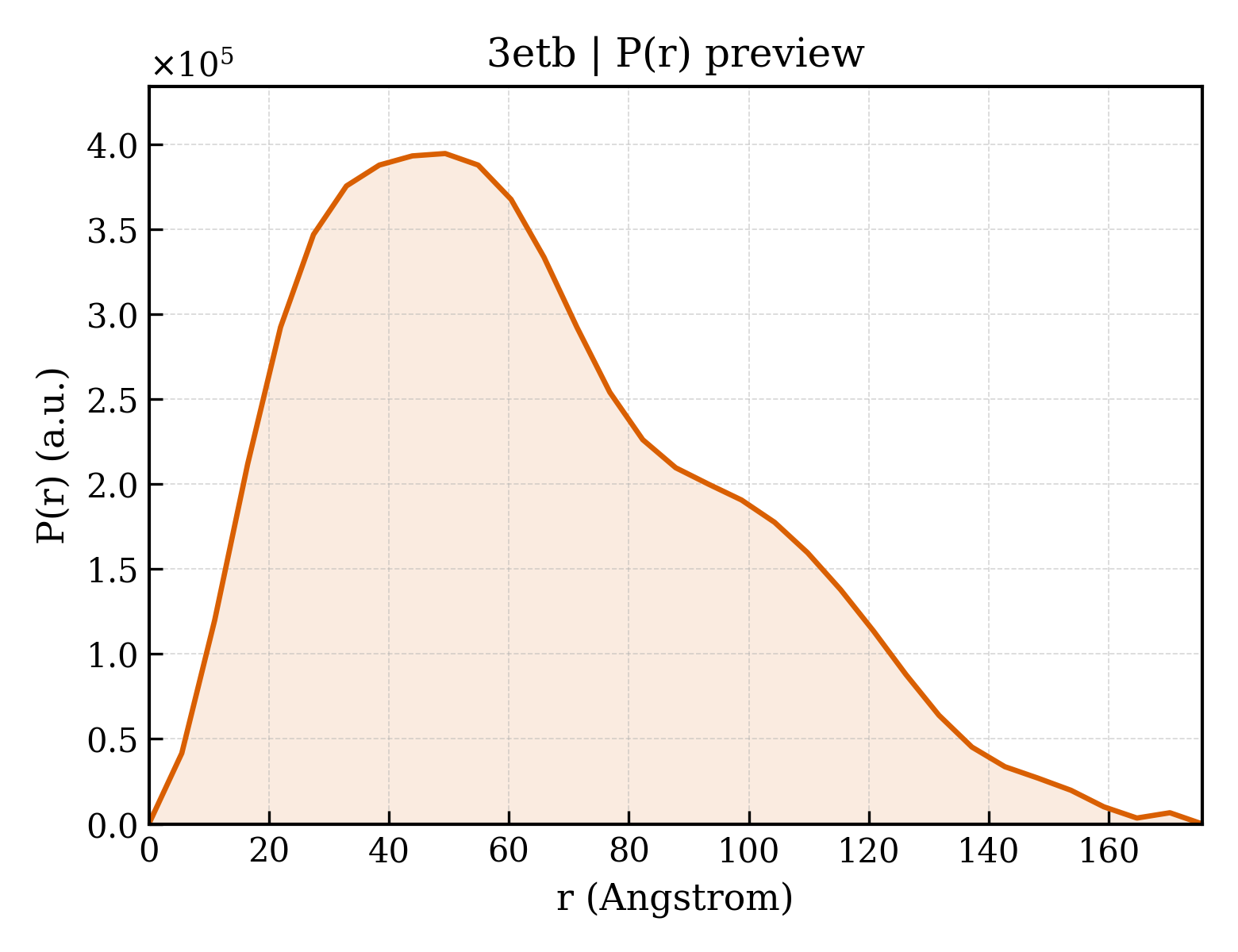

3etb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.81 Å
Rg (electron density)	23.06 Å
Total Rg	23.92 Å
Atom count	2888
Residues	372
Excluded volume	50994 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3etb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3etb__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3etb__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`3etb__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Antibody M18 light chain and antibody M18 heavy chain linked with a synthetic (GGGGS)4 linker
Molecular weight formula_weight	26866.6 kDa
Mutation mutation	I21V, L46F, S56P, S76N, Q78L, L94P, S1030N, T1058S, K1065E, T1069I
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H,I
Atom count atom_count	11546

MADYKDIQMTQTTSSLSASLGDRVTVSCRASQDIRNYLNWYQQKPDGTVKFLIYYTSRLQPGVPSRFSGSGSGTDYSLTINNLEQEDIGTYFCQQGNTPPWTFGGGTKLEIKRGGGGSGGGGSGGGGSGGGGSEVQLQQSGPELVKPGASVKISCKDSGYAFNSSWMNWVKQRPGQGLEWIGRIYPGDGDSNYNGKFEGKAILTADKSSSTAYMQLSSLTSVDSAVYFCARSGLLRYAMDYWGQGTSVTVSS

Source Source

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Anthrax Protective Antigen
Molecular weight formula_weight	16499.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,K,L,M

RDKRFHYDRNNIAVGADESVVKEAHREVINSSTEGLLLNIDKDIRKILSGYIVEIEDTEGLKEVINDRYDMLNISSLRQDGKTFIDFKKYNDKLPLYISNPNYKVNVYAVTKENTIINPSENGDTSTNGIKKILIFSKKGYEIG

Source Source

Source organism organism	Bacillus anthracis
NCBI taxonomy ID ncbi_taxonomy_id	1392
Host organism host_organism	Bacillus anthracis

▼

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	3etbF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbG01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbG02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbI01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbI02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3etbJ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	810 —

Domain ID domain_id	3etbK00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	810 —

Domain ID domain_id	3etbL00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	810 —

Domain ID domain_id	3etbM00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	810 —

▶

Unit-cell length a length_a	48.940 Å
Unit-cell length b length_b	299.720 Å
Unit-cell length c length_c	68.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.45 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2320
R_work r_work	0.2320
R_free r_free	0.2760

Crystal structure of the engineered neutralizing antibody M18 complexed with anthrax protective antigen domain 4
