SAXSdb — 3kat

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NALP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–107； UniProt 1371–1467

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3kat
Deposition date deposition_date	2009-10-19
Structure title title	Crystal Structure of the CARD domain of the human NLRP1 protein, Northeast Structural Genomics Consortium Target HR3486E
Keywords keywords	;Structural Genomics, PSI-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, Alternative splicing, ATP-binding, Cytoplasm, Leucine-rich repeat, Nucleotide-binding, Nucleus, Polymorphism, APOPTOSIS ;; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3kat__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3kat__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

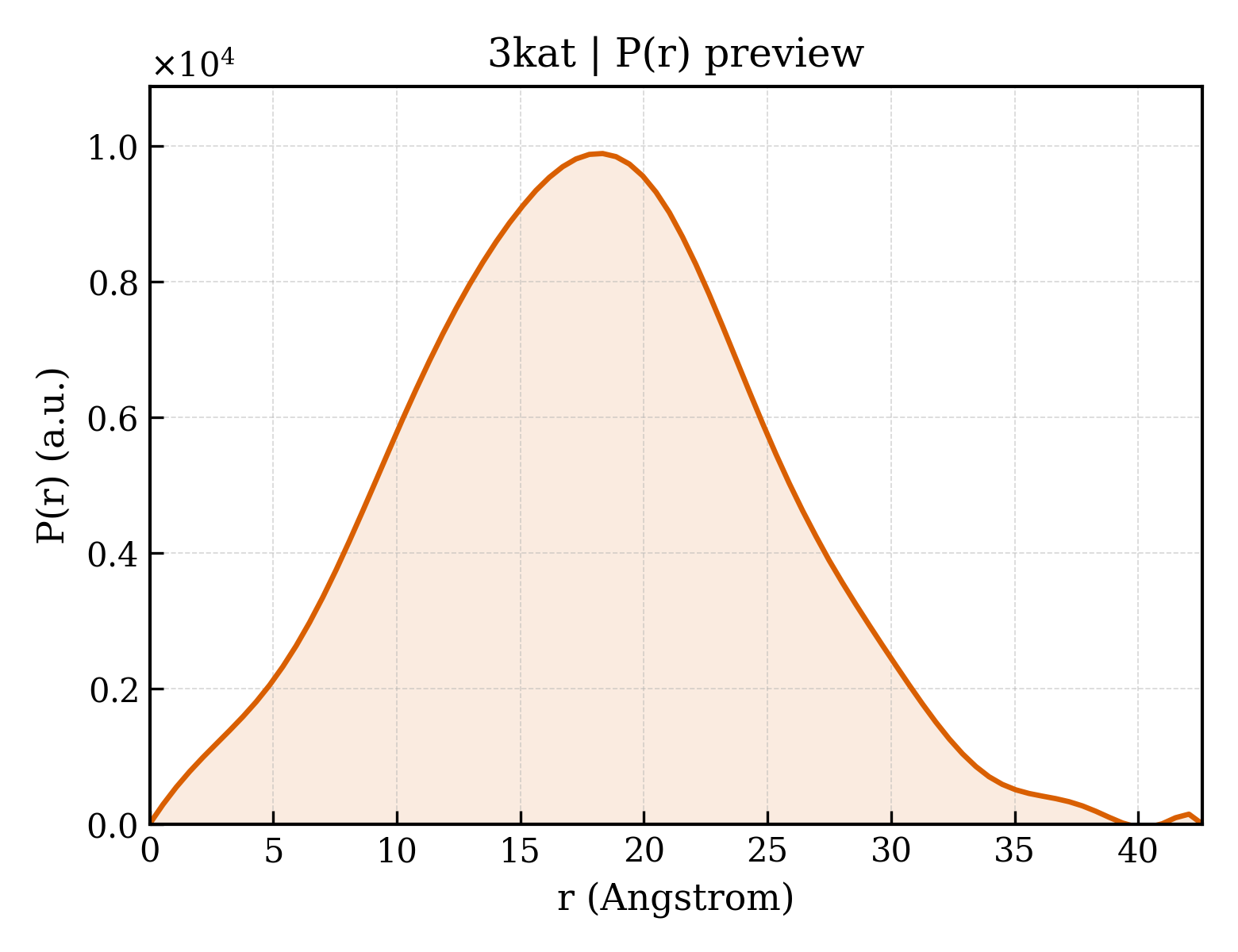

3kat__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.63 Å
Rg (electron density)	12.05 Å
Total Rg	13.37 Å
Atom count	707
Residues	82
Excluded volume	12610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3kat__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3kat__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3katA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

▶

Unit-cell length a length_a	40.708 Å
Unit-cell length b length_b	40.708 Å
Unit-cell length c length_c	160.413 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	—
R_work r_work	0.2020
R_free r_free	0.2600

Description description	NACHT, LRR and PYD domains-containing protein 1
Molecular weight formula_weight	12733.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	707

Crystal Structure of the CARD domain of the human NLRP1 protein, Northeast Structural Genomics Consortium Target HR3486E

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3kat__assembly_1__model_1

3kat__assembly_1__model_1 | I(q)

3kat__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)
