SAXSdb — 7wge

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1, N-terminus

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 95–994	Not recorded	Thioredoxin × 1 （A0A2H1VFV3） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7WGE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PN5 NMR structure of the NALP1 Pyrin domain (PYD) Deposited 2003-06-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–93（93 aa） Fragment：Pyrin domain (PYD)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；293 K；Pressure 1 NMR sample composition 1mM NALP1 PYD U-15N,13C; 50mM Na / PO4 - Buffer; 50mM NaCl; 1mM CHAPS; 20mM DTT (D10); 0.02% NaN3; 0.1mM EDTA; protease inhibitor cocktail (Complete, Roche); 95% H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
3KAT Crystal Structure of the CARD domain of the human NLRP1 protein, Northeast Structural Genomics Consortium Target HR3486E Deposited 2009-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1371–1467（97 aa） Fragment：CARD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Protein solution: 100mM NaCl, 5mM DTT, 0.02% NaN3, 10mM Tris-HCl (pH 7.5) . Reservoir solution: 18% PEG3350 and 150 mM sodium formate., VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.10 Å R-free 0.260
3KAT Crystal Structure of the CARD domain of the human NLRP1 protein, Northeast Structural Genomics Consortium Target HR3486E Deposited 2009-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1371–1467（97 aa） Fragment：CARD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Protein solution: 100mM NaCl, 5mM DTT, 0.02% NaN3, 10mM Tris-HCl (pH 7.5) . Reservoir solution: 18% PEG3350 and 150 mM sodium formate., VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.10 Å R-free 0.260
4IFP X-ray Crystal Structure of Human NLRP1 CARD Domain Deposited 2012-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1335–1418（84 aa） Fragment：NLRP1-CARD	Not recorded	MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.4 M Malonate, 100 mM HEPES 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.208
4IFP X-ray Crystal Structure of Human NLRP1 CARD Domain Deposited 2012-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1335–1418（84 aa） Fragment：NLRP1-CARD	Not recorded	MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.4 M Malonate, 100 mM HEPES 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.208
4IFP X-ray Crystal Structure of Human NLRP1 CARD Domain Deposited 2012-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1335–1418（84 aa） Fragment：NLRP1-CARD	Not recorded	MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.4 M Malonate, 100 mM HEPES 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.208
4IM6 LRR domain from human NLRP1 Deposited 2013-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–990（200 aa） Fragment：LRR domain (UNP Residues 791-990)	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris pH 8.0, 0.02 M MgCl2, 25 % (w/v) PAA 5100, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.65 Å R-free 0.183
4IM6 LRR domain from human NLRP1 Deposited 2013-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 791–990（200 aa） Fragment：LRR domain (UNP Residues 791-990)	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris pH 8.0, 0.02 M MgCl2, 25 % (w/v) PAA 5100, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.65 Å R-free 0.183
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
6K7V Structure of NLRP1 CARD filament Deposited 2019-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 1379–1466（88 aa） Chain B 1379–1466（88 aa） Chain C 1379–1466（88 aa） Chain D 1379–1466（88 aa） Chain E 1379–1466（88 aa） Chain F 1379–1466（88 aa） Chain G 1379–1466（88 aa） Chain H 1379–1466（88 aa） Chain I 1379–1466（88 aa） Chain J 1379–1466（88 aa） Chain K 1379–1466（88 aa） Chain L 1379–1466（88 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å R-free 0.285
6X6A Cryo-EM structure of NLRP1-DPP9 complex Deposited 2020-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–1212（1212 aa） Chain C 1213–1473（261 aa） Chain E 1–1212（1212 aa） Chain F 1213–1473（261 aa） Chain G 1213–1473（261 aa） Chain I 1213–1473（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 150 mM NaCl, 1 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6X6C Cryo-EM structure of NLRP1-DPP9-VbP complex Deposited 2020-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–1473（1473 aa） Chain F 1–1473（1473 aa）	Not recorded	GK2 [(2~{R})-1-[(2~{R})-2-azanyl-3-methyl-butanoyl]pyrrolidin-2-yl]boronic acid × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 150 mM NaCl, 1 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
6XKK Cryo-EM structure of the NLRP1-CARD filament Deposited 2020-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 44 PDB declaration: 44-meric	Chain A 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain B 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain C 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain D 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain E 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain F 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain G 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain H 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain I 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain J 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain K 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain L 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain M 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain N 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain O 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain P 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain Q 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain R 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain S 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain T 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain U 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain V 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain a 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain b 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain c 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain d 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain e 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain f 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain g 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain h 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain i 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain j 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain k 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain l 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain m 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain n 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain o 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain p 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain q 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain r 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain s 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain t 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain u 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain v 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.72 Å
8ZGD The Crystal Structure of the NLRP1_LRR domain from Biortus. Deposited 2024-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–990（200 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20mM MgCl2, 0.1M Tris pH 8.0, 19% polyacrylic acid 5100	Resolution 2.05 Å R-free 0.221
9BJ9 Human CRL-2 ZYG11B binding to human NLRP1 Gly/N degron Deposited 2024-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain P 131–139（9 aa） Fragment：residues 131-139 (Uniprot numbering)	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å

11 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NLRP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–900； UniProt 95–994

Thioredoxin

OrganismNot specified

UniProt A0A2H1VFV3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–106	Not recorded	NACHT, LRR and PYD domains-containing protein 1, N-terminus × 1 （Q9C000） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	A0A2H1VFV3_SPOFR
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–106； UniProt 1–106

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7wge
Deposition date deposition_date	2021-12-28
Structure title title	Human NLRP1 complexed with thioredoxin
Keywords keywords	NLRP1, inflammasome, thioredoxin, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.35 Å
Radius of gyration Rg (electron density) rg_electron	35.15 Å
Forward intensity I(0) i0	130058000.00
Molecular weight molecular_weight	91664.0 kDa
Excluded volume excluded_volume	115160 Å³
Envelope volume envelope_volume	151570 Å³
Hydration-shell volume shell_volume	39235 Å³
Envelope diameter envelope_diameter	130.0 Å
Shell Rg shell_rg	37.89 Å
Envelope Rg envelope_rg	35.37 Å
Shape Rg shape_rg	35.09 Å
Total Rg total_rg	35.55 Å
Total atoms total_atoms	6423
Residues n_residues	804
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

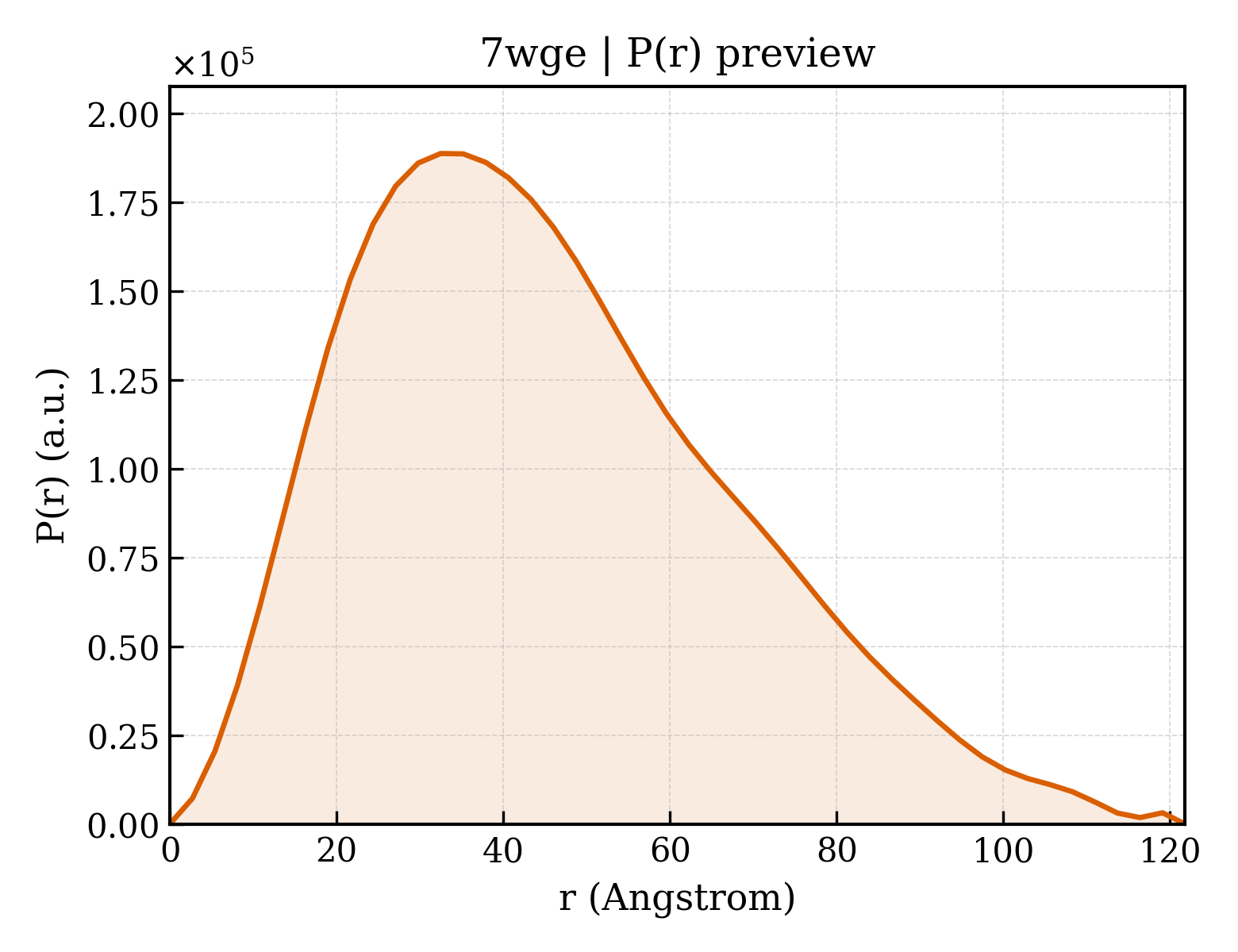

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.8 Å
Rg (real space) rg_real	35.66 Å
Rg uncertainty (real space) rg_real_error	1.11 Å
I(0) (real space) i0_real	1.3010e+08
I(0) uncertainty (real space) i0_real_error	2.1860e+06
Rg (reciprocal space) rg_reciprocal	35.47 Å
I(0) (reciprocal space) i0_reciprocal	130000000.0000
Solution quality estimate total_estimate	0.8299
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.5 Å
Skewness Skewness skewness	0.570
Kurtosis Kurtosis kurtosis	-0.167
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	33090000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.763; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.835; Smooth: 0.660

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NACHT, LRR and PYD domains-containing protein 1, N-terminus
Molecular weight formula_weight	102000.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6460

SFPYSPSEPHLGSPSQPTSTAVLMPWIHELPAGCTQGSERRVLRQLPDTSGRRWREISASLLYQALPSSPDHESPSQESPNAPTSTAVLGSWGSPPQPSLAPREQEAPGTQWPLDETSGIYYTEIREREREKSEKGRPPWAAVVGTPPQAHTSLQPHHHPWEPSVRESLCSTWPWKNEDFNQKFTQLLLLQRPHPRSQDPLVKRSWPDYVEENRGHLIEIRDLFGPGLDTQEPRIVILQGAAGIGKSTLARQVKEAWGRGQLYGDRFQHVFYFSCRELAQSKVVSLAELIGKDGTATPAPIRQILSRPERLLFILDGVDEPGWVLQEPSSELCLHWSQPQPADALLGSLLGKTILPEASFLITARTTALQNLIPSLEQARWVEVLGFSESSRKEYFYRYFTDERQAIRAFRLVKSNKELWALCLVPWVSWLACTCLMQQMKRKEKLTLTSKTTTTLCLHYLAQALQAQPLGPQLRDLCSLAAEGIWQKKTLFSPDDLRKHGLDGAIISTFLKMGILQEHPIPLSYSFIHLCFQEFFAAMSYVLEDEKGRGKHSNCIIDLEKTLEAYGIHGLFGASTTRFLLGLLSDEGEREMENIFHCRLSQGRNLMQWVPSLQLLLQPHSLESLHCLYETRNKTFLTQVMAHFEEMGMCVETDMELLVCTFCIKFSRHVKKLQLIEGRQHRSTWSPTMVVLFRWVPVTDAYWQILFSVLKVTRNLKELDLSGNSLSHSAVKSLCKTLRRPRCLLETLRLAGCGLTAEDCKDLAFGLRANQTLTELDLSFNVLTDAGAKHLCQRLRQPSCKLQRLQLVSCGLTSDCCQDLASVLSASPSLKELDLQQNNLDDVGVRLLCEGLRHPACKLIRLGLDQTTLSDEMRQELRALEQEKPQLLIFSRRKPSVMTP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Thioredoxin
Molecular weight formula_weight	11944.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSIHIKDSDDLKNRLAEAGDKLVVIDFMATWCGPCKMIGPKLDEMANEMSDCIVVLKVDVDECEDIATEYNINSMPTFVFVKNSKKIEEFSGANVDKLRNTIIKLK

Entity 3 Entity 3 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	72304

fit	/app/data/saxs_computation/wg/7wge/7wge.fit
pddf	/app/data/pr_computation/wg/7wge/7wge.pr.out
profile	/app/data/saxs_computation/wg/7wge/7wge.dat
