SAXSdb — 4im6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 791–990	Fragment：LRR domain (UNP Residues 791-990) Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris pH 8.0, 0.02 M MgCl2, 25 % (w/v) PAA 5100, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.65 Å R-free 0.183
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 791–990	Fragment：LRR domain (UNP Residues 791-990) Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris pH 8.0, 0.02 M MgCl2, 25 % (w/v) PAA 5100, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.65 Å R-free 0.183

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4IM6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PN5 NMR structure of the NALP1 Pyrin domain (PYD) Deposited 2003-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–93（93 aa） Fragment：Pyrin domain (PYD)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；293 K；Pressure 1 NMR sample composition 1mM NALP1 PYD U-15N,13C; 50mM Na / PO4 - Buffer; 50mM NaCl; 1mM CHAPS; 20mM DTT (D10); 0.02% NaN3; 0.1mM EDTA; protease inhibitor cocktail (Complete, Roche); 95% H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
3KAT Crystal Structure of the CARD domain of the human NLRP1 protein, Northeast Structural Genomics Consortium Target HR3486E Deposited 2009-10-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1371–1467（97 aa） Fragment：CARD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Protein solution: 100mM NaCl, 5mM DTT, 0.02% NaN3, 10mM Tris-HCl (pH 7.5) . Reservoir solution: 18% PEG3350 and 150 mM sodium formate., VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.10 Å R-free 0.260
3KAT Crystal Structure of the CARD domain of the human NLRP1 protein, Northeast Structural Genomics Consortium Target HR3486E Deposited 2009-10-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1371–1467（97 aa） Fragment：CARD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Protein solution: 100mM NaCl, 5mM DTT, 0.02% NaN3, 10mM Tris-HCl (pH 7.5) . Reservoir solution: 18% PEG3350 and 150 mM sodium formate., VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.10 Å R-free 0.260
4IFP X-ray Crystal Structure of Human NLRP1 CARD Domain Deposited 2012-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1335–1418（84 aa） Fragment：NLRP1-CARD	Not recorded	MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.4 M Malonate, 100 mM HEPES 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.208
4IFP X-ray Crystal Structure of Human NLRP1 CARD Domain Deposited 2012-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1335–1418（84 aa） Fragment：NLRP1-CARD	Not recorded	MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.4 M Malonate, 100 mM HEPES 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.208
4IFP X-ray Crystal Structure of Human NLRP1 CARD Domain Deposited 2012-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1335–1418（84 aa） Fragment：NLRP1-CARD	Not recorded	MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.4 M Malonate, 100 mM HEPES 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.208
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
5Y3S Crystal structure of human NLRP1 leucine rich repeat domain Deposited 2017-07-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 790–990（201 aa） Fragment：UNP residues 790-990	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；1.6M Sodium Potassium Phosphate, 100mM HEPES, pH 6.4	Resolution 2.45 Å R-free 0.259
6K7V Structure of NLRP1 CARD filament Deposited 2019-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 1379–1466（88 aa） Chain B 1379–1466（88 aa） Chain C 1379–1466（88 aa） Chain D 1379–1466（88 aa） Chain E 1379–1466（88 aa） Chain F 1379–1466（88 aa） Chain G 1379–1466（88 aa） Chain H 1379–1466（88 aa） Chain I 1379–1466（88 aa） Chain J 1379–1466（88 aa） Chain K 1379–1466（88 aa） Chain L 1379–1466（88 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å R-free 0.285
6X6A Cryo-EM structure of NLRP1-DPP9 complex Deposited 2020-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–1212（1212 aa） Chain C 1213–1473（261 aa） Chain E 1–1212（1212 aa） Chain F 1213–1473（261 aa） Chain G 1213–1473（261 aa） Chain I 1213–1473（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 150 mM NaCl, 1 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6X6C Cryo-EM structure of NLRP1-DPP9-VbP complex Deposited 2020-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–1473（1473 aa） Chain F 1–1473（1473 aa）	Not recorded	GK2 [(2~{R})-1-[(2~{R})-2-azanyl-3-methyl-butanoyl]pyrrolidin-2-yl]boronic acid × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 150 mM NaCl, 1 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
6XKK Cryo-EM structure of the NLRP1-CARD filament Deposited 2020-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 44 PDB declaration: 44-meric	Chain A 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain B 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain C 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain D 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain E 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain F 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain G 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain H 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain I 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain J 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain K 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain L 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain M 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain N 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain O 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain P 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain Q 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain R 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain S 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain T 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain U 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain V 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain a 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain b 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain c 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain d 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain e 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain f 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain g 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain h 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain i 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain j 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain k 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain l 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain m 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain n 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain o 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain p 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain q 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain r 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain s 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain t 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain u 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399) Chain v 1305–1399（95 aa） Fragment：CARD domain (UNP residues 1305-1399)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.72 Å
7WGE Human NLRP1 complexed with thioredoxin Deposited 2021-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 95–994（900 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8ZGD The Crystal Structure of the NLRP1_LRR domain from Biortus. Deposited 2024-05-09	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–990（200 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20mM MgCl2, 0.1M Tris pH 8.0, 19% polyacrylic acid 5100	Resolution 2.05 Å R-free 0.221
9BJ9 Human CRL-2 ZYG11B binding to human NLRP1 Gly/N degron Deposited 2024-04-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain P 131–139（9 aa） Fragment：residues 131-139 (Uniprot numbering)	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å

11 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NALP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–206； UniProt 791–990

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4im6
Deposition date deposition_date	2013-01-02
Structure title title	LRR domain from human NLRP1
Keywords keywords	LRR domain, Ligand recognition, Muramyl dipeptide, Structural Protein; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.34 Å
Radius of gyration Rg (electron density) rg_electron	17.43 Å
Forward intensity I(0) i0	9358970.00
Molecular weight molecular_weight	22215.0 kDa
Excluded volume excluded_volume	27732 Å³
Envelope volume envelope_volume	32019 Å³
Hydration-shell volume shell_volume	15883 Å³
Envelope diameter envelope_diameter	64.4 Å
Shell Rg shell_rg	23.10 Å
Envelope Rg envelope_rg	17.75 Å
Shape Rg shape_rg	17.45 Å
Total Rg total_rg	18.26 Å
Total atoms total_atoms	1549
Residues n_residues	197
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	65.5 Å
Rg (real space) rg_real	18.35 Å
Rg uncertainty (real space) rg_real_error	0.42 Å
I(0) (real space) i0_real	9.3590e+06
I(0) uncertainty (real space) i0_real_error	1.1200e+05
Rg (reciprocal space) rg_reciprocal	18.35 Å
I(0) (reciprocal space) i0_reciprocal	9359000.0000
Solution quality estimate total_estimate	0.8301
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.2 Å
Skewness Skewness skewness	0.429
Kurtosis Kurtosis kurtosis	-0.071
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1760000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.602; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NACHT, LRR and PYD domains-containing protein 1
Molecular weight formula_weight	22809.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1860

GAMGGSPVTDAYWQILFSVLKVTRNLKELDLSGNSLSHSAVKSLCKTLRRPRCLLETLRLAGCGLTAEDCKDLAFGLRANQTLTELDLSFNVLTDAGAKHLCQRLRQPSCKLQRLQLVSCGLTSDCCQDLASVLSASPSLKELDLQQNNLDDVGVRLLCEGLRHPACKLIRLGLDQTTLSDEMRQELRALEQEKPQLLIFSRRKPS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	213

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4im6A00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

▶

8. Citations (1)

▶

Unit-cell length a length_a	84.690 Å
Unit-cell length b length_b	84.690 Å
Unit-cell length c length_c	130.470 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	29.800 Å
R factor r_factor	0.1369
R_work r_work	0.1345
R_free r_free	0.1825

fit	/app/data/saxs_computation/im/4im6/4im6.fit
pddf	/app/data/pr_computation/im/4im6/4im6.pr.out
profile	/app/data/saxs_computation/im/4im6/4im6.dat

LRR domain from human NLRP1

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1

State in the Current Structure

Other States of the Same Protein in the Database

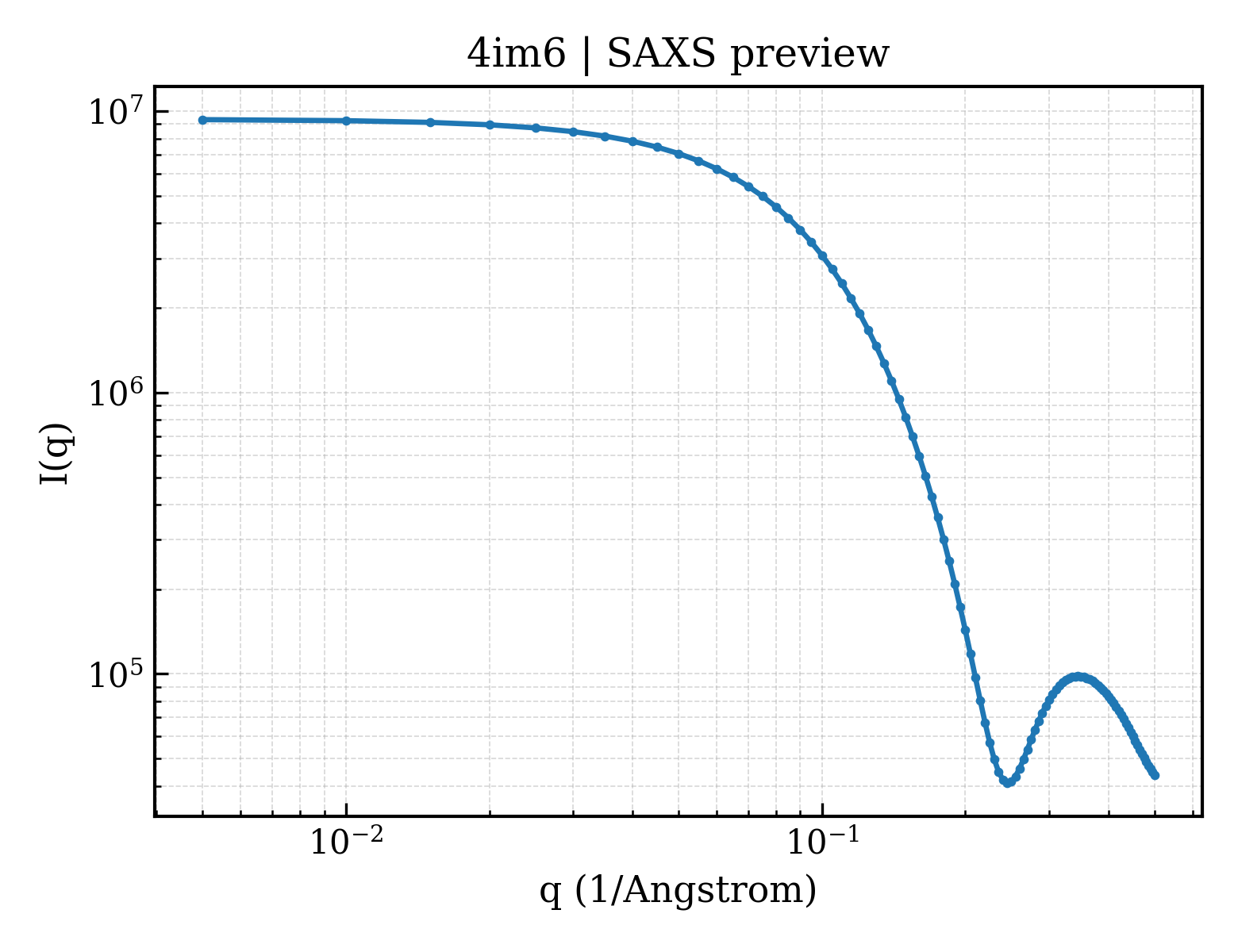

SAXS scattering curve SAXS Profile
