SAXSdb — 6xkk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 44	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NLRP1_HUMAN
Isoform	Q9C000-3
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–95； UniProt 1305–1399 Author chain B； PDBConstruct 1–95； UniProt 1305–1399 Author chain C； PDBConstruct 1–95； UniProt 1305–1399 Author chain D； PDBConstruct 1–95； UniProt 1305–1399 Author chain E； PDBConstruct 1–95； UniProt 1305–1399 Author chain F； PDBConstruct 1–95； UniProt 1305–1399 Author chain G； PDBConstruct 1–95； UniProt 1305–1399 Author chain H； PDBConstruct 1–95； UniProt 1305–1399 Author chain I； PDBConstruct 1–95； UniProt 1305–1399 Author chain J； PDBConstruct 1–95； UniProt 1305–1399 Author chain K； PDBConstruct 1–95； UniProt 1305–1399 Author chain L； PDBConstruct 1–95； UniProt 1305–1399 Author chain M； PDBConstruct 1–95； UniProt 1305–1399 Author chain N； PDBConstruct 1–95； UniProt 1305–1399 Author chain O； PDBConstruct 1–95； UniProt 1305–1399 Author chain P； PDBConstruct 1–95； UniProt 1305–1399 Author chain Q； PDBConstruct 1–95； UniProt 1305–1399 Author chain R； PDBConstruct 1–95； UniProt 1305–1399 Author chain S； PDBConstruct 1–95； UniProt 1305–1399 Author chain T； PDBConstruct 1–95； UniProt 1305–1399 Author chain U； PDBConstruct 1–95； UniProt 1305–1399 Author chain V； PDBConstruct 1–95； UniProt 1305–1399 Author chain a； PDBConstruct 1–95； UniProt 1305–1399 Author chain b； PDBConstruct 1–95； UniProt 1305–1399 Author chain c； PDBConstruct 1–95； UniProt 1305–1399 Author chain d； PDBConstruct 1–95； UniProt 1305–1399 Author chain e； PDBConstruct 1–95； UniProt 1305–1399 Author chain f； PDBConstruct 1–95； UniProt 1305–1399 Author chain g； PDBConstruct 1–95； UniProt 1305–1399 Author chain h； PDBConstruct 1–95； UniProt 1305–1399 Author chain i； PDBConstruct 1–95； UniProt 1305–1399 Author chain j； PDBConstruct 1–95； UniProt 1305–1399 Author chain k； PDBConstruct 1–95； UniProt 1305–1399 Author chain l； PDBConstruct 1–95； UniProt 1305–1399 Author chain m； PDBConstruct 1–95； UniProt 1305–1399 Author chain n； PDBConstruct 1–95； UniProt 1305–1399 Author chain o； PDBConstruct 1–95； UniProt 1305–1399 Author chain p； PDBConstruct 1–95； UniProt 1305–1399 Author chain q； PDBConstruct 1–95； UniProt 1305–1399 Author chain r； PDBConstruct 1–95； UniProt 1305–1399 Author chain s； PDBConstruct 1–95； UniProt 1305–1399 Author chain t； PDBConstruct 1–95； UniProt 1305–1399 Author chain u； PDBConstruct 1–95； UniProt 1305–1399 Author chain v； PDBConstruct 1–95； UniProt 1305–1399

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6xkk
Deposition date deposition_date	2020-06-26
Structure title title	Cryo-EM structure of the NLRP1-CARD filament
Keywords keywords	Filament, inflammasome, signaling, UPA, CARD, FIIND, NLRP1, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6xkk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

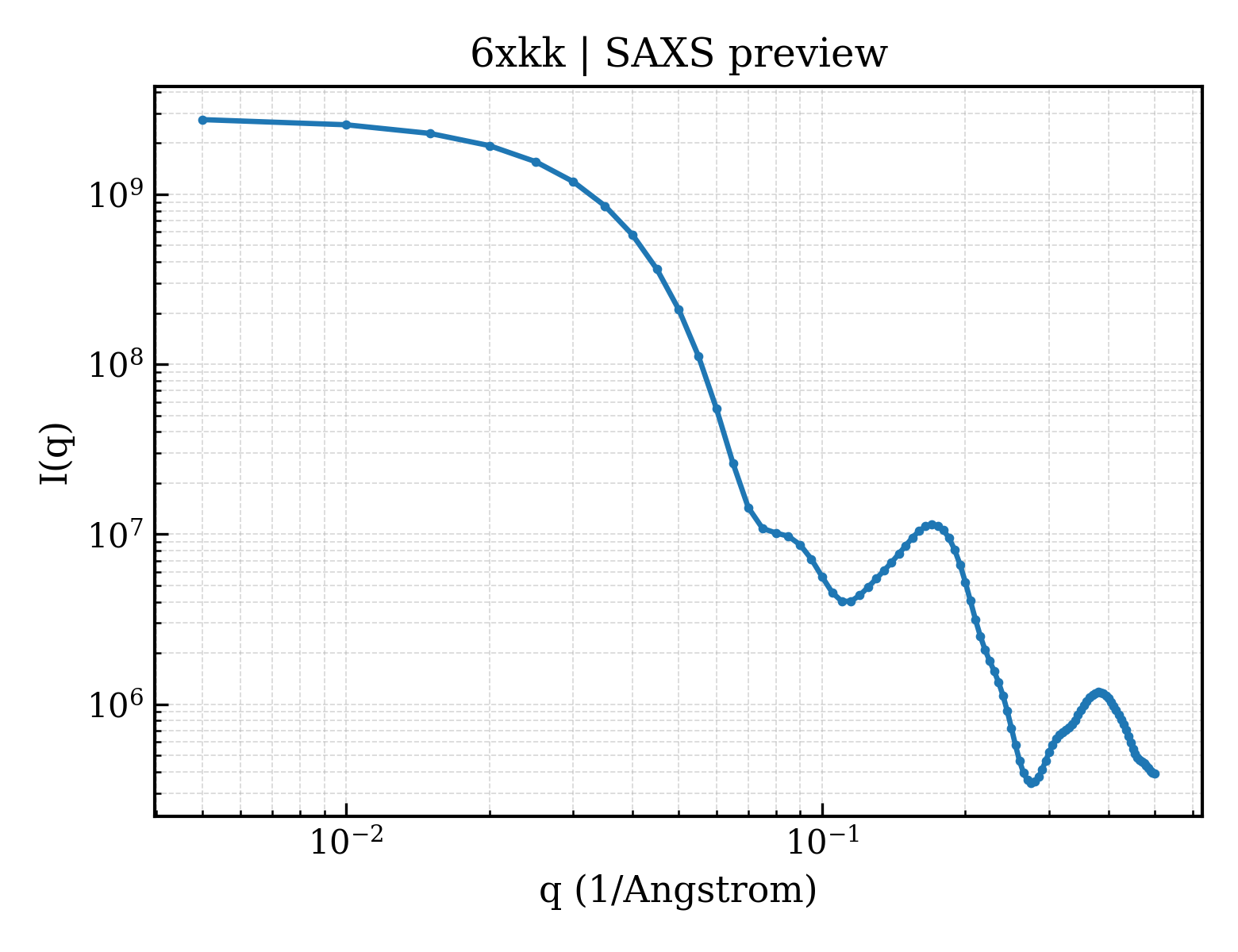

6xkk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6xkk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.82 Å
Rg (electron density)	52.20 Å
Total Rg	52.44 Å
Atom count	31284
Residues	3740
Excluded volume	556250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6xkk__assembly_1__model_1`	44-meric （44）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.720 Å
Low-resolution limit resolution_low	3.720 Å
R factor r_factor	0.6036
R_work r_work	0.6036
R_free r_free	—

Resolution resolution	3.72 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	18272

Description description	NACHT, LRR and PYD domains-containing protein 1
Molecular weight formula_weight	11138.8 kDa
Source method src_method	man
Copy count entity_count	44

Cryo-EM structure of the NLRP1-CARD filament

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

6xkk__assembly_1__model_1

6xkk__assembly_1__model_1 | I(q)

6xkk__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v
Atom count atom_count	31284

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli
