1. Protein Identity and Related Structures Protein Identity & Related Structures

Ankyrin-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 911–1233	Fragment：SeMet ZU5A-ZU5B Ankyrin-R,UNP residues 911-1233 Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1 EOH ETHANOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；283.15 K；25% ethanol, 0.1 M Tris pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 283.15K	Resolution 2.21 Å R-free 0.259
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 911–1233	Fragment：SeMet ZU5A-ZU5B Ankyrin-R,UNP residues 911-1233 Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 16 EOH ETHANOL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；283.15 K；25% ethanol, 0.1 M Tris pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 283.15K	Resolution 2.21 Å R-free 0.259
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 911–1233	Fragment：SeMet ZU5A-ZU5B Ankyrin-R,UNP residues 911-1233 Non-standard monomer：Yes (specific site not provided by mmCIF)	EOH ETHANOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；283.15 K；25% ethanol, 0.1 M Tris pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 283.15K	Resolution 2.21 Å R-free 0.259

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3UD2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1N11 D34 REGION OF HUMAN ANKYRIN-R AND LINKER Deposited 2002-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 402–827（426 aa） Fragment：D34 region	Not recorded	BR BROMIDE ION × 1 CL CHLORIDE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG400, HEPES, NaBr, CaCl2, acetonitrile, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.303
2YQF Solution structure of the death domain of Ankyrin-1 Deposited 2007-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1394–1497（104 aa） Fragment：death domain, UNP residues 1394-1497	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 20mM d-Tris-HCl(pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YVI Crystal structure of a death domain of human ankryn protein Deposited 2007-04-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1394–1497（104 aa） Fragment：UNP residues 1394-1497, death domain	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.2M NaCl, 0.1M TrisCl pH8.5, 25% PEG3350, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.92 Å R-free 0.217
2YVI Crystal structure of a death domain of human ankryn protein Deposited 2007-04-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1394–1497（104 aa） Fragment：UNP residues 1394-1497, death domain	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.2M NaCl, 0.1M TrisCl pH8.5, 25% PEG3350, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.92 Å R-free 0.217
3F59 Crystal structure of ZU5-ANK, the spectrin binding region of human erythroid ankyrin Deposited 2008-11-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 911–1068（158 aa） Fragment：ZU5-ANK, spectrin binding region of human erythroid ankyrin: UNP residues 911-1068	Not recorded	BR BROMIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；20% PEG 4000, 0.25 M KBr, 10 mM DTT, 0.1 M MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.00 Å R-free 0.264
3F59 Crystal structure of ZU5-ANK, the spectrin binding region of human erythroid ankyrin Deposited 2008-11-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 911–1068（158 aa） Fragment：ZU5-ANK, spectrin binding region of human erythroid ankyrin: UNP residues 911-1068	Not recorded	BR BROMIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；20% PEG 4000, 0.25 M KBr, 10 mM DTT, 0.1 M MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.00 Å R-free 0.264
3F59 Crystal structure of ZU5-ANK, the spectrin binding region of human erythroid ankyrin Deposited 2008-11-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 911–1068（158 aa） Fragment：ZU5-ANK, spectrin binding region of human erythroid ankyrin: UNP residues 911-1068	Not recorded	BR BROMIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；20% PEG 4000, 0.25 M KBr, 10 mM DTT, 0.1 M MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.00 Å R-free 0.264
3F59 Crystal structure of ZU5-ANK, the spectrin binding region of human erythroid ankyrin Deposited 2008-11-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 911–1068（158 aa） Fragment：ZU5-ANK, spectrin binding region of human erythroid ankyrin: UNP residues 911-1068	Not recorded	BR BROMIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；20% PEG 4000, 0.25 M KBr, 10 mM DTT, 0.1 M MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.00 Å R-free 0.264
3KBT Crystal structure of the ankyrin binding domain of human erythroid beta spectrin (repeats 13-15) in complex with the spectrin binding domain of human erythroid ankyrin (ZU5-ANK) Deposited 2009-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 911–1068（158 aa） Fragment：UNP residues 911-1068	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；Protein complex at 7.5 mg/mL mixed 1:1 with 0.05 M MES pH 6.5, 0.2 M ammonium acetate, 0.01 M calcium chloride, 10% PEG-4000, 5 mM dithiothreitol, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.75 Å R-free 0.292
3KBT Crystal structure of the ankyrin binding domain of human erythroid beta spectrin (repeats 13-15) in complex with the spectrin binding domain of human erythroid ankyrin (ZU5-ANK) Deposited 2009-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 911–1068（158 aa） Fragment：UNP residues 911-1068	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；Protein complex at 7.5 mg/mL mixed 1:1 with 0.05 M MES pH 6.5, 0.2 M ammonium acetate, 0.01 M calcium chloride, 10% PEG-4000, 5 mM dithiothreitol, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.75 Å R-free 0.292
3KBU Crystal structure of the ankyrin binding domain of human erythroid beta spectrin (repeats 13-15) in complex with the spectrin binding domain of human erythroid ankyrin (ZU5-ANK), EMTS derivative Deposited 2009-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 911–1068（158 aa） Fragment：UNP residues 911-1068	Not recorded	HG MERCURY (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；Protein complex at 7.5 mg/mL mixed 1:1 with 0.05 M MES pH 6.5, 0.2 M ammonium acetate, 0.01 M calcium chloride, 10% PEG-4000, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.75 Å R-free 0.277
3KBU Crystal structure of the ankyrin binding domain of human erythroid beta spectrin (repeats 13-15) in complex with the spectrin binding domain of human erythroid ankyrin (ZU5-ANK), EMTS derivative Deposited 2009-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 911–1068（158 aa） Fragment：UNP residues 911-1068	Not recorded	HG MERCURY (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；Protein complex at 7.5 mg/mL mixed 1:1 with 0.05 M MES pH 6.5, 0.2 M ammonium acetate, 0.01 M calcium chloride, 10% PEG-4000, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.75 Å R-free 0.277
3UD1 Crystal structure of ZU5A-ZU5B domains of human erythrocyte ankyrin Deposited 2011-10-27	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 911–1233（323 aa） Fragment：ZU5A-ZU5B Ankyrin-R, UNP residues 911-1233	Not recorded	EOH ETHANOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；283.15 K；25% ethanol, 0.1 M Tris pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 283.15K	Resolution 2.00 Å R-free 0.206
3UD1 Crystal structure of ZU5A-ZU5B domains of human erythrocyte ankyrin Deposited 2011-10-27	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 911–1233（323 aa） Fragment：ZU5A-ZU5B Ankyrin-R, UNP residues 911-1233	Not recorded	EOH ETHANOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；283.15 K；25% ethanol, 0.1 M Tris pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 283.15K	Resolution 2.00 Å R-free 0.206
3UD1 Crystal structure of ZU5A-ZU5B domains of human erythrocyte ankyrin Deposited 2011-10-27	Different construct Different mutation/modification Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 911–1233（323 aa） Fragment：ZU5A-ZU5B Ankyrin-R, UNP residues 911-1233	Not recorded	EOH ETHANOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；283.15 K；25% ethanol, 0.1 M Tris pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 283.15K	Resolution 2.00 Å R-free 0.206
7TW3 Cryo-EM structure of human ankyrin complex (B2P1A1) from red blood cell Deposited 2022-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7TW5 Cryo-EM structure of human ankyrin complex (B2P1A2) from red blood cell Deposited 2022-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–1881（1881 aa） Chain H 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.70 Å
7TW6 Cryo-EM structure of human ankyrin complex (B4P1A1) from red blood cell Deposited 2022-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.60 Å
7UZQ Local refinement of RhAG-RhCE-ANK1(AR1-5), from consensus refinement of all classes Deposited 2022-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain J 1–201（201 aa） Fragment：AR1-5 (UNP residues 1-201)	Not recorded	CLR CHOLESTEROL × 2 AJP Digitonin × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL and 0.01% ( w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.17 Å
7UZU Ankyrin-1 (N-terminal region of membrane binding domain, local refinement from consensus reconstruction; bound to N-terminal peptide from band 3) Deposited 2022-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL and 0.01% ( w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.30 Å
7V0K Consensus refinement of human erythrocyte ankyrin-1 complex (Composite map) Deposited 2022-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain H 1–1881（1881 aa）	Not recorded	CLR CHOLESTEROL × 6 AJP Digitonin × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.40 Å
7V0M Local refinement of ankyrin-1 (N-terminal half), class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.70 Å
7V0S Local refinement of RhAG/CE trimer, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain J 1–1881（1881 aa）	Not recorded	CLR CHOLESTEROL × 2 AJP Digitonin × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.50 Å
7V0X Local refinement of ankyrin-1 (C-terminal half), class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.	Resolution 3.00 Å
8CS9 Composite reconstruction of Class 1 of the erythrocyte ankyrin-1 complex Deposited 2022-05-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–1881（1881 aa）	Not recorded	CLR CHOLESTEROL × 8 AJP Digitonin × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.74 Å
8CSL Sub-tomogram averaging of erythrocyte ankyrin-1 complex Deposited 2022-05-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain A 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；130 mM KCl, 10 mM HEPES, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 25.00 Å
8CSV Local refinement of Anykyrin-1 (N-terminal half of membrane binding domain) in Class 2 of erythrocyte ankyrin-1 complex Deposited 2022-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1881（1881 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.70 Å
8CTE Class 2 of erythrocyte ankyrin-1 complex (Composite map) Deposited 2022-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain A 1–1881（1881 aa）	Not recorded	CLR CHOLESTEROL × 10 AJP Digitonin × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification. cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds	Resolution 2.90 Å

20 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ANK1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–326； UniProt 911–1233 Author chain B； PDBConstruct 4–326； UniProt 911–1233 Author chain C； PDBConstruct 4–326； UniProt 911–1233

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ud2
Deposition date deposition_date	2011-10-27
Structure title title	Crystal structure of Selenomethionine ZU5A-ZU5B protein domains of human erythrocyte ankyrin
Keywords keywords	Beta sandwich, ZU5, Adapter protein, Spectrin binding, Cytoskeleton, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.24 Å
Radius of gyration Rg (electron density) rg_electron	35.62 Å
Forward intensity I(0) i0	178292000.00
Molecular weight molecular_weight	108050.0 kDa
Excluded volume excluded_volume	135530 Å³
Envelope volume envelope_volume	187530 Å³
Hydration-shell volume shell_volume	44484 Å³
Envelope diameter envelope_diameter	114.7 Å
Shell Rg shell_rg	41.74 Å
Envelope Rg envelope_rg	34.67 Å
Shape Rg shape_rg	35.63 Å
Total Rg total_rg	36.01 Å
Total atoms total_atoms	7547
Residues n_residues	951
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	110.5 Å
Rg (real space) rg_real	36.15 Å
Rg uncertainty (real space) rg_real_error	0.69 Å
I(0) (real space) i0_real	1.7830e+08
I(0) uncertainty (real space) i0_real_error	3.0010e+06
Rg (reciprocal space) rg_reciprocal	36.21 Å
I(0) (reciprocal space) i0_reciprocal	178300000.0000
Solution quality estimate total_estimate	0.8932
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	45.2 Å
Skewness Skewness skewness	0.179
Kurtosis Kurtosis kurtosis	-0.635
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	22440000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.982; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.662

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ankyrin-1
Molecular weight formula_weight	36272.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,B,A
Atom count atom_count	7736

SNATGFLVSFMVDARGGSMRGSRHNGLRVVIPPRTCAAPTRITCRLVKPQKLSTPPPLAEEEGLASRIIALGPTGAQFLSPVIVEIPHFASHGRGDRELVVLRSENGSVWKEHRSRYGESYLDQILNGMDEELGSLEELEKKRVCRIITTDFPLYFVIMSRLCQDYDIIGPEGGSLKSKLVPLVQATFPENAVTKRVKLALQAQPVPDELVTKLLGNQATFSPIVTVEPRRRKFHRPIGLRIPLPPSWTDNPRDSGEGDTTSLRLLCSVIGGTDQAQWEDITGTTKLVYANECANFTTNVSARFWLSDCPRTAEAVNFATLLYKEL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	17

Entity 3 Entity 3 non-polymer

Description description	ETHANOL
Molecular weight formula_weight	46.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	189

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	3ud2A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3ud2A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3ud2B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3ud2B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3ud2C01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3ud2C02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	30 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	279.480 Å
Unit-cell length b length_b	40.873 Å
Unit-cell length c length_c	95.249 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.01 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.210 Å
Low-resolution limit resolution_low	24.900 Å
R factor r_factor	0.2226
R_work r_work	0.2206
R_free r_free	0.2588

fit	/app/data/saxs_computation/ud/3ud2/3ud2.fit
pddf	/app/data/pr_computation/ud/3ud2/3ud2.pr.out
profile	/app/data/saxs_computation/ud/3ud2/3ud2.dat

Crystal structure of Selenomethionine ZU5A-ZU5B protein domains of human erythrocyte ankyrin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ankyrin-1

State in the Current Structure

Other States of the Same Protein in the Database

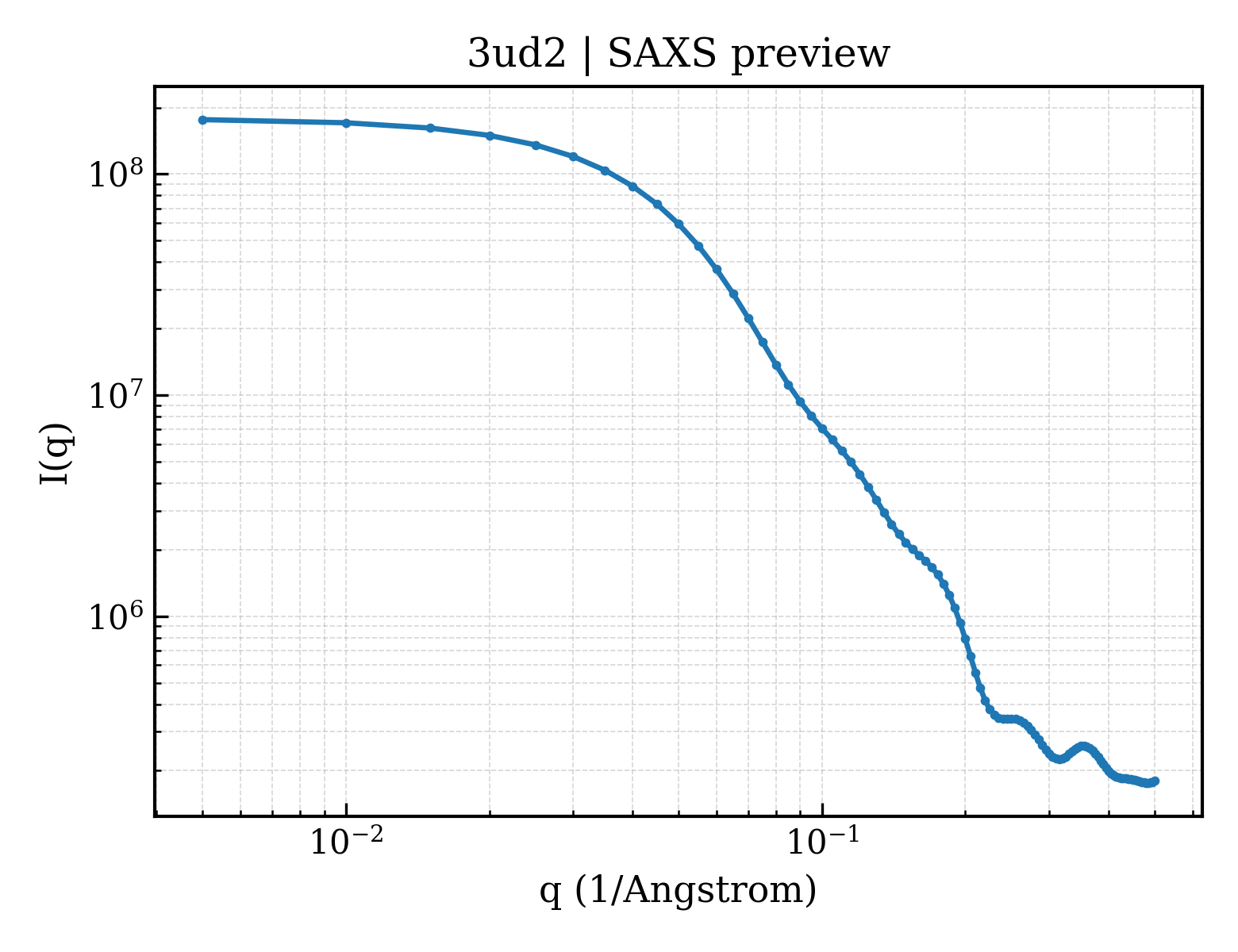

SAXS scattering curve SAXS Profile

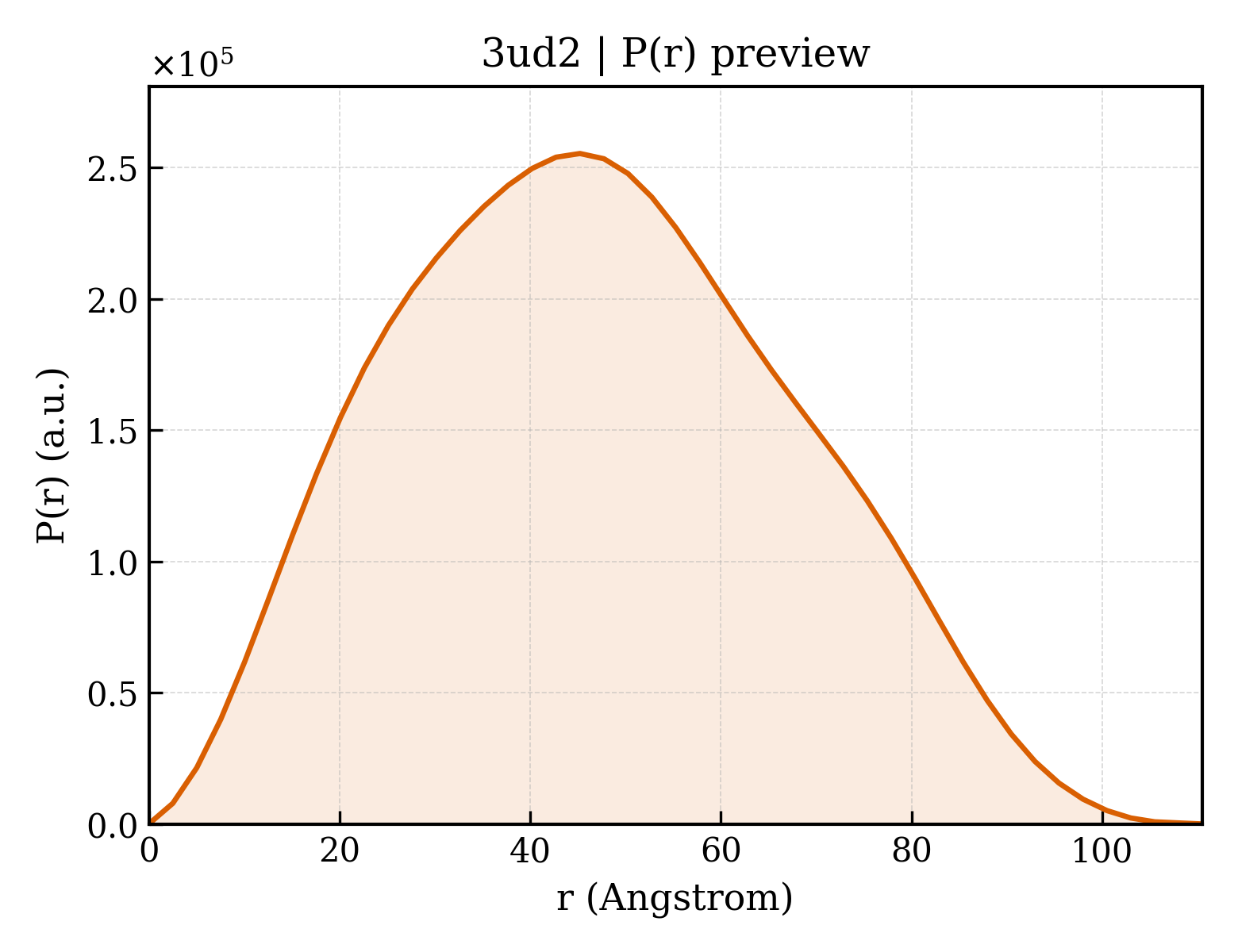

P(r) Distance Distribution P(r) Distribution
