SAXSdb — 8csv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ankyrin-1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Band 3 anion transport protein × 1 （P02730） water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ANK1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1881； UniProt 1–1881

Band 3 anion transport protein

OrganismNot specified

UniProt P02730

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ankyrin-1 × 1 （P16157） water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B3AT_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain W； PDBConstruct 1–911； UniProt 1–911

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8csv
Deposition date deposition_date	2022-05-13
Structure title title	Local refinement of Anykyrin-1 (N-terminal half of membrane binding domain) in Class 2 of erythrocyte ankyrin-1 complex
Keywords keywords	Membrane Protein, Anion Exchange, Erythrocyte, Glycoprotein, TRANSPORT PROTEIN-STRUCTURAL PROTEIN complex; TRANSPORT PROTEIN/STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8csv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8csv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

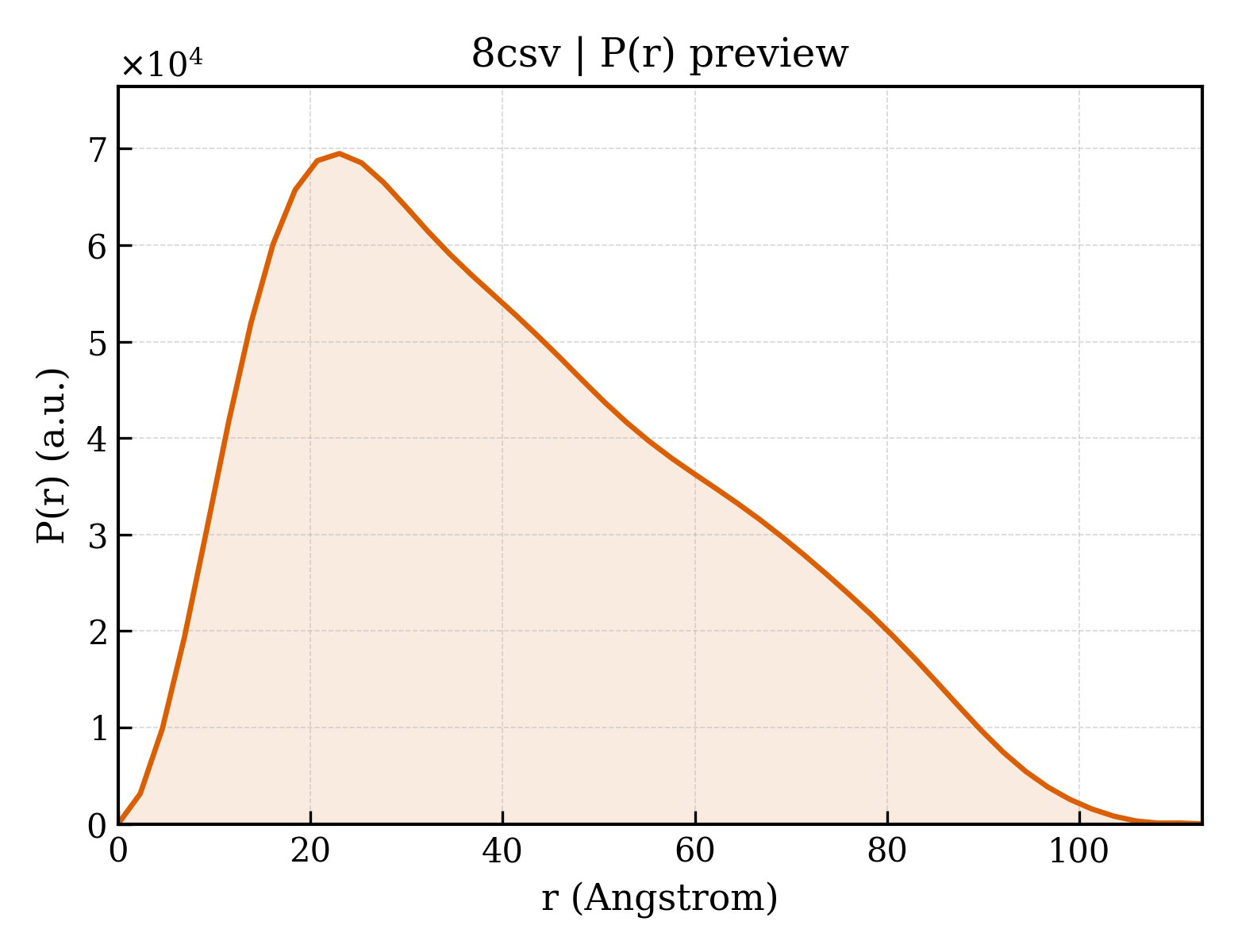

8csv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.41 Å
Rg (electron density)	32.74 Å
Total Rg	33.04 Å
Atom count	3664
Residues	483
Excluded volume	64855 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8csv__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ankyrin-1
Molecular weight formula_weight	206522.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3712

MPYSVGFREADAATSFLRAARSGNLDKALDHLRNGVDINTCNQNGLNGLHLASKEGHVKMVVELLHKEIILETTTKKGNTALHIAALAGQDEVVRELVNYGANVNAQSQKGFTPLYMAAQENHLEVVKFLLENGANQNVATEDGFTPLAVALQQGHENVVAHLINYGTKGKVRLPALHIAARNDDTRTAAVLLQNDPNPDVLSKTGFTPLHIAAHYENLNVAQLLLNRGASVNFTPQNGITPLHIASRRGNVIMVRLLLDRGAQIETKTKDELTPLHCAARNGHVRISEILLDHGAPIQAKTKNGLSPIHMAAQGDHLDCVRLLLQYDAEIDDITLDHLTPLHVAAHCGHHRVAKVLLDKGAKPNSRALNGFTPLHIACKKNHVRVMELLLKTGASIDAVTESGLTPLHVASFMGHLPIVKNLLQRGASPNVSNVKVETPLHMAARAGHTEVAKYLLQNKAKVNAKAKDDQTPLHCAARIGHTNMVKLLLENNANPNLATTAGHTPLHIAAREGHVETVLALLEKEASQACMTKKGFTPLHVAAKYGKVRVAELLLERDAHPNAAGKNGLTPLHVAVHHNNLDIVKLLLPRGGSPHSPAWNGYTPLHIAAKQNQVEVARSLLQYGGSANAESVQGVTPLHLAAQEGHAEMVALLLSKQANGNLGNKSGLTPLHLVAQEGHVPVADVLIKHGVMVDATTRMGYTPLHVASHYGNIKLVKFLLQHQADVNAKTKLGYSPLHQAAQQGHTDIVTLLLKNGASPNEVSSDGTTPLAIAKRLGYISVTDVLKVVTDETSFVLVSDKHRMSFPETVDEILDVSEDEGEELISFKAERRDSRDVDEEKELLDFVPKLDQVVESPAIPRIPCAMPETVVIRSEEQEQASKEYDEDSLIPSSPATETSDNISPVASPVHTGFLVSFMVDARGGSMRGSRHNGLRVVIPPRTCAAPTRITCRLVKPQKLSTPPPLAEEEGLASRIIALGPTGAQFLSPVIVEIPHFASHGRGDRELVVLRSENGSVWKEHRSRYGESYLDQILNGMDEELGSLEELEKKRVCRIITTDFPLYFVIMSRLCQDYDTIGPEGGSLKSKLVPLVQATFPENAVTKRVKLALQAQPVPDELVTKLLGNQATFSPIVTVEPRRRKFHRPIGLRIPLPPSWTDNPRDSGEGDTTSLRLLCSVIGGTDQAQWEDITGTTKLVYANECANFTTNVSARFWLSDCPRTAEAVNFATLLYKELTAVPYMAKFVIFAKMNDPREGRLRCYCMTDDKVDKTLEQHENFVEVARSRDIEVLEGMSLFAELSGNLVPVKKAAQQRSFHFQSFRENRLAMPVKVRDSSREPGGSLSFLRKAMKYEDTQHILCHLNITMPPCAKGSGAEDRRRTPTPLALRYSILSESTPGSLSGTEQAEMKMAVISEHLGLSWAELARELQFSVEDINRIRVENPNSLLEQSVALLNLWVIREGQNANMENLYTALQSIDRGEIVNMLEGSGRQSRNLKPDRRHTDRDYSLSPSQMNGYSSLQDELLSPASLGCALSSPLRADQYWNEVAVLDAIPLAATEHDTMLEMSDMQVWSAGLTPSLVTAEDSSLECSKAEDSDATGHEWKLEGALSEEPRGPELGSLELVEDDTVDSDATNGLIDLLEQEEGQRSEEKLPGSKRQDDATGAGQDSENEVSLVSGHQRGQARITHSPTVSQVTERSQDRLQDWDADGSIVSYLQDAAQGSWQEEVTQGPHSFQGTSTMTEGLEPGGSQEYEKVLVSVSEHTWTEQPEAESSQADRDRRQQGQEEQVQEAKNTFTQVVQGNEFQNIPGEQVTEEQFTDEQGNIVTKKIIRKVVRQIDLSSADAAQEHEEVTVEGPLEDPSELEVDIDYFMKHSKDHTSTPNP

Entity 2 Entity 2 polymer

Description description	Band 3 anion transport protein
Molecular weight formula_weight	101883.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	W

MEELQDDYEDMMEENLEQEEYEDPDIPESQMEEPAAHDTEATATDYHTTSHPGTHKVYVELQELVMDEKNQELRWMEAARWVQLEENLGENGAWGRPHLSHLTFWSLLELRRVFTKGTVLLDLQETSLAGVANQLLDRFIFEDQIRPQDREELLRALLLKHSHAGELEALGGVKPAVLTRSGDPSQPLLPQHSSLETQLFCEQGDGGTEGHSPSGILEKIPPDSEATLVLVGRADFLEQPVLGFVRLQEAAELEAVELPVPIRFLFVLLGPEAPHIDYTQLGRAAATLMSERVFRIDAYMAQSRGELLHSLEGFLDCSLVLPPTDAPSEQALLSLVPVQRELLRRRYQSSPAKPDSSFYKGLDLNGGPDDPLQQTGQLFGGLVRDIRRRYPYYLSDITDAFSPQVLAAVIFIYFAALSPAITFGGLLGEKTRNQMGVSELLISTAVQGILFALLGAQPLLVVGFSGPLLVFEEAFFSFCETNGLEYIVGRVWIGFWLILLVVLVVAFEGSFLVRFISRYTQEIFSFLISLIFIYETFSKLIKIFQDHPLQKTYNYNVLMVPKPQGPLPNTALLSLVLMAGTFFFAMMLRKFKNSSYFPGKLRRVIGDFGVPISILIMVLVDFFIQDTYTQKLSVPDGFKVSNSSARGWVIHPLGLRSEFPIWMMFASALPALLVFILIFLESQITTLIVSKPERKMVKGSGFHLDLLLVVGMGGVAALFGMPWLSATTVRSVTHANALTVMGKASTPGAAAQIQEVKEQRISGLLVAVLVGLSILMEPILSRIPLAVLFGIFLYMGVTSLSGIQLFDRILLLFKPPKYHPDVPYVKRVKTWRMHLFTGIQIICLAVLWVVKSTPASLALPFVLILTVPLRRVLLPLIFRNVELQCLDADDAKATFDEEEGRDEYDEVAMPV

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	48

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	145645

Local refinement of Anykyrin-1 (N-terminal half of membrane binding domain) in Class 2 of erythrocyte ankyrin-1 complex
