3wto

Crystal Structure of Lymnaea stagnalis Acetylcholine-Binding Protein Q55R Mutant Complexed with Desnitro-imidacloprid

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetylcholine-binding protein

Lymnaea stagnalis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	(2Z)-1-[(6-chloropyridin-3-yl)methyl]imidazolidin-2-imine × 5 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACHP_LYMST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–214； UniProt 21–229 Author chain B； PDBConstruct 6–214； UniProt 21–229 Author chain C； PDBConstruct 6–214； UniProt 21–229 Author chain D； PDBConstruct 6–214； UniProt 21–229 Author chain E； PDBConstruct 6–214； UniProt 21–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3wto
Deposition date deposition_date	2014-04-11
Structure title title	Crystal Structure of Lymnaea stagnalis Acetylcholine-Binding Protein Q55R Mutant Complexed with Desnitro-imidacloprid
Keywords keywords	neonicotinoids, nicotinic acetylcholine receptor, imidacloprid, acetylcholine binding, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3wto__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

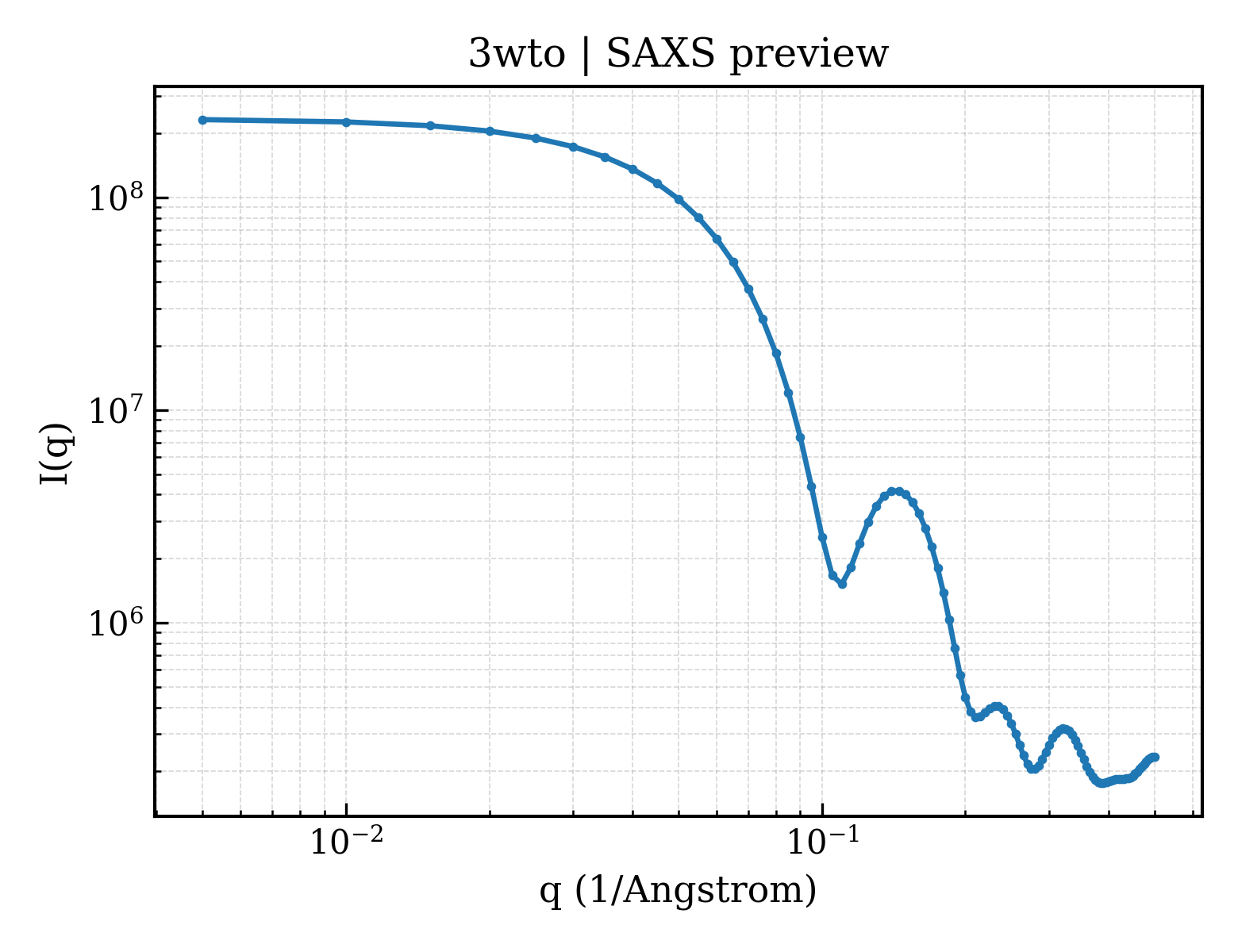

3wto__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

3wto__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.64 Å
Rg (electron density)	29.84 Å
Total Rg	30.71 Å
Atom count	8281
Residues	1031
Excluded volume	145530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3wto__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Acetylcholine-binding protein
Molecular weight formula_weight	24250.9 kDa
Mutation mutation	Q55R
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	8832

EAEAADRADILYNIRQTSRPDVIPTQRDRPVAVSVSLKFINILEVNEITNEVDVVFWQRTTWSDRTLAWDSSHSPDQVSVPISSLWVPDLAAYNAISKPEVLTPQLARVVSDGEVLYMPSIRQRFSCDVSGVDTESGATCRIKIGSWTHHSREISVDPTTENSDDSEYFSQYSRFEILDVTQKKNSVTYSCCPEAYEDVEVSLNFRKKGRSEIL

Source Source

Source organism organism	Lymnaea stagnalis
Common name common_name	Great pond snail
NCBI taxonomy ID ncbi_taxonomy_id	6523
Host organism host_organism	Pichia pastoris

Entity 2 Entity 2 non-polymer

Description description	(2Z)-1-[(6-chloropyridin-3-yl)methyl]imidazolidin-2-imine
Molecular weight formula_weight	210.7 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	460

▼

6. Fold Classification (SCOP + CATH) 15 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d3wtoa1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d3wtoa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3wtob1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d3wtob2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3wtoc1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d3wtoc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3wtod1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d3wtod2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3wtoe1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d3wtoe2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (5 domains)

Domain ID domain_id	3wtoA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	3wtoB00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	3wtoC00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	3wtoD00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	3wtoE00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

▶

Unit-cell length a length_a	73.056 Å
Unit-cell length b length_b	120.742 Å
Unit-cell length c length_c	139.346 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	20.780 Å
R factor r_factor	0.2150
R_work r_work	0.2150
R_free r_free	0.2620
