3zxt

Dimeric structure of DAPK-1 catalytic domain in complex with AMPPCP- Mg

Method: X-RAY DIFFRACTION D_max: 149.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DEATH-ASSOCIATED PROTEIN KINASE 1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–285 Chain B； UniProt 1–285	Fragment：CATALYTIC DOMAIN, RESIDUES 1-285	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：0.1 M HEPES PH7.0, 0.1M MGCL2, 15% PEG4000	Resolution 2.65 Å R-free 0.285
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–285 Chain D； UniProt 1–285	Fragment：CATALYTIC DOMAIN, RESIDUES 1-285	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：0.1 M HEPES PH7.0, 0.1M MGCL2, 15% PEG4000	Resolution 2.65 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3ZXT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IG1 1.8A X-Ray structure of ternary complex of a catalytic domain of death-associated protein kinase with ATP analogue and Mn. Deposited 2001-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	MN MANGANESE (II) ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.80 Å R-free 0.213
1JKK 2.4A X-RAY STRUCTURE OF TERNARY COMPLEX OF A CATALYTIC DOMAIN OF DEATH-ASSOCIATED PROTEIN KINASE WITH ATP ANALOGUE AND MG. Deposited 2001-07-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN, AMPPnP, AMMONIUM SULFATE, TRIS-HL (pH 8), MGCL2 SOAKING, pH 7.5	Resolution 2.40 Å R-free 0.239
1JKL 1.6A X-RAY STRUCTURE OF BINARY COMPLEX OF A CATALYTIC DOMAIN OF DEATH-ASSOCIATED PROTEIN KINASE WITH ATP ANALOGUE Deposited 2001-07-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN, AMPPNP, AMMONIUM SULFATE, TRIS-HL, pH 7.5	Resolution 1.62 Å R-free 0.218
1JKS 1.5A X-RAY STRUCTURE OF APO FORM OF A CATALYTIC DOMAIN OF DEATH-ASSOCIATED PROTEIN KINASE Deposited 2001-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 1.50 Å R-free 0.202
1JKT TETRAGONAL CRYSTAL FORM OF A CATALYTIC DOMAIN OF DEATH-ASSOCIATED PROTEIN KINASE Deposited 2001-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.00	Resolution 3.50 Å R-free 0.297
1JKT TETRAGONAL CRYSTAL FORM OF A CATALYTIC DOMAIN OF DEATH-ASSOCIATED PROTEIN KINASE Deposited 2001-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.00	Resolution 3.50 Å R-free 0.297
1P4F DEATH ASSOCIATED PROTEIN KINASE CATALYTIC DOMAIN WITH BOUND INHIBITOR FRAGMENT Deposited 2003-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：CATALYTIC DOMAIN, PROTEIN KINASE DOMAIN	Not recorded	86Q 5,6-Dihydro-benzo[H]cinnolin-3-ylamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；Ammonium sulfate, Tris, MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 1.90 Å R-free 0.233
1WVW Crystal structures of kinase domain of DAP kinase in complex with small molecular inhibitors Deposited 2004-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–278（278 aa） Fragment：catalytic domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；283 K；sodium cacodylate, PEG8000, magnesium acetate, glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.40 Å R-free 0.270
1WVX Crystal structures of kinase domain of DAP kinase in complex with small molecular inhibitors Deposited 2004-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–278（278 aa） Fragment：catalytic domain	Not recorded	BD4 6-(3-AMINOPROPYL)-4,9-DIMETHYLPYRROLO[3,4-C]CARBAZOLE-1,3(2H,6H)-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；283 K；Tris-HCl, PEG400, PEG8000, glycerol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.60 Å R-free 0.270
1WVY Crystal structures of kinase domain of DAP kinase in complex with small molecular inhibitors Deposited 2004-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–278（278 aa） Fragment：catalytic domain	Not recorded	STU STAUROSPORINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；283 K；Tris-HCl, PEG400, PEG8000, glycerol, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.80 Å R-free 0.274
1YR5 1.7-A structure of calmodulin bound to a peptide from DAP kinase Deposited 2005-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 302–320（19 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；PEG 8000, sodium acetate, calcium chloride, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.70 Å R-free 0.257
2W4J X-ray structure of a DAP-Kinase 2-277 Deposited 2008-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–277（277 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 1-277	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 ACT ACETATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.30 Å R-free 0.159
2W4K X-ray structure of a DAP-Kinase 2-302 Deposited 2008-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–302（302 aa） Fragment：CATALYTIC AUTOINHIBITORY DOMAIN, RESIDUES 1-302	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.228
2X0G X-RAY STRUCTURE OF A DAP-KINASE CALMODULIN COMPLEX Deposited 2009-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–334（334 aa） Fragment：CATALYTIC AND AUTOINHIBITORY DOMAIN, RESIDUES 1- 334	Not recorded	SO4 SULFATE ION × 2 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；0.17M AMMONIUM SULFATE, 25% (W/V) PEG 4000, 15% GLYCEROL, pH 7.2	Resolution 2.20 Å R-free 0.267
2XUU Crystal structure of a DAP-kinase 1 mutant Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–334（334 aa） Fragment：CATALYTIC AND AUTOINHIBITORY DOMAIN, RESIDUES 1-334	Mutation：YES	ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；0.2 M LISO4 0.1 M BIS-TRIS PH 5.5 25% PEG 4000 0.002% NAN3	Resolution 1.80 Å R-free 0.226
2XZS Death associated protein kinase 1 residues 1-312 Deposited 2010-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–312（311 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 1-312	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M MAGNESIUM ACETATE TETRAHYDRATE, 0.1 M SODIUM CACODYLATE, PH 6.5 AND 10% PEG 8000	Resolution 2.00 Å R-free 0.225
2XZS Death associated protein kinase 1 residues 1-312 Deposited 2010-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–312（311 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 1-312	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M MAGNESIUM ACETATE TETRAHYDRATE, 0.1 M SODIUM CACODYLATE, PH 6.5 AND 10% PEG 8000	Resolution 2.00 Å R-free 0.225
2Y0A Structure of DAPK1 construct residues 1-304 Deposited 2010-12-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–304（303 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 2-304	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；5% PEG 6000, 0.1M MES, PH 6.0	Resolution 2.60 Å R-free 0.259
2Y4P Dimeric structure of DAPK-1 catalytic domain Deposited 2011-01-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–285（285 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 1-285 Chain D 1–285（285 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 1-285	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.1 M TRIS PH 8.0, 0.1 M MGCL2, 15% (W/V) PEG 4000, 0.5 MM AMPPCP, 0.5 MM PMSF.	Resolution 2.65 Å R-free 0.312
2Y4P Dimeric structure of DAPK-1 catalytic domain Deposited 2011-01-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–285（285 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 1-285 Chain B 1–285（285 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 1-285	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.1 M TRIS PH 8.0, 0.1 M MGCL2, 15% (W/V) PEG 4000, 0.5 MM AMPPCP, 0.5 MM PMSF.	Resolution 2.65 Å R-free 0.312
2Y4V CRYSTAL STRUCTURE OF HUMAN CALMODULIN IN COMPLEX WITH A DAP KINASE-1 MUTANT (W305Y) PEPTIDE Deposited 2011-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 302–320（19 aa） Fragment：RESIDUES 302-320	Mutation：YES	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M HEPES PH 7.5, 25(W/V) PEG 3000	Resolution 1.80 Å R-free 0.238
2YAK Structure of death-associated protein Kinase 1 (dapk1) in complex with a ruthenium octasporine ligand (OSV) Deposited 2011-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：AA, RESIDUES 1-285	Not recorded	OSV RUTHENIUM OCTASPORINE 4 × 1	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM TRIS PH 7.2, 7.5-10% PEG 6000.	Resolution 2.20 Å R-free 0.260
3DFC Crystal structure of a glycine-rich loop mutant of the death associated protein kinase catalytic domain with AMPPNP Deposited 2008-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–285（285 aa） Fragment：Protein kinase catalytic domain	Mutation：Q23K	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2M lithium nitrate, 2.2 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.90 Å R-free 0.230
3DGK Crystal structure of a glycine-rich loop mutant of the death associated protein kinase catalytic domain Deposited 2008-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：Protein kinase catalytic domain	Mutation：Q23K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100 mM Tris pH 7.5, 0.8 M Ammonium Sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.70 Å R-free 0.220
3EH9 Crystal structure of death associated protein kinase complexed with ADP Deposited 2008-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：Protein kinase domain, UNP residues 2-285	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；.2 M ammonium iodide 2.2 M ammonium sulfate , VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.70 Å R-free 0.217
3EHA Crystal structure of death associated protein kinase complexed with AMPPNP Deposited 2008-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：Protein kinase domain, UNP residues 2-285	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M ammonium bromide 2.2 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.60 Å R-free 0.210
3F5G Crystal structure of death associated protein kinase in complex with ADP and Mg2+ Deposited 2008-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：UNP residues 2-285, protein kinase domain,catalytic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 295 K；0.2 M ammonium chloride, 2.2 M ammonium sulfate , VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.85 Å R-free 0.244
3F5U Crystal structure of the death associated protein kinase in complex with AMPPNP and Mg2+ Deposited 2008-11-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP residues 1-285, Protein kinase domain,Catalytic domain	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 295 K；0.2 M NaCl, 2.2 M ammonium sulfate , VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.00 Å R-free 0.245
3GU4 Crystal structure of DAPKQ23V-AMPPNP Deposited 2009-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：protein kinase domain	Mutation：Q23V	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；0.1 M MES, 1.8 M Ammonium sulfate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.35 Å R-free 0.211
3GU5 Crystal structure of DAPKQ23V-AMPPNP-Mg2+ Deposited 2009-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：protein kinase domain	Mutation：Q23V	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2M CH3COOLi, 2.2 Ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.65 Å R-free 0.219
3GU6 Crystal structure of DAPKQ23V-ADP Deposited 2009-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：protein kinase domain	Mutation：Q23V	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1 M Tris, 1.8 M Ammonium sulfate, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.49 Å R-free 0.213
3GU7 Crystal structure of DAPKQ23V-ADP-Mg2+ Deposited 2009-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：protein kinase domain	Mutation：Q23V	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2M NaI, 2.2M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.90 Å R-free 0.228
3GU8 Crystal structure of DAPKL93G with N6-cyclopentyladenosine Deposited 2009-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：protein kinase domain	Mutation：L93G	3GU N6-cyclopentyladenosine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100 mM Tris, 1.1 ammonium sulfate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.239
3GUB Crystal structure of DAPKL93G complexed with N6-(2-Phenylethyl)adenosine Deposited 2009-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：protein kinase domain	Mutation：L93G	GUB 9-alpha-L-lyxofuranosyl-N-(2-phenylethyl)-9H-purin-6-amine × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100mM Tris, 1.1 M ammonium sulfate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.71 Å R-free 0.239
4B4L CRYSTAL STRUCTURE OF AN ARD DAP-KINASE 1 MUTANT Deposited 2012-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–334（334 aa） Fragment：CATALYTIC AND AUTOREGULATORY DOMAIN, RESIDUES 1-334	Mutation：YES	1PE PENTAETHYLENE GLYCOL × 3 SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；0.2M AMMONIUM SULFATE, 0.1M BIS-TRIS PH 5.5, 25%(W/V) POLYETHYLENE GLYCOL 3350	Resolution 1.75 Å R-free 0.220
4PF4 1.1A X-RAY STRUCTURE OF THE APO CATALYTIC DOMAIN OF DEATH-ASSOCIATED PROTEIN KINASE 1, aa 1-277 Deposited 2014-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: Monomeric	Chain A 1–277（277 aa）	Not recorded	SO4 SULFATE ION × 4 NA SODIUM ION × 2 GOL GLYCEROL × 6 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.1 M HEPES, Ph=7, 2M Ammonium sulfate	Resolution 1.13 Å R-free 0.149
4TL0 Crystal structure of death-associated protein kinase 1 with a crucial phosphomimicking mutation Deposited 2014-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–334（334 aa） Fragment：UNP residues 1-334	Mutation：S289E	MG MAGNESIUM ION × 1 NH4 AMMONIUM ION × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；0.15 ammonium sulfate, 0.1M TRIS, pH 8.0, 15%(w/v) PEG 4000	Resolution 2.70 Å R-free 0.218
4TXC Crystal Structure of DAPK1 kinase domain in complex with a small molecule inhibitor Deposited 2014-07-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	38G 4-(3-{3-[(R)-{[2-(dimethylamino)ethyl]amino}(hydroxy)methyl]phenyl}imidazo[1,2-b]pyridazin-6-yl)-2-methoxyphenol × 1 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG6000, 10% ethylene glycol, 0.1M HEPES pH 7.0, 0.2M sodium chloride, 293K, using previously frozen protein	Resolution 1.95 Å R-free 0.216
4UV0 Structure of a semisynthetic phosphorylated DAPK Deposited 2014-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–321（321 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 1-321	Mutation：YES	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 5MM HEPES, 30 MM NACL, 10 MM NA2SO4,0.5 MMDTT,25% (W/V) PEGMME2000	Resolution 2.49 Å R-free 0.242
4YO4 Crystal Structure of DAPK1 catalytic domain in complex with the hinge binding fragment phthalazine Deposited 2015-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：protein kinase domain (UNP residues 2-285)	Not recorded	CL CHLORIDE ION × 4 ACT ACETATE ION × 1 SO4 SULFATE ION × 1 4FT phthalazine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M sodium chloride, 0.1 M HEPES, 1.6 M ammonium sulfate	Resolution 1.60 Å R-free 0.185
4YPD Crystal Structure of DAPK1 catalytic domain in complex with the hinge binding fragment 4-methylpyridazine Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：protein kinase domain (UNP residues 2-285)	Not recorded	CL CHLORIDE ION × 1 SO4 SULFATE ION × 1 DKG 4-methylpyridazine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；0.1 M HEPES, 1.7 M ammonium sulfate	Resolution 1.40 Å R-free 0.177
5AUT Crystal structure of DAPK1 in complex with ANS. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	2AN 8-ANILINO-1-NAPHTHALENE SULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.70 Å R-free 0.202
5AUU Crystal structure of DAPK1 in complex with luteolin. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	LU2 2-(3,4-dihydroxyphenyl)-5,7-dihydroxy-4H-chromen-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.70 Å R-free 0.216
5AUV Crystal structure of DAPK1 in complex with apigenin. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	AGI 5,7-dihydroxy-2-(4-hydroxyphenyl)-4H-chromen-4-one × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.50 Å R-free 0.194
5AUW Crystal structure of DAPK1 in complex with quercetin. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.50 Å R-free 0.211
5AUX Crystal structure of DAPK1 in complex with kaempferol. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	KMP 3,5,7-TRIHYDROXY-2-(4-HYDROXYPHENYL)-4H-CHROMEN-4-ONE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.50 Å R-free 0.208
5AUY Crystal structure of DAPK1 in complex with morin. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	MRI 2-[2,4-bis(oxidanyl)phenyl]-3,5,7-tris(oxidanyl)chromen-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 2.00 Å R-free 0.249
5AUZ Crystal structure of DAPK1 in complex with genistein. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	GEN GENISTEIN × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.60 Å R-free 0.206
5AV0 Crystal structure of DAPK1 in complex with 7,3',4'-trihydroxyisoflavone. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	47X 3-(3,4-dihydroxyphenyl)-7-hydroxy-4H-chromen-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.85 Å R-free 0.220
5AV1 Crystal structure of DAPK1 in the presence of bromide ions. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	BR BROMIDE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.50 Å R-free 0.215
5AV2 Crystal structure of DAPK1-kaempferol complex in the presence of bromide ions. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	KMP 3,5,7-TRIHYDROXY-2-(4-HYDROXYPHENYL)-4H-CHROMEN-4-ONE × 1 BR BROMIDE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.50 Å R-free 0.209
5AV3 Crystal structure of DAPK1-kaempferol complex in the presence of iodide ions. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	KMP 3,5,7-TRIHYDROXY-2-(4-HYDROXYPHENYL)-4H-CHROMEN-4-ONE × 1 IOD IODIDE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.90 Å R-free 0.233
5AV4 Crystal structure of DAPK1-genistein complex in the presence of bromide ions. Deposited 2015-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa） Fragment：UNP RESIDUES 1-285	Not recorded	GEN GENISTEIN × 1 BR BROMIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M ammonium sulfate, 0.1 M MES	Resolution 1.40 Å R-free 0.228
6AAR Crystal structure of DAPK1 in complex with purpurin Deposited 2018-07-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	9TF Purpurin × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.6 M ammonium sulfate, 0.1 M MES pH 6.5	Resolution 1.95 Å R-free 0.220
6FHA Death-associated Protein Kinase 1 (DAPK1) catalytic and auto-regulatory domains with S289A and S308A mutations Deposited 2018-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–334（333 aa）	Mutation：S289A S308A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292.15 K；22% PEG 4000, 0.2M ammonium sulfate, 0.1M sodium sulfate	Resolution 2.30 Å R-free 0.267
6FHB Death-associated Protein Kinase 1 (DAPK1) catalytic and auto-regulatory domains with S289A and S308E mutations Deposited 2018-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–334（333 aa）	Mutation：S289A S308E	CL CHLORIDE ION × 5 ACT ACETATE ION × 1 MG MAGNESIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292.15 K；10% PEG 8000, 0.2M magnesium acetate	Resolution 1.75 Å R-free 0.222
6IN4 Crystal structure of apo DAPK1 in the presence of 18-crown-6 Deposited 2018-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.8 M ammonium sulfate, 0.1 M MES pH 6.5, 100 mM 18-crown-6	Resolution 1.80 Å R-free 0.218
6QMO Death-associated Protein Kinase 1 (DAPK1) catalytic and auto-regulatory domains with S289E and S308A mutations Deposited 2019-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–310（309 aa）	Mutation：S289E S308A	GOL GLYCEROL × 6 CL CHLORIDE ION × 5 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292.15 K；20% PEG 3350, 0.2M magnesium formate	Resolution 1.87 Å R-free 0.224
6QN4 Death-associated Protein Kinase 1 (DAPK1) catalytic and auto-regulatory domains with S289E and S308E mutations Deposited 2019-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–310（309 aa）	Mutation：S289E S308E	ACT ACETATE ION × 7 GOL GLYCEROL × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292.15 K；16% PEG 4000, 0.1 M Tris pH 8.5, 0.2 M sodium acetate	Resolution 2.50 Å R-free 0.266
7CCU Crystal structure of death-associated protein kinase 1 in complex with resveratrol Deposited 2020-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	STL RESVERATROL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.4 M ammonium sulfate, 0.1 M Tris-HCl pH 8.0, 14.4 mg/mL DAPK1, 2 mM resveratrol	Resolution 1.65 Å R-free 0.199
7CCV Crystal structure of death-associated protein kinase 1 in complex with piceatannol Deposited 2020-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	PIT PICEATANNOL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.0 M ammonium sulfate, 0.1 M Tris-HCl pH 7.0, 14.4 mg/mL DAPK1, 2 mM piceatannol	Resolution 1.75 Å R-free 0.208
7CCW Crystal structure of death-associated protein kinase 1 in complex with resveratrol and MES Deposited 2020-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	STL RESVERATROL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.8 M ammonium sulfate, 0.1 M MES-NaOH pH 6.5, 14.4 mg/mL DAPK1, 2 mM resveratrol	Resolution 1.40 Å R-free 0.188
8IE5 Crystal structure of DAPK1 in complex with oxyresveratrol Deposited 2023-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	EZE trans-oxyresveratrol × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, ammonium sulfate, Bis-tris pH 6.5	Resolution 1.80 Å R-free 0.210
8IE6 Crystal structure of DAPK1 in complex with pinostilbene Deposited 2023-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	8KZ 3-[(E)-2-(4-hydroxyphenyl)ethenyl]-5-methoxy-phenol × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, ammonium sulfate, Bis-tris pH 6.5	Resolution 1.70 Å R-free 0.195
8IE7 Crystal structure of DAPK1 in complex with pterostilbene Deposited 2023-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	3RL Pterostilbene × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, ammonium sulfate, Bis-tris pH 6.5	Resolution 1.85 Å R-free 0.211
8IE8 Crystal structure of DAPK1 in complex with isorhapontigenin Deposited 2023-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	P5O 5-[(~{E})-2-(3-methoxy-4-oxidanyl-phenyl)ethenyl]benzene-1,3-diol × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, ammonium sulfate, Bis-tris pH 6.5	Resolution 1.75 Å R-free 0.216
8ODZ Cryo-EM structure of a pre-dimerized murine IL-12 complete extracellular signaling complex (Class 1). Deposited 2023-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 300–319（20 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；HEPES-buffered saline (HBS) with added calcium chloride: 25 mM HEPES, pH 7.4, 150 mM NaCl, 5 mM CaCl cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2, 5 s. blotting time.	Resolution 3.60 Å
8OE0 Cryo-EM structure of a pre-dimerized murine IL-12 complete extracellular signaling complex (Class 2). Deposited 2023-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 300–319（20 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；HEPES-buffered saline (HBS) with added calcium chloride: 25 mM HEPES, pH 7.4, 150 mM NaCl, 5 mM CaCl cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2, 5 s. blotting time.	Resolution 4.60 Å
8OE4 Cryo-EM structure of a pre-dimerized human IL-23 complete extracellular signaling complex. Deposited 2023-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 301–319（19 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；HEPES-buffered saline (HBS) with added calcium chloride: 25 mM HEPES, pH 7.4, 150 mM NaCl, 5 mM CaCl cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2, 4.5 s. blotting time.	Resolution 3.60 Å
8PB1 Cryo-EM structure of a pre-dimerized murine IL-12 complete extracellular signaling complex (Class 1), obtained after local refinement. Deposited 2023-06-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 300–319（20 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；HEPES-buffered saline (HBS) with added calcium chloride: 25 mM HEPES, pH 7.4, 150 mM NaCl, 5 mM CaCl cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2, 5 s. blotting time.	Resolution 3.50 Å
9DUB Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound SRM-25-071 Deposited 2024-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：protein kinase domain (UNP residues 2-285)	Not recorded	A1BB7 4-(pyridin-4-yl)pyridazine × 1 CL CHLORIDE ION × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；Protein: 6.6 mg/ml, 0.25M Sodium chloride, 0.1M Tris-HCl (pH 8.0); Screen: 1.8M Ammomium sulfate, 0.2M Ammonium chloride; Soak: 24h, 1mM SRM-25-071, 10% DMSO, 1.8M Ammonium sulfate, 0.2M Ammonium chloride; Cryo: 1.8M Ammonium sulfate, 25% sucrose.	Resolution 1.50 Å R-free 0.183
9DUE Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound SRM-07-081a Deposited 2024-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：protein kinase domain (UNP residues 2-285)	Not recorded	A1BB6 3-chloro-6-(4-methylpiperazin-1-yl)-4-(pyridin-4-yl)pyridazine × 1 BO3 BORIC ACID × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；Protein: 6.6 mg/ml, 0.25M Sodium chloride, 0.1M Tris-HCl (pH 8.0); Screen: 1.8M Ammomium sulfate, 0.2M Ammonium chloride; Soak: 24h, 1mM SRM-7-081a, 10% DMSO, 1.8M Ammonium sulfate, 0.2M Ammonium chloride; Cryo: 1.8M Ammonium sulfate, 25% sucrose.	Resolution 1.65 Å R-free 0.184
9INV Crystal structure of DAPK1 in complex with isoliquiritigenin Deposited 2024-07-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	HCC 2',4,4'-TRIHYDROXYCHALCONE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, ammonium sulfate, MES pH 6.5	Resolution 1.61 Å R-free 0.205
9INW Crystal structure of DAPK1 in complex with compound 9 Deposited 2024-07-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	A1L2V (~{E})-1-[2,4-bis(oxidanyl)phenyl]-3-(3-chloranyl-4-oxidanyl-phenyl)prop-2-en-1-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, ammonium sulfate, MES pH 6.5	Resolution 1.52 Å R-free 0.207
9INX Crystal structure of DAPK1 in complex with compound 10 Deposited 2024-07-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–285（285 aa）	Not recorded	A1L2W (~{E})-1-[2,4-bis(oxidanyl)phenyl]-3-(3-bromanyl-4-oxidanyl-phenyl)prop-2-en-1-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, ammonium sulfate, MES pH 6.5	Resolution 1.72 Å R-free 0.211
9MIU Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound MW01-9-039SRM. Deposited 2024-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa）	Not recorded	A1BLJ 6-chloro-N,N-dimethyl-5-(pyridin-4-yl)pyridazin-3-amine × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；Protein: 6.6 mg/ml, 0.25M Sodium chloride, 0.1M Tris-HCl (pH 8.0); Screen: 1.8M Ammomium sulfate, 0.2M Ammonium chloride; Soak: 24h, 1mM MW01-9-039SRM, 10% DMSO, 1.8M Ammonium sulfate, 0.2M Ammonium chloride; Cryo: 1.8M Ammonium sulfate, 25% sucrose.	Resolution 1.90 Å R-free 0.197
9N1T Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound SRM-26-100 Deposited 2025-01-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa）	Not recorded	SO4 SULFATE ION × 1 A1BU8 3-(4-methylpiperazin-1-yl)-5-(pyridin-4-yl)pyridazine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；Protein: 6.6 mg/ml, 0.25M Sodium chloride, 0.1M Tris-HCl (pH 8.0); Screen: 1.8M Ammomium sulfate, 0.2M Ammonium chloride; Soak: 24h, 1mM SRM-25-071, 10% DMSO, 1.8M Ammonium sulfate, 0.2M Ammonium chloride; Cryo: 1.8M Ammonium sulfate, 25% sucrose.	Resolution 1.43 Å R-free 0.176
9N2M Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound MW01-30-047SRM Deposited 2025-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa）	Not recorded	SO4 SULFATE ION × 1 A1BVM 5-(pyridin-4-yl)-3-[4-(pyridin-4-yl)piperazin-1-yl]pyridazine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2M LiSO4, 5% DMSO	Resolution 1.35 Å R-free 0.177
9N2O Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound MW01-27-040SRM Deposited 2025-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa）	Not recorded	A1BVL 5-(pyridin-4-yl)-3-[4-(pyrimidin-2-yl)piperazin-1-yl]pyridazine × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；3.6M Ammonium Sulfate	Resolution 1.49 Å R-free 0.191
9O73 Crystal Structure of Human DAPK1 Catalytic Subunit Complexed with Compound MW01-30-035SRM Deposited 2025-04-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–285（284 aa） Fragment：protein kinase domain (UNP residues 2-285)	Not recorded	86Q 5,6-Dihydro-benzo[H]cinnolin-3-ylamine × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；2M LiSO4, 5mM MW01-30-035SRM	Resolution 1.49 Å R-free 0.191

77 other PDB entries and 80 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DAPK1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–285； UniProt 1–285 Author chain B； PDBConstruct 1–285； UniProt 1–285 Author chain C； PDBConstruct 1–285； UniProt 1–285 Author chain D； PDBConstruct 1–285； UniProt 1–285

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

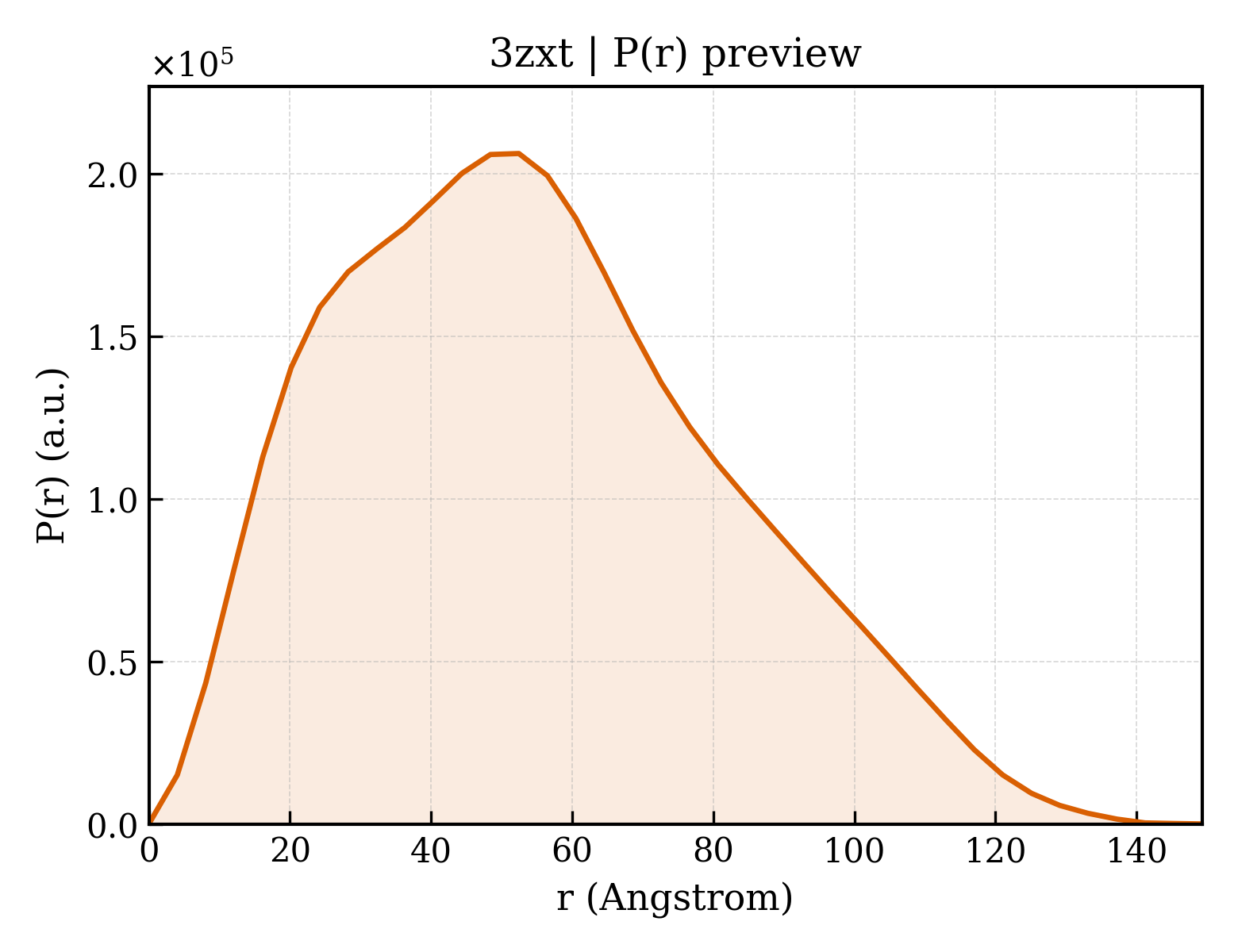

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3zxt
Deposition date deposition_date	2011-08-15
Structure title title	Dimeric structure of DAPK-1 catalytic domain in complex with AMPPCP- Mg
Keywords keywords	APOPTOSIS, TRANSFERASE, ATP BINDING; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.81 Å
Radius of gyration Rg (electron density) rg_electron	42.76 Å
Forward intensity I(0) i0	179654000.00
Molecular weight molecular_weight	110530.0 kDa
Excluded volume excluded_volume	138740 Å³
Envelope volume envelope_volume	202210 Å³
Hydration-shell volume shell_volume	42309 Å³
Envelope diameter envelope_diameter	149.6 Å
Shell Rg shell_rg	44.09 Å
Envelope Rg envelope_rg	41.61 Å
Shape Rg shape_rg	42.78 Å
Total Rg total_rg	42.78 Å
Total atoms total_atoms	7804
Residues n_residues	1006
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	149.3 Å
Rg (real space) rg_real	43.06 Å
Rg uncertainty (real space) rg_real_error	1.71 Å
I(0) (real space) i0_real	1.7970e+08
I(0) uncertainty (real space) i0_real_error	3.4330e+06
Rg (reciprocal space) rg_reciprocal	42.82 Å
I(0) (reciprocal space) i0_reciprocal	179600000.0000
Solution quality estimate total_estimate	0.8555
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	52.4 Å
Skewness Skewness skewness	0.411
Kurtosis Kurtosis kurtosis	-0.442
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11010000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.857; Smooth: 0.838

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DEATH-ASSOCIATED PROTEIN KINASE 1
Molecular weight formula_weight	32725.3 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7932

MTVFRQENVDDYYDTGEELGSGQFAVVKKCREKSTGLQYAAKFIKKRRTKSSRRGVSREDIEREVSILKEIQHPNVITLHEVYENKTDVILILELVAGGELFDFLAEKESLTEEEATEFLKQILNGVYYLHSLQIAHFDLKPENIMLLDRNVPKPRIKIIDFGLAHKIDFGNEFKNIFGTPEFVAPEIVNYEPLGLEADMWSIGVITYILLSGASPFLGDTKQETLANVSAVNYEFEDEYFSNTSALAKDFIRRLLVKDPKKRMTIQDSLQHPWIKPKDTQQALS

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER
Molecular weight formula_weight	505.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3zxta_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d3zxtb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d3zxtc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d3zxtd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (8 domains)

Domain ID domain_id	3zxtA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3zxtA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3zxtB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3zxtB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3zxtC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3zxtC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3zxtD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3zxtD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	83.407 Å
Unit-cell length b length_b	76.578 Å
Unit-cell length c length_c	106.892 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.01 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	106.830 Å
R factor r_factor	0.2195
R_work r_work	0.2160
R_free r_free	0.2846

fit	/app/data/saxs_computation/zx/3zxt/3zxt.fit
pddf	/app/data/pr_computation/zx/3zxt/3zxt.pr.out
profile	/app/data/saxs_computation/zx/3zxt/3zxt.dat
