8odz

Cryo-EM structure of a pre-dimerized murine IL-12 complete extracellular signaling complex (Class 1).

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-12 subunit alpha

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	Interleukin-12 subunit beta × 1 （P43432） Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1 × 1 （P53355,Q60837） Interleukin-12 receptor subunit beta-2,Calmodulin-1 × 1 （P0DP23,P97378） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IL12A_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–193； UniProt 23–215

Interleukin-12 subunit beta

Mus musculus

UniProt P43432

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	Interleukin-12 subunit alpha × 1 （P43431） Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1 × 1 （P53355,Q60837） Interleukin-12 receptor subunit beta-2,Calmodulin-1 × 1 （P0DP23,P97378） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IL12B_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–313； UniProt 23–335

Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1

Mus musculus

UniProt P53355

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	Interleukin-12 subunit alpha × 1 （P43431） Interleukin-12 subunit beta × 1 （P43432） Interleukin-12 receptor subunit beta-2,Calmodulin-1 × 1 （P0DP23,P97378） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DAPK1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 553–572； UniProt 300–319

Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1

Mus musculus

UniProt Q60837

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	Interleukin-12 subunit alpha × 1 （P43431） Interleukin-12 subunit beta × 1 （P43432） Interleukin-12 receptor subunit beta-2,Calmodulin-1 × 1 （P0DP23,P97378） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I12R1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–542； UniProt 20–561

Interleukin-12 receptor subunit beta-2,Calmodulin-1

Mus musculus

UniProt P0DP23

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	Interleukin-12 subunit alpha × 1 （P43431） Interleukin-12 subunit beta × 1 （P43432） Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1 × 1 （P53355,Q60837） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CALM1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 625–769； UniProt 5–149

Interleukin-12 receptor subunit beta-2,Calmodulin-1

Mus musculus

UniProt P97378

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	Interleukin-12 subunit alpha × 1 （P43431） Interleukin-12 subunit beta × 1 （P43432） Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1 × 1 （P53355,Q60837） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I12R2_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–614； UniProt 24–637

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8odz
Deposition date deposition_date	2023-03-10
Structure title title	Cryo-EM structure of a pre-dimerized murine IL-12 complete extracellular signaling complex (Class 1).
Keywords keywords	Complex, Cytokine, Receptor, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8odz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8odz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

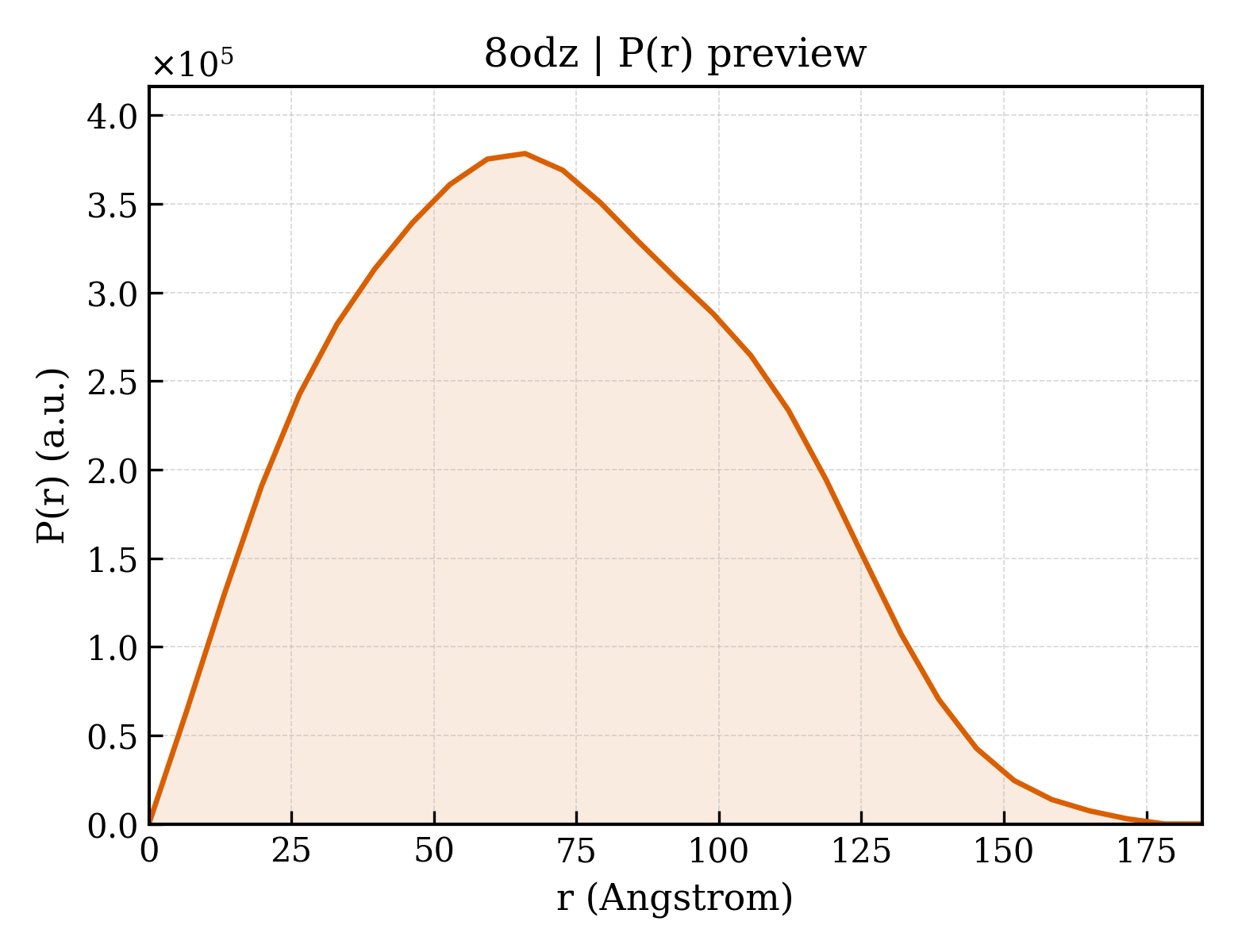

8odz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.94 Å
Rg (electron density)	55.85 Å
Total Rg	55.75 Å
Atom count	12099
Residues	1516
Excluded volume	214150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8odz__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Interleukin-12 subunit alpha
Molecular weight formula_weight	25927.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	12100

RVIPVSGPARCLSQSRNLLKTTDDMVKTAREKLKHYSCTAEDIDHEDITRDQTSTLKTCLPLELHKNESCLATRETSSTTRGSCLPPQKTSLMMTLCLGSIYEDLKMYQTEFQAINAALQNHNHQQIILDKGMLVAIDELMQSLNHNGETLRQKPPVGEADPYRVKMKLCILLHAFSTRVVTINRVMGYLSSAGTSDEVDGGSGGSGLNDIFEAQKIEWHEGRTKHHHHHH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Interleukin-12 subunit beta
Molecular weight formula_weight	35837.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MWELEKDVYVVEVDWTPDAPGETVNLTCDTPEEDDITWTSDQRHGVIGSGKTLTITVKEFLDAGQYTCHKGGETLSHSHLLLHKKENGIWSTEILKNFKNKTFLKCEAPNYSGRFTCSWLVQRNMDLKFNIKSSSSSPDSRAVTCGMASLSAEKVTLDQRDYEKYSVSCQEDVTCPTAEETLPIELALEARQQNKYENYSTSFFIRDIIKPDPPKNLQMKPLKNSQVEVSWEYPDSWSTPHSYFSLKFFVRIQRKKEKMKETEEGCNQKGAFLVEKTSTEVQCKGGNVCVQAQDRYYNSSCSKWACVPCRVRS

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Interleukin-12 receptor subunit beta-1,Death-associated protein kinase 1
Molecular weight formula_weight	63789.2 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QLGASGPGDGCCVEKTSFPEGASGSPLGPRNLSCYRVSKTDYECSWQYDGPEDNVSHVLWCCFVPPNHTHTGQERCRYFSSGPDRTVQFWEQDGIPVLSKVNFWVESRLGNRTMKSQKISQYLYNWTKTTPPLGHIKVSQSHRQLRMDWNVSEEAGAEVQFRRRMPTTNWTLGDCGPQVNSGSGVLGDIRGSMSESCLCPSENMAQEIQIRRRRRLSSGAPGGPWSDWSMPVCVPPEVLPQAKIKFLVEPLNQGGRRRLTMQGQSPQLAVPEGCRGRPGAQVKKHLVLVRMLSCRCQAQTSKTVPLGKKLNLSGATYDLNVLAKTRFGRSTIQKWHLPAQELTETRALNVSVGGNMTSMQWAAQAPGTTYCLEWQPWFQHRNHTHCTLIVPEEEDPAKMVTHSWSSKPTLEQEECYRITVFASKNPKNPMLWATVLSSYYFGGNASRAGTPRHVSVRNQTGDSVSVEWTASQLSTCPGVLTQYVVRCEAEDGAWESEWLVPPTKTQVTLDGLRSRVMYKVQVRADTARLPGAWSHPQRFSFEGTGGSGGSGGAARKKWKQSVRLISLCQRLS

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Interleukin-12 receptor subunit beta-2,Calmodulin-1
Molecular weight formula_weight	85723.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

NIDVCKLGTVTVQPAPVIPLGSAANISCSLNPKQGCSHYPSSNELILLKFVNDVLVENLHGKKVHDHTGHSSTFQVTNLSLGMTLFVCKLNCSNSQKKPPVPVCGVEISVGVAPEPPQNISCVQEGENGTVACSWNSGKVTYLKTNYTLQLSGPNNLTCQKQCFSDNRQNCNRLDLGINLSPDLAESRFIVRVTAINDLGNSSSLPHTFTFLDIVIPLPPWDIRINFLNASGSRGTLQWEDEGQVVLNQLRYQPLNSTSWNMVNATNAKGKYDLRDLRPFTEYEFQISSKLHLSGGSWSNWSESLRTRTPEEEPVGILDIWYMKQDIDYDRQQISLFWKSLNPSEARGKILHYQVTLQEVTKKTTLQNTTRHTSWTRVIPRTGAWTASVSAANSKGASAPTHINIVDLCGTGLLAPHQVSAKSENMDNILVTWQPPKKADSAVREYIVEWRALQPGSITKFPPHWLRIPPDNMSALISENIKPYICYEIRVHALSESQGGCSSIRGDSKHKAPVSGPHITAITEKKERLFISWTHIPFPEQRGCILHYRIYWKERDSTAQPELCEIQYRRSQNSHPISSLQPRVTYVLWMTAVTAAGESPQGNEREFCPQGKANGTGGSGGSGGLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	5

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	268498

Cryo-EM structure of a pre-dimerized murine IL-12 complete extracellular signaling complex (Class 1).
