4gi0

Crystal structure of CD23 lectin domain mutant E249A

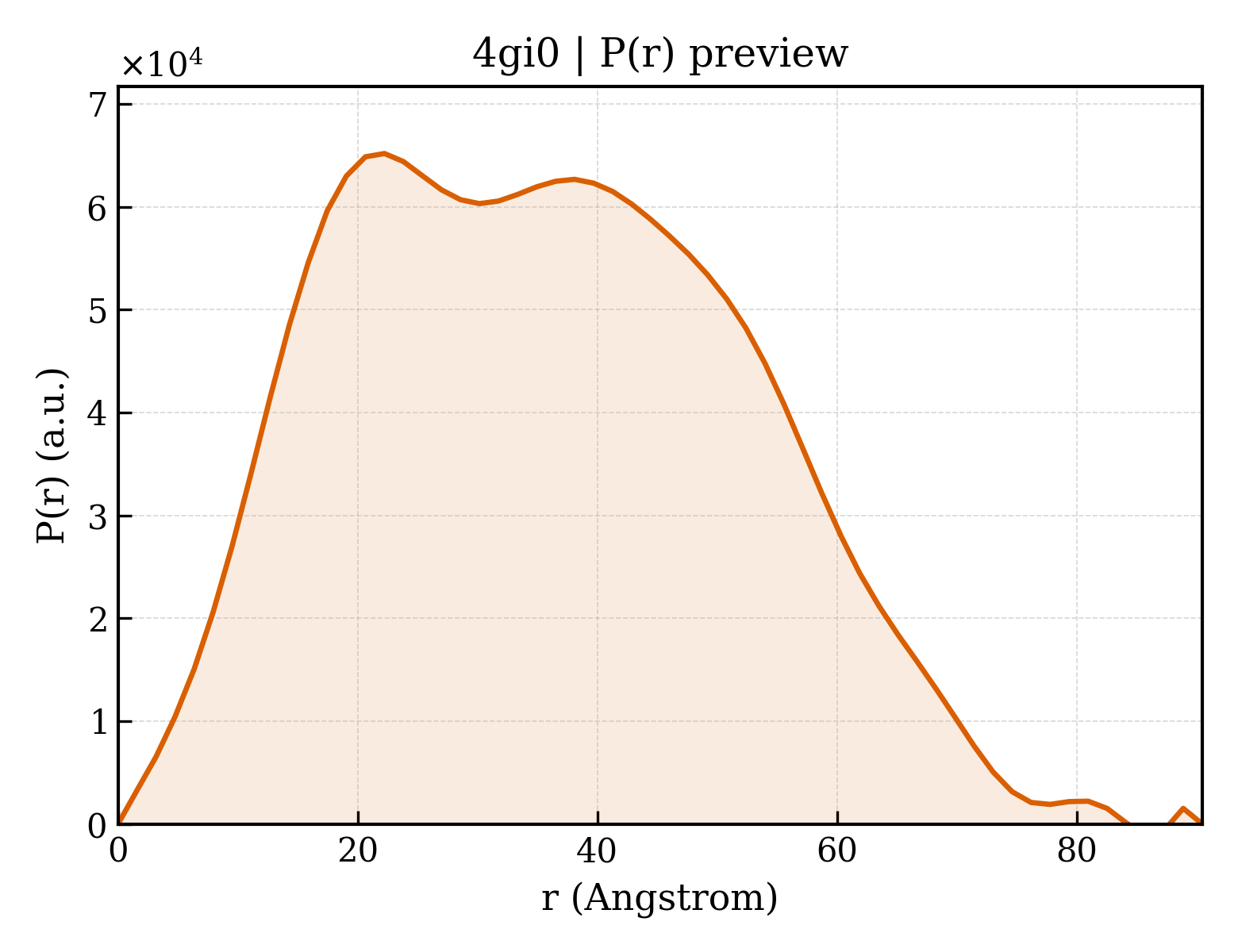

Method: X-RAY DIFFRACTION Dmax: 90.5 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Low affinity immunoglobulin epsilon Fc receptor

Homo sapiens

UniProt P06734

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 156–298 Chain B； UniProt 156–298 Chain C； UniProt 156–298 Fragment：UNP residues 156-298 Mutation：E249A GOL GLYCEROL × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2M potassium thiocyanate, 0.1M bis tris propane pH 8.5, 20% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 291K Resolution 2.27 Å R-free 0.251

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4GI0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1T8C Structure of the C-type lectin domain of CD23 Deposited 2004-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：derCD23
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 162 mM；Pressure 1
NMR sample composition 25mM Tris, 125mM NaCl, 4mM CaCl2, 0.02% NaN3, 2mM soluble CD23
Resolution not provided
1T8D Structure of the C-type lectin domain of CD23 Deposited 2004-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：derCD23
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 162 mM；Pressure 1
NMR sample composition 25 mM Tris, 125 mM NaCl, 4 mM CaCl2, 0.02% NaN3, 2 mM [U-100% 13C; U-100% 15N] soluble CD23
Resolution not provided
2H2R Crystal structure of the human CD23 Lectin domain, apo form Deposited 2006-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 150–321（172 aa） Fragment：lectin domain
Chain B 150–321（172 aa） Fragment：lectin domain
Mutation：H213R, G256S Mutation：H213R, G256S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；1.2 M sodium monobasic phosphate, 0.8 M potassium dibasic phosphate, 0.1 M Caps buffer pH 10.5, and 0.2 M lithium sulfate; final pH 6.2 , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.50 Å R-free 0.165
2H2T CD23 Lectin domain, Calcium 2+-bound Deposited 2006-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 150–321（172 aa） Fragment：lectin domain
Mutation：H213R, G256S CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；17% (w/v) PEG 4000, 100 mM Mes buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.30 Å R-free 0.200
4EZM Crystal structure of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298
Chain H 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；3% PEG 8,000, 0.1 M Tris-HCl pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 3.10 Å R-free 0.283
4EZM Crystal structure of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298
Chain J 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298
Not recorded MAN alpha-D-mannopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；3% PEG 8,000, 0.1 M Tris-HCl pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 3.10 Å R-free 0.283
4EZM Crystal structure of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain K 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298
Chain L 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；3% PEG 8,000, 0.1 M Tris-HCl pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 3.10 Å R-free 0.283
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.25 Å R-free 0.236
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.25 Å R-free 0.236
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.25 Å R-free 0.236
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.25 Å R-free 0.236
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.00 Å R-free 0.205
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.00 Å R-free 0.205
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.00 Å R-free 0.205
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.00 Å R-free 0.205
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.95 Å R-free 0.212
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.95 Å R-free 0.212
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.95 Å R-free 0.212
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.95 Å R-free 0.212
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain H 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D258A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.251
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 2 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 1 SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 2 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 1 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 3 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 156–298（143 aa） Fragment：UNP residues 156-298
Mutation：D270A GOL GLYCEROL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.24 Å R-free 0.226
4GKO Crystal structure of the calcium2+-bound human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 156–298（143 aa） Fragment：UNP residues 156-298
Chain H 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2 M sodium acetate trihydrate, 0.1 M Tris pH 8.5, 16% PEG 4000, 10 mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 3.30 Å R-free 0.312
4GKO Crystal structure of the calcium2+-bound human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 156–298（143 aa） Fragment：UNP residues 156-298
Chain J 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded MAN alpha-D-mannopyranose × 2 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2 M sodium acetate trihydrate, 0.1 M Tris pH 8.5, 16% PEG 4000, 10 mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 3.30 Å R-free 0.312
4GKO Crystal structure of the calcium2+-bound human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain K 156–298（143 aa） Fragment：UNP residues 156-298
Chain L 156–298（143 aa） Fragment：UNP residues 156-298
Not recorded CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2 M sodium acetate trihydrate, 0.1 M Tris pH 8.5, 16% PEG 4000, 10 mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 3.30 Å R-free 0.312
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.217
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.217
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.217
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.217
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain H 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.218
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain H 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.15 Å R-free 0.253
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain H 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.48 Å R-free 0.243
4J6N Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form E) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.25；298 K；30 % (w/v) PEG 1,500 and 0.1 M Malic acid: MES: Tris (MMT) buffer pH 4.25, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.85 Å R-free 0.317
4J6N Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form E) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.25；298 K；30 % (w/v) PEG 1,500 and 0.1 M Malic acid: MES: Tris (MMT) buffer pH 4.25, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.85 Å R-free 0.317
4J6P Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.214
4J6P Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.214
4J6P Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.214
4J6P Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.214
4J6Q Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form G) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；3.7 M NaCl and 0.1 M citric acid pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.54 Å R-free 0.239
4J6Q Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form G) Deposited 2013-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；3.7 M NaCl and 0.1 M citric acid pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.54 Å R-free 0.239
4KI1 Primitive triclinic crystal form of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2013-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298
Chain F 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；26 % (w/v) PEG 1,500 and 20 % (v/v) glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 3.20 Å R-free 0.266
4KI1 Primitive triclinic crystal form of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2013-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298
Chain H 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；26 % (w/v) PEG 1,500 and 20 % (v/v) glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 3.20 Å R-free 0.266
5LGK Crystal structure of the human IgE-Fc bound to its B cell receptor derCD23 Deposited 2016-07-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 165–284（120 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；15% (w/v) PEG 8,000, 0.1 M sodium citrate, 0.05 M ammonium sulfate
Resolution 3.50 Å R-free 0.278
5LGK Crystal structure of the human IgE-Fc bound to its B cell receptor derCD23 Deposited 2016-07-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 165–284（120 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；15% (w/v) PEG 8,000, 0.1 M sodium citrate, 0.05 M ammonium sulfate
Resolution 3.50 Å R-free 0.278
6Y0L Crystal structure of human CD23 lectin domain N225D, K229E, S252N, T251N, R253G, S254G mutant Deposited 2020-02-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa）
Mutation：N225D, K229E, S252N, T251N, R253G, S254G GOL GLYCEROL × 3 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2.0M ammonium sulphate, 0.2M sodium chloride, 0.1M sodium-cacodylate, 8mM CaCl2
Resolution 1.65 Å R-free 0.205
6Y0M Crystal structure of human CD23 lectin domain N225D, K229E, S252N, T251N mutant Deposited 2020-02-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 156–298（143 aa）
Mutation：N225D, K229E, S252N, T251N No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M sodium-cacodylate pH 6.5, 1M tri-sodium-citrate Crystals were soaked with a solution of 0.1M sodium-cacodylate at pH 7.1, 1.4M tri-sodium-citrate and 10mM CaCl2 for four days before harvesting which also served as a cryoprotectant.
Resolution 1.50 Å R-free 0.212

22 other PDB entries and 79 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FCER2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–143； UniProt 156–298 Author chain B； PDBConstruct 1–143； UniProt 156–298 Author chain C； PDBConstruct 1–143； UniProt 156–298

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 4gi0

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 4gi0
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id4gi0
Deposition date deposition_date2012-08-08
Structure title titleCrystal structure of CD23 lectin domain mutant E249A
Keywords keywordsReceptor, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier27.64 Å
Radius of gyration Rg (electron density) rg_electron27.03 Å
Forward intensity I(0) i038946800.00
Molecular weight molecular_weight45629.0 kDa
Excluded volume excluded_volume55856 ų
Envelope volume envelope_volume72957 ų
Hydration-shell volume shell_volume23704 ų
Envelope diameter envelope_diameter97.9 Å
Shell Rg shell_rg32.46 Å
Envelope Rg envelope_rg26.91 Å
Shape Rg shape_rg27.03 Å
Total Rg total_rg27.61 Å
Total atoms total_atoms3203
Residues n_residues400
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax90.5 Å
Rg (real space) rg_real27.66 Å
Rg uncertainty (real space) rg_real_error0.81 Å
I(0) (real space) i0_real3.8950e+07
I(0) uncertainty (real space) i0_real_error6.0380e+05
Rg (reciprocal space) rg_reciprocal27.66 Å
I(0) (reciprocal space) i0_reciprocal38950000.0000
Solution quality estimate total_estimate0.8013
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks4
Primary peak position r_peak_primary22.2 Å
Skewness Skewness skewness0.224
Kurtosis Kurtosis kurtosis-0.680
Angular range angular_range— – 0.2850 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha11450000.0000
Real-space data points n_real_points58
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.845; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.883; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_idd4gi0a_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.0 — automated matches
Domain ID domain_idd4gi0b_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.0 — automated matches
Domain ID domain_idd4gi0c_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.0 — automated matches

CATH v4.4 (3 domains)

Domain ID domain_id4gi0A01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
Domain ID domain_id4gi0B01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
Domain ID domain_id4gi0C01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
▶

8. Citations (1)

▶

9. Files and Curves (10)
