4j6p

Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F)

Method: X-RAY DIFFRACTION D_max: 86.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Low affinity immunoglobulin epsilon Fc receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 156–298	Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.214
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 156–298	Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.214
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 156–298	Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.214
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 156–298	Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.75；298 K；22.5 % (w/v) PEG 4,000 and 0.1 M sodium citrate pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.214

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4J6P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1T8C Structure of the C-type lectin domain of CD23 Deposited 2004-05-12	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：derCD23	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 162 mM；Pressure 1 NMR sample composition 25mM Tris, 125mM NaCl, 4mM CaCl2, 0.02% NaN3, 2mM soluble CD23	Resolution not provided
1T8D Structure of the C-type lectin domain of CD23 Deposited 2004-05-12	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：derCD23	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 162 mM；Pressure 1 NMR sample composition 25 mM Tris, 125 mM NaCl, 4 mM CaCl2, 0.02% NaN3, 2 mM [U-100% 13C; U-100% 15N] soluble CD23	Resolution not provided
2H2R Crystal structure of the human CD23 Lectin domain, apo form Deposited 2006-05-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 150–321（172 aa） Fragment：lectin domain Chain B 150–321（172 aa） Fragment：lectin domain	Mutation：H213R, G256S Mutation：H213R, G256S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；1.2 M sodium monobasic phosphate, 0.8 M potassium dibasic phosphate, 0.1 M Caps buffer pH 10.5, and 0.2 M lithium sulfate; final pH 6.2 , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.165
2H2T CD23 Lectin domain, Calcium 2+-bound Deposited 2006-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 150–321（172 aa） Fragment：lectin domain	Mutation：H213R, G256S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；17% (w/v) PEG 4000, 100 mM Mes buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.30 Å R-free 0.200
4EZM Crystal structure of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-05-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298 Chain H 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；3% PEG 8,000, 0.1 M Tris-HCl pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.10 Å R-free 0.283
4EZM Crystal structure of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298 Chain J 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298	Not recorded	MAN alpha-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；3% PEG 8,000, 0.1 M Tris-HCl pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.10 Å R-free 0.283
4EZM Crystal structure of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-05-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298 Chain L 156–298（143 aa） Fragment：Human derCD23, UNP residues 156-298	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；3% PEG 8,000, 0.1 M Tris-HCl pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.10 Å R-free 0.283
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.25 Å R-free 0.236
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.25 Å R-free 0.236
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.25 Å R-free 0.236
4G96 Crystal structure of calcium2+-free wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.25 Å R-free 0.236
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.00 Å R-free 0.205
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.00 Å R-free 0.205
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.00 Å R-free 0.205
4G9A Crystal structure of calcium2+-bound wild-type CD23 lectin domain Deposited 2012-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.00 Å R-free 0.205
4GI0 Crystal structure of CD23 lectin domain mutant E249A Deposited 2012-08-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 156–298（143 aa） Fragment：UNP residues 156-298 Chain B 156–298（143 aa） Fragment：UNP residues 156-298 Chain C 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：E249A Mutation：E249A Mutation：E249A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2M potassium thiocyanate, 0.1M bis tris propane pH 8.5, 20% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.27 Å R-free 0.251
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.95 Å R-free 0.212
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.95 Å R-free 0.212
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.95 Å R-free 0.212
4GJ0 Crystal structure of CD23 lectin domain mutant S252A Deposited 2012-08-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；291 K；18.5% PEG 6000, 2% 1,6-hexanediol, 0.05M ammonium sulphate, 0.1M sodium acetate pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.95 Å R-free 0.212
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GJX Crystal structure of CD23 lectin domain mutant D258A Deposited 2012-08-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；291 K；18% ethanol, 4% PEG 400, 0.1 M sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.251
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 2 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 3 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GK1 Crystal structure of CD23 lectin domain mutant D270A Deposited 2012-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 156–298（143 aa） Fragment：UNP residues 156-298	Mutation：D270A	GOL GLYCEROL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG 4000, 0.3M ammonium sulphate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.24 Å R-free 0.226
4GKO Crystal structure of the calcium2+-bound human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 156–298（143 aa） Fragment：UNP residues 156-298 Chain H 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2 M sodium acetate trihydrate, 0.1 M Tris pH 8.5, 16% PEG 4000, 10 mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 3.30 Å R-free 0.312
4GKO Crystal structure of the calcium2+-bound human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 156–298（143 aa） Fragment：UNP residues 156-298 Chain J 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	MAN alpha-D-mannopyranose × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2 M sodium acetate trihydrate, 0.1 M Tris pH 8.5, 16% PEG 4000, 10 mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 3.30 Å R-free 0.312
4GKO Crystal structure of the calcium2+-bound human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2012-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 156–298（143 aa） Fragment：UNP residues 156-298 Chain L 156–298（143 aa） Fragment：UNP residues 156-298	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.2 M sodium acetate trihydrate, 0.1 M Tris pH 8.5, 16% PEG 4000, 10 mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 3.30 Å R-free 0.312
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.217
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.217
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.217
4J6J Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form A) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；298 K；16 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.7 , VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.217
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6K Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form B) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；18 % (w/v) PEG 6,000, 2 % (v/v) 1,6-hexanediol, 0.05 M ammonium sulfate and 0.1 M sodium acetate pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.218
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6L Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form C) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；25 % (w/v) PEG 4,000, 0.15 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.15 Å R-free 0.253
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6M Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form D) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；22.5 % (w/v) PEG 3,350, 0.2 M ammonium sulfate and 0.1 M MES pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.48 Å R-free 0.243
4J6N Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form E) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.25；298 K；30 % (w/v) PEG 1,500 and 0.1 M Malic acid: MES: Tris (MMT) buffer pH 4.25, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.85 Å R-free 0.317
4J6N Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form E) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.25；298 K；30 % (w/v) PEG 1,500 and 0.1 M Malic acid: MES: Tris (MMT) buffer pH 4.25, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.85 Å R-free 0.317
4J6Q Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form G) Deposited 2013-02-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；3.7 M NaCl and 0.1 M citric acid pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.54 Å R-free 0.239
4J6Q Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form G) Deposited 2013-02-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 156–298（143 aa） Fragment：Soluble head domain of the B-cell receptor CD23 (UNP Residues 156-298)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；298 K；3.7 M NaCl and 0.1 M citric acid pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.54 Å R-free 0.239
4KI1 Primitive triclinic crystal form of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2013-05-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298 Chain F 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；26 % (w/v) PEG 1,500 and 20 % (v/v) glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 3.20 Å R-free 0.266
4KI1 Primitive triclinic crystal form of the human IgE-Fc(epsilon)3-4 bound to its B cell receptor derCD23 Deposited 2013-05-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298 Chain H 156–298（143 aa） Fragment：HUMAN DERCD23, UNP residues 156-298	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；26 % (w/v) PEG 1,500 and 20 % (v/v) glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 3.20 Å R-free 0.266
5LGK Crystal structure of the human IgE-Fc bound to its B cell receptor derCD23 Deposited 2016-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 165–284（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；15% (w/v) PEG 8,000, 0.1 M sodium citrate, 0.05 M ammonium sulfate	Resolution 3.50 Å R-free 0.278
5LGK Crystal structure of the human IgE-Fc bound to its B cell receptor derCD23 Deposited 2016-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 165–284（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；15% (w/v) PEG 8,000, 0.1 M sodium citrate, 0.05 M ammonium sulfate	Resolution 3.50 Å R-free 0.278
6Y0L Crystal structure of human CD23 lectin domain N225D, K229E, S252N, T251N, R253G, S254G mutant Deposited 2020-02-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa）	Mutation：N225D, K229E, S252N, T251N, R253G, S254G	GOL GLYCEROL × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2.0M ammonium sulphate, 0.2M sodium chloride, 0.1M sodium-cacodylate, 8mM CaCl2	Resolution 1.65 Å R-free 0.205
6Y0M Crystal structure of human CD23 lectin domain N225D, K229E, S252N, T251N mutant Deposited 2020-02-09	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–298（143 aa）	Mutation：N225D, K229E, S252N, T251N	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M sodium-cacodylate pH 6.5, 1M tri-sodium-citrate Crystals were soaked with a solution of 0.1M sodium-cacodylate at pH 7.1, 1.4M tri-sodium-citrate and 10mM CaCl2 for four days before harvesting which also served as a cryoprotectant.	Resolution 1.50 Å R-free 0.212

22 other PDB entries and 76 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FCER2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–143； UniProt 156–298 Author chain B； PDBConstruct 1–143； UniProt 156–298 Author chain C； PDBConstruct 1–143； UniProt 156–298 Author chain D； PDBConstruct 1–143； UniProt 156–298

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

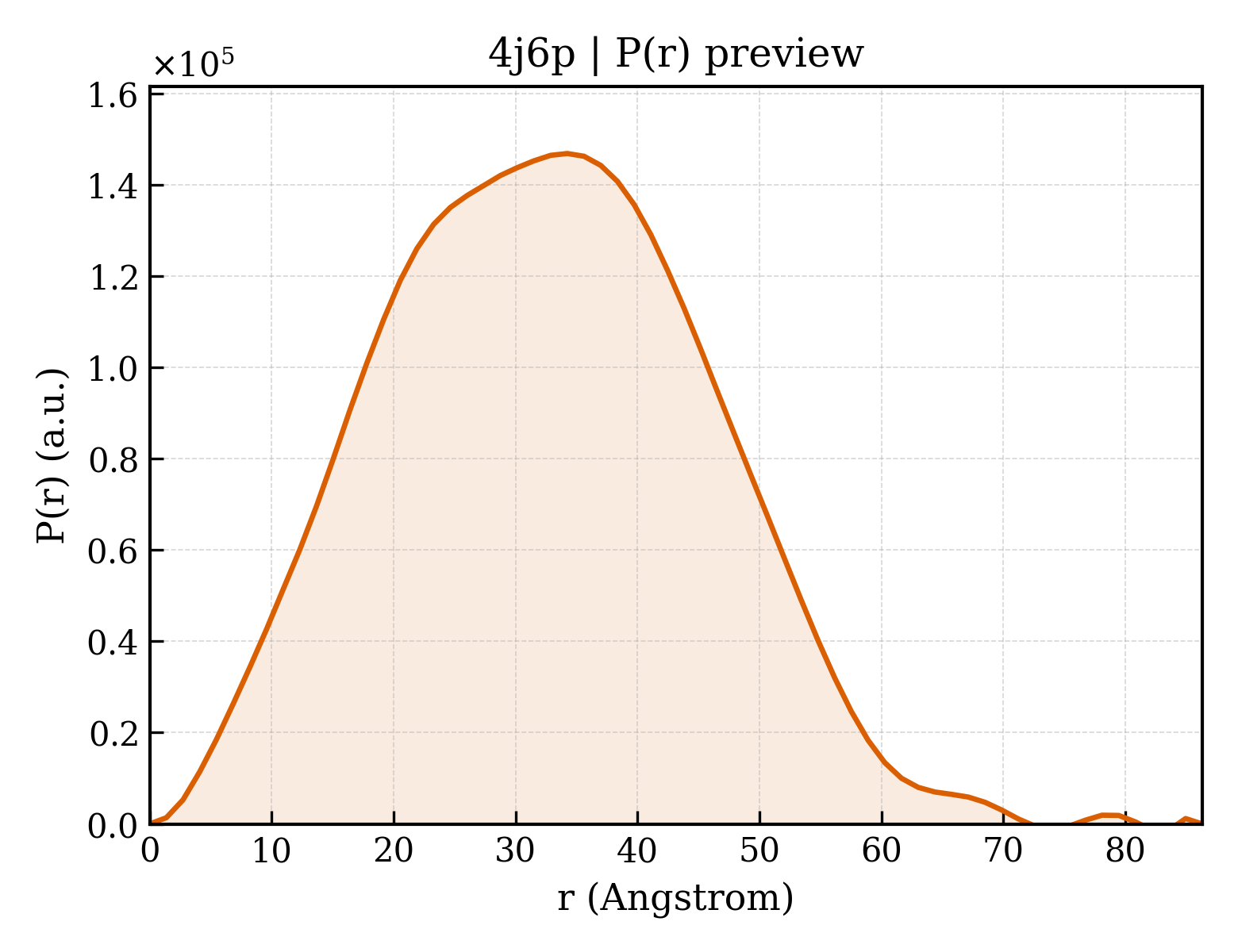

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4j6p
Deposition date deposition_date	2013-02-11
Structure title title	Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F)
Keywords keywords	immunoglobulin fold lectin, antibody receptor, immune system; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.82 Å
Radius of gyration Rg (electron density) rg_electron	23.98 Å
Forward intensity I(0) i0	66380200.00
Molecular weight molecular_weight	60185.0 kDa
Excluded volume excluded_volume	73707 Å³
Envelope volume envelope_volume	89470 Å³
Hydration-shell volume shell_volume	30508 Å³
Envelope diameter envelope_diameter	88.5 Å
Shell Rg shell_rg	31.79 Å
Envelope Rg envelope_rg	24.32 Å
Shape Rg shape_rg	23.96 Å
Total Rg total_rg	24.86 Å
Total atoms total_atoms	4226
Residues n_residues	526
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.3 Å
Rg (real space) rg_real	24.64 Å
Rg uncertainty (real space) rg_real_error	0.82 Å
I(0) (real space) i0_real	6.6380e+07
I(0) uncertainty (real space) i0_real_error	1.1120e+06
Rg (reciprocal space) rg_reciprocal	24.69 Å
I(0) (reciprocal space) i0_reciprocal	66380000.0000
Solution quality estimate total_estimate	0.7784
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	34.2 Å
Skewness Skewness skewness	0.134
Kurtosis Kurtosis kurtosis	-0.440
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17140000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.716; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4j6pa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d4j6pb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d4j6pc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d4j6pd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

CATH v4.4 (4 domains)

Domain ID domain_id	4j6pA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	4j6pB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	4j6pC01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	4j6pD01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.670 Å
Unit-cell length b length_b	89.920 Å
Unit-cell length c length_c	101.240 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	27.820 Å
R factor r_factor	0.1873
R_work r_work	0.1858
R_free r_free	0.2137

Description description	Low affinity immunoglobulin epsilon Fc receptor
Molecular weight formula_weight	16165.0 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4531

Crystal structure of calcium2+-free wild-type CD23 lectin domain (crystal form F)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Low affinity immunoglobulin epsilon Fc receptor

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	275

fit	/app/data/saxs_computation/j6/4j6p/4j6p.fit
pddf	/app/data/pr_computation/j6/4j6p/4j6p.pr.out
profile	/app/data/saxs_computation/j6/4j6p/4j6p.dat
