SAXSdb — 4hv7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ricin

Ricinus communis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-[2-[(2-azanyl-4-oxidanylidene-1H-pteridin-7-yl)carbonylamino]ethanoylamino]ethanoic acid × 1 SULFATE ION × 1 MALONIC ACID × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	2-[2-[(2-azanyl-4-oxidanylidene-1H-pteridin-7-yl)carbonylamino]ethanoylamino]ethanoic acid × 2 SULFATE ION × 2 MALONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RICI_RICCO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–267； UniProt 36–302

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4hv7
Deposition date deposition_date	2012-11-05
Structure title title	Structure of ricin A chain bound with N-(N-(pterin-7-yl)carbonylglycyl)glycine
Keywords keywords	;RICIN, PROTEIN-LIGAND COMPLEX, PTERIN, HYDROLASE-HYDROLASE INHIBITOR COMPLEX, TOXIN, HYDROLASE, RIBOSOME-INACTIVATING PROTEIN, N-GLYCOSIDASE ;; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4hv7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4hv7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

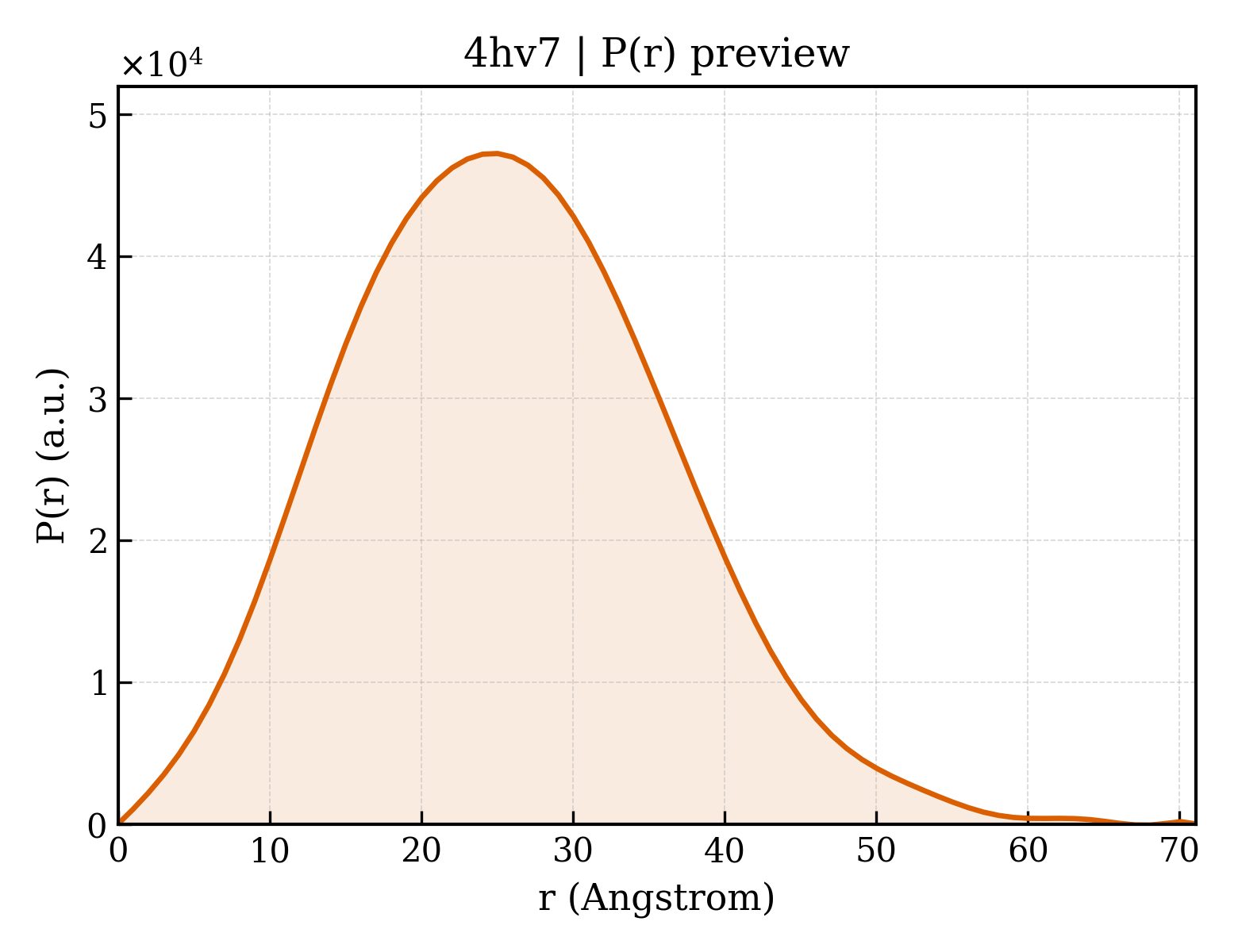

4hv7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.69 Å
Rg (electron density)	18.44 Å
Total Rg	19.33 Å
Atom count	2117
Residues	263
Excluded volume	37231 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4hv7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4hv7__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ricin
Molecular weight formula_weight	29936.8 kDa
EC 编号 ec_number	3.2.2.22
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	2419

IFPKQYPIINFTTAGATVQSYTNFIRAVRGRLTTGADVRHEIPVLPNRVGLPINQRFILVELSNHAELSVTLALDVTNAYVVGYRAGNSAYFFHPDNQEDAEAITHLFTDVQNRYTFAFGGNYDRLEQLAGNLRENIELGNGPLEEAISALYYYSTGGTQLPTLARSFIICIQMISEAARFQYIEGEMRTRIRYNRRSAPDPSVITLENSWGRLSTAIQESNQGAFASPIQLQRRNGSKFSVYDVSILIPIIALMVYRCAPPPSSQF

Source Source

Source organism organism	Ricinus communis
Common name common_name	Castor bean
NCBI taxonomy ID ncbi_taxonomy_id	3988
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	2-[2-[(2-azanyl-4-oxidanylidene-1H-pteridin-7-yl)carbonylamino]ethanoylamino]ethanoic acid
Molecular weight formula_weight	321.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MALONIC ACID
Molecular weight formula_weight	104.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	283

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4hv7x_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.165 — Ribosome inactivating proteins (RIP)
Superfamily Superfamily superfamily	d.165.1 — Ribosome inactivating proteins (RIP)
Family Family family	d.165.1.1 — Plant cytotoxins

CATH v4.4 (2 domains)

Domain ID domain_id	4hv7X01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	420 — Ricin (A subunit); domain 1
Homologous superfamily homologous superfamily	10 — Ricin (A subunit), domain 1

Domain ID domain_id	4hv7X02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	470 — Ricin (A Subunit), domain 2
Homologous superfamily homologous superfamily	10 — Ricin (A Subunit), domain 2

▶

Unit-cell length a length_a	68.196 Å
Unit-cell length b length_b	68.196 Å
Unit-cell length c length_c	140.844 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.869 Å
Low-resolution limit resolution_low	48.990 Å
R factor r_factor	0.2039
R_work r_work	0.2021
R_free r_free	0.2364
