SAXSdb — 4lgp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ricin

Ricinus communis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	VHH1 camelid nanobody × 1 CHLORIDE ION × 1 1,2-ETHANEDIOL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	VHH1 camelid nanobody × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RICI_RICCO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–261； UniProt 36–296 Author chain C； PDBConstruct 1–261； UniProt 36–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4lgp
Deposition date deposition_date	2013-06-28
Structure title title	Ricin A chain bound to camelid nanobody (VHH1)
Keywords keywords	Ribosome inhibiting protein 2, Camelid antibody (VHH), HYDROLASE-IMMUNE SYSTEM complex; HYDROLASE/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4lgp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4lgp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

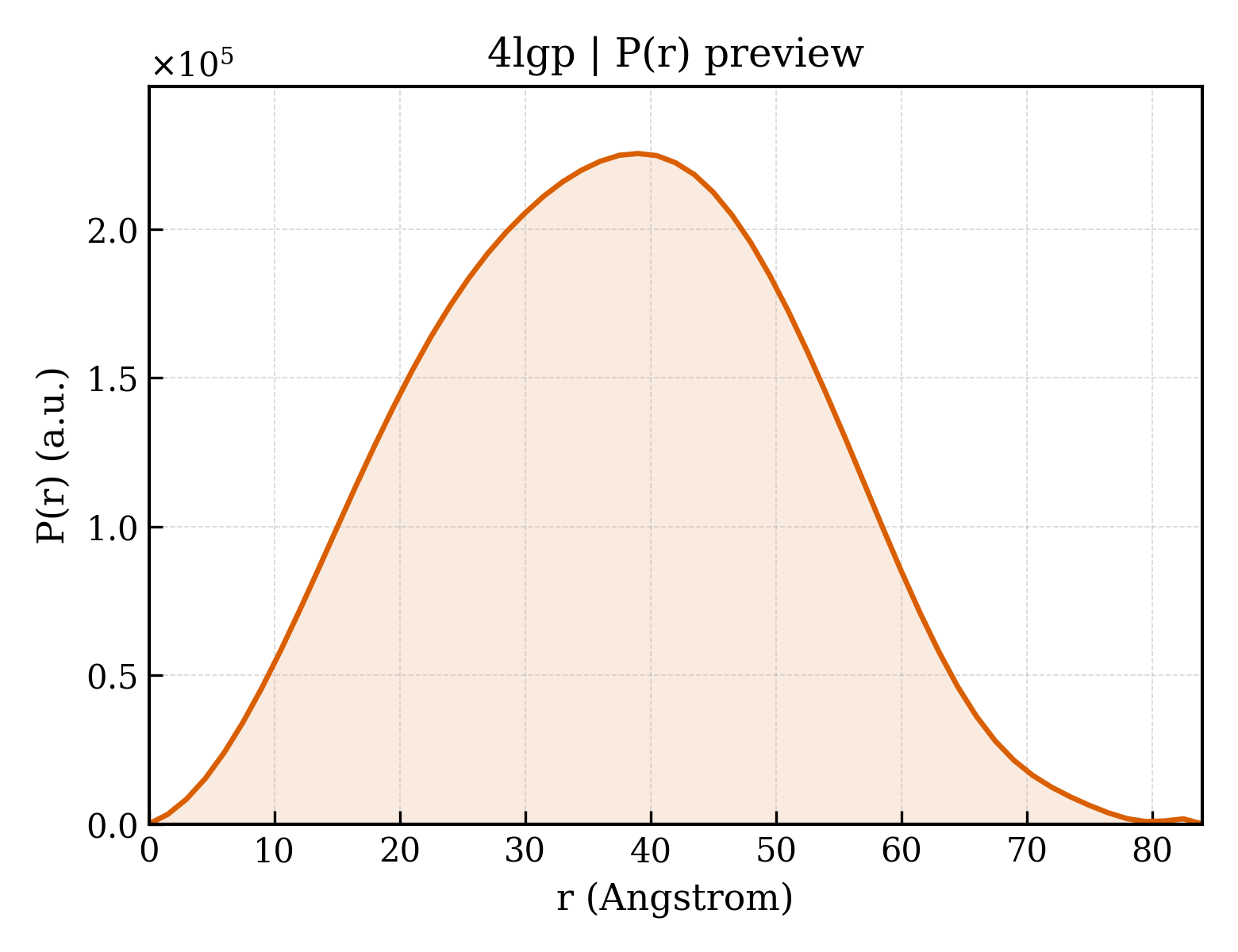

4lgp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.50 Å
Rg (electron density)	22.63 Å
Total Rg	23.48 Å
Atom count	2954
Residues	377
Excluded volume	52198 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4lgp__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4lgp__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ricin
Molecular weight formula_weight	29293.1 kDa
EC 编号 ec_number	3.2.2.22
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6039

IFPKQYPIINFTTAGATVQSYTNFIRAVRGRLTTGADVRHEIPVLPNRVGLPINQRFILVELSNHAELSVTLALDVTNAYVVGYRAGNSAYFFHPDNQEDAEAITHLFTDVQNRYTFAFGGNYDRLEQLAGNLRENIELGNGPLEEAISALYYYSTGGTQLPTLARSFIICIQMISEAARFQYIEGEMRTRIRYNRRSAPDPSVITLENSWGRLSTAIQESNQGAFASPIQLQRRNGSKFSVYDVSILIPIIALMVYRCAP

Source Source

Source organism organism	Ricinus communis
Common name common_name	Castor bean
NCBI taxonomy ID ncbi_taxonomy_id	3988
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	VHH1 camelid nanobody
Molecular weight formula_weight	12536.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

QVQLVETGGGLVQPGGSLTLSCAGSGGTLEHYAIGWFRQAPGKEHEWLVCNRGEYGSTVYVDSVKGRFTASRDNAKNTVYLQLNSLKPDDTGIYYCVSGCYSWRGPWGQGTQVTVS

Source Source

Source organism organism	Vicugna pacos
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	136

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4lgpa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.165 — Ribosome inactivating proteins (RIP)
Superfamily Superfamily superfamily	d.165.1 — Ribosome inactivating proteins (RIP)
Family Family family	d.165.1.1 — Plant cytotoxins

Domain ID domain_id	d4lgpb_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d4lgpc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.165 — Ribosome inactivating proteins (RIP)
Superfamily Superfamily superfamily	d.165.1 — Ribosome inactivating proteins (RIP)
Family Family family	d.165.1.1 — Plant cytotoxins

Domain ID domain_id	d4lgpd_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	4lgpA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	420 — Ricin (A subunit); domain 1
Homologous superfamily homologous superfamily	10 — Ricin (A subunit), domain 1

Domain ID domain_id	4lgpA02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	470 — Ricin (A Subunit), domain 2
Homologous superfamily homologous superfamily	10 — Ricin (A Subunit), domain 2

Domain ID domain_id	4lgpB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4lgpC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	420 — Ricin (A subunit); domain 1
Homologous superfamily homologous superfamily	10 — Ricin (A subunit), domain 1

Domain ID domain_id	4lgpC02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	470 — Ricin (A Subunit), domain 2
Homologous superfamily homologous superfamily	10 — Ricin (A Subunit), domain 2

Domain ID domain_id	4lgpD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	90.168 Å
Unit-cell length b length_b	92.443 Å
Unit-cell length c length_c	93.317 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	46.222 Å
R factor r_factor	0.2278
R_work r_work	0.2249
R_free r_free	0.2805
