SAXSdb — 4jo9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin p54

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 453–491 Chain C； UniProt 453–491	Fragment：UNP residues 453-491	Nucleoporin p58/p45 × 1 （Q9BVL2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 3.8；294 K；0.1 M sodium citrate, pH 3.8, 0.07 M calcium chloride, VAPOR DIFFUSION, temperature 294.0K	Resolution 2.50 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4JO9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4JNU Crystal structure of the human Nup57CCS3* coiled-coil segment, space group P21 Deposited 2013-03-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 453–491（39 aa） Fragment：UNP residues 453-491 Chain B 453–491（39 aa） Fragment：UNP residues 453-491 Chain C 453–491（39 aa） Fragment：UNP residues 453-491 Chain D 453–491（39 aa） Fragment：UNP residues 453-491	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；294 K；0.1 M sodium acetate, pH 5.3, 1.9 M sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.45 Å R-free 0.218
4JNV Crystal structure of the human Nup57CCS3* coiled-coil segment, space group C2 Deposited 2013-03-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 453–491（39 aa） Fragment：UNP residues 453-491 Chain B 453–491（39 aa） Fragment：UNP residues 453-491 Chain C 453–491（39 aa） Fragment：UNP residues 453-491 Chain D 453–491（39 aa） Fragment：UNP residues 453-491	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；294 K；0.1 M sodium acetate, pH 5.3, 1.9 M sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.85 Å R-free 0.277
4JO7 Crystal structure of the human Nup49CCS2+3* Nup57CCS3* complex with 2:2 stoichiometry Deposited 2013-03-17	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 453–491（39 aa） Fragment：UNP residues 453-491 Chain D 453–491（39 aa） Fragment：UNP residues 453-491	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M MES, pH 6.5, 6.7% PEG20000, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 1.75 Å R-free 0.214
4JO7 Crystal structure of the human Nup49CCS2+3* Nup57CCS3* complex with 2:2 stoichiometry Deposited 2013-03-17	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 453–491（39 aa） Fragment：UNP residues 453-491 Chain H 453–491（39 aa） Fragment：UNP residues 453-491	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M MES, pH 6.5, 6.7% PEG20000, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 1.75 Å R-free 0.214
5IJN Composite structure of the inner ring of the human nuclear pore complex (32 copies of Nup205) Deposited 2016-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 208 PDB declaration: 208-meric	Chain F 1–507（507 aa） Chain L 1–507（507 aa） Chain R 1–507（507 aa） Chain X 1–507（507 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 21.40 Å
5IJO Alternative composite structure of the inner ring of the human nuclear pore complex (16 copies of Nup188, 16 copies of Nup205) Deposited 2016-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 208 PDB declaration: 208-meric	Chain F 1–507（507 aa） Chain L 1–507（507 aa） Chain R 1–507（507 aa） Chain X 1–507（507 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 21.40 Å
7PER Model of the inner ring of the human nuclear pore complex Deposited 2021-08-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 192 PDB declaration: 192-meric	Chain F 1–507（507 aa） Chain L 1–507（507 aa） Chain R 1–507（507 aa） Chain X 1–507（507 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE；Cells were grown on holey carbon, Au-mesh supports. Grids were rinsed briefly with PBS and manually blotted before plunging into liquid ethane.	Resolution 35.00 Å
7R5J Human nuclear pore complex (dilated) Deposited 2022-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 808 PDB declaration: 808-meric	Chain H0 1–507（507 aa） Chain H1 1–507（507 aa） Chain H2 1–507（507 aa） Chain H3 1–507（507 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 50.00 Å
7R5K Human nuclear pore complex (constricted) Deposited 2022-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 808 PDB declaration: 808-meric	Chain H0 1–507（507 aa） Chain H1 1–507（507 aa） Chain H2 1–507（507 aa） Chain H3 1–507（507 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 12.00 Å

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NUP54_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–40； UniProt 453–491 Author chain C； PDBConstruct 2–40； UniProt 453–491

Nucleoporin p58/p45

Homo sapiens

UniProt Q9BVL2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 341–426	Fragment：UNP residues 341-426	Nucleoporin p54 × 2 （Q7Z3B4）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 3.8；294 K；0.1 M sodium citrate, pH 3.8, 0.07 M calcium chloride, VAPOR DIFFUSION, temperature 294.0K	Resolution 2.50 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4JO9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4JO7 Crystal structure of the human Nup49CCS2+3* Nup57CCS3* complex with 2:2 stoichiometry Deposited 2013-03-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 341–428（88 aa） Fragment：UNP residues 341-428 Chain C 341–428（88 aa） Fragment：UNP residues 341-428	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M MES, pH 6.5, 6.7% PEG20000, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 1.75 Å R-free 0.214
4JO7 Crystal structure of the human Nup49CCS2+3* Nup57CCS3* complex with 2:2 stoichiometry Deposited 2013-03-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 341–428（88 aa） Fragment：UNP residues 341-428 Chain G 341–428（88 aa） Fragment：UNP residues 341-428	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M MES, pH 6.5, 6.7% PEG20000, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 1.75 Å R-free 0.214
4JQ5 Crystal structure of the human Nup49CCS2+3* coiled-coil segment Deposited 2013-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 341–425（85 aa） Fragment：UNP residues 341-425 Chain B 341–425（85 aa） Fragment：UNP residues 341-425 Chain C 341–425（85 aa） Fragment：UNP residues 341-425 Chain D 341–425（85 aa） Fragment：UNP residues 341-425	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；10% glycerol, 28% dioxane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 2.19 Å R-free 0.293
4JQ5 Crystal structure of the human Nup49CCS2+3* coiled-coil segment Deposited 2013-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain E 341–425（85 aa） Fragment：UNP residues 341-425 Chain F 341–425（85 aa） Fragment：UNP residues 341-425 Chain G 341–425（85 aa） Fragment：UNP residues 341-425 Chain H 341–425（85 aa） Fragment：UNP residues 341-425	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；10% glycerol, 28% dioxane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 2.19 Å R-free 0.293
4JQ5 Crystal structure of the human Nup49CCS2+3* coiled-coil segment Deposited 2013-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain I 341–425（85 aa） Fragment：UNP residues 341-425 Chain J 341–425（85 aa） Fragment：UNP residues 341-425 Chain K 341–425（85 aa） Fragment：UNP residues 341-425 Chain L 341–425（85 aa） Fragment：UNP residues 341-425	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；10% glycerol, 28% dioxane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 2.19 Å R-free 0.293
5IJN Composite structure of the inner ring of the human nuclear pore complex (32 copies of Nup205) Deposited 2016-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 208 PDB declaration: 208-meric	Chain G 1–599（599 aa） Chain M 1–599（599 aa） Chain S 1–599（599 aa） Chain Y 1–599（599 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 21.40 Å
5IJO Alternative composite structure of the inner ring of the human nuclear pore complex (16 copies of Nup188, 16 copies of Nup205) Deposited 2016-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 208 PDB declaration: 208-meric	Chain G 1–599（599 aa） Chain M 1–599（599 aa） Chain S 1–599（599 aa） Chain Y 1–599（599 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 21.40 Å
7PER Model of the inner ring of the human nuclear pore complex Deposited 2021-08-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 192 PDB declaration: 192-meric	Chain G 1–599（599 aa） Chain M 1–599（599 aa） Chain S 1–599（599 aa） Chain Y 1–599（599 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE；Cells were grown on holey carbon, Au-mesh supports. Grids were rinsed briefly with PBS and manually blotted before plunging into liquid ethane.	Resolution 35.00 Å
7R5J Human nuclear pore complex (dilated) Deposited 2022-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 808 PDB declaration: 808-meric	Chain I0 1–599（599 aa） Chain I1 1–599（599 aa） Chain I2 1–599（599 aa） Chain I3 1–599（599 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 50.00 Å
7R5K Human nuclear pore complex (constricted) Deposited 2022-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 808 PDB declaration: 808-meric	Chain I0 1–599（599 aa） Chain I1 1–599（599 aa） Chain I2 1–599（599 aa） Chain I3 1–599（599 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 12.00 Å

7 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NUPL1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–87； UniProt 341–426

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4jo9
Deposition date deposition_date	2013-03-18
Structure title title	Crystal structure of the human Nup49CCS2+3* Nup57CCS3* complex 1:2 stoichiometry
Keywords keywords	nucleocytoplasmic transport, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.67 Å
Radius of gyration Rg (electron density) rg_electron	21.56 Å
Forward intensity I(0) i0	6493420.00
Molecular weight molecular_weight	18969.0 kDa
Excluded volume excluded_volume	23958 Å³
Envelope volume envelope_volume	31512 Å³
Hydration-shell volume shell_volume	13971 Å³
Envelope diameter envelope_diameter	81.5 Å
Shell Rg shell_rg	25.38 Å
Envelope Rg envelope_rg	22.24 Å
Shape Rg shape_rg	21.54 Å
Total Rg total_rg	22.26 Å
Total atoms total_atoms	2695
Residues n_residues	161
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.8 Å
Rg (real space) rg_real	22.04 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	6.4930e+06
I(0) uncertainty (real space) i0_real_error	9.2480e+04
Rg (reciprocal space) rg_reciprocal	21.97 Å
I(0) (reciprocal space) i0_reciprocal	6493000.0000
Solution quality estimate total_estimate	0.7438
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.8 Å
Skewness Skewness skewness	0.697
Kurtosis Kurtosis kurtosis	0.124
Angular range angular_range	— – 0.3650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	722500.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.476; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.302; Smooth: 0.934

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nucleoporin p54
Molecular weight formula_weight	4729.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	2712

SYYIDADLLREIKQHLKQQQEGLSHLISIIKDDLEDIKLV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nucleoporin p58/p45
Molecular weight formula_weight	10195.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SAPADYFRILVQQFEVQLQQYRQQIEELENHLATQANNSHITPQDLSMAMQKIYQTFVALAAQLQSIHENVKVLKEQYLGYRKMFLG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	17

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4jo9B00
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	1350 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.483 Å
Unit-cell length b length_b	55.483 Å
Unit-cell length c length_c	191.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 2 2
Space-group number int_tables_number	91
Crystal system crystal_system	—

Resolution resolution	2.499 Å
Low-resolution limit resolution_low	47.790 Å
R factor r_factor	0.2513
R_work r_work	0.2465
R_free r_free	0.2940

fit	/app/data/saxs_computation/jo/4jo9/4jo9.fit
pddf	/app/data/pr_computation/jo/4jo9/4jo9.pr.out
profile	/app/data/saxs_computation/jo/4jo9/4jo9.dat

Crystal structure of the human Nup49CCS2+3* Nup57CCS3* complex 1:2 stoichiometry

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin p54

State in the Current Structure

Other States of the Same Protein in the Database

Nucleoporin p58/p45

State in the Current Structure

Other States of the Same Protein in the Database

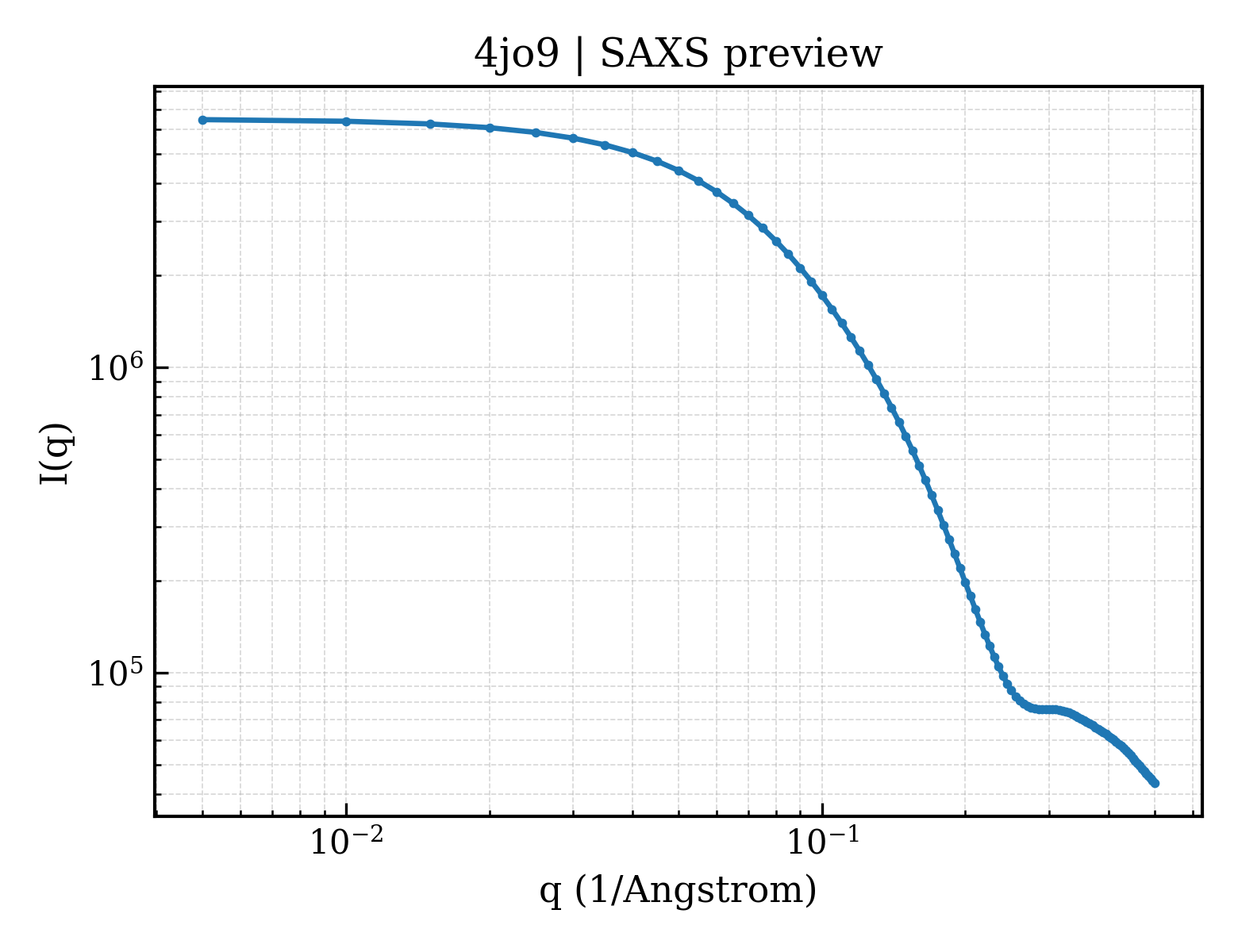

SAXS scattering curve SAXS Profile
